Delta ES48/50-HAA07 MCS-600 48V 50A Telecom Power Shelf CU-08D (NEW In Box)

The Delta ES48/50-HAA07 is a telecom DC power shelf from the Delta Electronics MCS-600 series. It is the rack mounting sub rack that houses plug in rectifier modules and a control and supervisory unit, forming the front end of a 48 volt DC power plant for telecommunications and network equipment. The shelf is rated at 48 volts nominal and 50 amps total, and accepts a 200 to 240 volt AC input.

This unit is supplied with the Delta CU-08D control and supervisory unit fitted, which handles rectifier supervision, alarms and battery management for the shelf. The rear panel carries threaded DC studs, copper busbars and a breaker. The unit is badged for the Australian market and carries the GFS Power RCM supplier code N14133. A printed Delta MCS-600 installation, operation and maintenance manual is included in the carton.

Specifications

Brand: Delta Electronics

Model: MCS-600 Power Shelf

Part Number: ES48/50-HAA07

Alternate Part Number: ES4850-HAA07

Product Type: Telecom DC power shelf, rectifier sub rack

System Rating: 48 V nominal, 50 A

AC Input: 200 to 240 V

DC Output: 54.3 V maximum

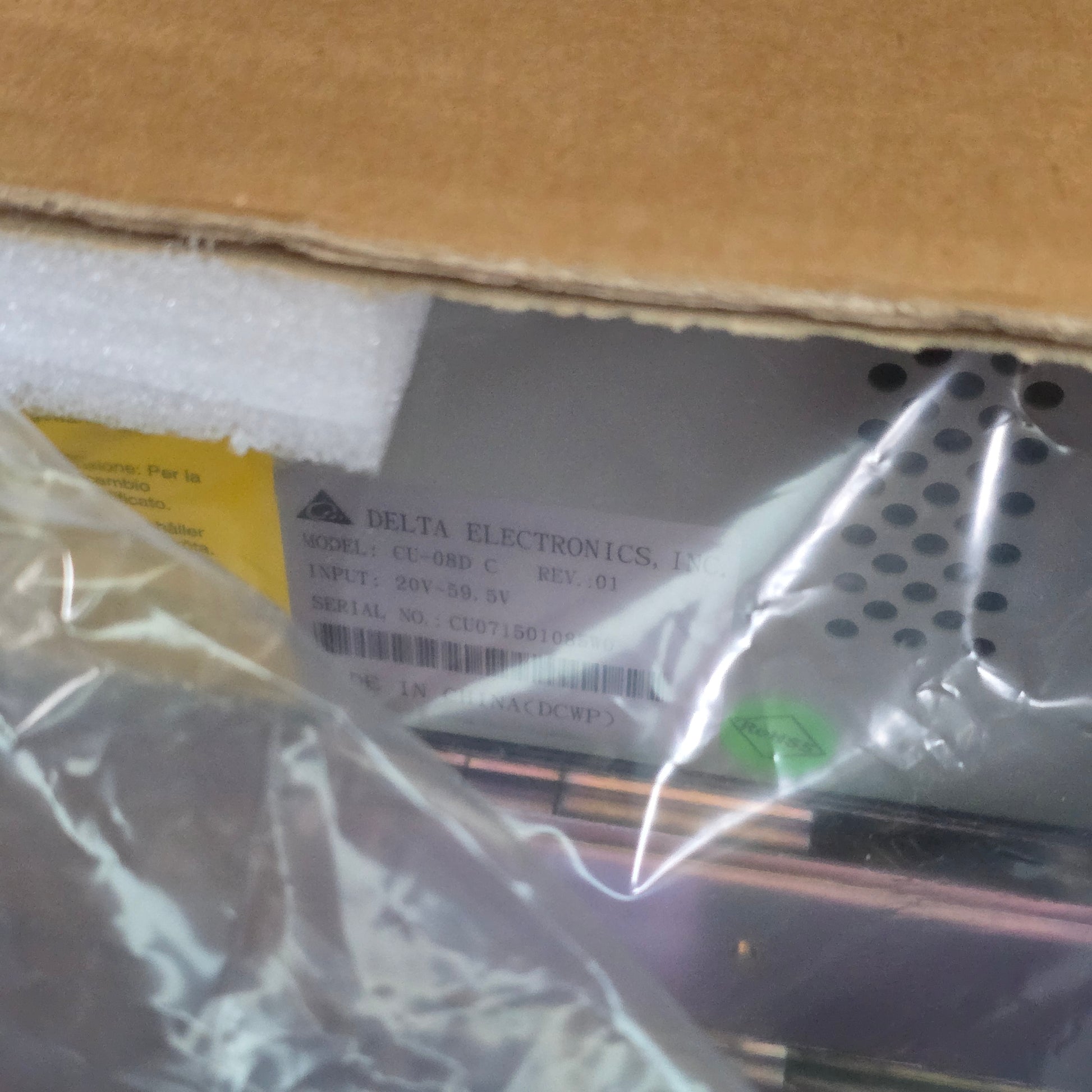

Controller: Delta CU-08D C Rev.01 control and supervisory unit, supplied fitted

Controller Input Range: 20 to 59.5 V DC

Compatible Rectifiers: Delta ESR-48/10B A, 48 V DC 10 A plug in modules

Rear Connections: Threaded DC stud terminals, copper busbars, breaker

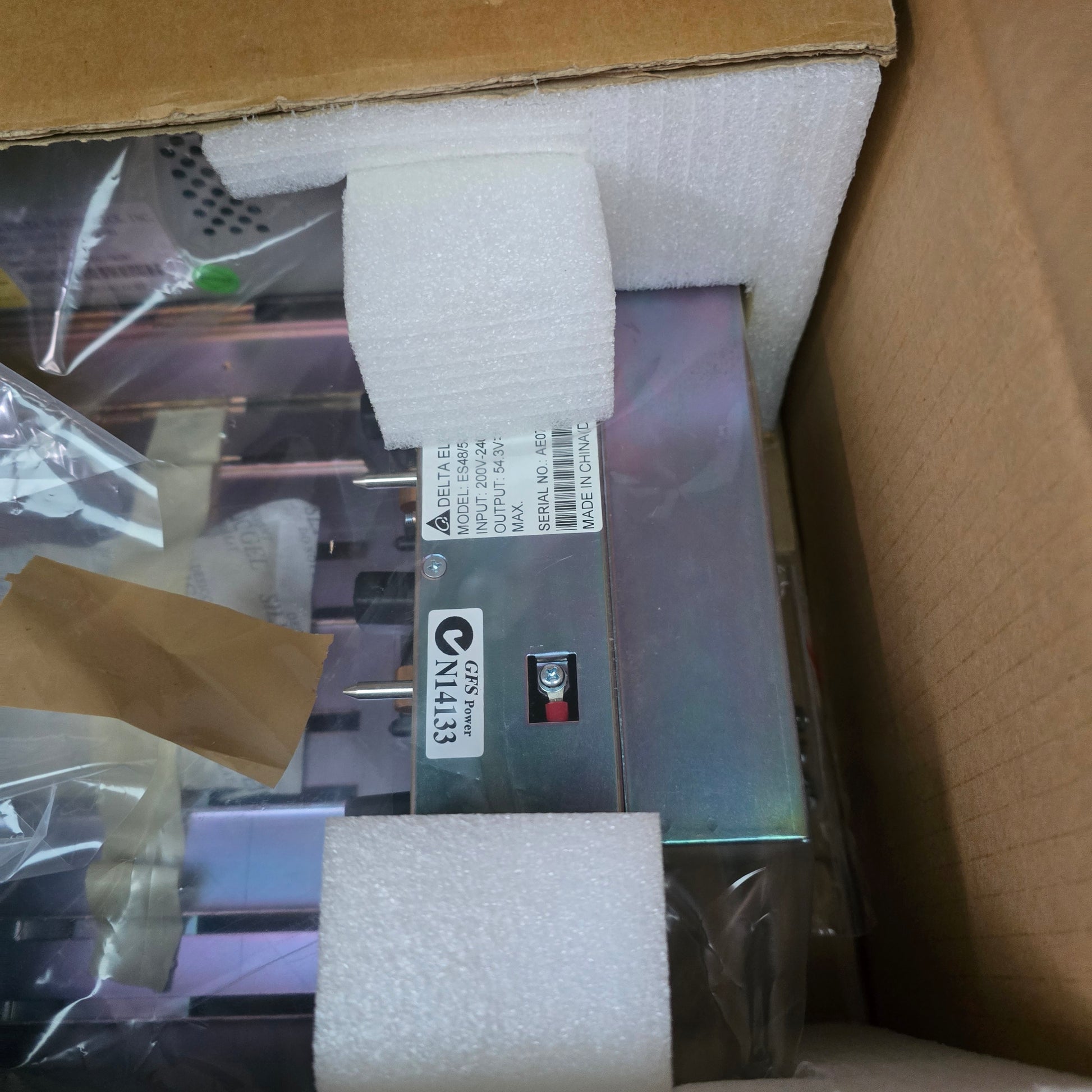

Compliance: RCM supplier code N14133, GFS Power Pty Ltd

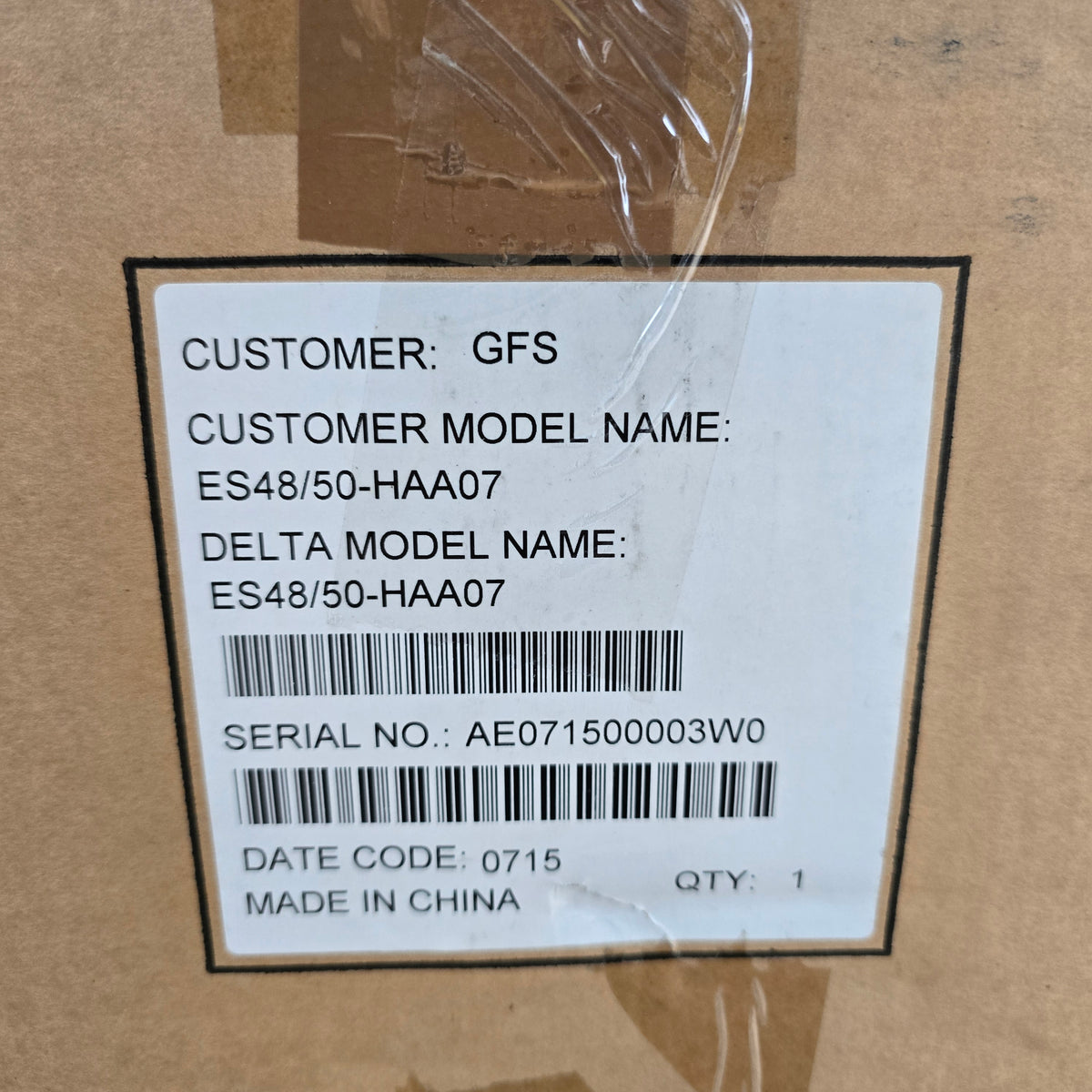

Serial Number: AE071500003W0

Date Code: 0715, approximately July 2015

Country of Manufacture: China

Condition: New old stock, unused, in original carton

Key Features

• 48 V 50 A telecom power shelf from the Delta MCS-600 series
• Supplied with the CU-08D control and supervisory unit
• Wide 200 to 240 V AC input suits Australian mains
• Accepts Delta ESR-48/10B A plug in rectifier modules
• Rear stud and busbar DC distribution
• RCM marked for Australian supply

Typical Applications

• 48 V DC power plants for telecommunications exchanges
• Network and transmission equipment cabinets
• Base station and remote site DC power
• Replacement shelf for an existing Delta MCS-600 installation

Package Includes

• One Delta ES48/50-HAA07 MCS-600 power shelf
• One Delta CU-08D C Rev.01 control and supervisory unit
• Printed Delta MCS-600 installation, operation and maintenance manual

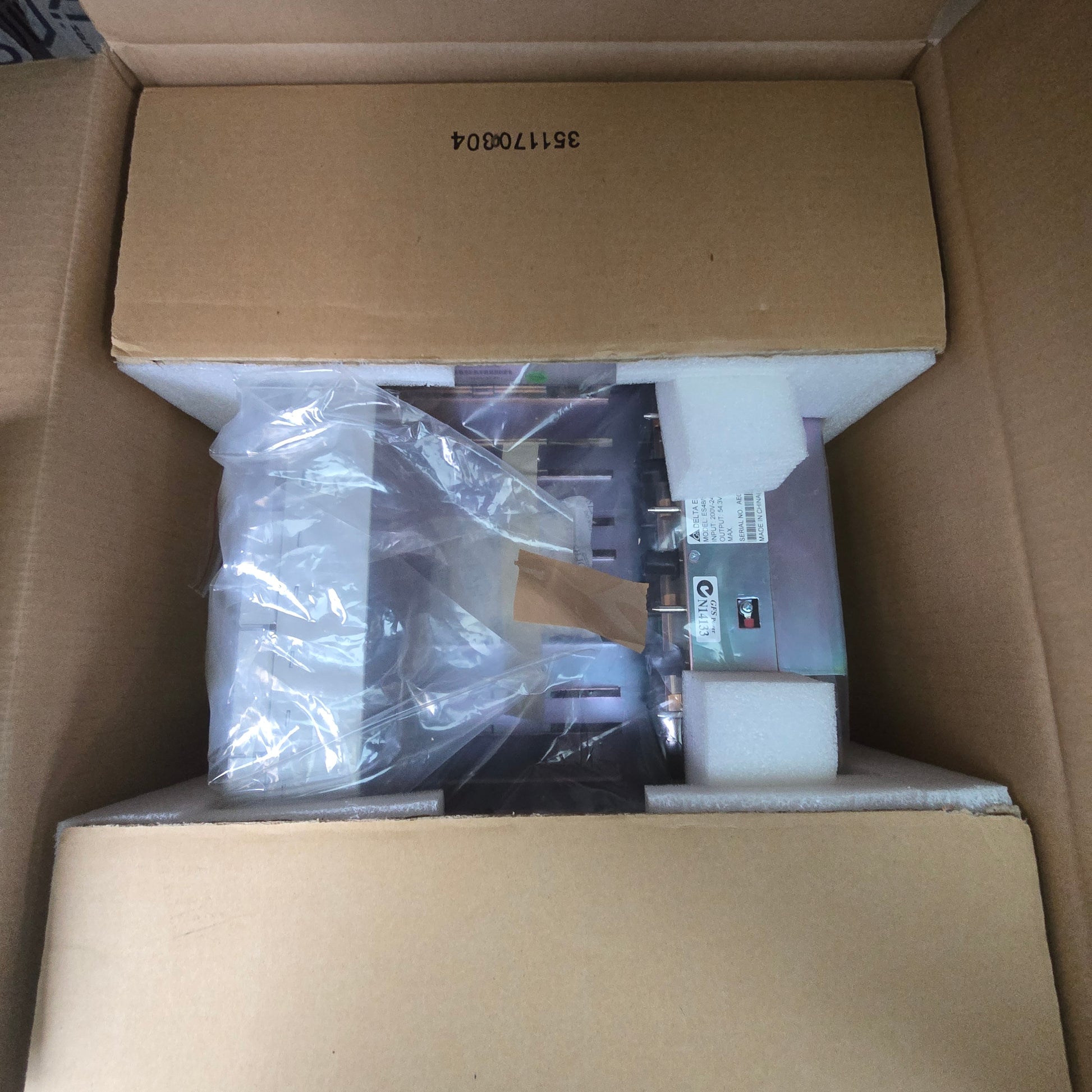

• Original carton and foam packing
• No rectifier modules are included, see the note below
• No batteries, cables or rack fixings are included

Additional Information

Please read this before ordering. This item is the power shelf and controller only. Delta ESR-48/10B A rectifier modules are ordered separately and none are visible in the packaging. Without rectifier modules fitted the shelf produces no DC output. Five 10 amp modules are required to reach the shelf's rated 50 amp capacity.

The carton date code is 0715, which places manufacture at approximately July 2015. The unit is unused and has been stored since. It has not been powered up or functionally tested, and electrolytic capacitors in stored power equipment of this age may require reforming before service.

The RCM supplier code N14133 belongs to GFS Power Pty Ltd, the original Australian supplier of record, not to the seller.

Confirm the AC input configuration and connector type against your site requirements before purchase.

The item is new old stock and the packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
