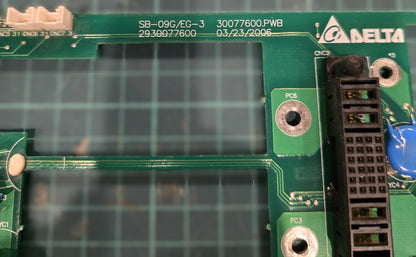

Delta 5505602179 SB-09G/EG-3 2930077600 Smart CSU Backplane PCB (Pre-owned)

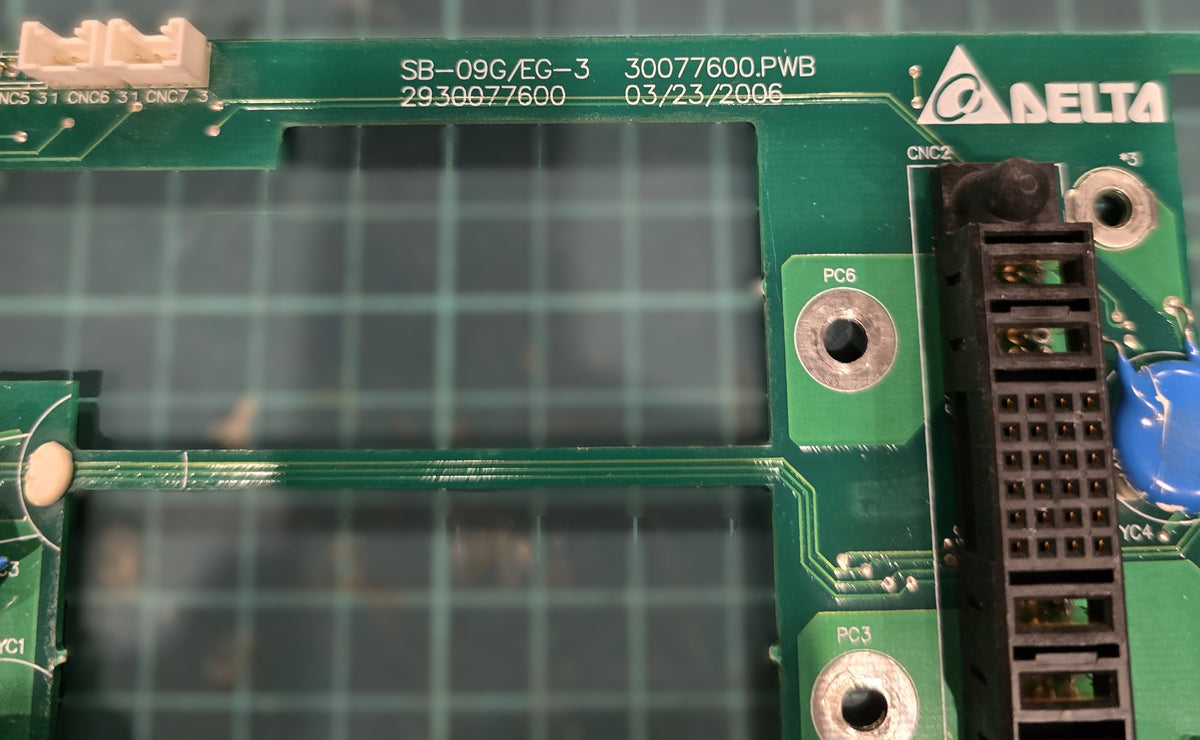

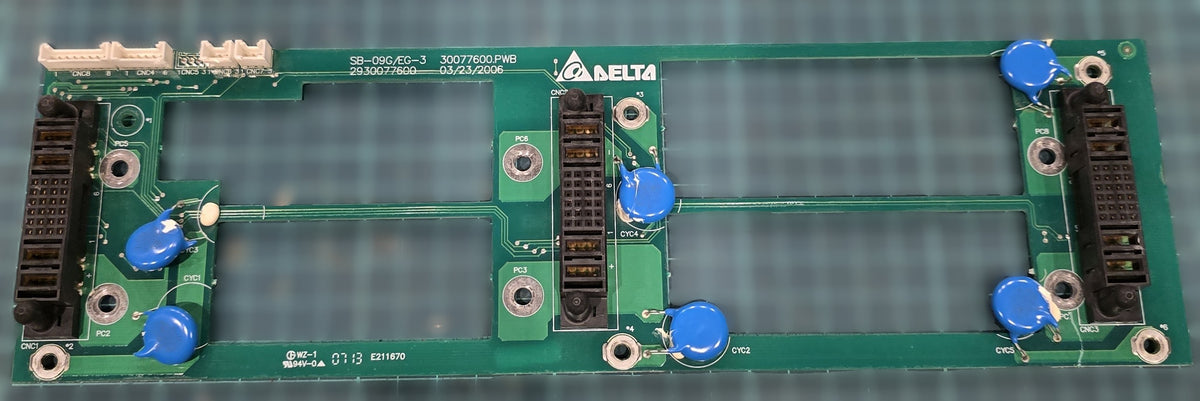

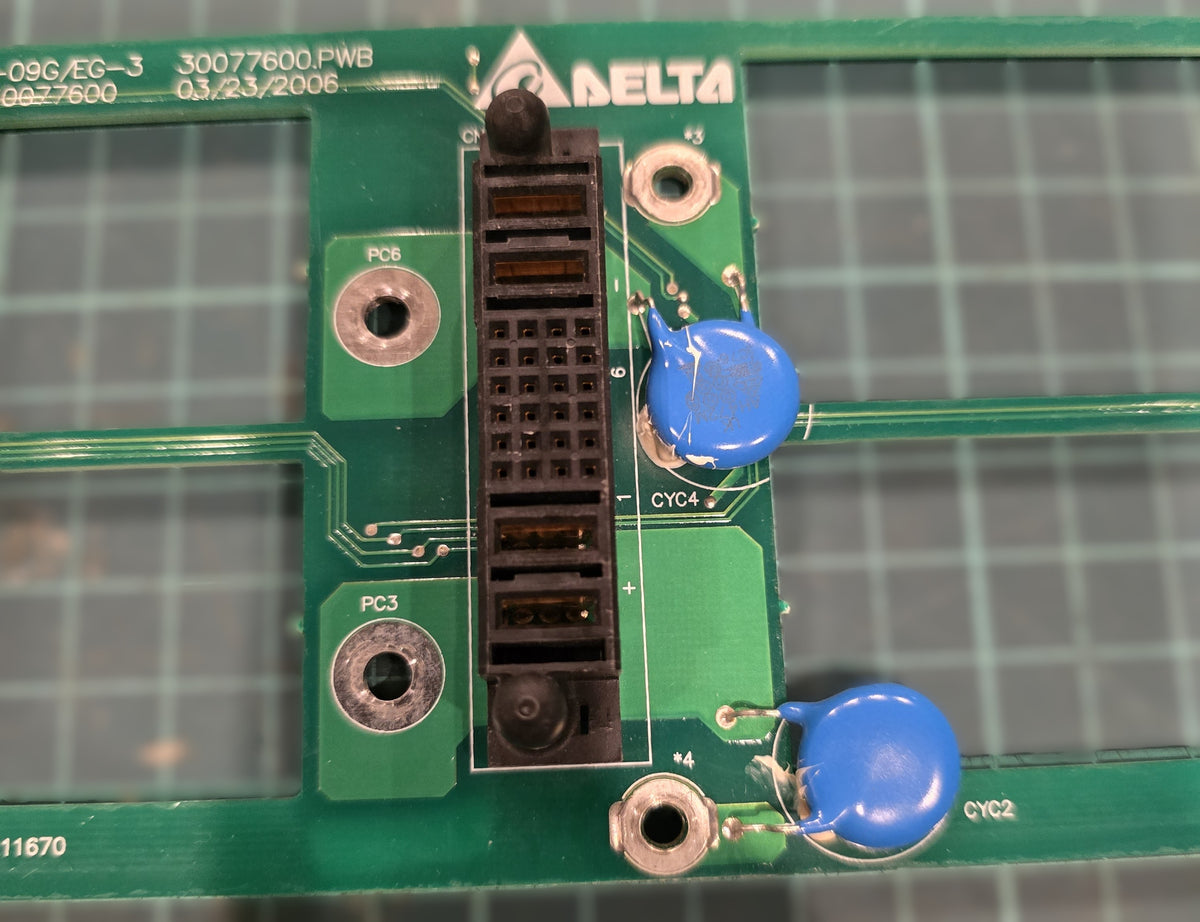

This is a Delta Electronics SB-09G/EG-3 backplane PCB, 2930077600, assembly number 5505602179, removed from a Delta MCS-1800 / MCS-3000 series telecom DC power system fitted with the Smart CSU (Control and Supervisory Unit, marked CM-2 on the labels). It is a long narrow interconnect board with three two-row connector blocks and MOV surge suppressors that links the controller, I/O and display sub-boards.

Delta does not publish board level documentation for these systems, so the function is described from the board markings and its position in the system. The board is a used pull, sold untested, as a spare for repair of the same Delta equipment. Please match the part numbers in the photographs to your equipment before purchase.

Specifications

Brand: Delta Electronics

Model: SB-09G/EG-3 backplane PCB

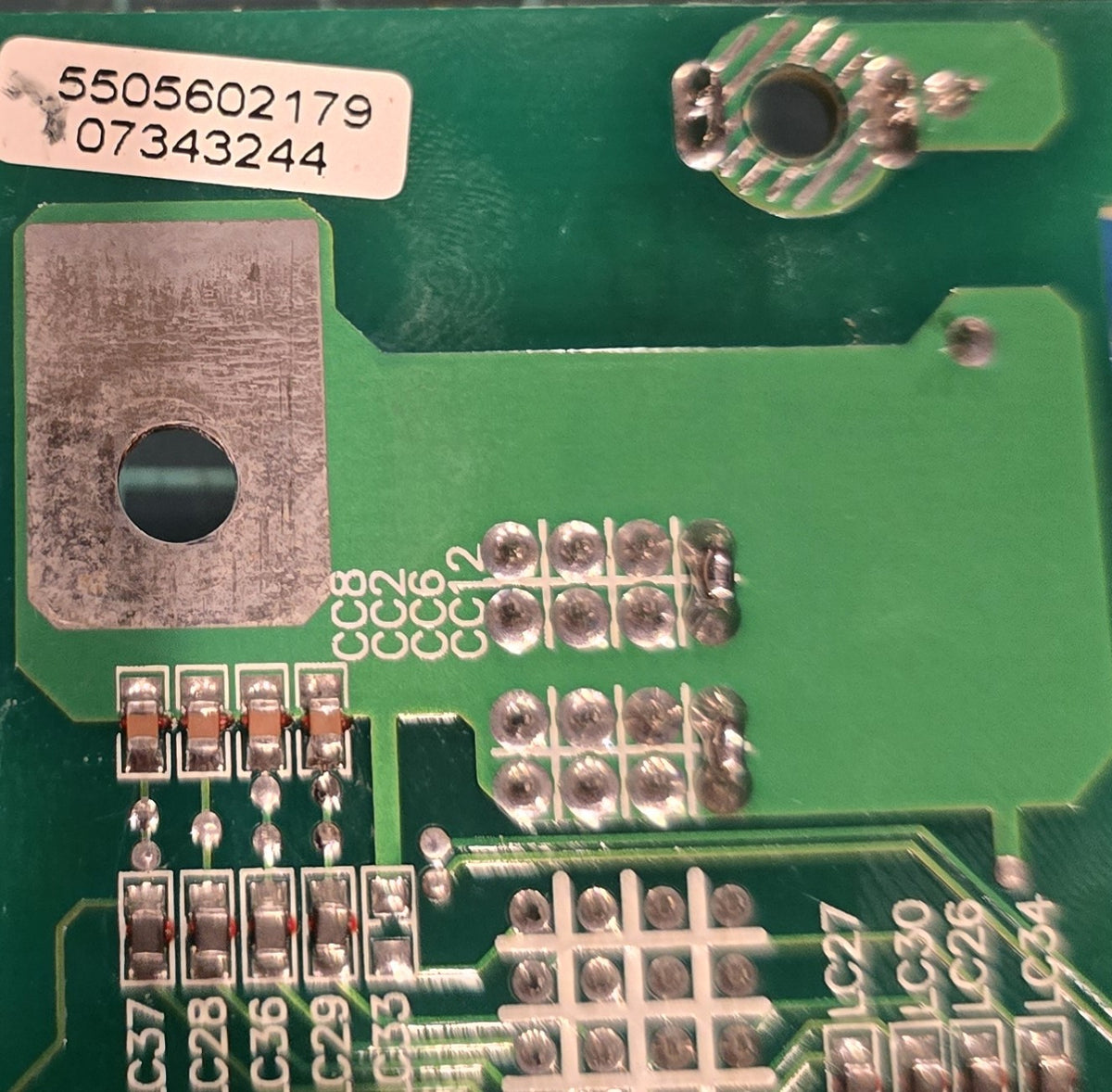

Part Number: 5505602179

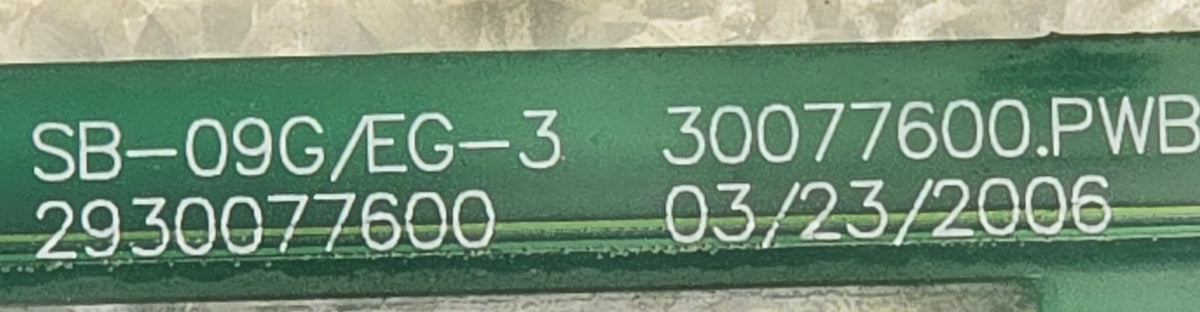

Alternate Part Number: 2930077600, 30077600.PWB

Product Type: Backplane PCB

Parent System: Delta MCS-1800 / MCS-3000 DC power system, Smart CSU (CM-2)

Condition: Used, removed from equipment, untested

Key Features

• Genuine Delta Electronics sub-assembly
• Part numbers clearly labelled for matching
• Sold as a spare for the same Delta system

Typical Applications

• Repair of Delta MCS-1800 and MCS-3000 telecom rectifier systems
• Replacement of a failed Smart CSU sub-board

Package Includes

• 1 x Delta SB-09G/EG-3 backplane board as photographed

Additional Information

Price is per board. Two units are available.

The board has not been electrically tested.

This is a used item and may show minor cosmetic marks from previous use. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
