Delta 5505602123 CU-15W-13 2930086600 MCS-1800 CSU Controller Board (Pre-owned)

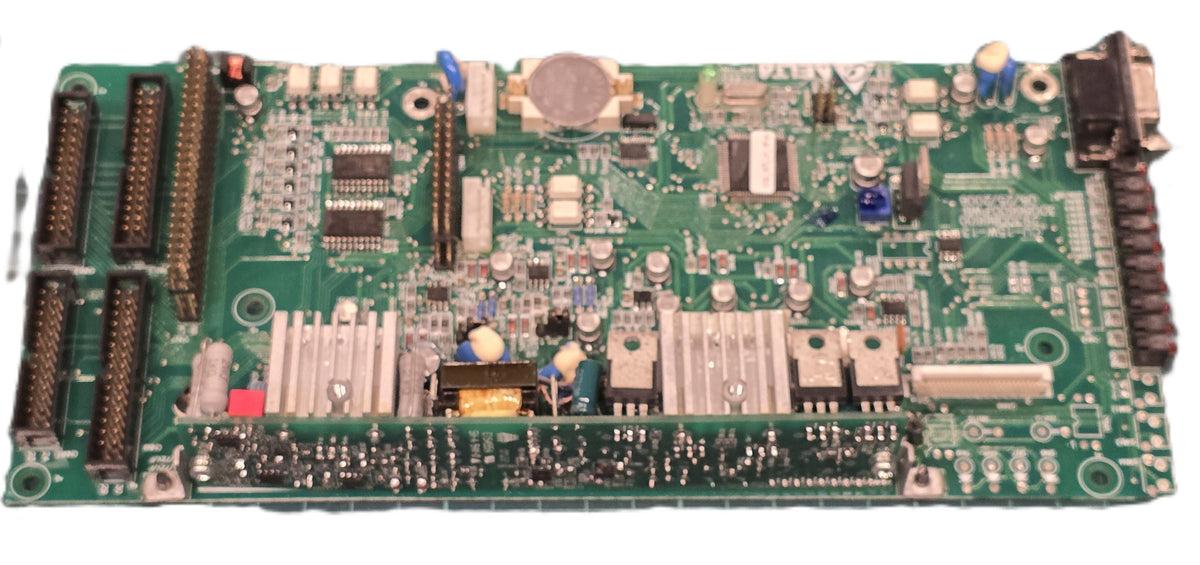

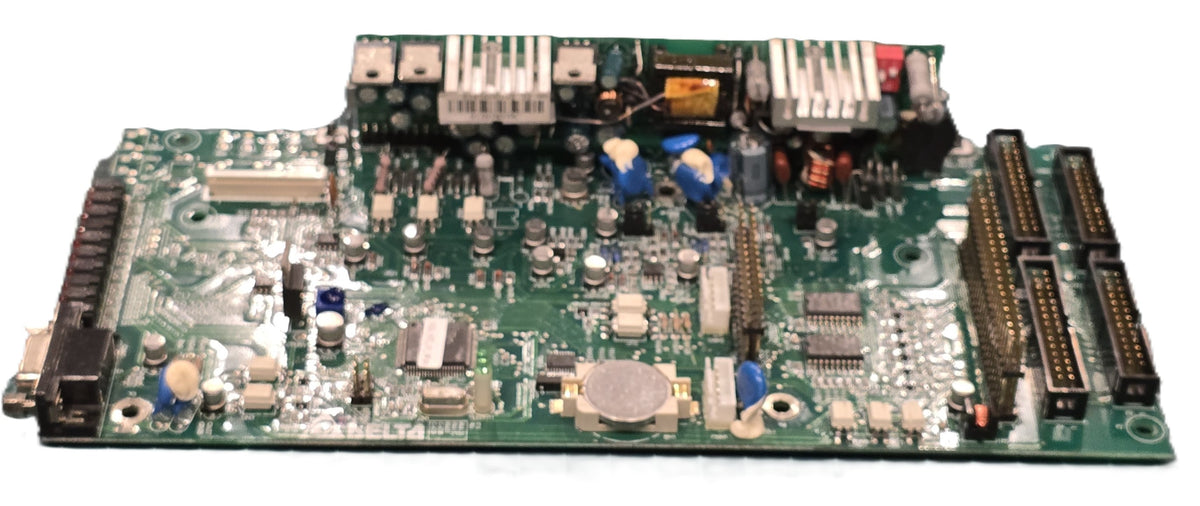

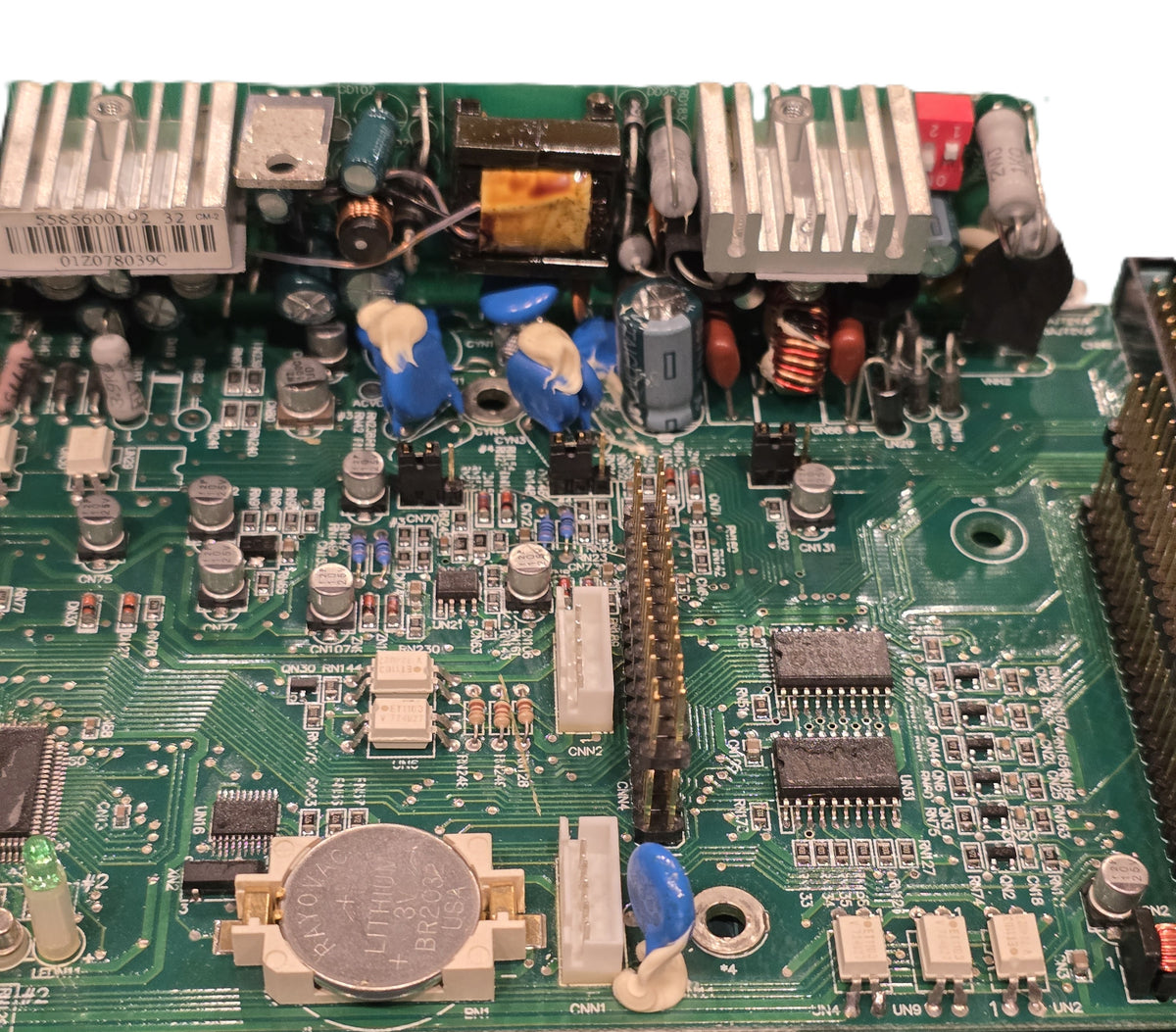

This is a Delta Electronics CU-15W-13 main controller board, 2930086600, assembly number 5505602123, removed from a Delta MCS-1800 / MCS-3000 series telecom DC power system fitted with the Smart CSU (Control and Supervisory Unit, marked CM-2 on the labels). It is the main CPU board of the controller, with status LEDs, heatsinked regulators, a coin cell backed real time clock and a D-sub port, and it monitors the rectifiers, battery and alarms.

Delta does not publish board level documentation for these systems, so the function is described from the board markings and its position in the system. The board is a used pull, sold untested, as a spare for repair of the same Delta equipment. Please match the part numbers in the photographs to your equipment before purchase.

Specifications

Brand: Delta Electronics

Model: CU-15W-13 main controller board

Part Number: 5505602123

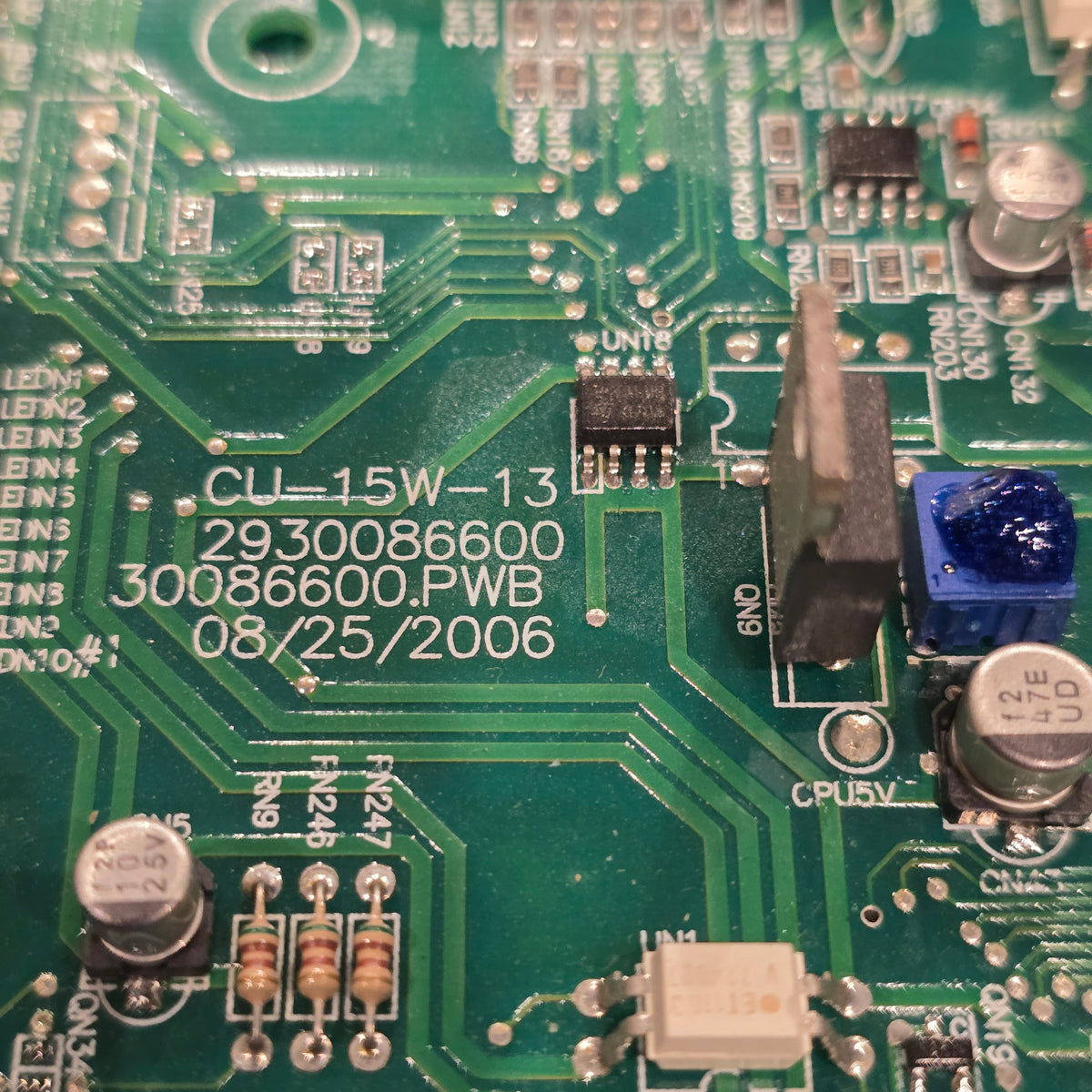

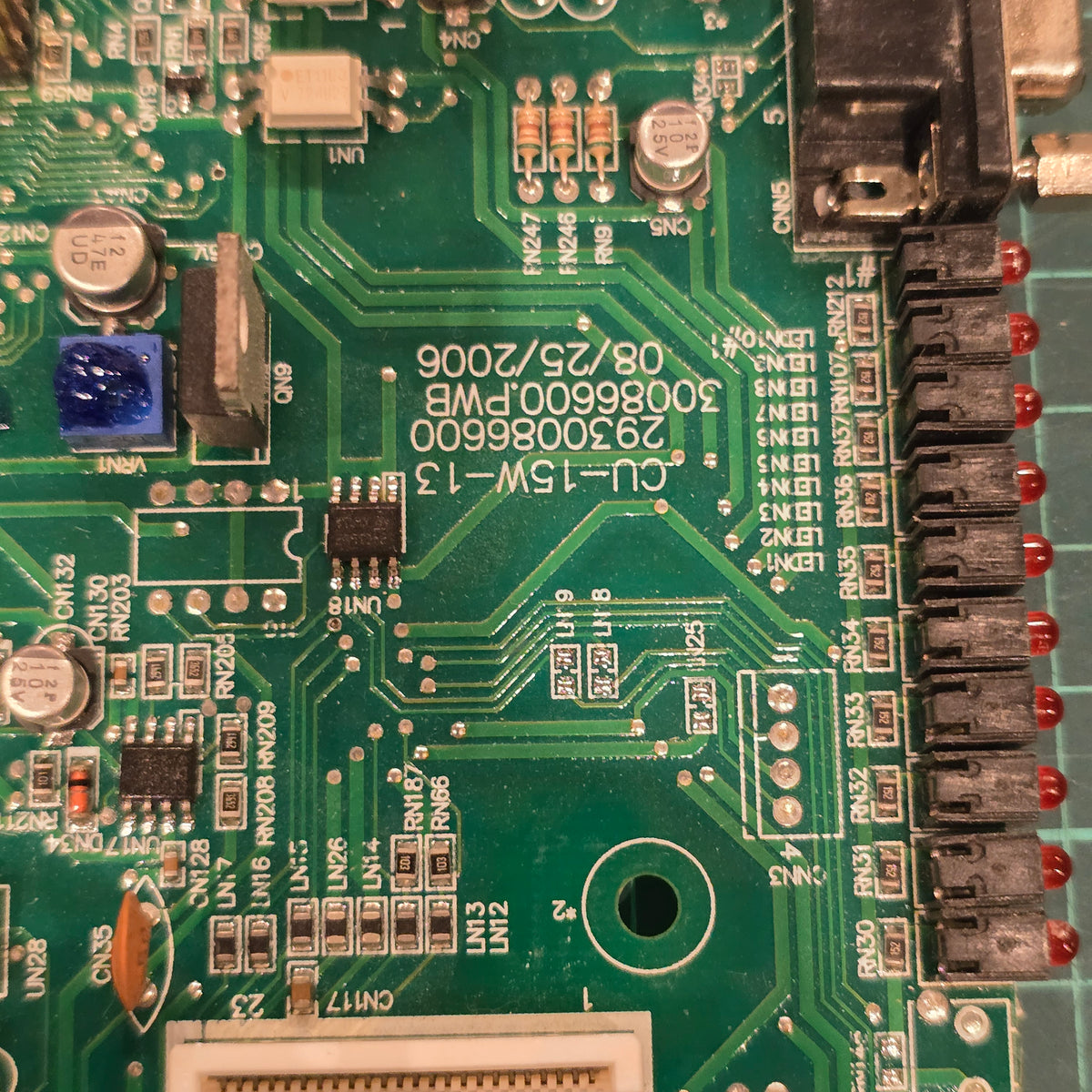

Alternate Part Number: 2930086600, 30086600.PWB, MCS-1800

Product Type: Controller PCB

Parent System: Delta MCS-1800 / MCS-3000 DC power system, Smart CSU (CM-2)

Condition: Used, removed from equipment, untested

Key Features

• Genuine Delta Electronics sub-assembly
• Part numbers clearly labelled for matching
• Sold as a spare for the same Delta system

Typical Applications

• Repair of Delta MCS-1800 and MCS-3000 telecom rectifier systems
• Replacement of a failed Smart CSU sub-board

Package Includes

• 1 x Delta CU-15W-13 controller board as photographed

Additional Information

No firmware or configuration is guaranteed.

The board has not been electrically tested.

This is a used item and may show minor cosmetic marks from previous use. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
