Delta 5505602114 CU-15W-14 2930086701 Smart CSU Relay I/O Board (Pre-owned)

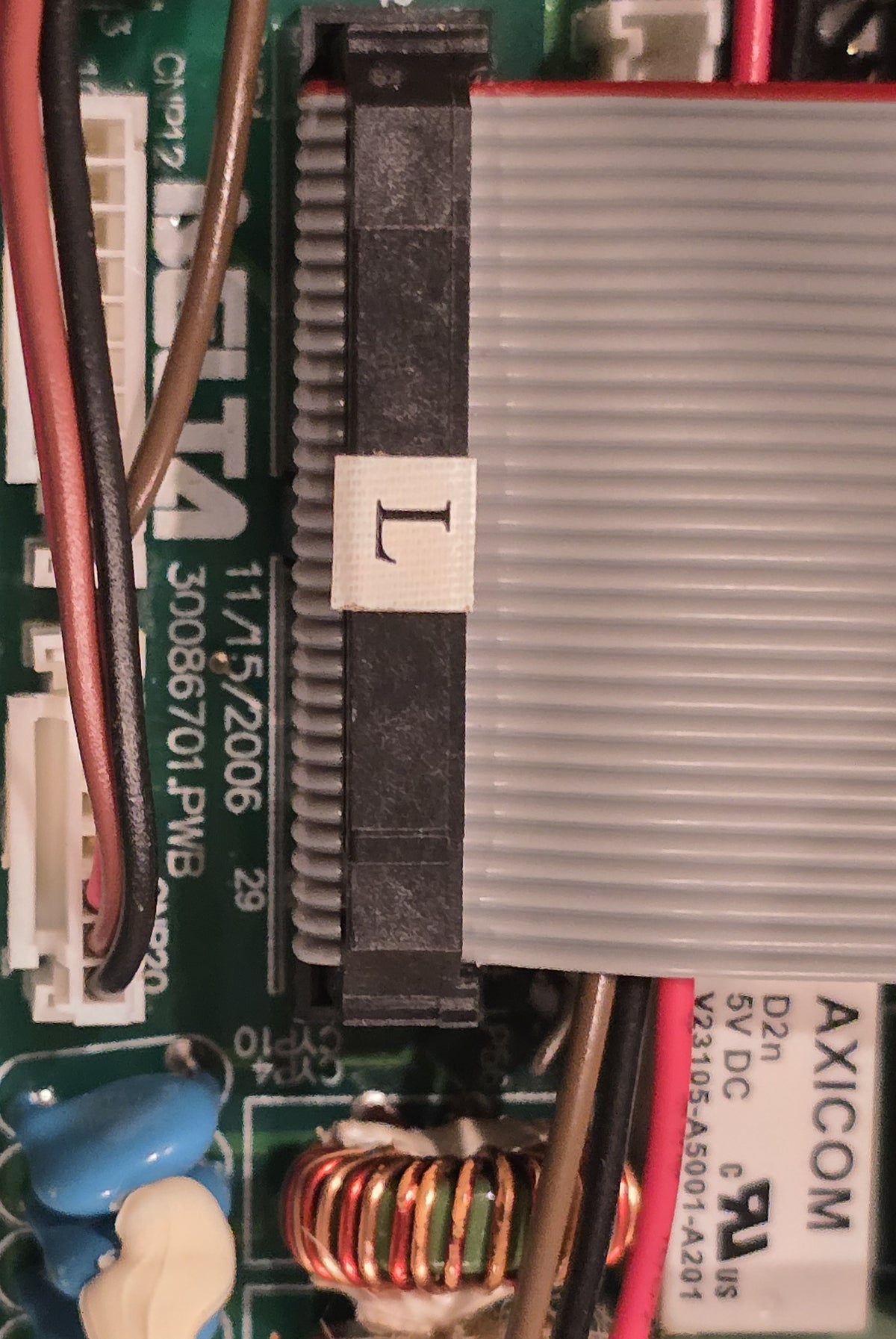

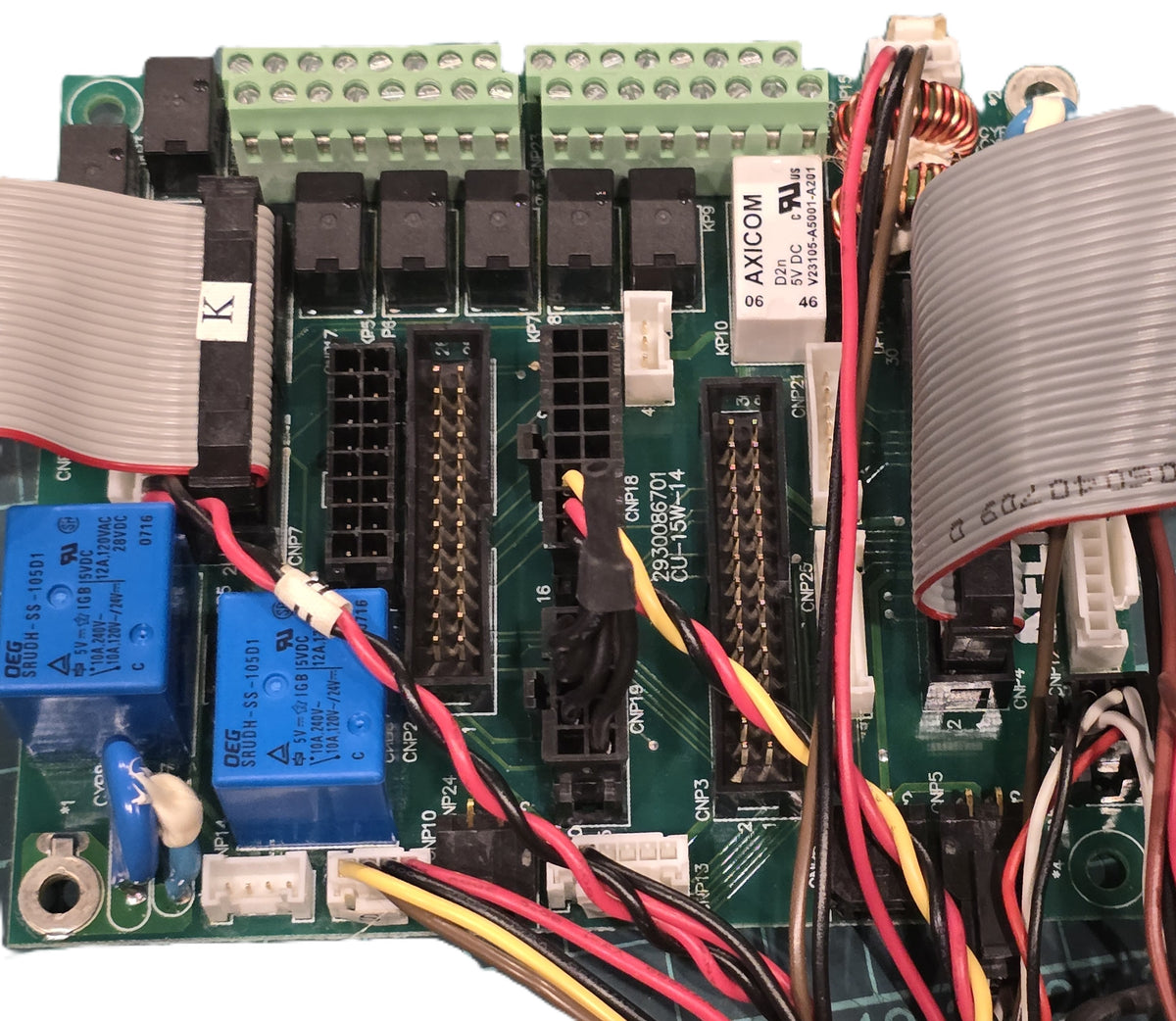

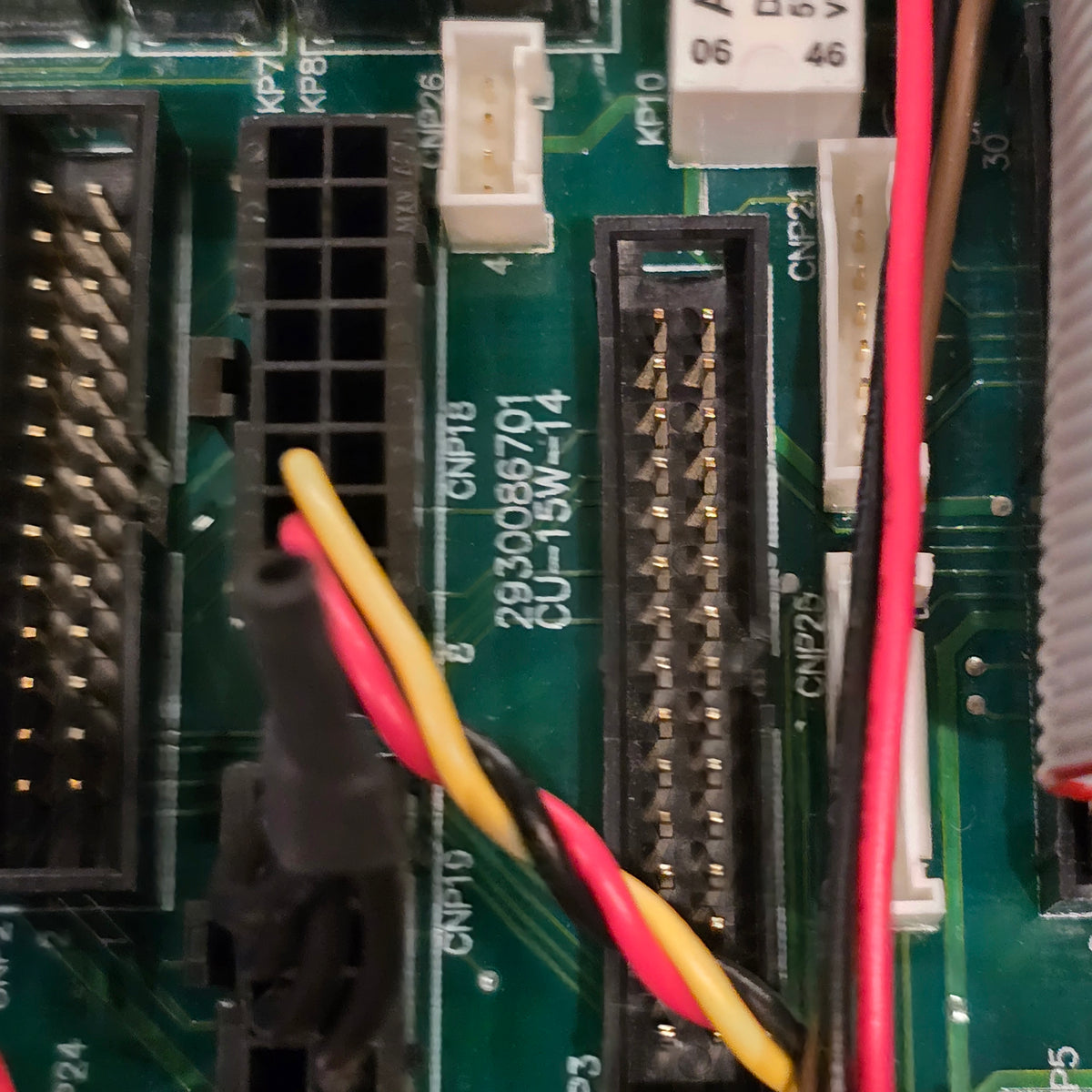

This is a Delta Electronics CU-15W-14 relay I/O board, 2930086701, assembly number 5505602114, removed from a Delta MCS-1800 / MCS-3000 series telecom DC power system fitted with the Smart CSU (Control and Supervisory Unit, marked CM-2 on the labels). It carries Axicom and Tyco SRUDH relays for dry contact alarm outputs, green pluggable terminal blocks for site alarm wiring, and connects to the controller by the ribbon cables supplied.

Delta does not publish board level documentation for these systems, so the function is described from the board markings and its position in the system. The board is a used pull, sold untested, as a spare for repair of the same Delta equipment. Please match the part numbers in the photographs to your equipment before purchase.

Specifications

Brand: Delta Electronics

Model: CU-15W-14 relay I/O board

Part Number: 5505602114

Alternate Part Number: 2930086701, 30086701.PWB, CM-2

Product Type: Relay I/O PCB

Parent System: Delta MCS-1800 / MCS-3000 DC power system, Smart CSU (CM-2)

Condition: Used, removed from equipment, untested

Key Features

• Genuine Delta Electronics sub-assembly

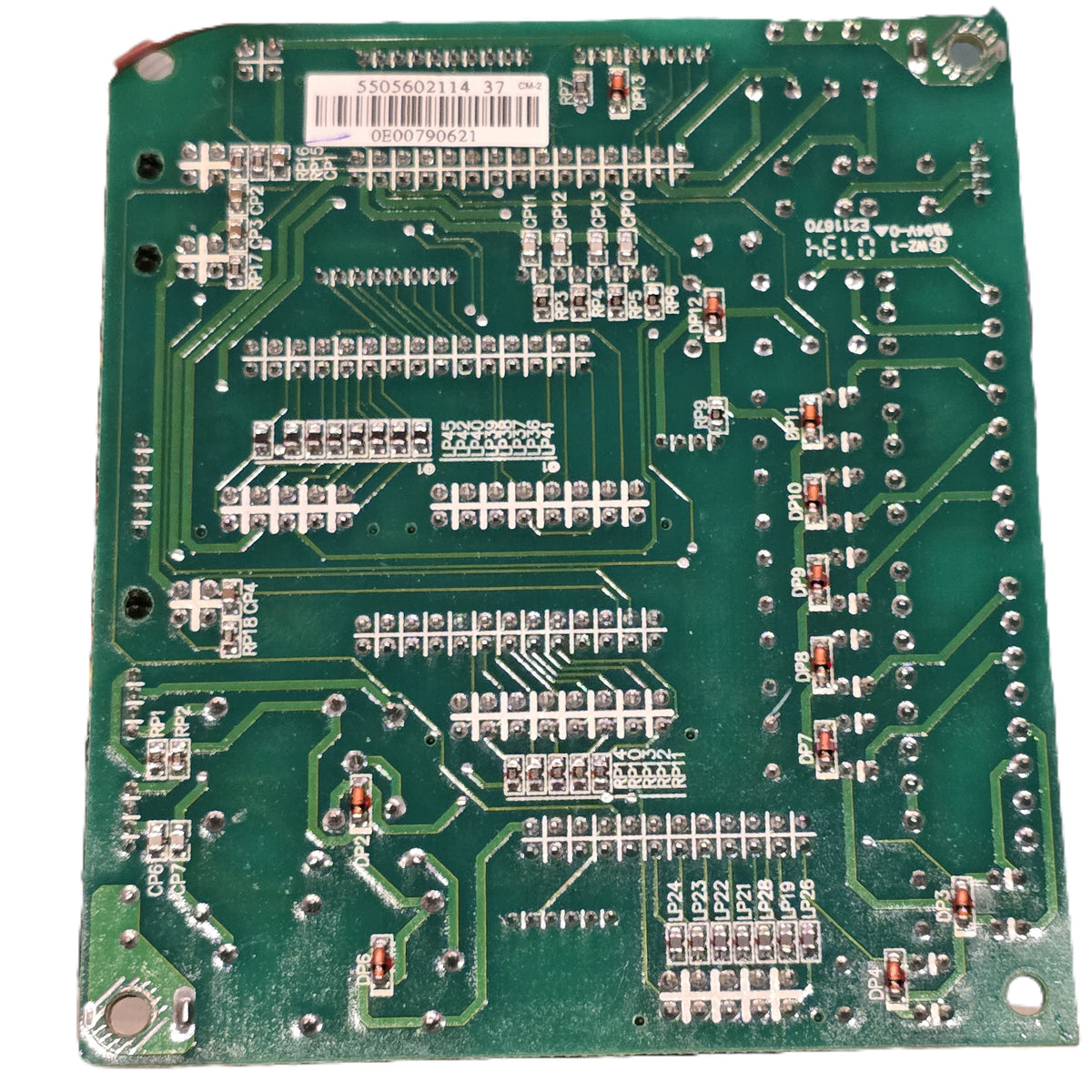

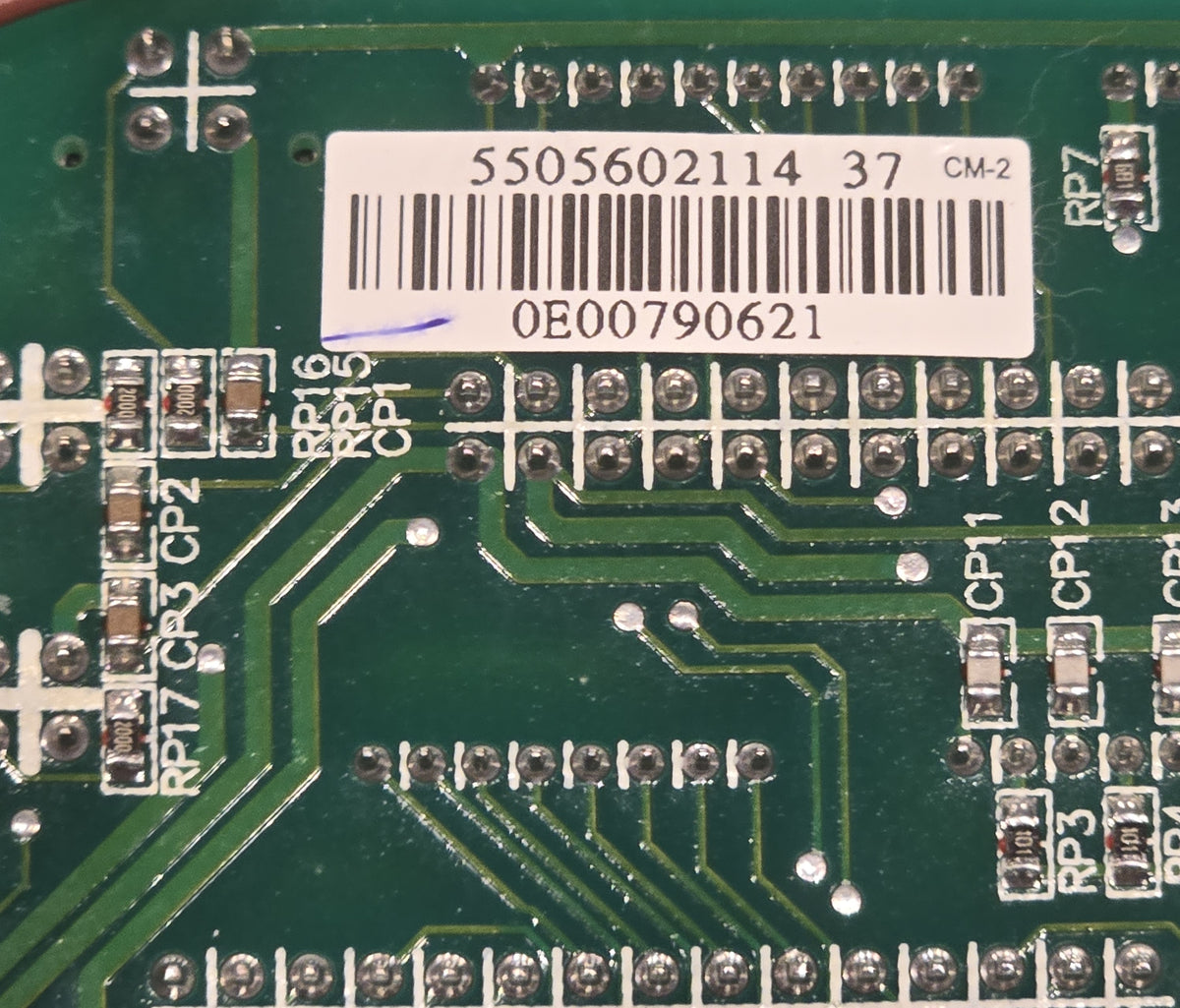

• Part numbers clearly labelled for matching
• Sold as a spare for the same Delta system

Typical Applications

• Repair of Delta MCS-1800 and MCS-3000 telecom rectifier systems
• Replacement of a failed Smart CSU sub-board

Package Includes

• 1 x Delta CU-15W-14 relay I/O board with attached ribbon cables as photographed

Additional Information

The board has not been electrically tested.

This is a used item and may show minor cosmetic marks from previous use. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
