Delta 5505601116 SB-09G/EG-2 2930077202 CSU Analogue Interface PCB (Pre-owned)

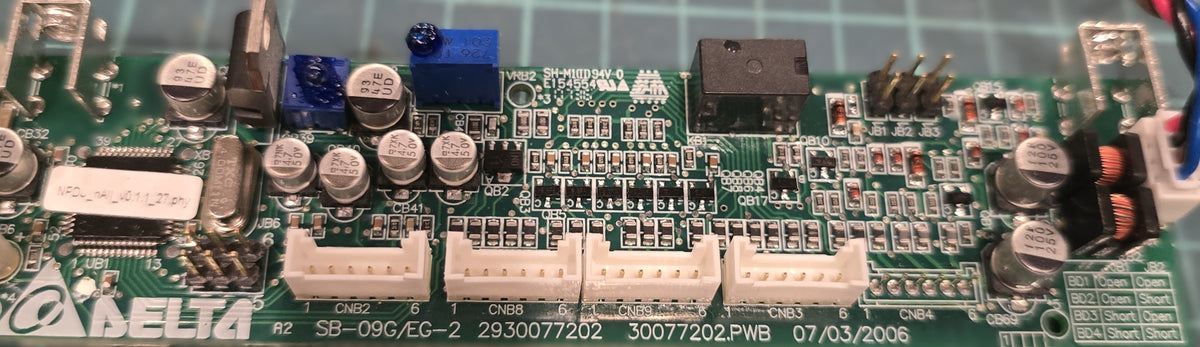

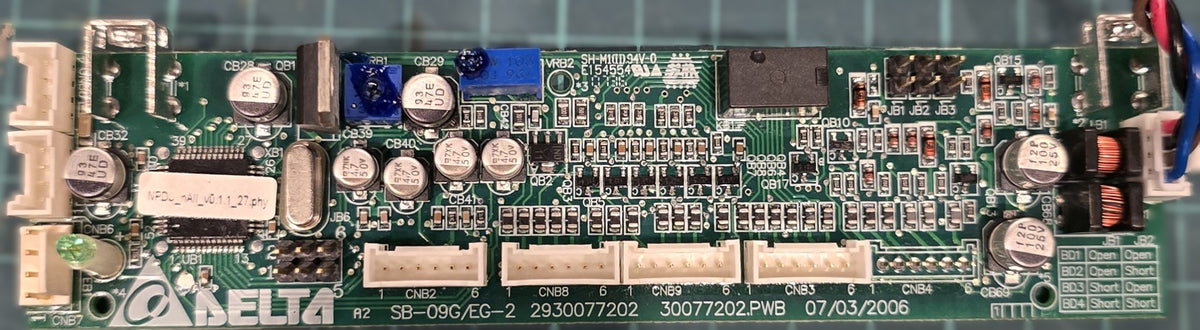

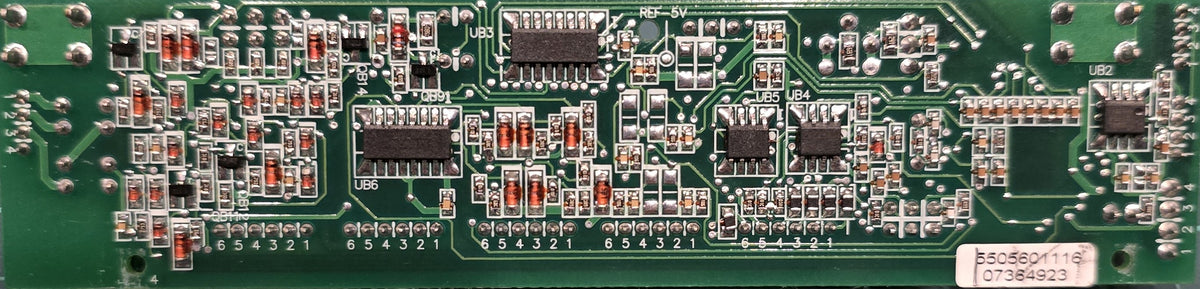

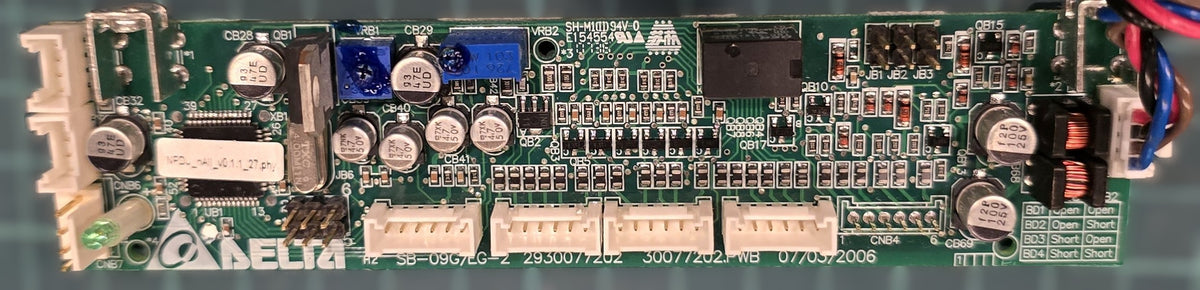

This is a Delta Electronics SB-09G/EG-2 analogue interface PCB, 2930077202, assembly number 5505601116, removed from a Delta MCS-1800 / MCS-3000 series telecom DC power system fitted with the Smart CSU (Control and Supervisory Unit, marked CM-2 on the labels). It is a long narrow sub-board with calibration trimpots and four white connectors that conditions the shunt, voltage and temperature sense inputs for the controller.

Delta does not publish board level documentation for these systems, so the function is described from the board markings and its position in the system. The board is a used pull, sold untested, as a spare for repair of the same Delta equipment. Please match the part numbers in the photographs to your equipment before purchase.

Specifications

Brand: Delta Electronics

Model: SB-09G/EG-2 analogue interface PCB

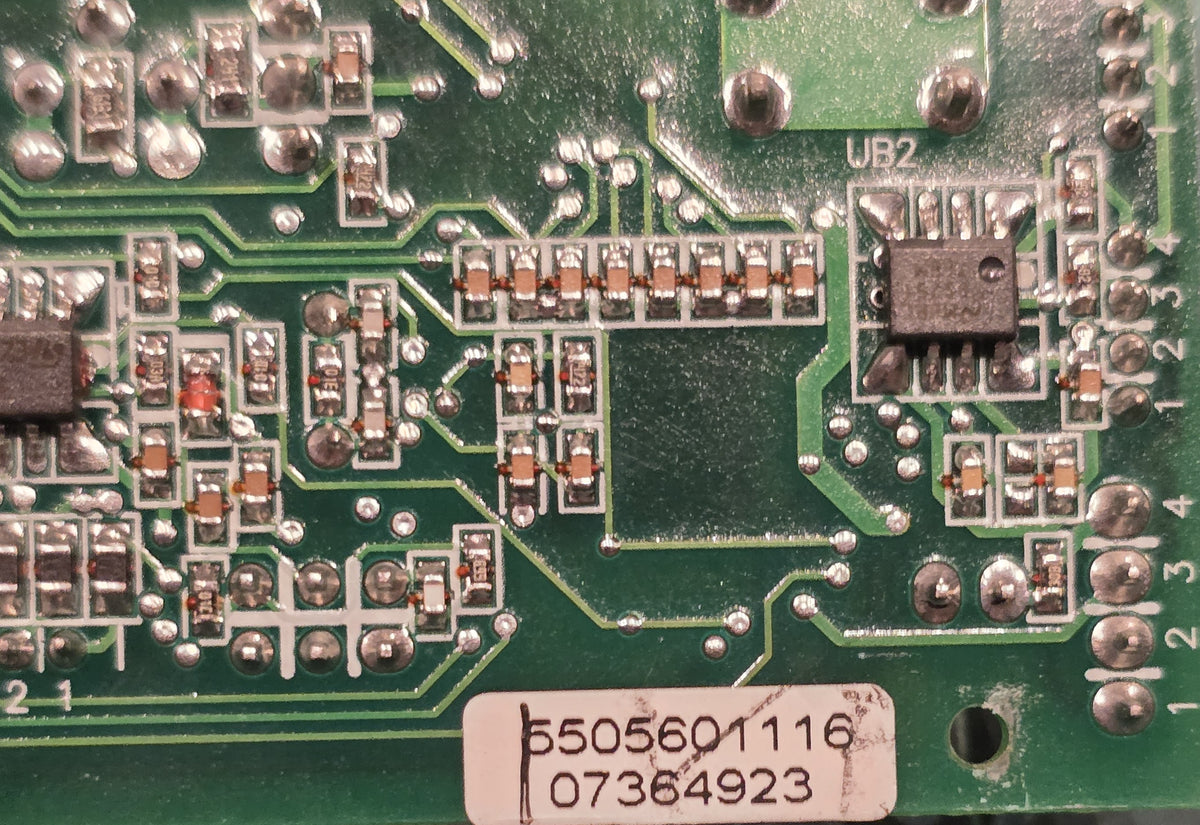

Part Number: 5505601116

Alternate Part Number: 2930077202, 30077202.PWB

Product Type: Interface PCB

Parent System: Delta MCS-1800 / MCS-3000 DC power system, Smart CSU (CM-2)

Condition: Used, removed from equipment, untested

Key Features

• Genuine Delta Electronics sub-assembly
• Part numbers clearly labelled for matching
• Sold as a spare for the same Delta system

Typical Applications

• Repair of Delta MCS-1800 and MCS-3000 telecom rectifier systems
• Replacement of a failed Smart CSU sub-board

Package Includes

• 1 x Delta SB-09G/EG-2 interface board as photographed

Additional Information

The board has not been electrically tested.

This is a used item and may show minor cosmetic marks from previous use. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
