Delta 5505601036 Smart CSU LCD Display Keypad Module CM-2 (Pre-owned)

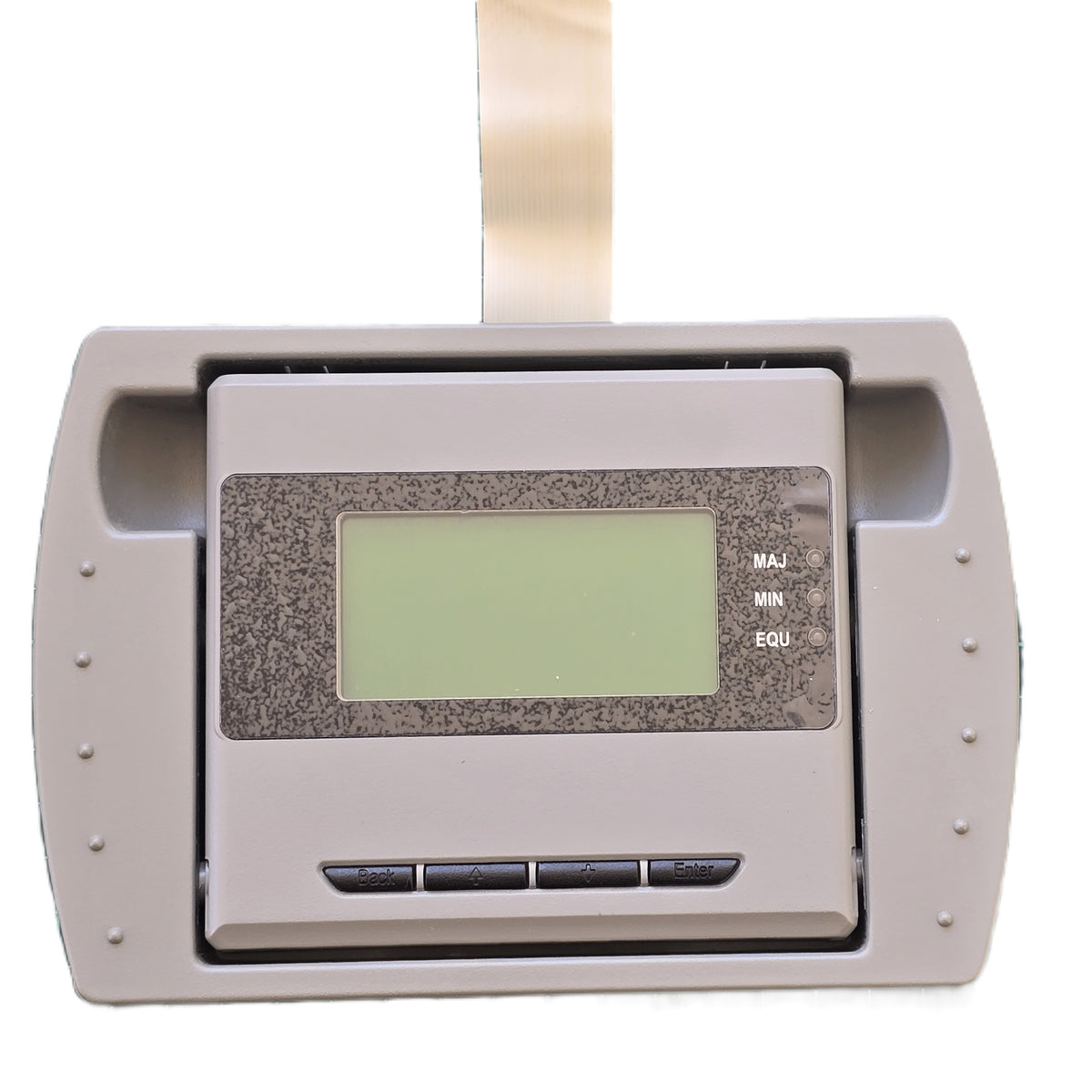

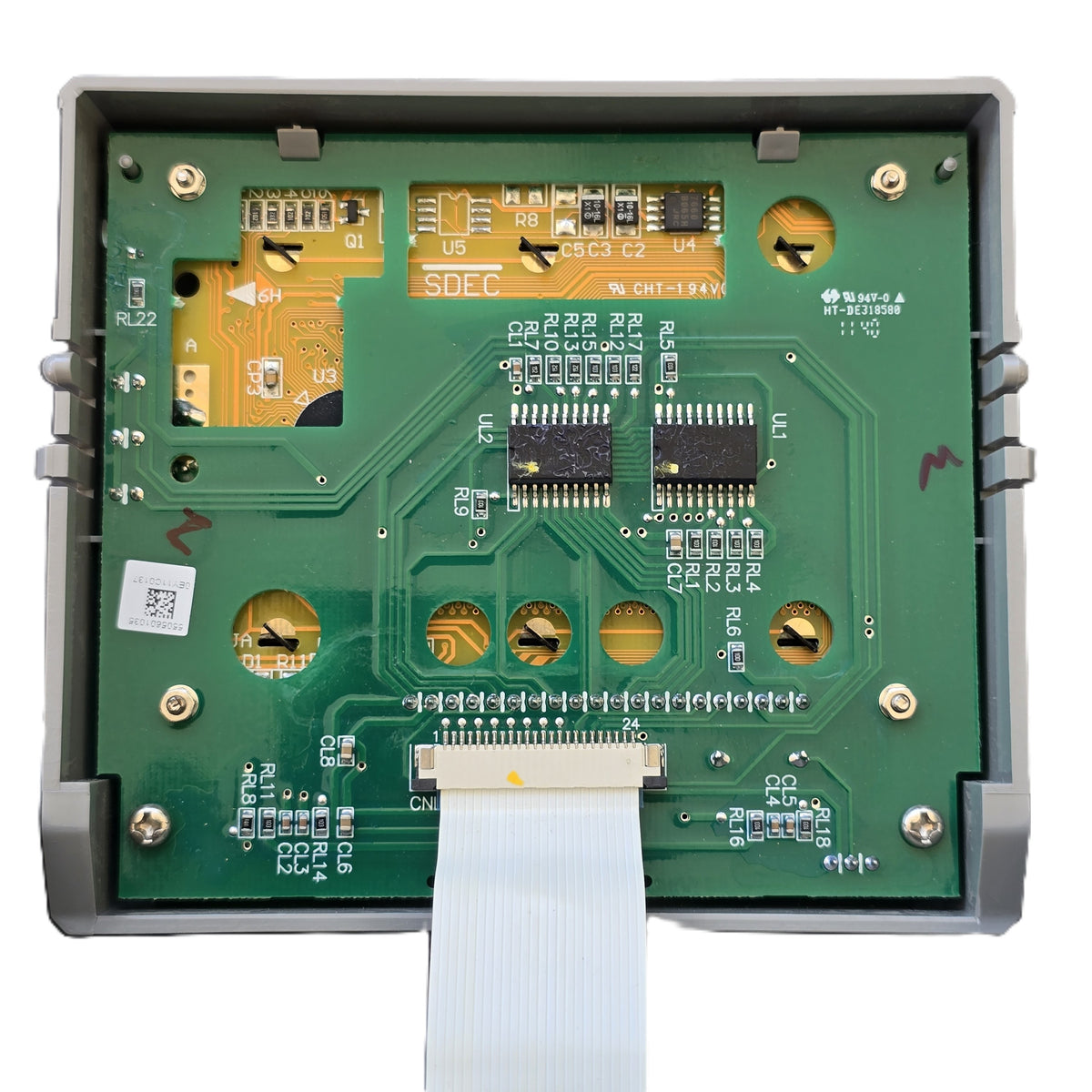

This is a Delta Electronics Smart CSU LCD display and keypad module, assembly number 5505601036, removed from a Delta MCS-1800 / MCS-3000 series telecom DC power system fitted with the Smart CSU (Control and Supervisory Unit, marked CM-2 on the labels). It is the front panel user interface of the controller: an LCD in a grey housing with MAJ, MIN and EQU alarm LEDs and four buttons (Back, up, down, Enter), connected to the controller by a ribbon cable.

Delta does not publish board level documentation for these systems, so the function is described from the board markings and its position in the system. The board is a used pull, sold untested, as a spare for repair of the same Delta equipment. Please match the part numbers in the photographs to your equipment before purchase.

Specifications

Brand: Delta Electronics

Model: Smart CSU LCD display and keypad module

Part Number: 5505601036

Alternate Part Number: CM-2, 5505601035

Product Type: Display Module

Parent System: Delta MCS-1800 / MCS-3000 DC power system, Smart CSU (CM-2)

Condition: Used, removed from equipment, untested

Key Features

• Genuine Delta Electronics sub-assembly
• Part numbers clearly labelled for matching
• Sold as a spare for the same Delta system

Typical Applications

• Repair of Delta MCS-1800 and MCS-3000 telecom rectifier systems
• Replacement of a failed Smart CSU sub-board

Package Includes

• 1 x Delta 5505601036 LCD display module with ribbon cable as photographed

Additional Information

The board has not been electrically tested.

This is a used item and may show minor cosmetic marks from previous use. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
