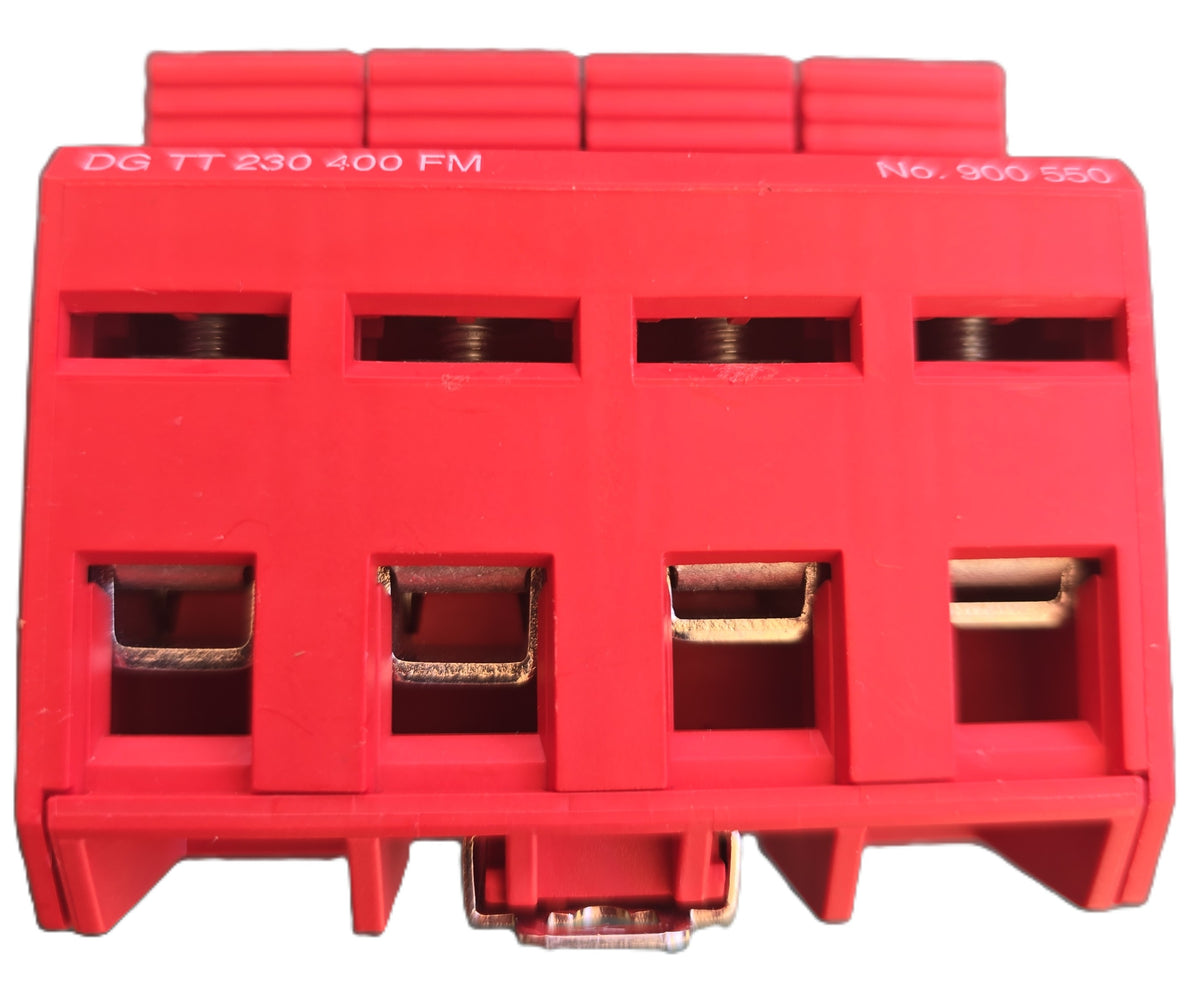

DEHN 900550 DG TT 230 400 FM DEHNguard 3+1 Type 2 Surge Arrester (Pre-owned)

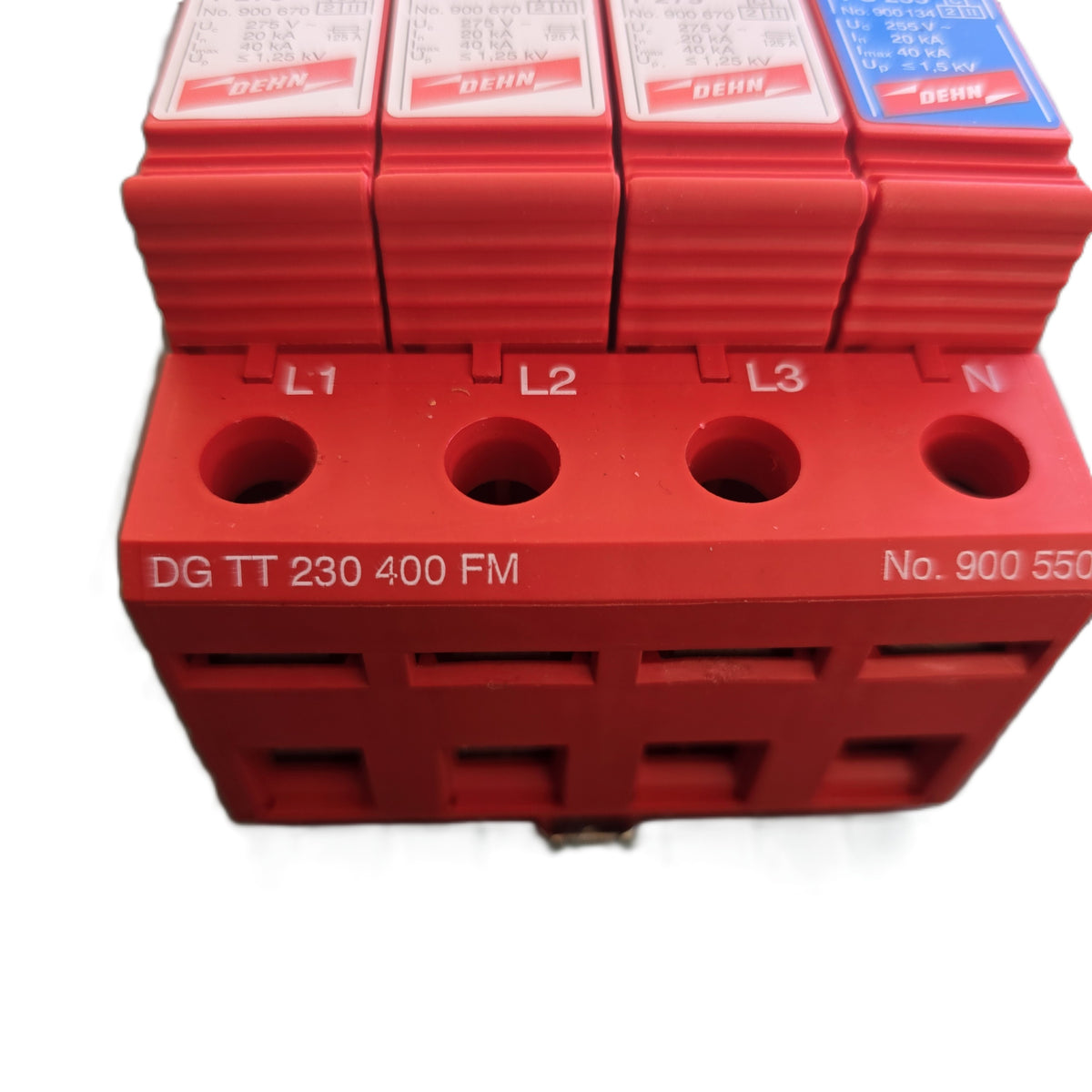

The DEHN DEHNguard DG TT 230 400 FM, article number 900 550, is a type 2 surge arrester for 230/400V TT and TN-S low voltage systems, made in Germany by DEHN. It is a 3+1 arrangement: three DEHNguard T 275 varistor modules (No. 900 670) protect L1, L2 and L3 to N, and one DEHNgap TC 255 spark gap module (No. 900 134) protects N to PE. The FM version adds a remote signalling changeover contact on terminals 11, 12 and 14.

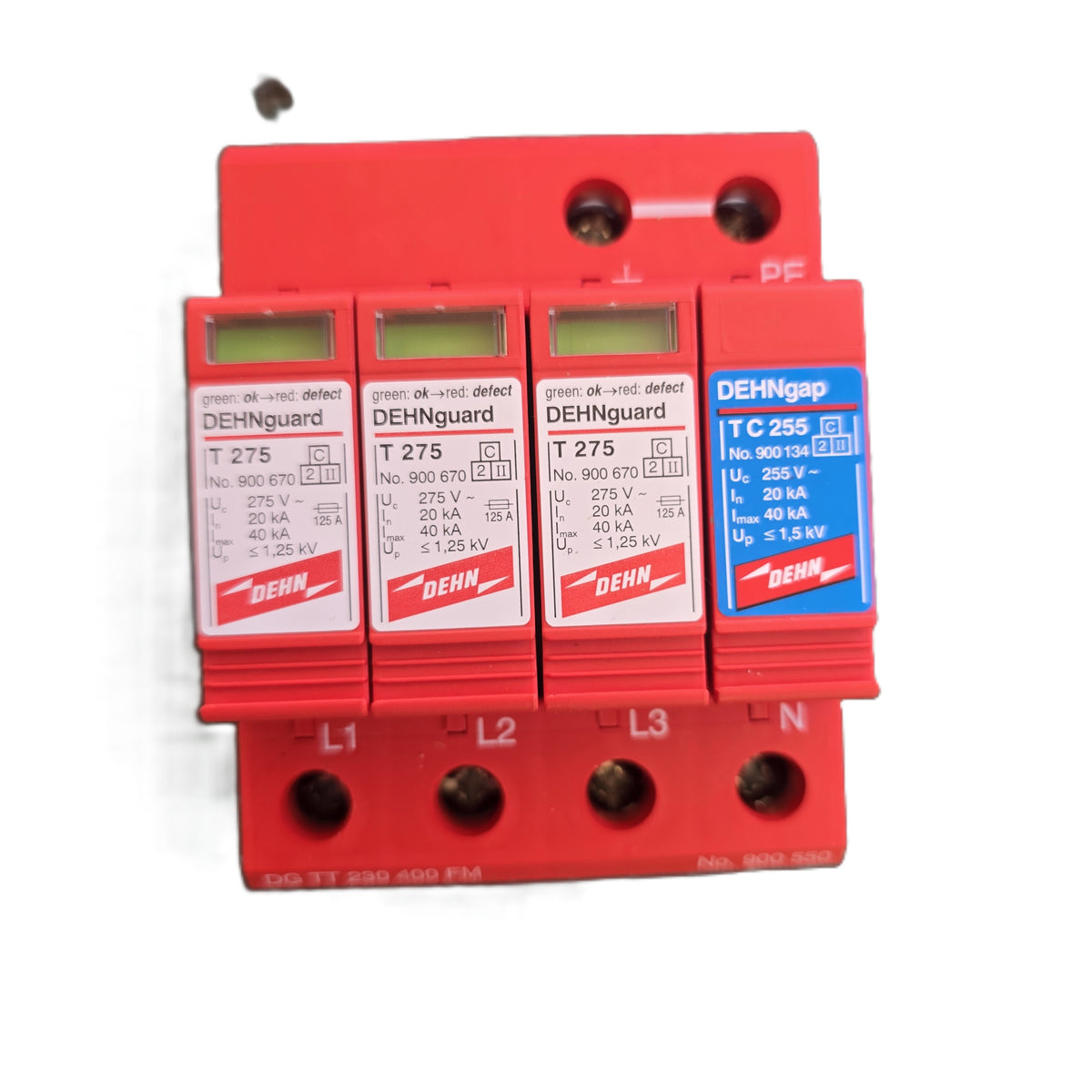

Each plug-in module has an operating state indicator window that shows green when the module is healthy and red when it needs replacing. The base mounts on 35mm DIN rail and occupies four modules. The T 275 modules are rated Uc 275V AC, In 20kA and Imax 40kA (8/20) with a protection level Up of 1.25kV or lower. This is a used unit removed from a switchboard.

Specifications

Brand: DEHN

Model: DEHNguard DG TT 230 400 FM

Part Number: 900 550

Alternate Part Number: 900550; modules 900 670 (T 275) and 900 134 (TC 255)

Product Type: Type 2 surge arrester, 3+1 circuit

System: 230/400V TT and TN-S

SPD Type: Type 2 to EN 61643-11

Uc (T 275 modules): 275V AC

In (8/20): 20kA

Imax (8/20): 40kA

Up: 1.25kV or lower

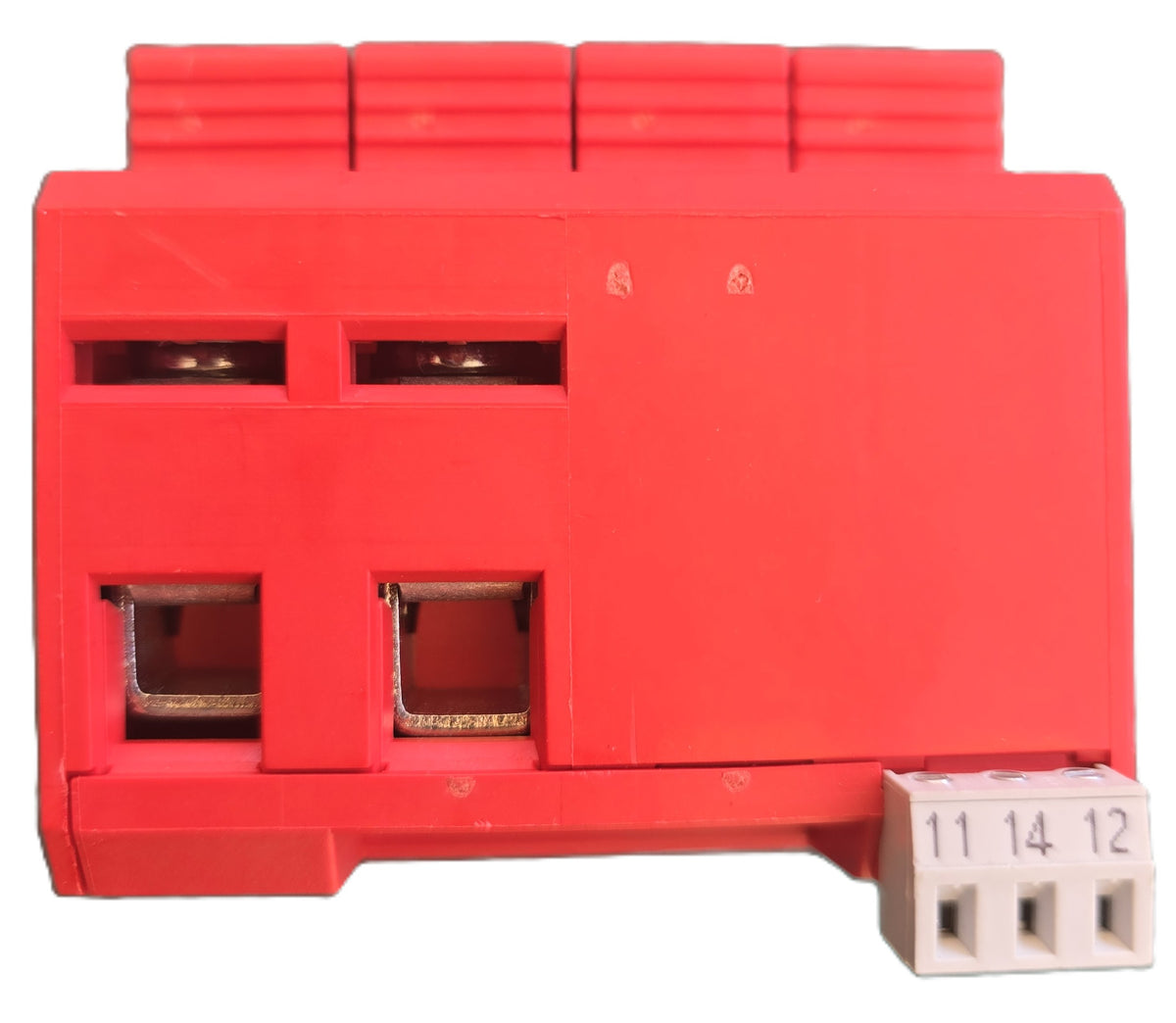

Remote Signalling: Changeover contact, terminals 11/12/14

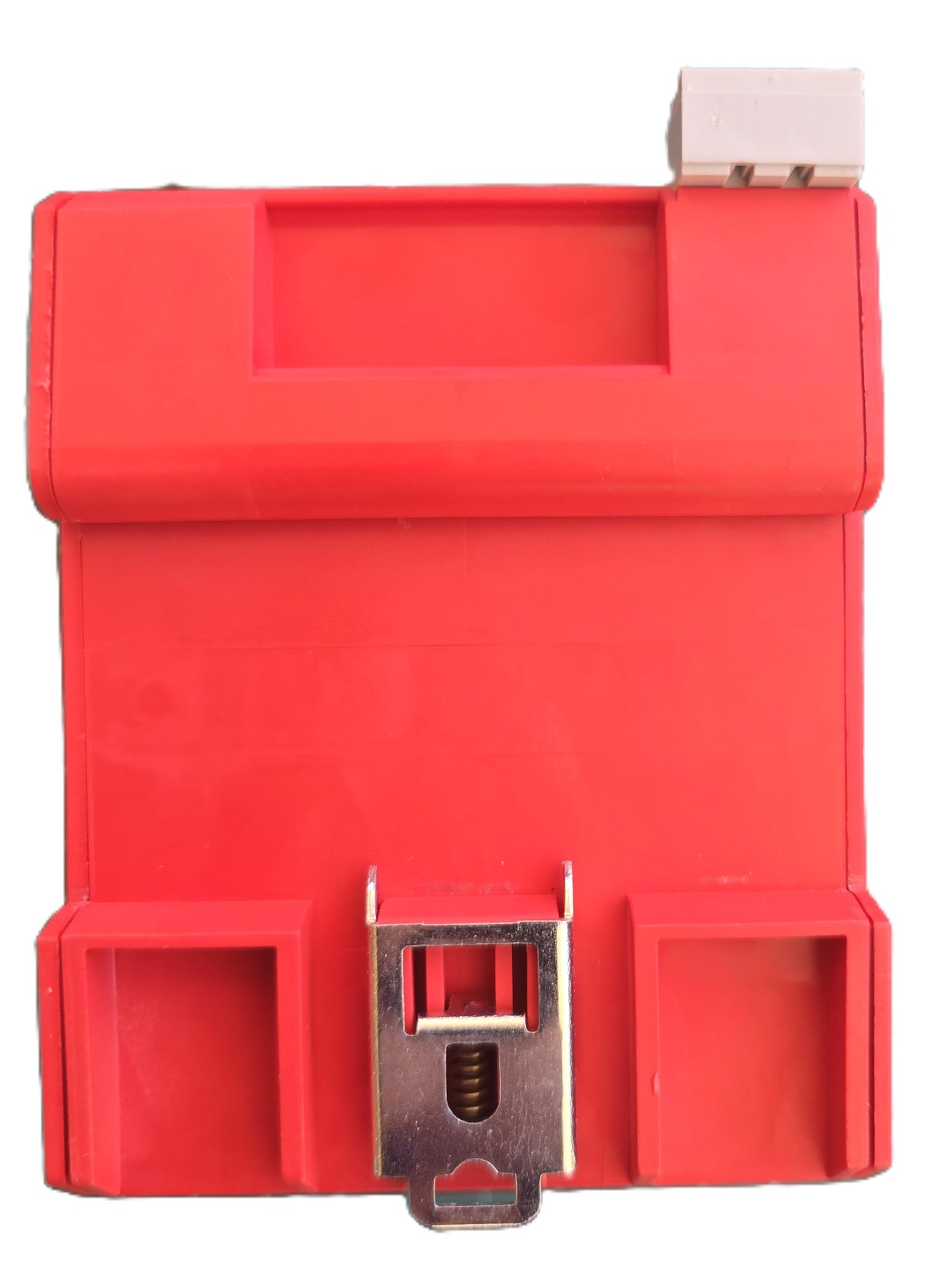

Mounting: 35mm DIN rail, 4 modules

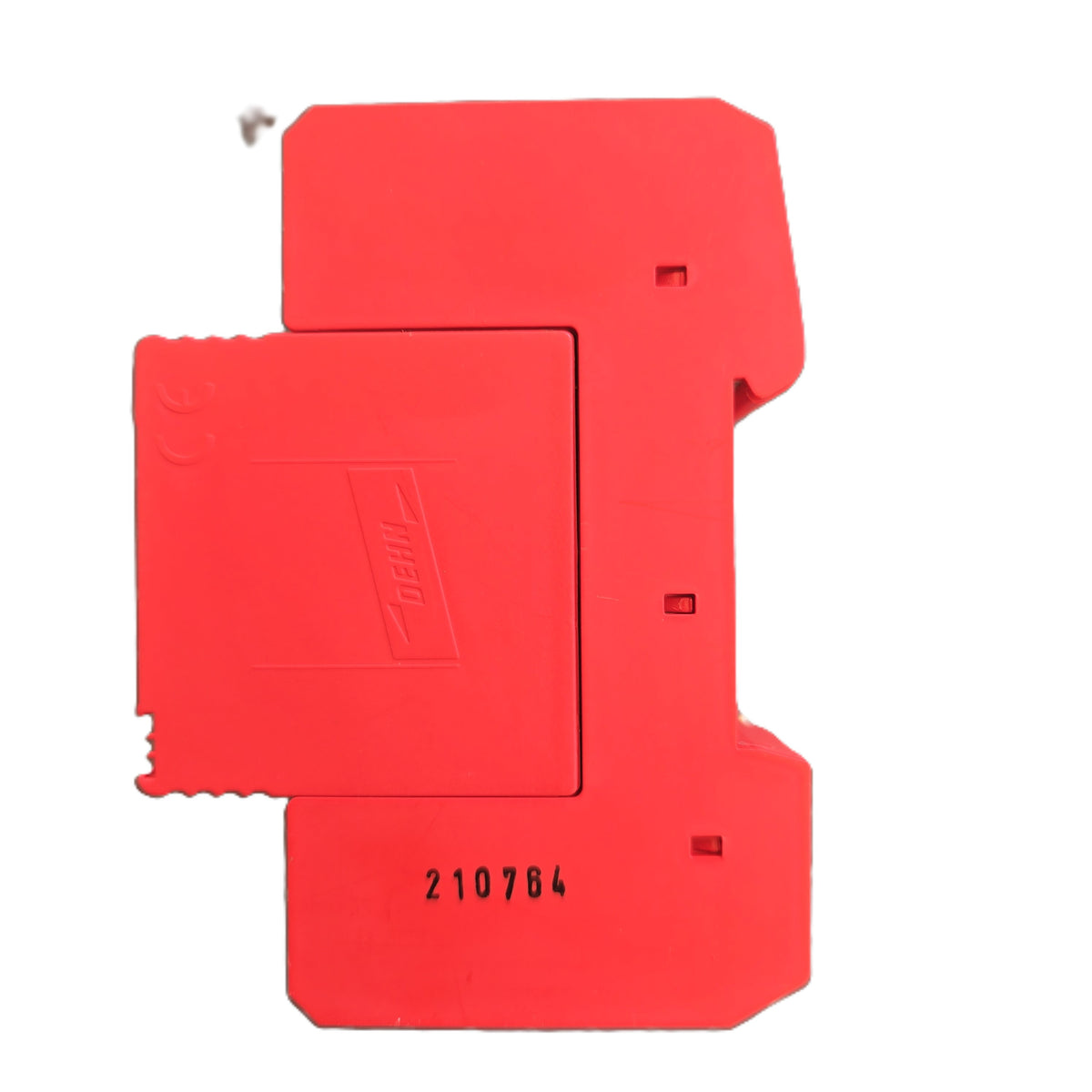

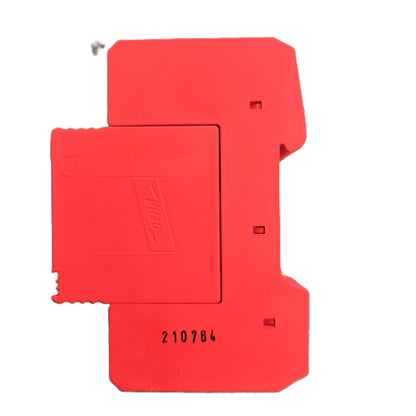

Serial Number: 210764

Country of Origin: Germany

Condition: Used, removed from switchboard

Key Features

• 3+1 circuit with varistor modules L-N and spark gap N-PE
• Plug-in modules with green/red operating state indicators
• Remote signalling contact for monitoring
• DIN rail mounting
• Successor product is DEHNguard M TT 275 FM (952 315)

Typical Applications

• Surge protection at the main distribution board of commercial and industrial buildings
• TT and TN-S supply systems
• Replacement for an existing DG TT 230 400 FM installation

Package Includes

• 1 x DEHN DG TT 230 400 FM base with 3 x T 275 and 1 x TC 255 modules fitted, as photographed

Additional Information

The unit has not been electrically tested. The module indicator windows show the healthy colour in the listing photographs but the arrester should be checked by a licensed electrician before reuse.

This product has been discontinued by DEHN.

This was removed from an unused item and may show minor cosmetic marks from previous install. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
