Crestron UC-PR 6510936 UC Presentation Transmitter HDMI USB-C (NEW Sealed)

The Crestron UC-PR is the UC Presentation Transmitter, Crestron part number 6510936 and regulatory model M201852001. It is the tabletop puck that lets a visitor bring their own laptop into a Crestron Flex room: connecting a laptop switches the room over to that laptop's own conferencing platform, and disconnecting it returns the room to its native Microsoft Teams Rooms or Zoom Rooms experience.

Inputs are HDMI Type A and DisplayPort 1.2 over USB-C, and the signal is carried to the room receiver as HDMI over CAT5 on an RJ-45. Maximum resolution is 1080p, with HDCP 1.4 and HDCP 2.2 support. The unit provides 100 Mbps auto-negotiating Ethernet on a LAN PoE connector, a USB 3.0 Type B port for firmware, and USB 2.0 Type A, Type B and Type-C ports, and it will charge a connected laptop over USB-C at up to 60 W. Power is from a 24 VDC 6 A supply on a DC jack, and a grounding screw is fitted. The enclosure is black metal and can be surface mounted, fixed under a table, or attached to a rack rail. It measures 235 mm wide by 208 mm deep by 40 mm high.

Specifications

Brand: Crestron

Model: UC-PR, UC Presentation Transmitter, regulatory model M201852001

Part Number: UC-PR

Alternate Part Number: 6510936

Product Type: BYOD presentation transmitter for Crestron Flex rooms

Inputs: HDMI Type A; DisplayPort 1.2 via USB-C

Output: HDMI over CAT5 on RJ-45

Maximum Resolution: 1080p

HDCP: 1.4 and 2.2

Ethernet: 100 Mbps auto-negotiating, LAN PoE connector

USB: 1 x USB 3.0 Type B (firmware), USB 2.0 Type A, Type B and Type-C

USB-C Charging: Up to 60 W to the connected device

Power: 24 VDC 6 A supply, 100 to 240 VAC input; grounding screw fitted

Enclosure: Black metal; surface, under-table or rack-rail mountable

Dimensions: 235 mm W x 208 mm D x 40 mm H

Country of Origin: Mexico

Condition: New, factory sealed

Key Features

• Guests present from their own laptop using their own conferencing platform
• Room reverts automatically to its native platform when the laptop is unplugged
• Single USB-C connection carries video, USB peripherals and up to 60 W of charging
• HDMI input for laptops without USB-C video output
• Video carried to the receiver over ordinary CAT5 structured cabling
• Metal enclosure suits permanent under-table or rack mounting

Typical Applications

• Crestron Flex boardrooms and meeting rooms serving external visitors
• Microsoft Teams Rooms and Zoom Rooms with BYOD requirements
• Shared and coworking meeting spaces
• Education and training rooms with visiting presenters

Package Includes

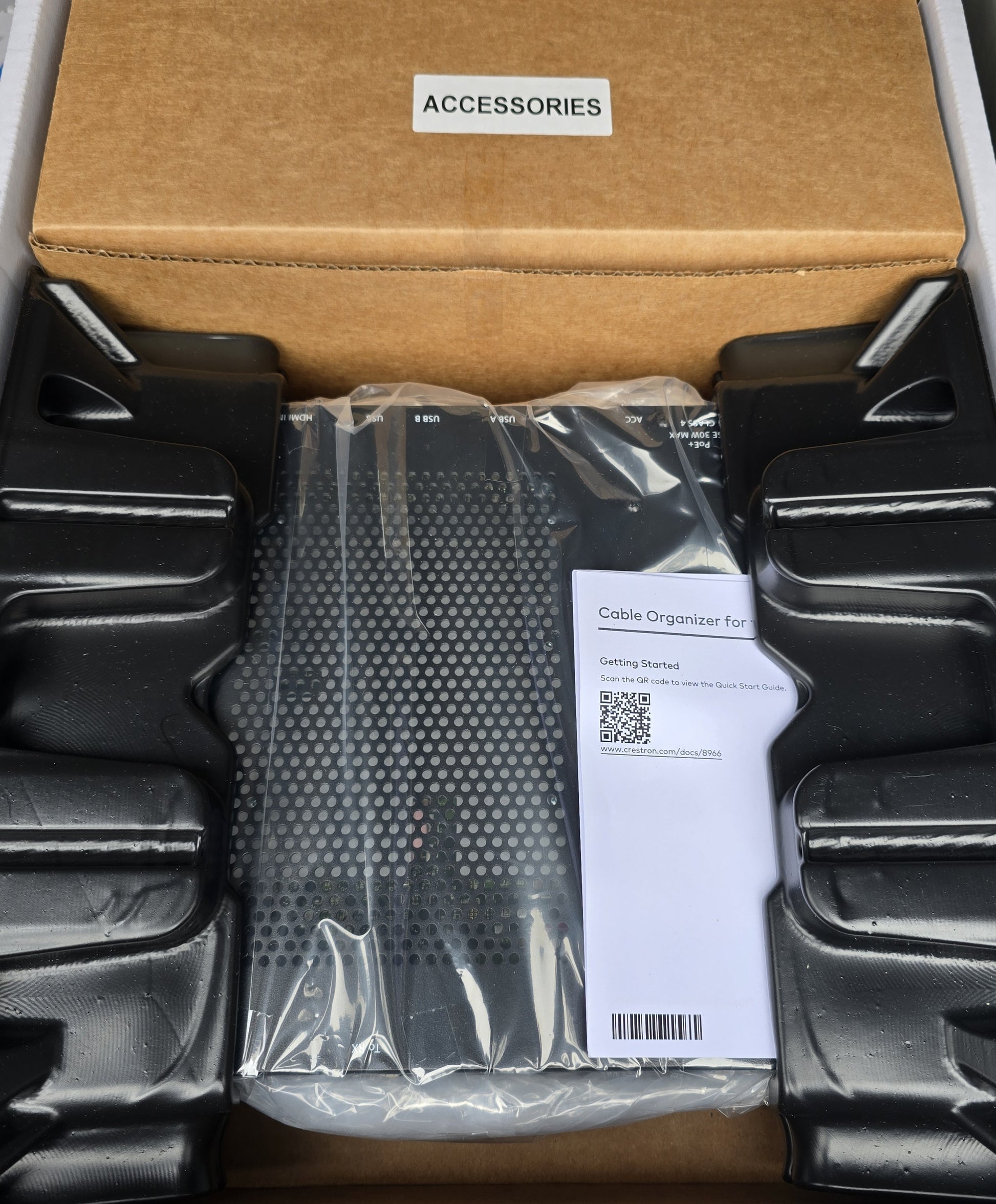

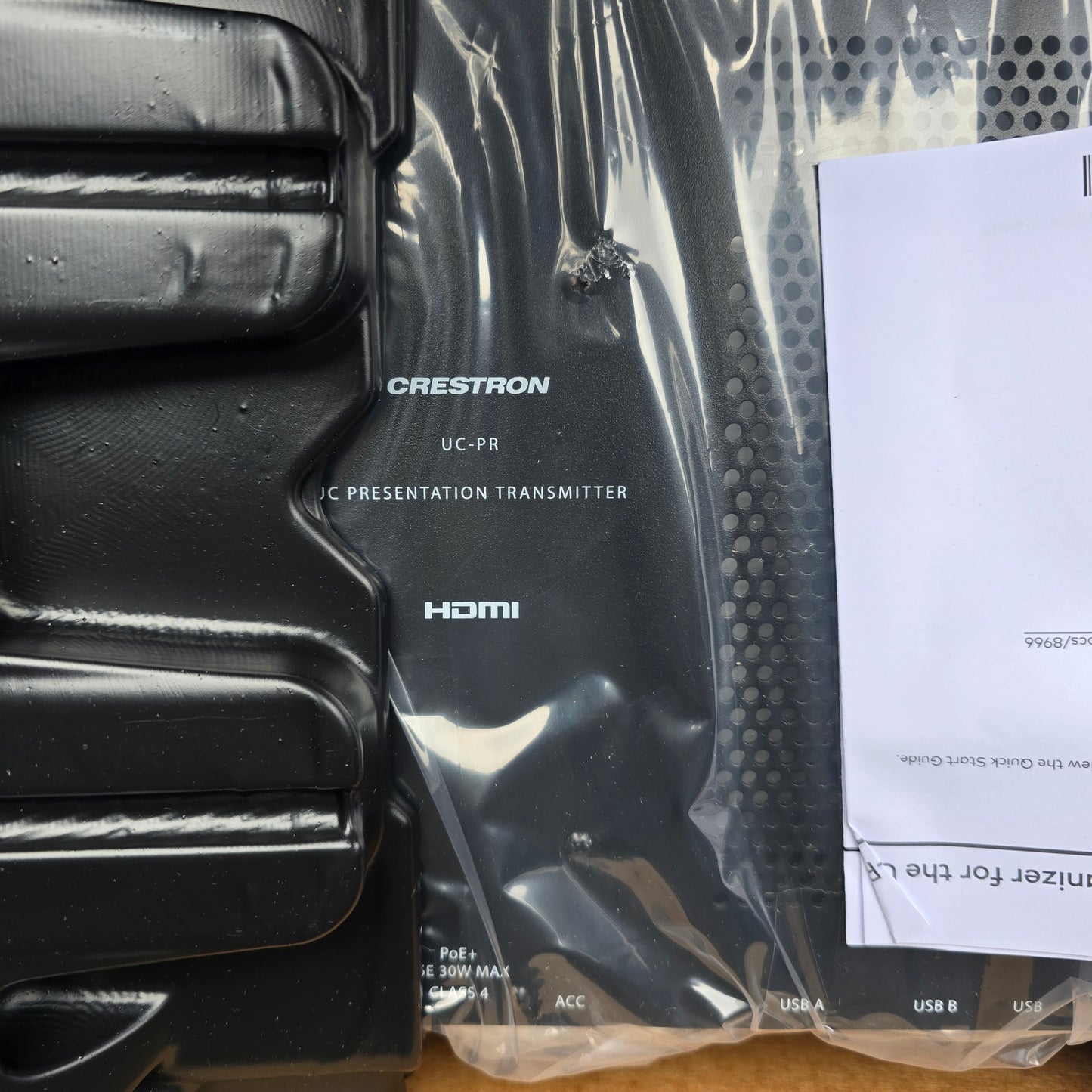

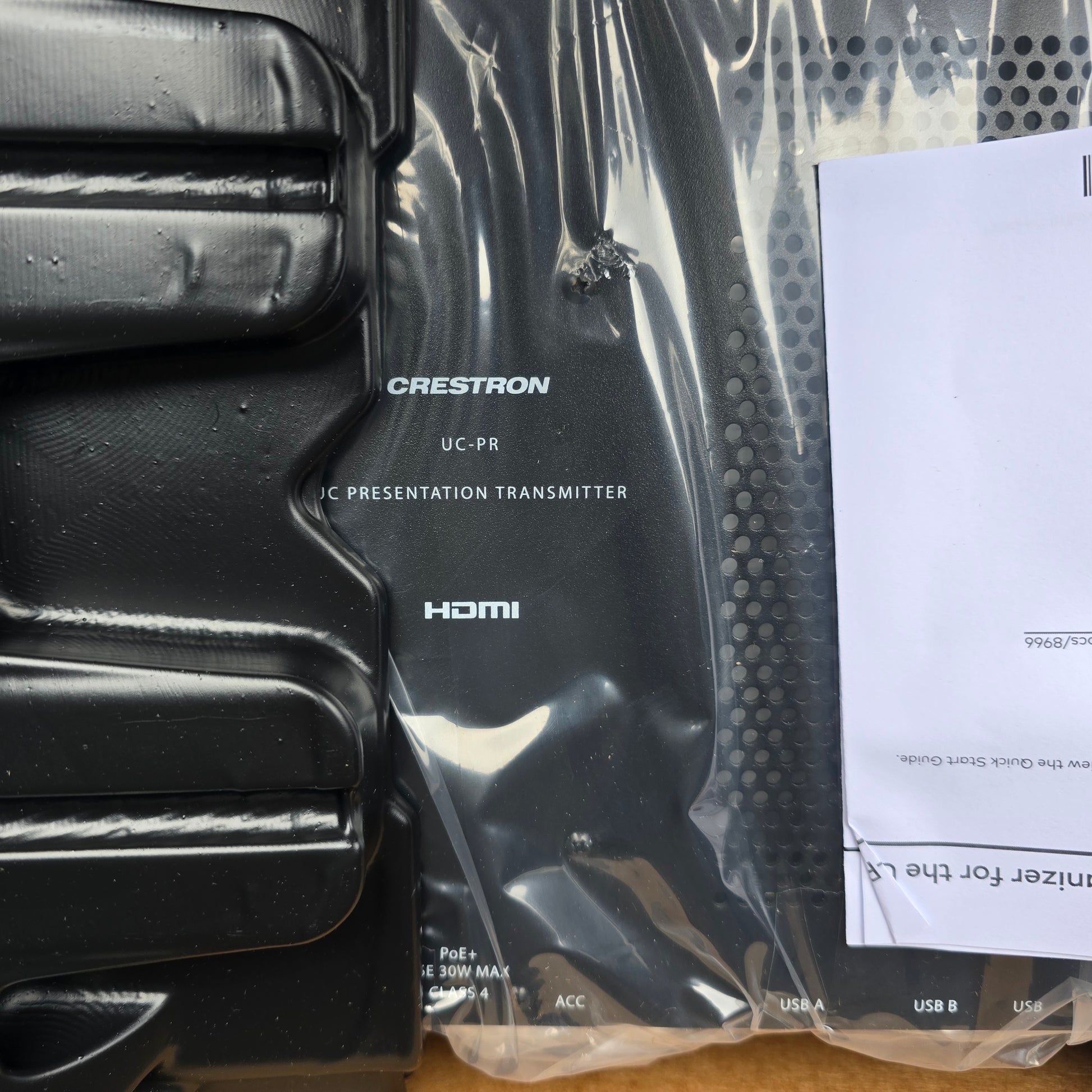

• 1 x Crestron UC-PR transmitter, sealed in its factory bag
• Cable organiser plate, sealed in its own bag
• HDMI male to male dongle
• USB-A adapter

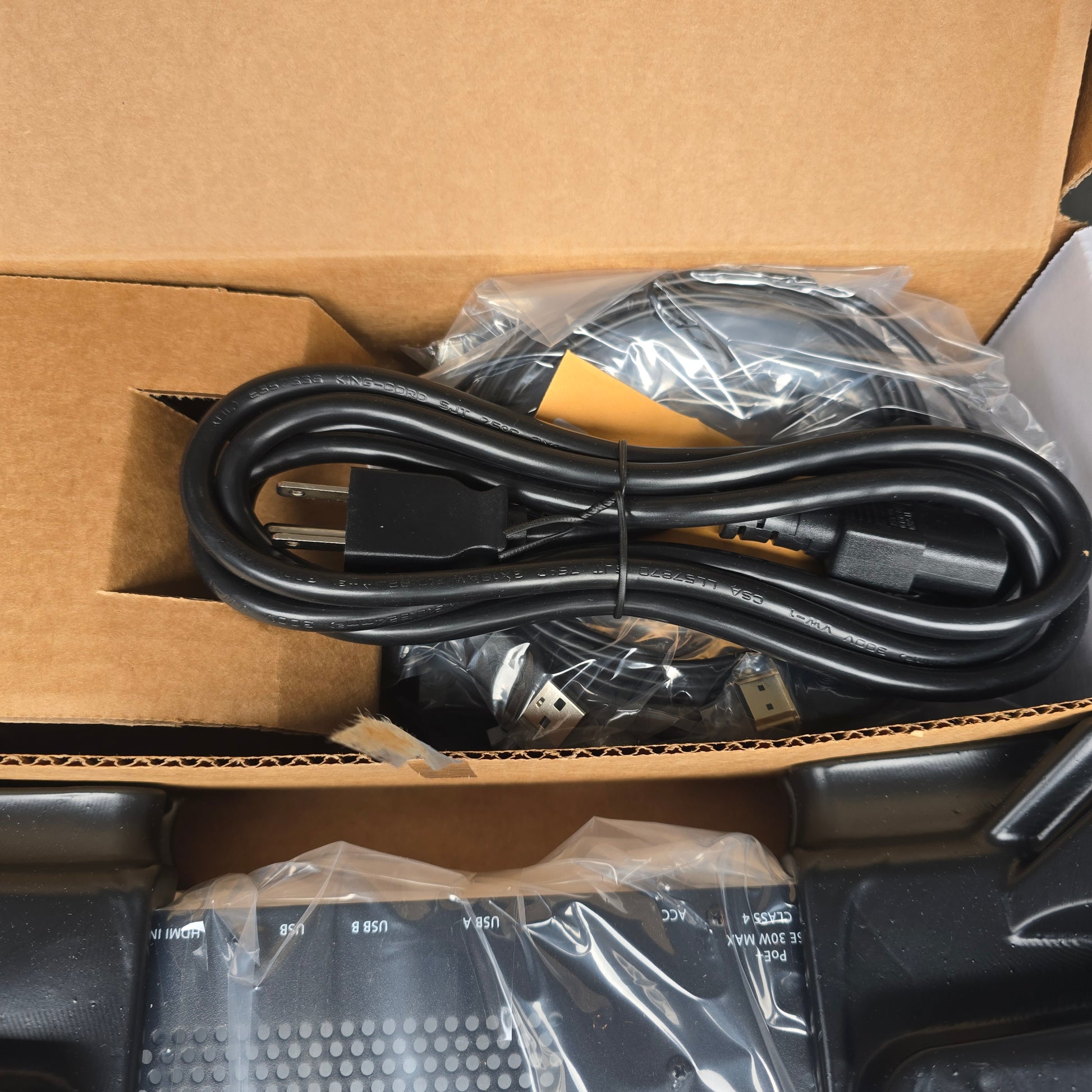

• Power cord, factory tied
• Sealed accessories sub-box
• Getting Started card
• Original Crestron carton with foam end caps

A matching room receiver, CAT5 cabling and any UC Engine hardware are not included.

Additional Information

The power cord supplied is a US pattern lead; an Australian lead will be required for local use. The item is new in the manufacturer's original packaging, with the carton opened for photography and verification and every component still factory sealed. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
