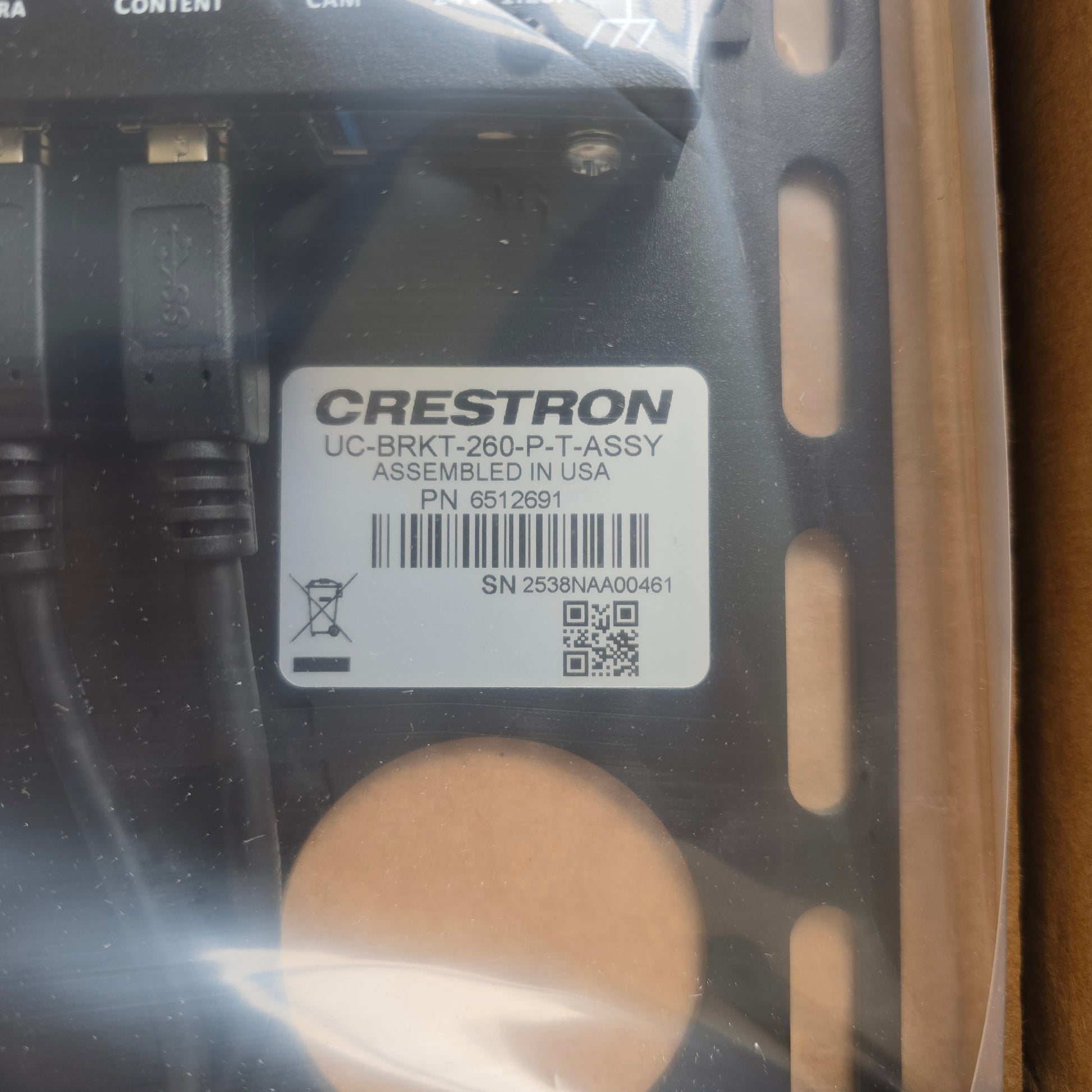

Crestron UC-BRKT-260-P-T-ASSY UC Engine Bracket Assembly Teams (NEW Sealed)

The Crestron UC-BRKT-260-P-T-ASSY is a factory pre-assembled UC Engine bracket assembly for Crestron Flex Microsoft Teams Rooms systems, Crestron part number 6512691. It is a black metal mounting plate carrying the room compute engine and the content ingest converter already mounted and cabled, with a cable retention plate and reusable tie wraps, so the installer mounts one plate rather than building the rack-side hardware piece by piece.

The unit supplied here carries a Crestron UC-ENGINE-D-T compute engine, part number 6512696, model D14U, rated 19.5 VDC at 6.7 A, and a Crestron HD-CONV-USB-260 content ingest converter which takes HDMI over CAT5 and presents it to the engine as USB 3.0. The assembly is Certified for Microsoft Teams. Crestron publishes the bracket assembly at a maximum 381 mm high by 368 mm wide by 49 mm deep and a maximum 3.7 kg, and it mounts to a VESA compliant display, to a wall of 10 to 19 mm thickness, or to other building structure. Crestron ships this assembly inside the UC-ENGINE-BRKTX-T-UPGRD room upgrade kit and the UC-BX30-T-GV Crestron Flex Advanced kit.

Specifications

Brand: Crestron

Model: UC-BRKT-260-P-T-ASSY

Part Number: UC-BRKT-260-P-T-ASSY

Alternate Part Number: 6512691; fitted UC-ENGINE-D-T is 6512696; converter is HD-CONV-USB-260

Product Type: Pre-assembled UC Engine bracket assembly for Microsoft Teams Rooms

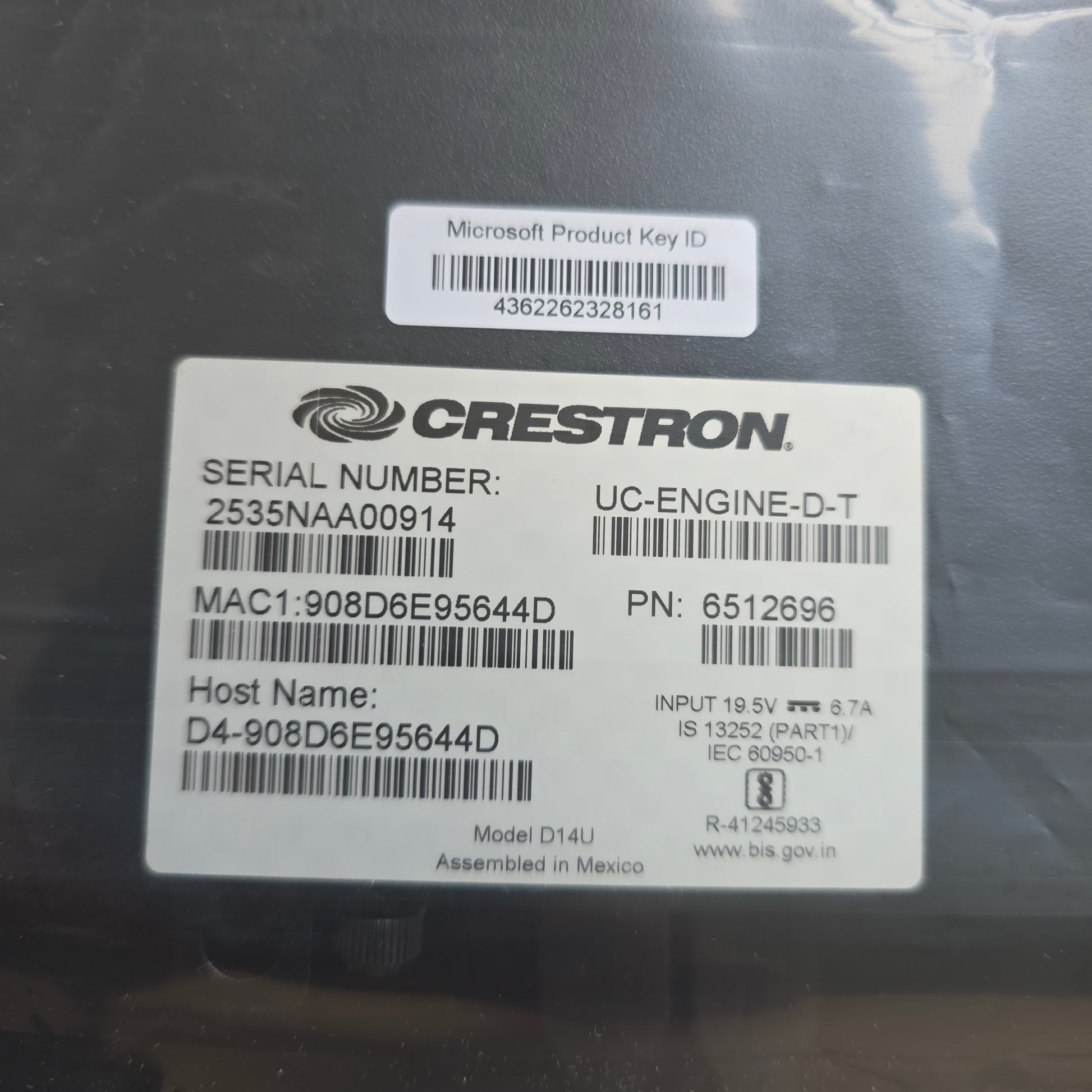

Compute Engine: Crestron UC-ENGINE-D-T, model D14U, 19.5 VDC at 6.7 A

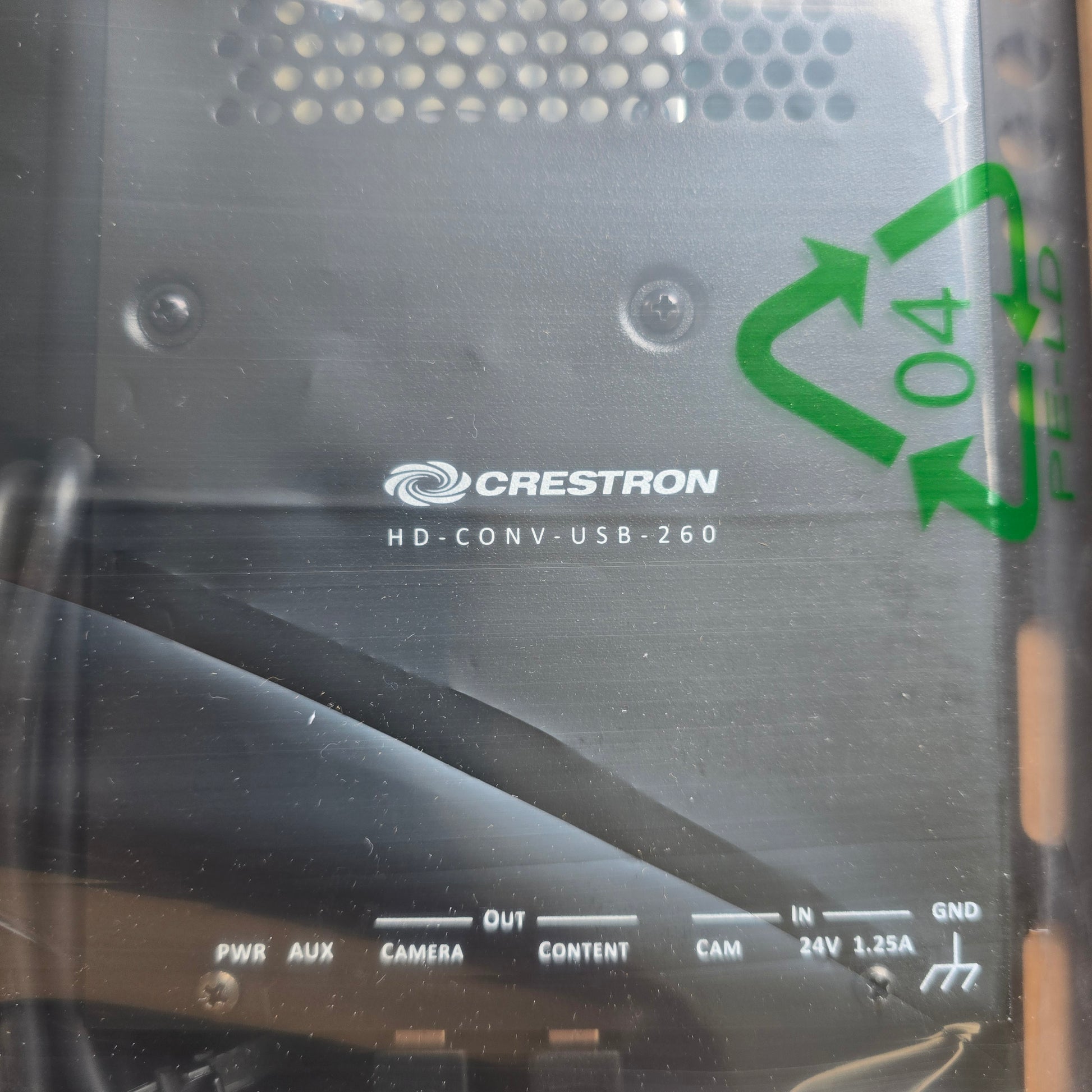

Content Ingest: Crestron HD-CONV-USB-260, HDMI over CAT5 to USB 3.0

Display Support: Single or dual displays at 1080p

Mounting: VESA compliant display, wall of 10 to 19 mm thickness, or other building structure

Dimensions: 381 mm H x 368 mm W x 49 mm D maximum

Weight: 3.7 kg maximum

Certification: Certified for Microsoft Teams

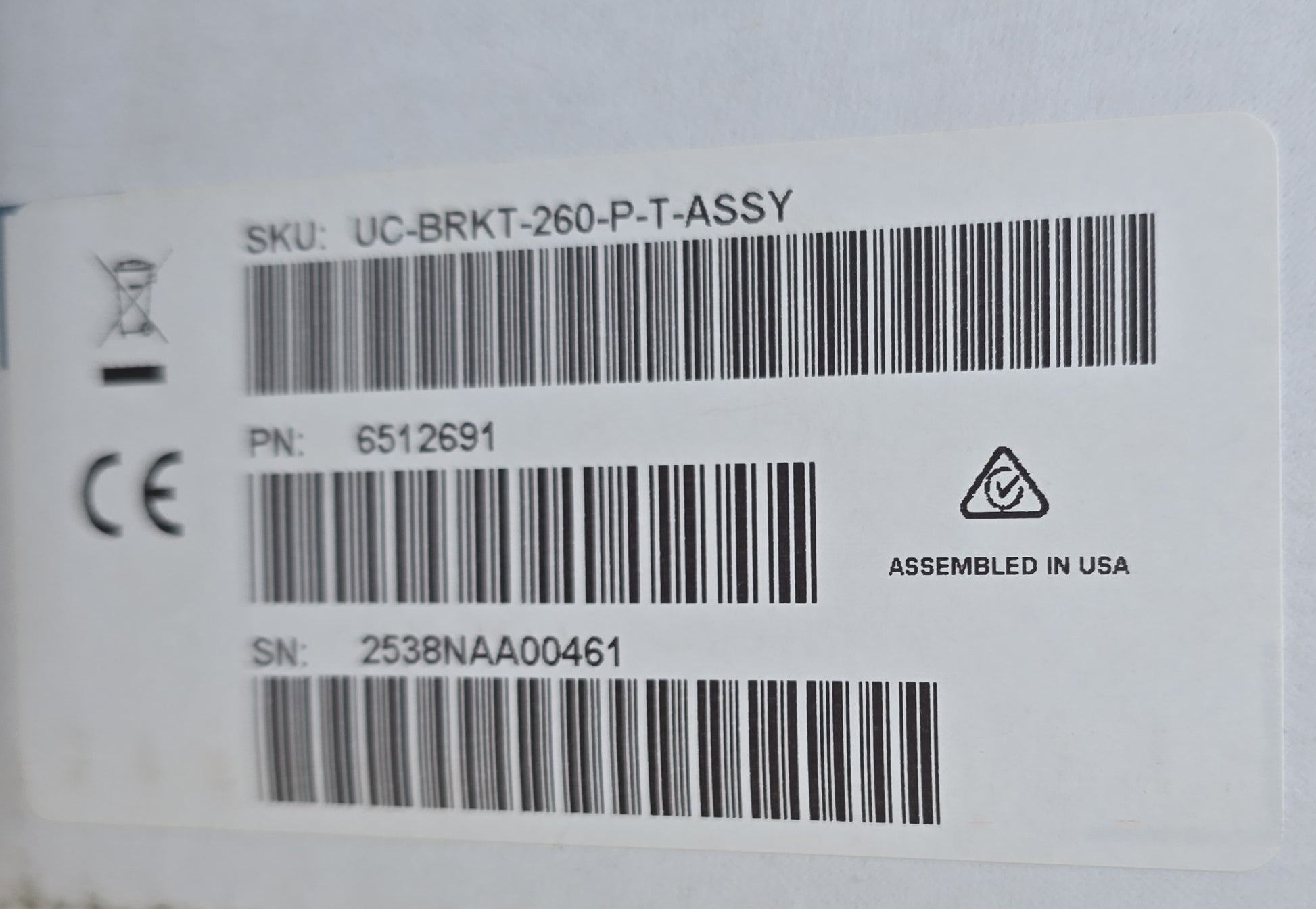

Country of Origin: Assembled in USA (the fitted UC-ENGINE-D-T is labelled Assembled in Mexico)

Condition: New, factory sealed

Key Features

• Compute engine and content ingest converter arrive pre-mounted and pre-cabled
• Certified for Microsoft Teams Rooms deployment
• Cable retention plate with reusable tie wraps keeps the install tidy
• Mounts behind a VESA display, on a wall, or to building structure
• Single part number replaces sourcing the engine, converter and bracket separately

Typical Applications

• Microsoft Teams Rooms builds and refreshes
• Crestron Flex Advanced room deployments
• Upgrading an existing Crestron Flex room to the 260 generation ingest
• Corporate boardroom and huddle space video conferencing

Package Includes

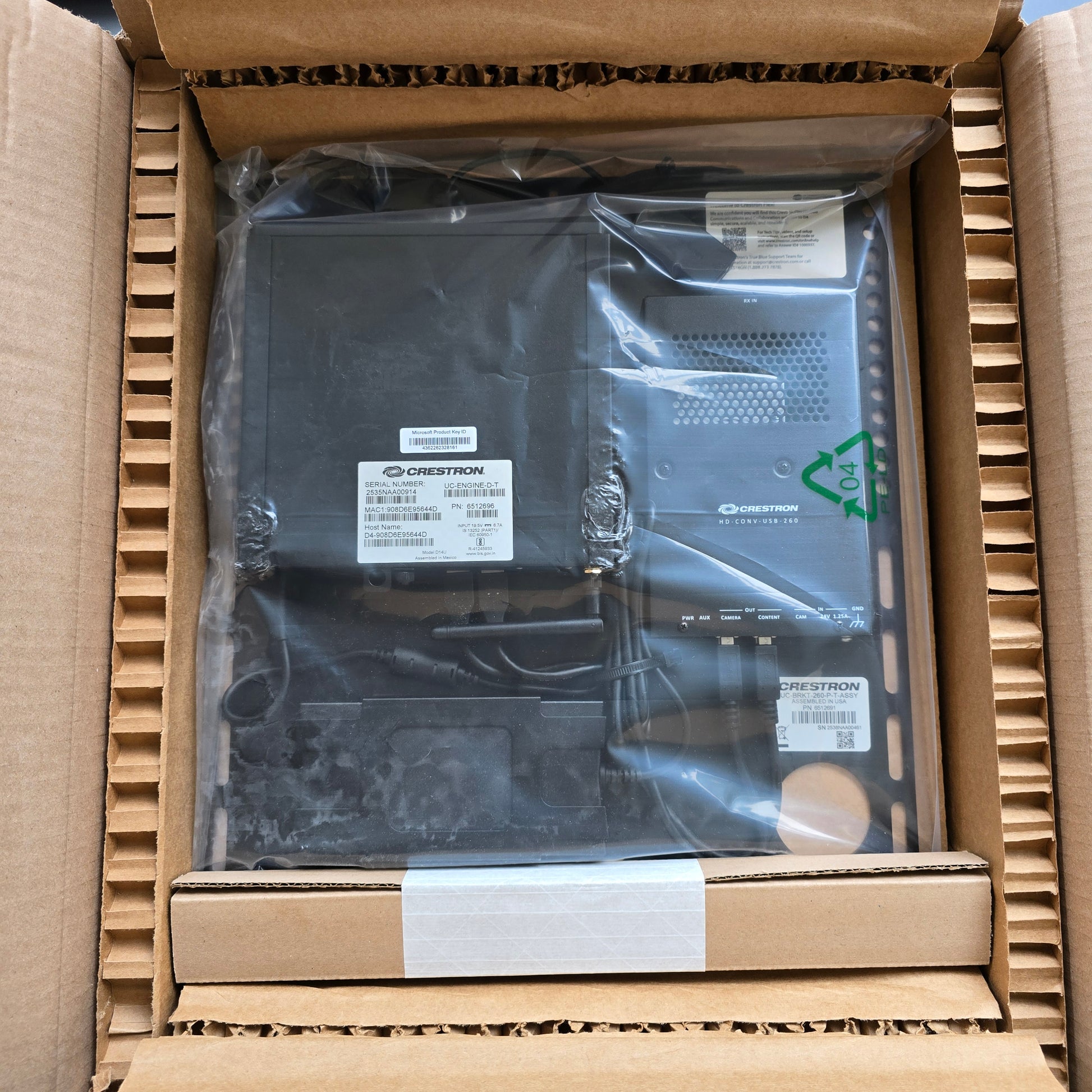

• 1 x UC-BRKT-260-P-T-ASSY bracket assembly with UC-ENGINE-D-T and HD-CONV-USB-260 fitted, in factory sealed plastic
• Attached and tie-wrapped internal cabling
• Sealed accessory carton
• Original Crestron packaging with foam inserts

Displays, touch panels, cameras, soundbars and CAT5 cabling are not included. AC power adapters are not included unless shown in the listing photographs.

Additional Information

The item is new in the manufacturer's original packaging, with the outer carton opened for photography and verification and the contents still in their factory sealed bags. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
