Crestron TSW-1070-LB-B-S 6511125 Room Availability Light Bar Black (New Opened)

The Crestron TSW-1070-LB-B-S is a Room Availability Light Bar accessory in a black smooth finish, Crestron part number 6511125. It is an RGB LED indicator that mounts behind and around a Crestron TSW-1070 or TSS-1070 series 10.1 inch touch screen, giving a 180 degree visual indication of room status that staff can read from down a corridor. Green shows the room is available and red shows it is in use.

The light bar is an accessory only. It has no display, no touch surface and no network connection of its own, and it does not function as a standalone device. It comes in two pieces, a control module and a light diffusing plastic panel. Power is drawn entirely from the touch screen over an attached USB 2.0 Type A lead, at under 2 W in operation. The module screws to the rear of the touch screen and the panel sandwiches between the screen and the mounting surface, needing a minimum mounting depth of 41 mm. RGB colour mixing and blinking for emergency broadcast are supported; note that colour mixing under control system programming requires a TSW-1070, since the TSS-1070 does not support control system connections.

Specifications

Brand: Crestron

Model: TSW-1070-LB-B-S

Part Number: TSW-1070-LB-B-S

Alternate Part Number: 6511125

Product Type: Room availability light bar accessory

Indication: RGB LED, 180 degree viewing, green for available and red for in use, RGB colour mixing and blinking supported

Compatibility: Crestron TSW-1070 and TSS-1070 series touch screens

Power: Under 2 W in operation, 2.5 W via USB, drawn from the touch screen

Connector: USB 2.0 Type A male on an attached lead, plus a flex circuit slot for the light panel

Mounting: Behind the touch screen, minimum 41 mm mounting depth; projects 21 mm from the mounting surface when installed

Compatible Mounts: TSW-70-UMB universal mounting bracket, TSW-1070-MSMK multisurface mount kit, TSW-770/1070-MUMK mullion mount kit

Compliance: CE, FCC Part 15 Class B, IC

Finish: Black smooth

Country of Origin: Mexico

Condition: New, opened box

Key Features

• Room status readable at a glance from a distance and at an angle
• Powered from the touch screen, so no extra cabling or supply is needed
• RGB colour mixing and blinking for emergency broadcast signalling
• Two piece design fits behind existing TSW-1070 and TSS-1070 installations
• Low profile, projecting only 21 mm from the wall once fitted

Typical Applications

• Corporate meeting room availability signalling
• Education and training room booking systems
• Hospital and clinic consulting room status
• Coworking and shared office space room indicators

Package Includes

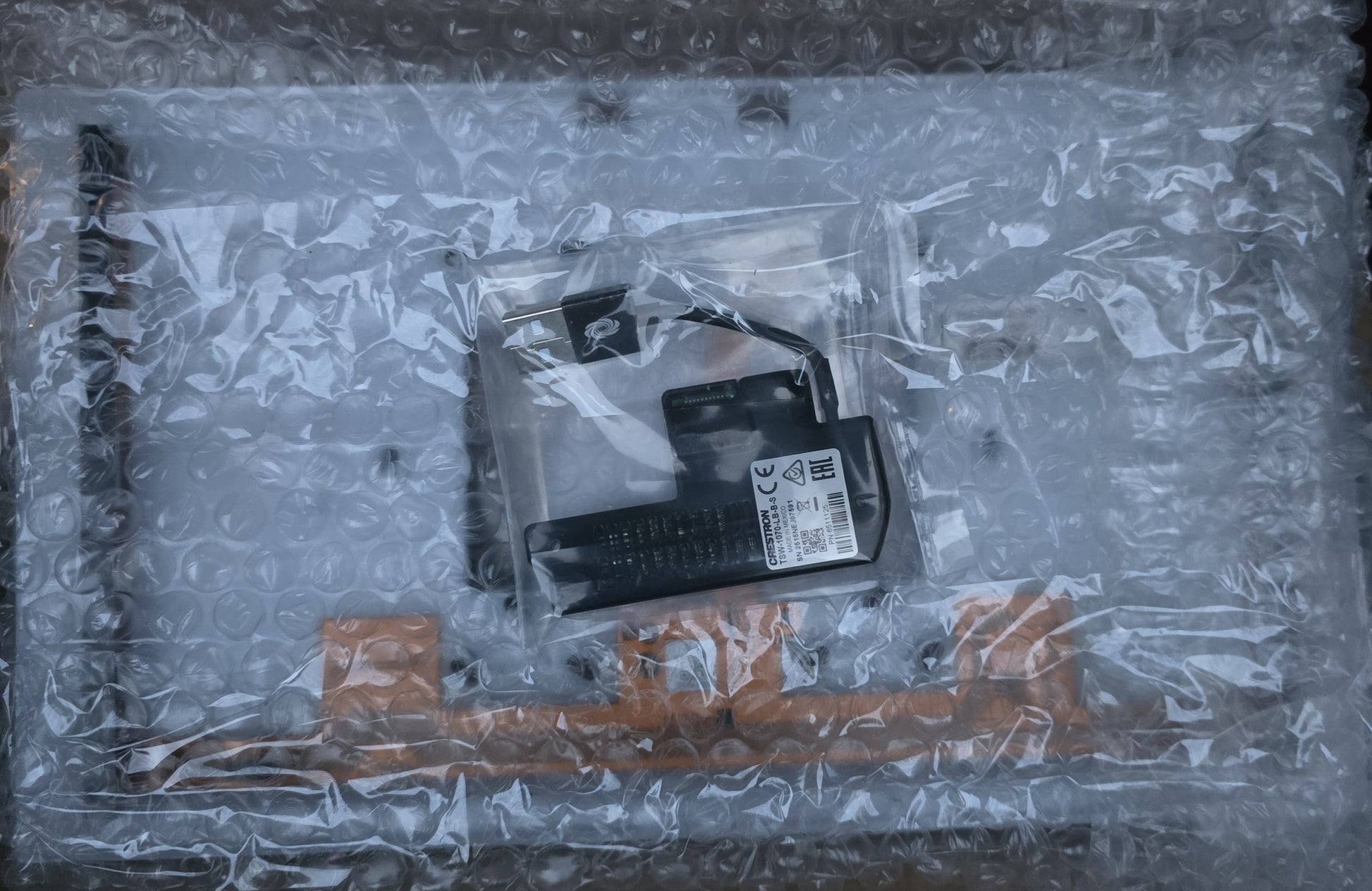

• 1 x Crestron TSW-1070-LB-B-S light bar module and diffusing panel, sealed in its own bag
• Crestron Getting Started and compliance sheet
• Original Crestron carton and bubble wrap

This is the light bar accessory only. A TSW-1070 or TSS-1070 touch screen and any mounting kit are not included.

Additional Information

This item is an accessory for a Crestron 10.1 inch touch screen and does not operate on its own. The item is new in the manufacturer's original packaging, with the carton opened for photography and verification. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
