Crestron TSS-1070-B-S 10.1in Room Scheduling Touch Screen Black (New Opened)

The Crestron TSS-1070-B-S is a 10.1 inch wall mount capacitive touch screen dedicated to enterprise room scheduling, Crestron part number 6511331. It mounts outside the meeting room and shows the room's booking state and upcoming reservations, with on-screen booking and release. It integrates with Crestron Scheduling and Crestron Fusion, and with Microsoft Exchange, Office 365, Google Calendar and a range of third party scheduling platforms.

The display is a 10.1 inch TFT active matrix colour LCD at 1920 x 1200 in 16:10 WUXGA, rated 400 nits with 1000:1 contrast, 24-bit colour and edge lit LED backlighting with automatic brightness. Touch is projected capacitive with five point multitouch. The panel is an IEEE 802.3at Type 2 PoE+ powered device at 15 W typical, 18 W with room scheduling and USB active and 30 W peak. It has 100 Mbps wired Ethernet plus 802.11a/b/g/n/ac wireless on 2.4 or 5 GHz, Bluetooth beacon hardware for proximity detection, two USB 2.0 Type A host ports and integrated occupancy and ambient brightness sensors. It surface mounts over a two or three gang US box, a two gang European DIN 49073 box or a two gang UK BS 4662 box, with a minimum depth of 35 mm.

Specifications

Brand: Crestron

Model: TSS-1070-B-S

Part Number: TSS-1070-B-S

Alternate Part Number: 6511331

Product Type: Room scheduling touch screen

Display: 10.1 in (257 mm) diagonal TFT active matrix colour LCD

Resolution: 1920 x 1200, 16:10 WUXGA, 24-bit colour

Brightness: 400 nits, 1000:1 contrast, auto-brightness

Viewing Angle: Plus or minus 80 degrees horizontal and vertical

Touch: Projected capacitive, 5-point multitouch

Power: IEEE 802.3at Type 2 PoE+ Class 4, 15 W typical, 18 W with scheduling and USB, 30 W peak

Ethernet: 100 Mbps auto-negotiating, 1 x 8-pin RJ-45; TCP/IP, DHCP, SSL, TLS, SSH, SFTP, 802.1X, SNMP, HTTPS, IPv4 and IPv6

Wireless: 802.11a/b/g/n/ac, 2.4 or 5 GHz, WPA and WPA2-PSK with TKIP and AES, range to 15 m; Bluetooth beacon

USB: 2 x USB 2.0 Type A host ports

Sensors: Integrated occupancy and ambient brightness sensors

Mounting: Two or three gang US box, two gang DIN 49073 or BS 4662 box, minimum 35 mm depth

Operating Temperature: 0 to 40 degrees C

Finish: Black smooth

Dimensions: 240 mm W x 149 mm H x 51 mm D

Weight: 730 g

Country of Origin: Mexico

Condition: New, opened box

Key Features

• Bright 1920 x 1200 capacitive display readable from across a corridor
• Single PoE+ cable carries both power and network
• Wired and wireless network options for retrofit installations
• Built-in occupancy sensing for automatic room release
• Works with Exchange, Office 365, Google Calendar and Crestron Fusion
• Enterprise security including 802.1X, TLS and HTTPS

Typical Applications

• Corporate meeting room door panels
• University and college lecture and tutorial room booking
• Coworking and serviced office space management
• Healthcare consulting room scheduling

Package Includes

• 1 x Crestron TSS-1070-B-S touch screen

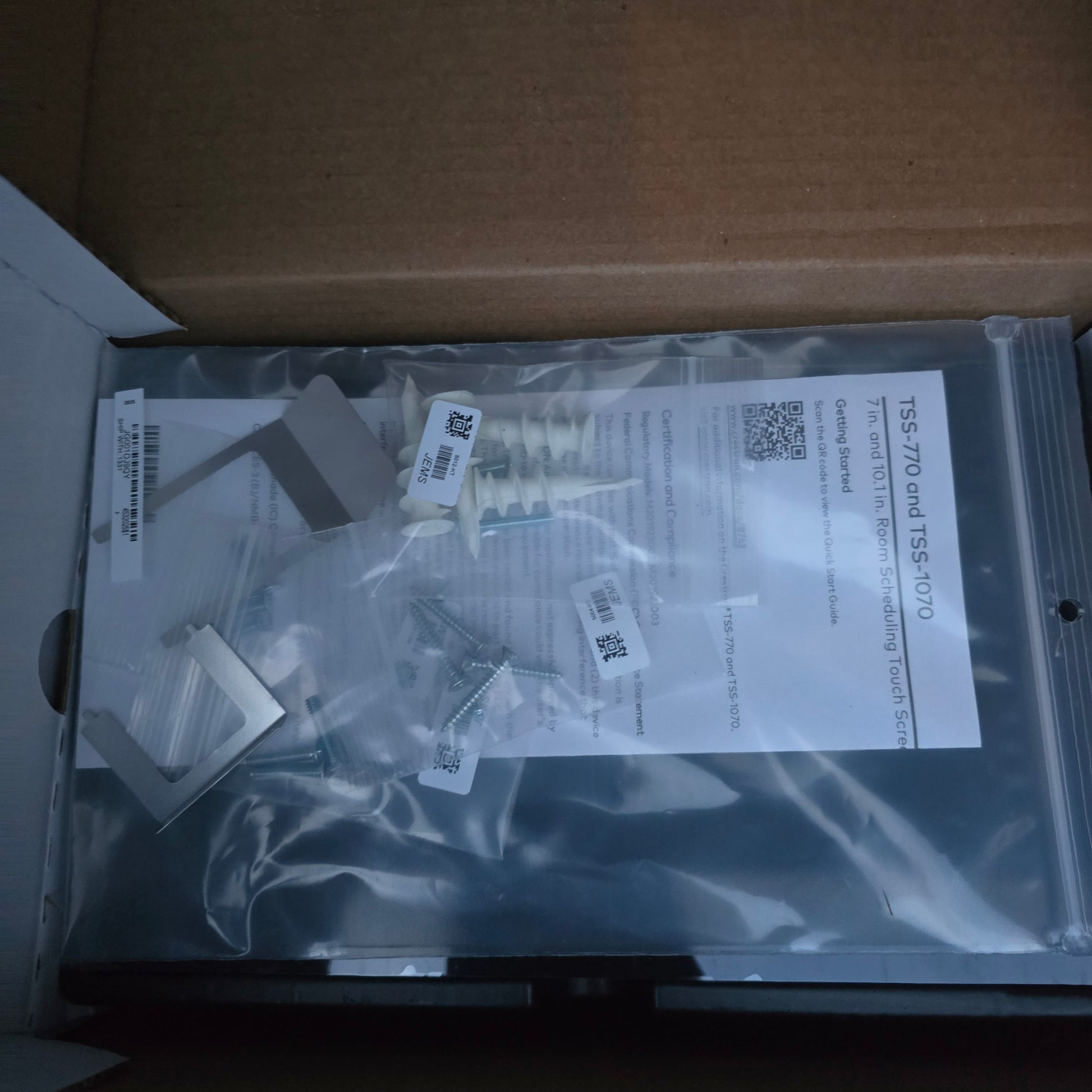

• Mounting hardware bag with screws, wall anchors and mounting bracket
• Crestron Getting Started and compliance sheet
• Original Crestron carton

A light bar accessory, lectern mount, multisurface mount and PoE+ injector are not included.

Additional Information

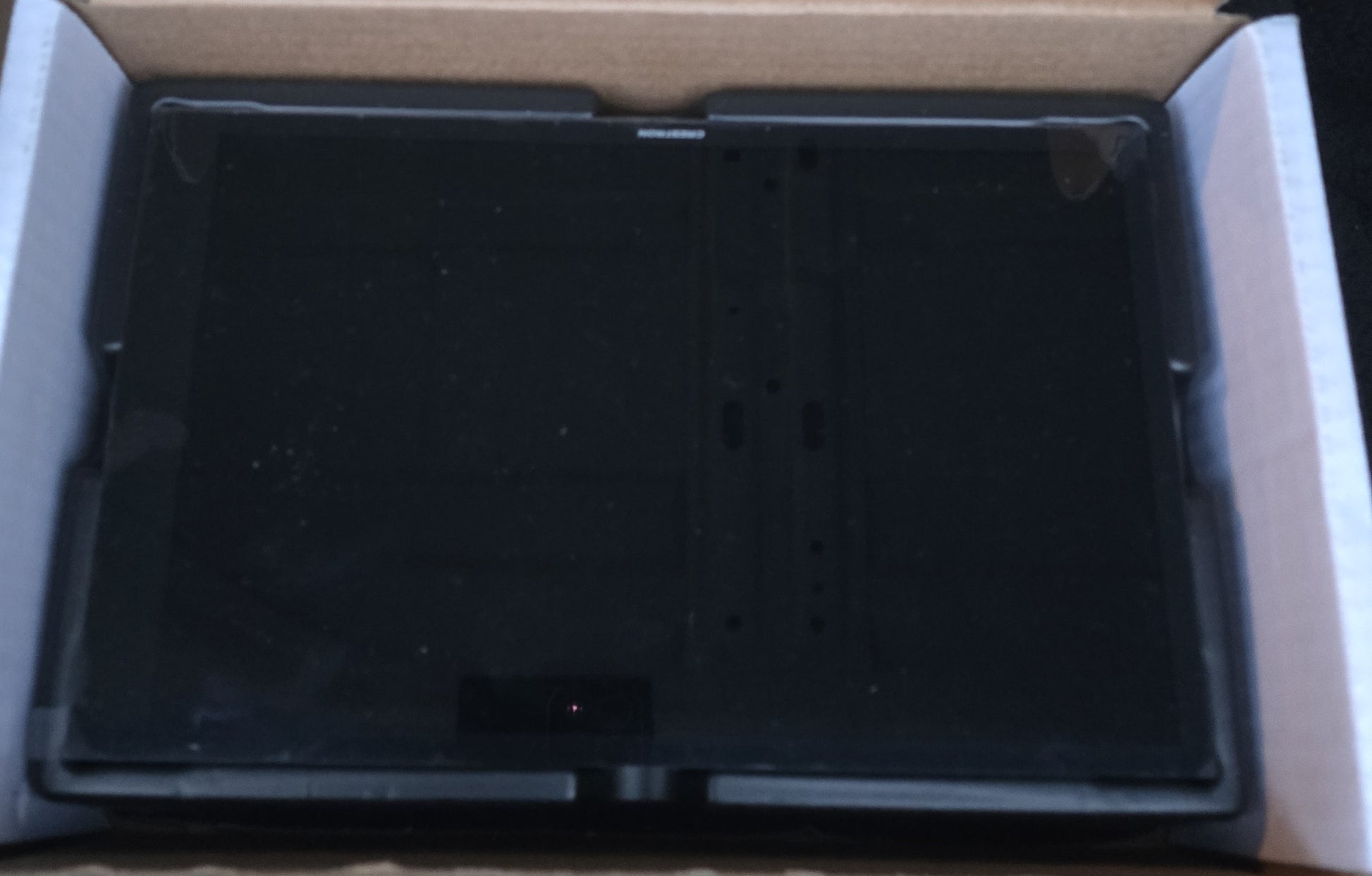

The item is new in the manufacturer's original packaging, with the carton opened for photography and verification. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
