Crestron TPMC-4SM-W-S 4.3in PoE Touch Screen Panel White Smooth (Pre-owned)

The Crestron TPMC-4SM-W-S is a 4.3 inch wall mount touch screen in a white smooth finish, used for room control and room scheduling on Crestron control systems and with Crestron Fusion scheduling software. It supports Crestron Smart Graphics and mounts into a horizontal one-gang US electrical box or a one-gang European DIN 49073 box, protruding less than 19 mm from the wall.

The panel uses a 4.3 inch TFT active matrix colour LCD at 800 x 480 resolution with a resistive membrane touch surface, 270 nits brightness and a 300:1 contrast ratio. It carries 256 MB of SDRAM and 2 GB of flash, and connects over 10/100 Mbps Ethernet on a single 8-pin RJ-45. Power is drawn entirely over PoE to IEEE 802.3at Type 1, Class 3, so no local supply is needed. A proximity sensor, microphone and speaker are built in, ten engravable pushbuttons with dual colour backlighting are available, and four captive screw terminals accept an occupancy sensor input.

Specifications

Brand: Crestron

Model: TPMC-4SM-W-S

Part Number: TPMC-4SM-W-S

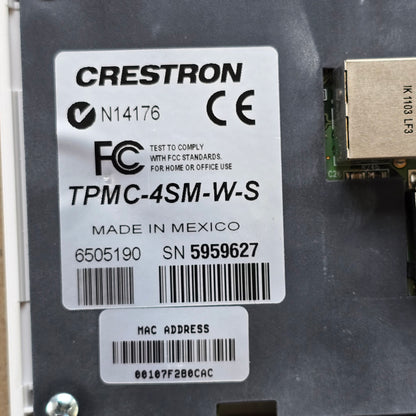

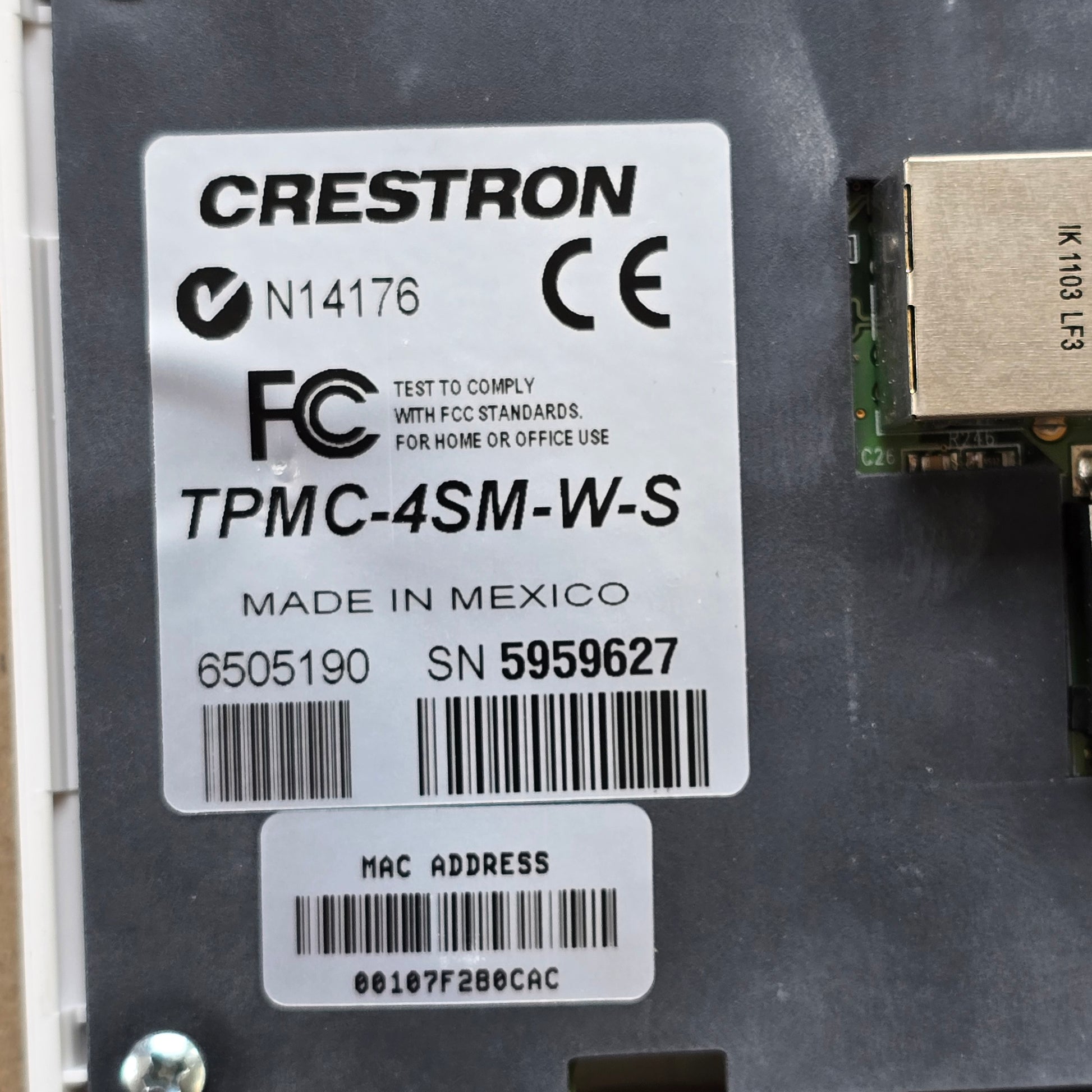

Alternate Part Number: 6505190 (unit label), 6505412 (Crestron material number)

Product Type: Wall mount control and scheduling touch screen

Display: 4.3 in (109 mm) diagonal TFT active matrix colour LCD

Resolution: 800 x 480, 16:9 WVGA

Brightness: 270 nits, 300:1 contrast

Touch: Resistive membrane

Memory: 256 MB SDRAM, 2 GB flash

Network: 10/100 Mbps Ethernet, 1 x 8-pin RJ-45

Power: PoE, IEEE 802.3at Type 1 Class 3, 12.95 W

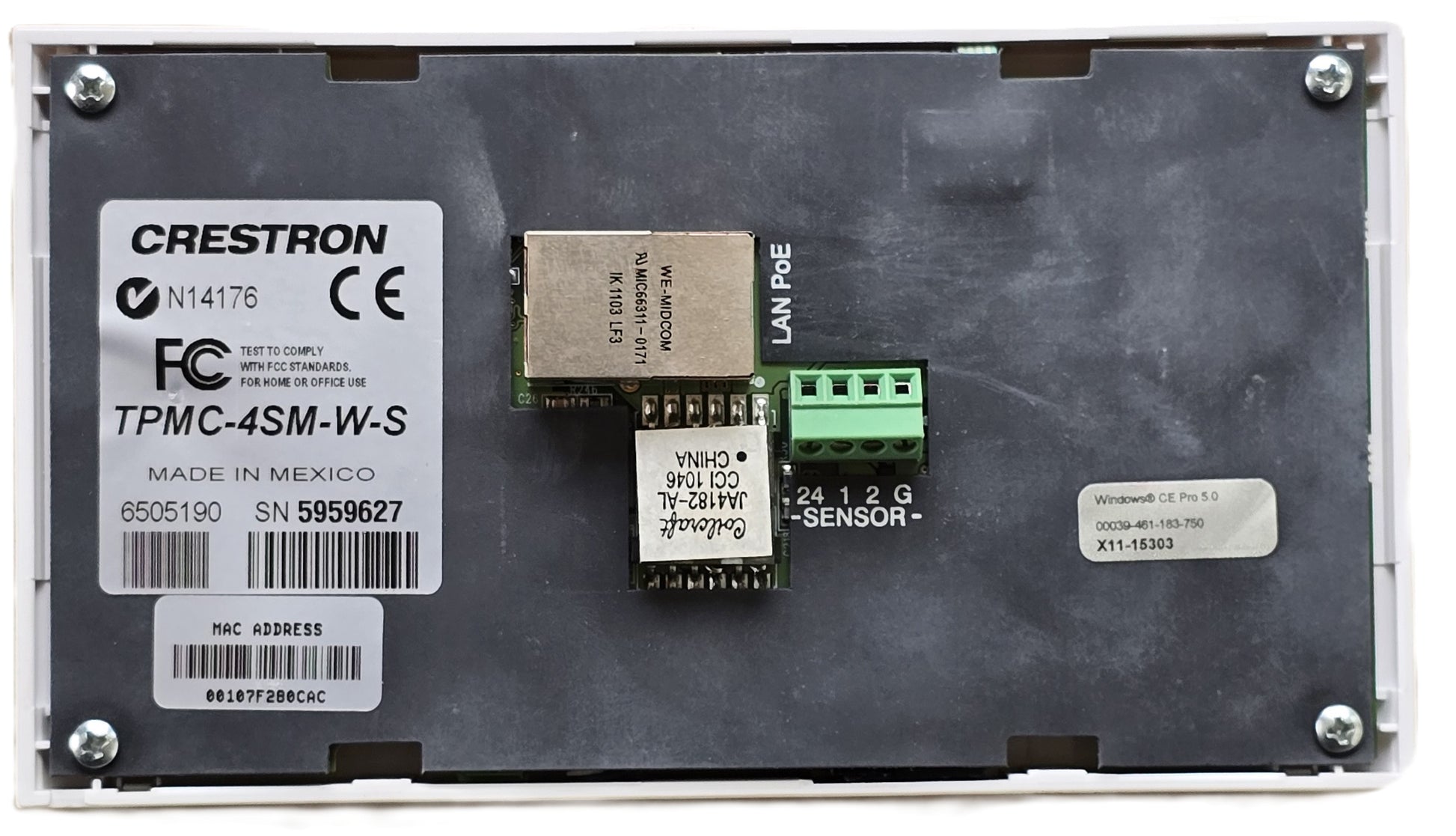

Additional I/O: 4 x captive screw terminals for occupancy sensor input

Mounting: One-gang US electrical box or DIN 49073 box

Finish: White smooth

Dimensions: 158 mm W x 89 mm H x 31 mm D

Weight: 249 g

Country of Origin: Mexico

Condition: Pre-owned

Key Features

• Powered entirely over PoE, so only one cable is run to the wall position
• Built-in proximity sensor wakes the panel as a user approaches
• Ten engravable pushbuttons with dual colour red and green backlighting
• Occupancy sensor input for automated room state
• Crestron Smart Graphics support
• Slim profile, protruding under 19 mm from the wall surface

Typical Applications

• Meeting room booking and availability panels outside the room
• In-room lighting, blind and AV control
• Hotel and hospitality room control
• Spare or replacement panel for an existing Crestron installation

Package Includes

• 1 x Crestron TPMC-4SM-W-S touch panel

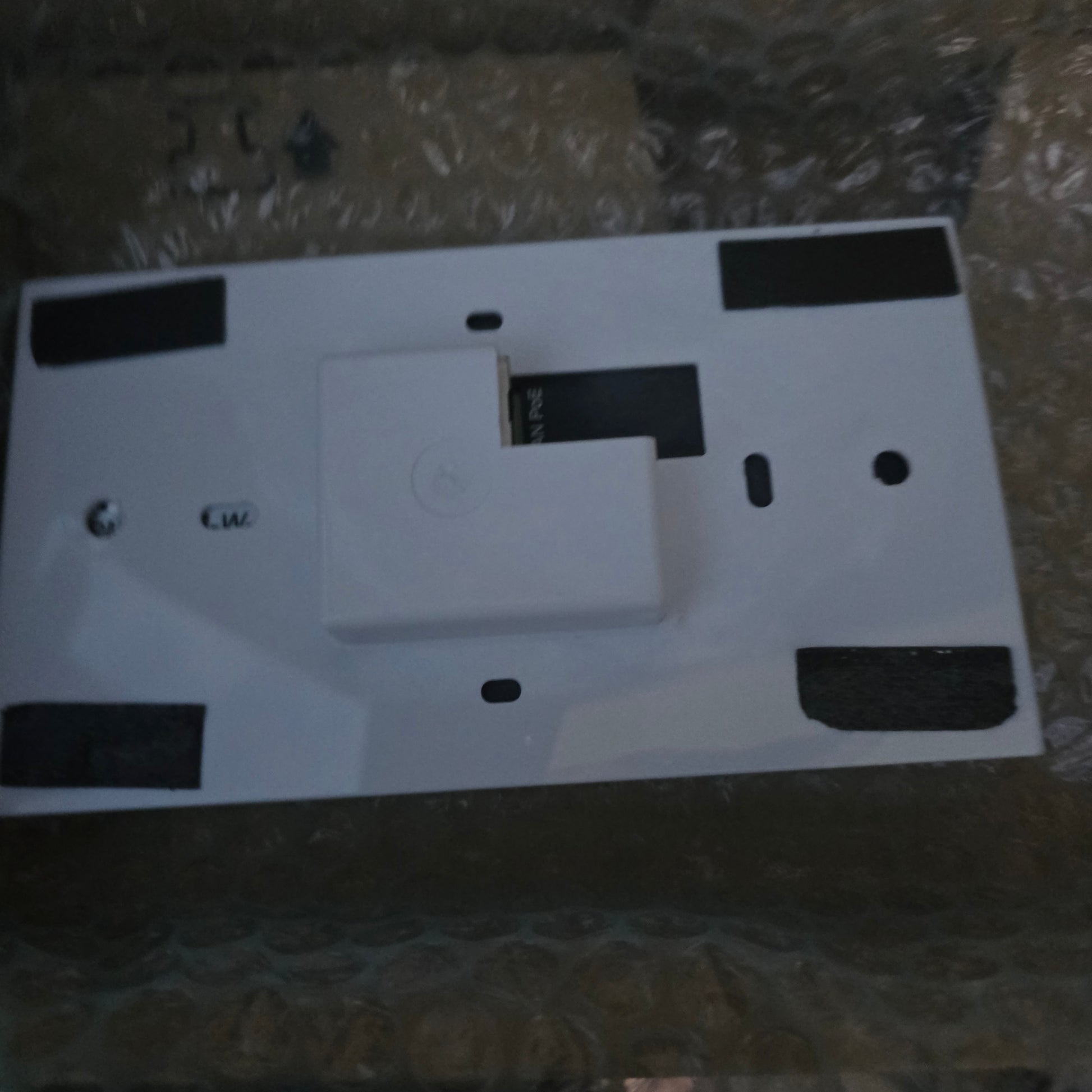

• 1 x wall mount back box / dock plate

There is no retail carton, and no stylus, covers, screws, torx bit or documentation are included. A PoE switch or injector is not included.

Additional Information

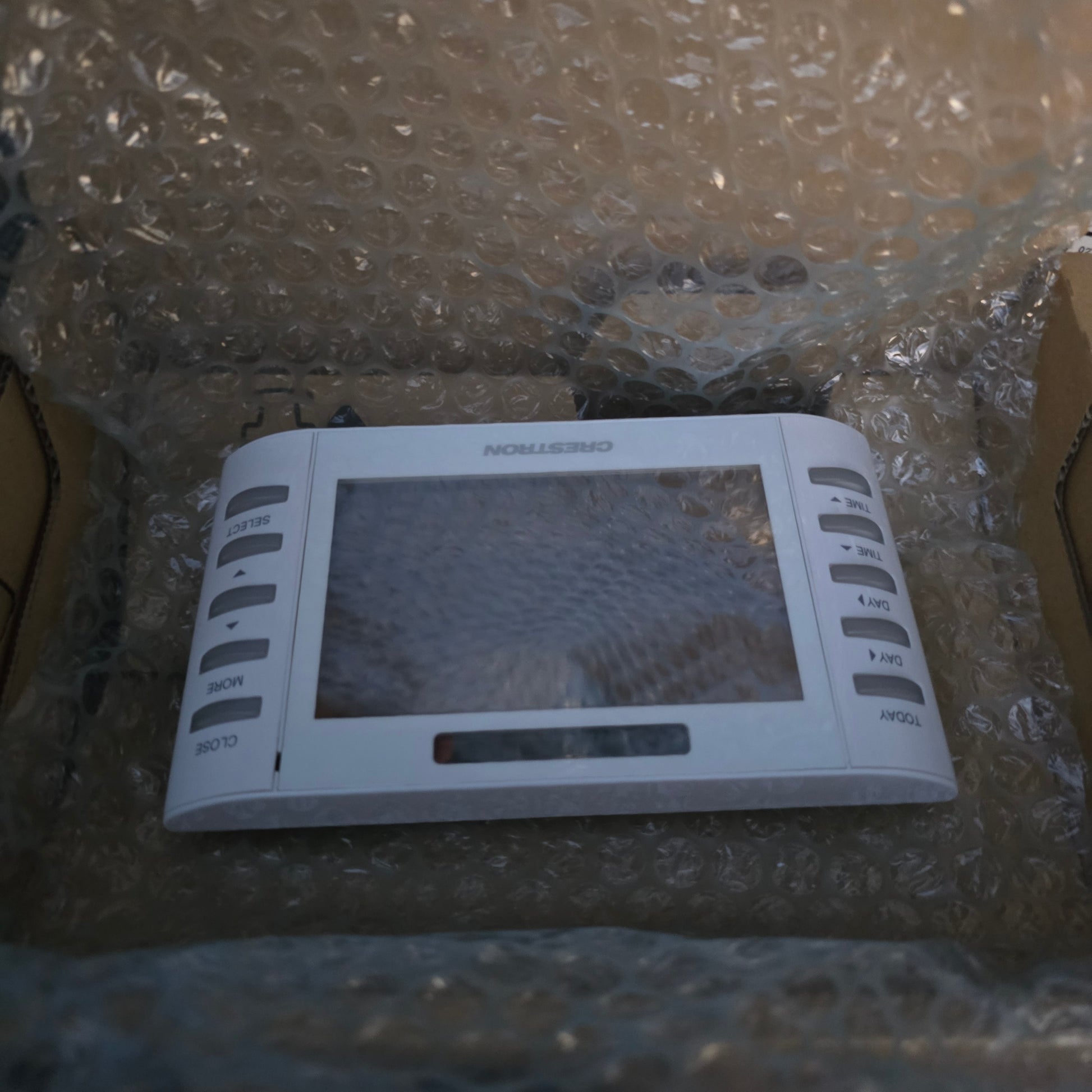

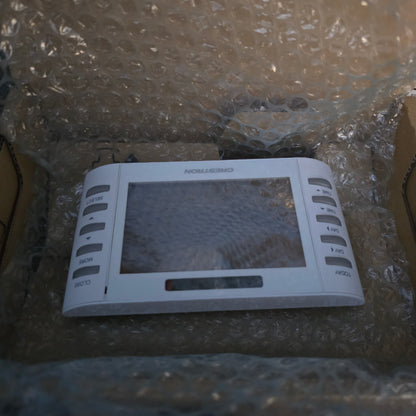

This is a used item, supplied loose in protective wrapping rather than factory packaging. The screen shows light haze and faint wipe marks consistent with previous cleaning and handling, and the unit has clearly been installed previously. The pushbuttons and housing show no cracking or heavy wear. It has not been powered up or function tested by us and is sold as-is. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
