Crestron TPMC-4SM-B-S 4.3in PoE Touch Screen Panel Black Smooth (New Opened)

The Crestron TPMC-4SM-B-S is a 4.3 inch wall mount touch screen in a black smooth finish, used for room control and room scheduling on Crestron control systems and with Crestron Fusion scheduling software. It supports Crestron Smart Graphics, and mounts into a horizontal one-gang US electrical box or a one-gang European DIN 49073 box, protruding less than 19 mm from the wall.

The panel uses a 4.3 inch TFT active matrix colour LCD at 800 x 480 resolution with a resistive membrane touch surface, 270 nits brightness and a 300:1 contrast ratio. It carries 256 MB of SDRAM and 2 GB of flash, and connects over 10/100 Mbps Ethernet on a single 8-pin RJ-45. Power is drawn entirely over PoE to IEEE 802.3at Type 1, Class 3, so no local supply is needed. A proximity sensor, microphone and speaker are built in, ten engravable pushbuttons with dual colour backlighting are available, and four captive screw terminals accept an occupancy sensor input.

Specifications

Brand: Crestron

Model: TPMC-4SM-B-S

Part Number: TPMC-4SM-B-S

Alternate Part Number: 6505191 (unit label), 6505411 (Crestron material number)

Product Type: Wall mount control and scheduling touch screen

Display: 4.3 in (109 mm) diagonal TFT active matrix colour LCD

Resolution: 800 x 480, 16:9 WVGA

Brightness: 270 nits, 300:1 contrast

Touch: Resistive membrane

Memory: 256 MB SDRAM, 2 GB flash

Network: 10/100 Mbps Ethernet, 1 x 8-pin RJ-45

Power: PoE, IEEE 802.3at Type 1 Class 3, 12.95 W

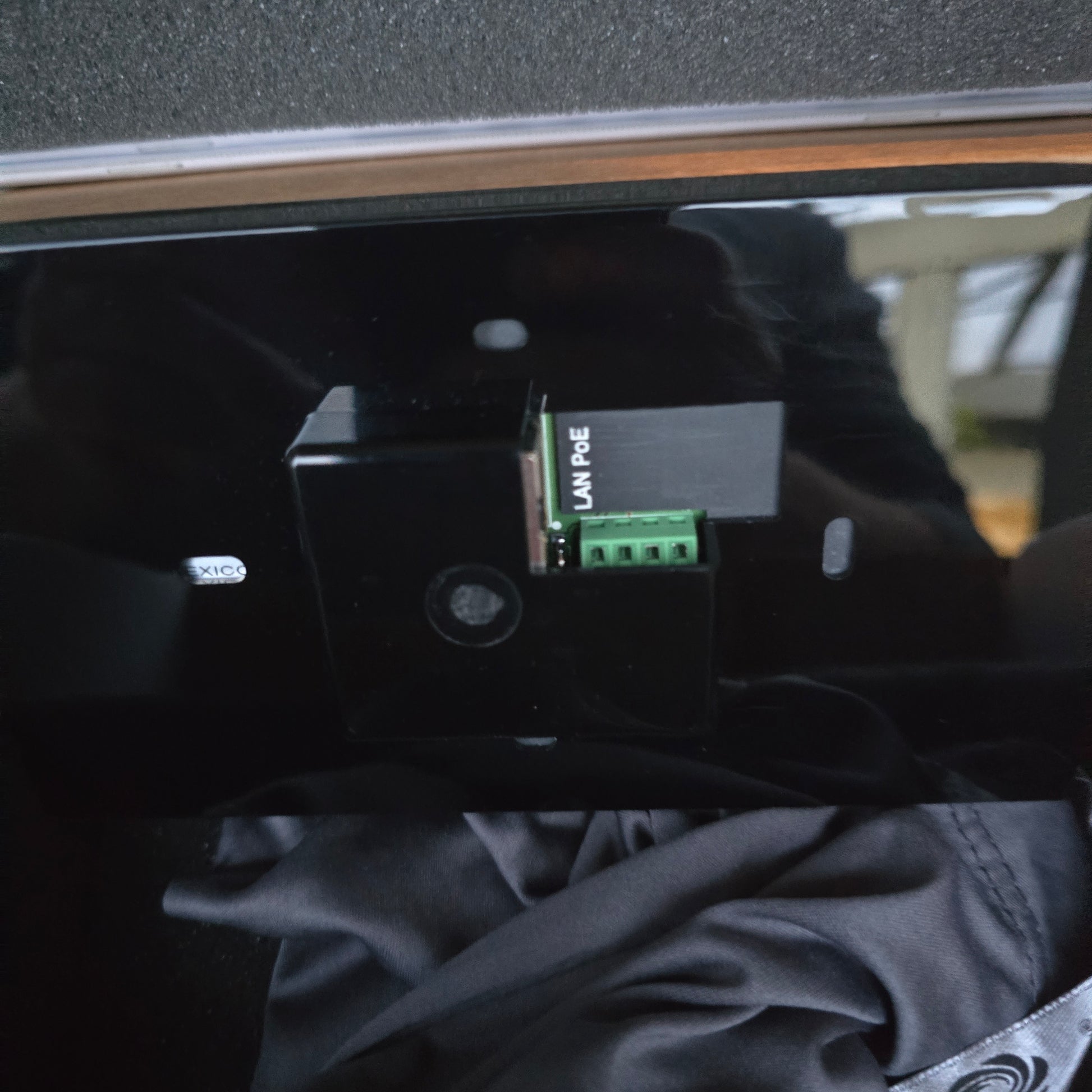

Additional I/O: 4 x captive screw terminals for occupancy sensor input

Mounting: One-gang US electrical box or DIN 49073 box

Finish: Black smooth

Dimensions: 158 mm W x 89 mm H x 31 mm D

Weight: 249 g

Country of Origin: Mexico

Condition: New, opened box

Key Features

• Powered entirely over PoE, so only one cable is run to the wall position
• Built-in proximity sensor wakes the panel as a user approaches

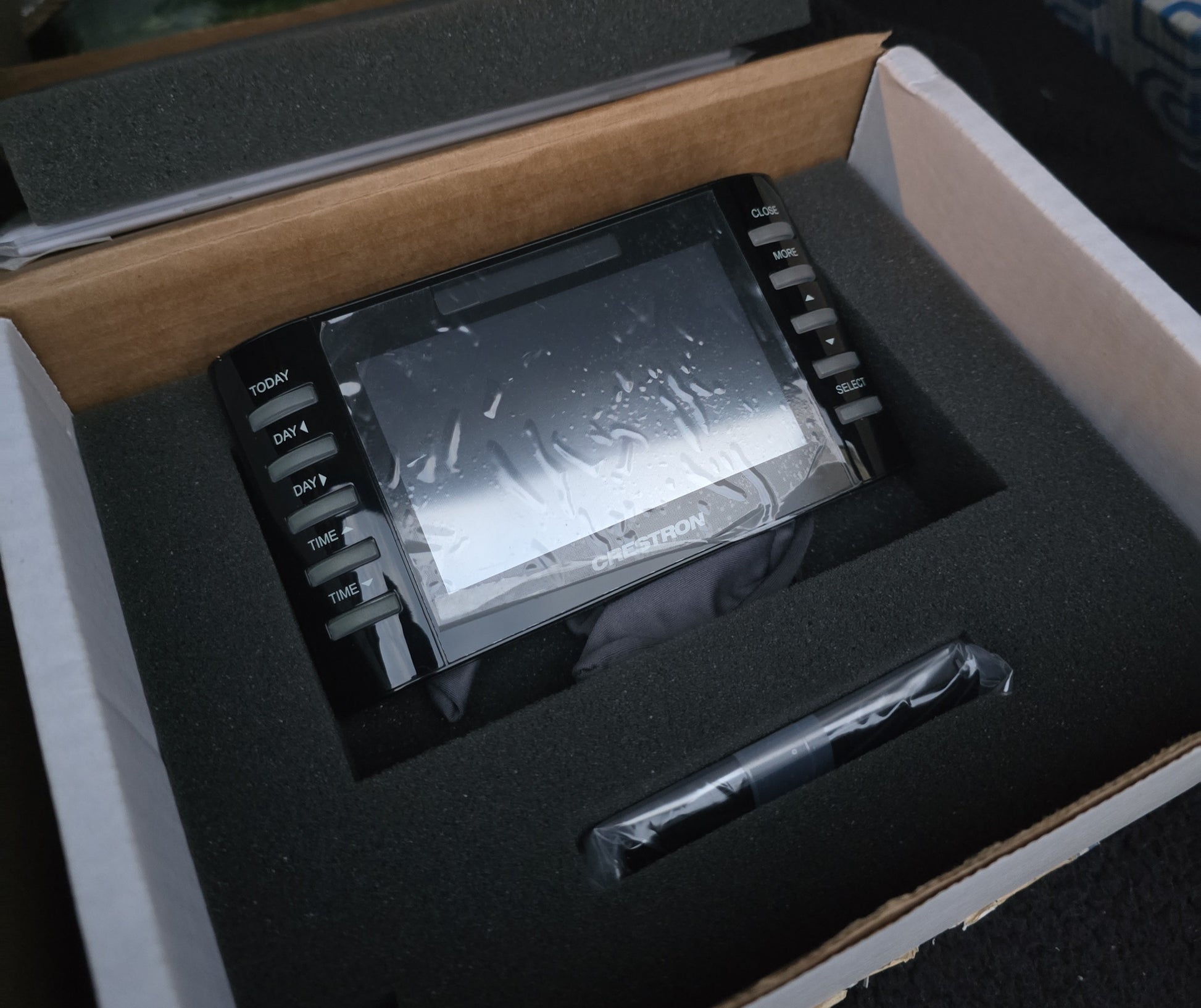

• Ten engravable pushbuttons with dual colour red and green backlighting
• Occupancy sensor input for automated room state
• Crestron Smart Graphics support
• Slim profile, protruding under 19 mm from the wall surface

Typical Applications

• Meeting room booking and availability panels outside the room
• In-room lighting, blind and AV control
• Lectern and podium mounted control positions
• Corporate and education Crestron Fusion scheduling deployments

Package Includes

• 1 x Crestron TPMC-4SM-B-S touch panel
• 2 x plastic covers
• Mounting screws and torx bit
• Stylus and cloth pouch, each in its own sealed bag
• Crestron documentation and shipment checklist

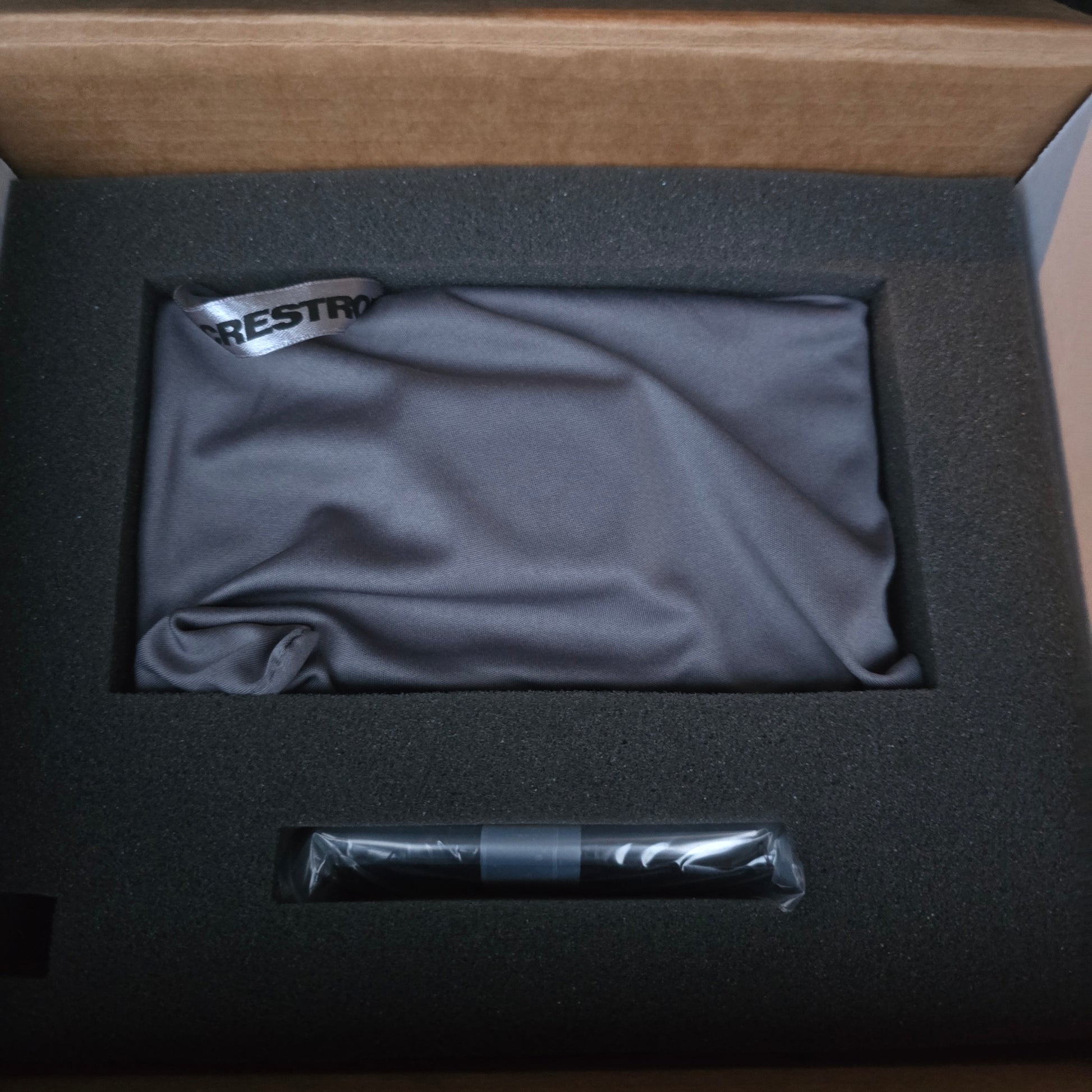

• Original Crestron foam packaging and carton

A wall mount kit such as the WMKU-4SM, MSMK-4SM or TTK-4SM is not included.

Additional Information

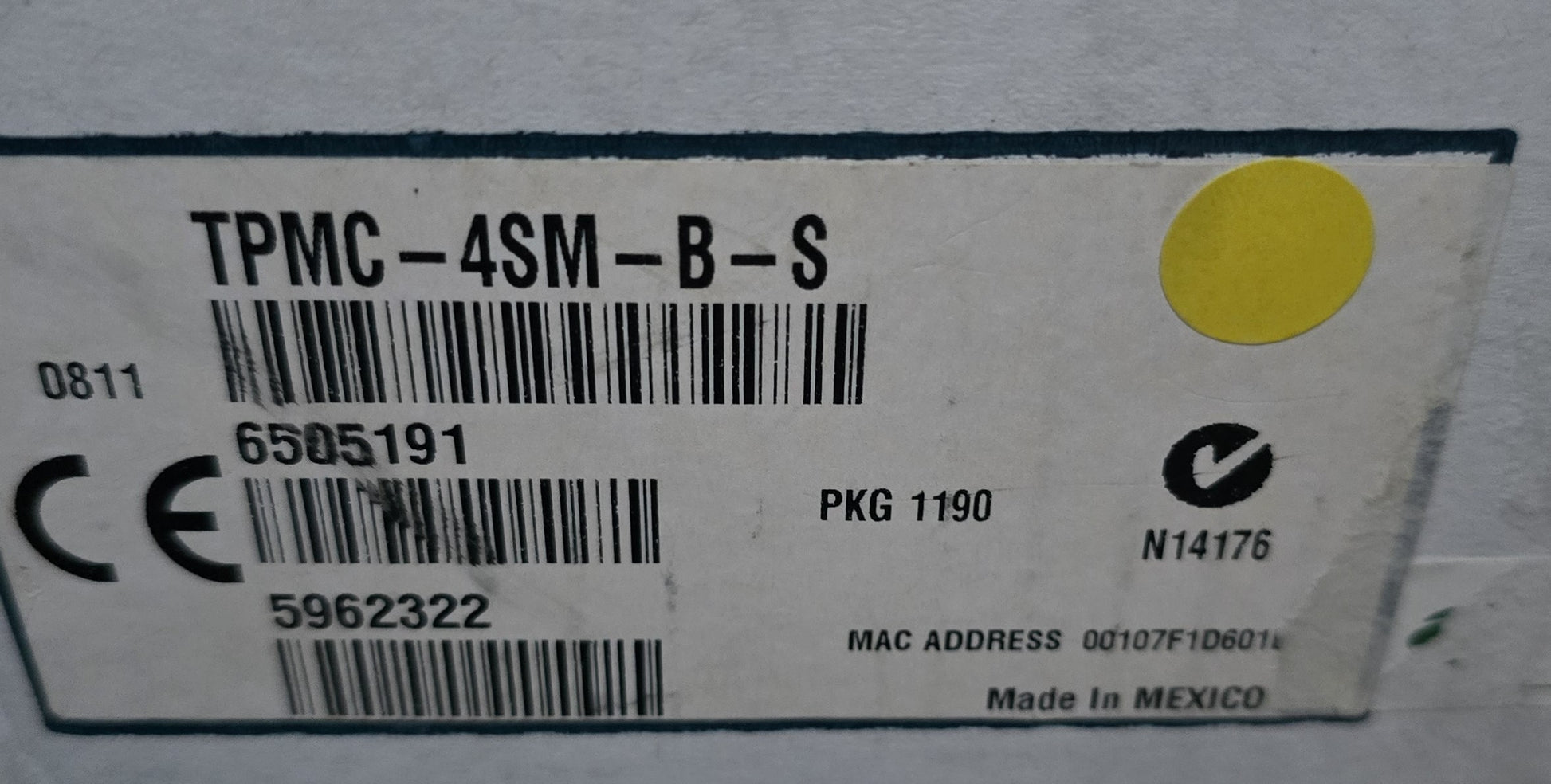

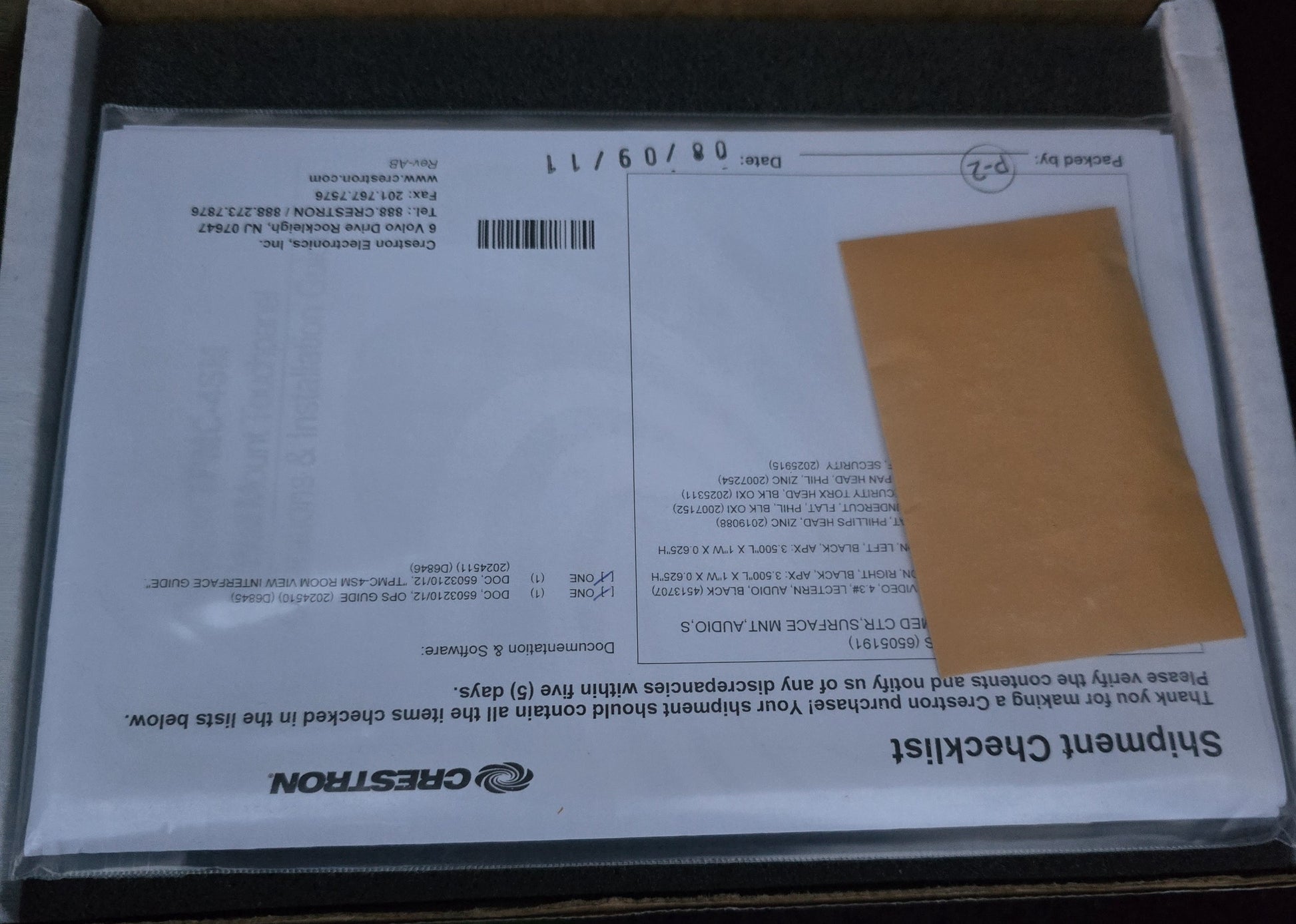

The Crestron shipment checklist packed with this unit describes the product as TPMC-4SM-AUD-B-S under the same part number 6505191, while the unit's own rear label reads TPMC-4SM-B-S. Both markings are shown in the listing photographs so the buyer can verify the exact variant.

The item is new in the manufacturer's original packaging, with the carton opened for photography and verification, and the packaging may show minor shelf wear from storage. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
