Crestron IM-RXV1-M 6501929 iMedia Receiver RGB Video Audio CAT5 (New Opened)

The Crestron IM-RXV1-M is an iMedia receiver, Crestron part number 6501929. It takes the iMedia signal from a single iMedia transmitter over one CAT5e run and breaks it out into RGB, composite video, audio and control at the display end, which made it the standard single-cable solution for small conference and training rooms before HDBaseT took over. Crestron has discontinued the product.

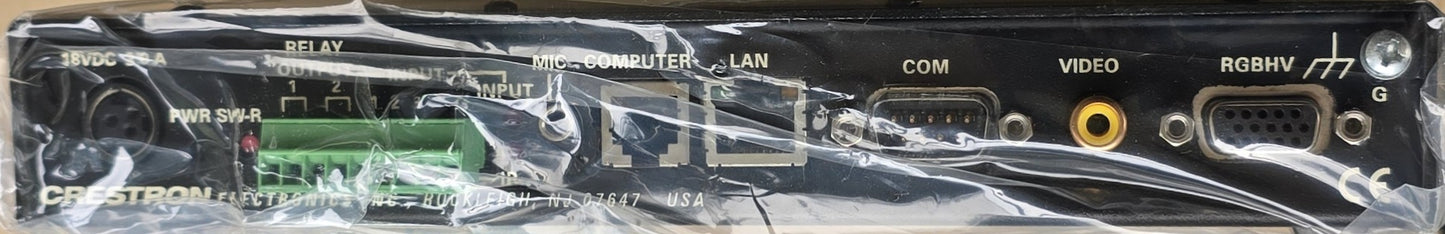

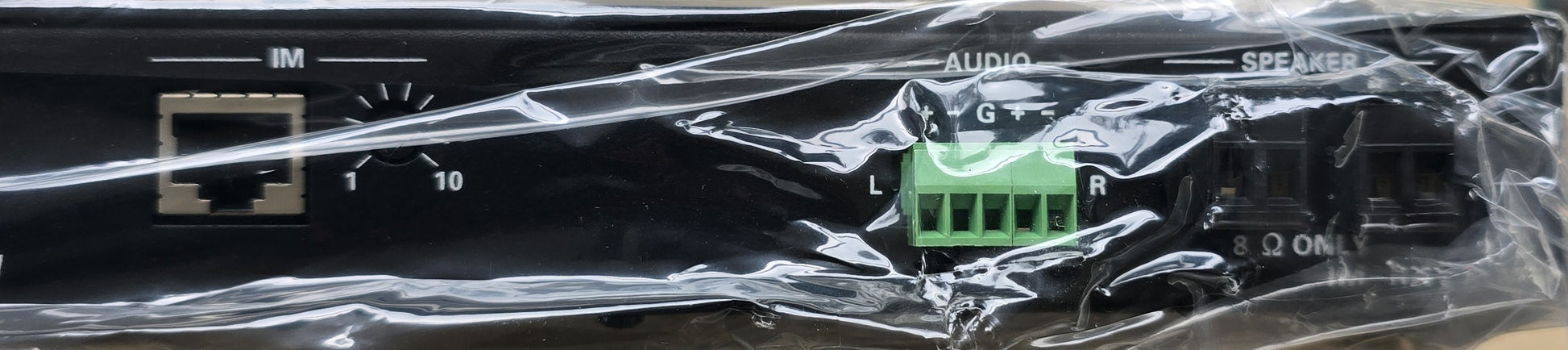

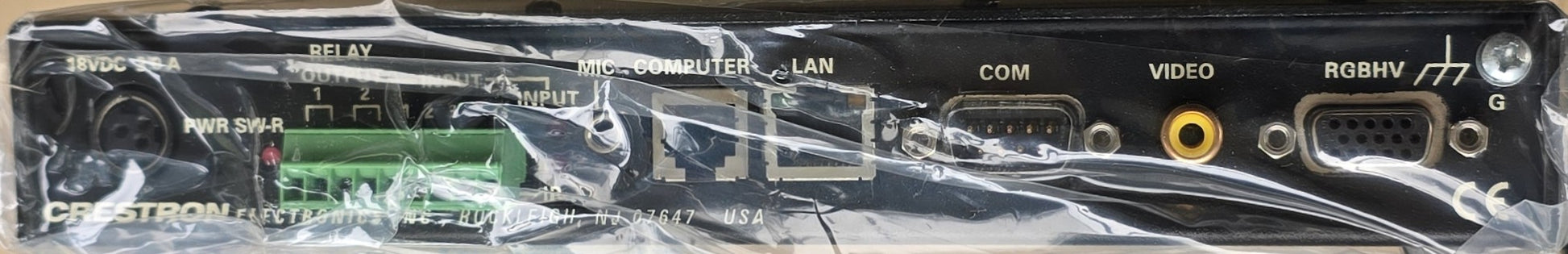

Inputs are the iMedia link on RJ-45, a 3.5 mm microphone input, three digital inputs and bidirectional RS-232. Outputs cover RGB on DB15HD, composite video on RCA, balanced stereo line level audio, two speaker level outputs at 10 W each, two relays for screen and lift control, and an IR port. There is a 10/100BaseT Ethernet port with e-Control 2 and RoomView management. The receiver carries a built-in 20 W stereo amplifier with 20-bit 48 kHz conversion, and supports 1024x768 at 60 Hz to about 26 m and 1600x1200 at 60 Hz to about 10 m, plus composite 480i NTSC and 576i PAL. Power is 18 VDC at 3.0 A, and the black metal chassis measures 222 x 195 x 41 mm and weighs 0.79 kg.

Specifications

Brand: Crestron

Model: IM-RXV1-M, iMedia Receiver

Part Number: IM-RXV1-M

Alternate Part Number: 6501929

Product Type: iMedia RGB, video, audio and control receiver over CAT5

Inputs: iMedia RJ-45; microphone 3.5 mm; 3 digital inputs; bidirectional RS-232

Outputs: RGB on DB15HD; composite video on RCA; balanced stereo line level; 2 x speaker level at 10 W; 2 relays; IR port

Amplifier: 20 W stereo built in, 20-bit 48 kHz conversion

Resolutions: 1024x768 at 60 Hz to approximately 26 m; 1600x1200 at 60 Hz to approximately 10 m; composite 480i NTSC and 576i PAL

Ethernet: 10/100BaseT, e-Control 2 and RoomView

Power: 18 VDC at 3.0 A, requires Crestron PW-1830RU power supply

Enclosure: Black metal, freestanding or mountable

Dimensions: 222 mm W x 195 mm D x 41 mm H

Weight: 0.79 kg

Country of Origin: Mexico

Condition: New, Box Opened

Key Features

• Single CAT5e run carries RGB, video, audio and control to the display end
• Built-in 20 W stereo amplifier drives ceiling or wall speakers directly
• Relay outputs for projector screen and lift control
• RS-232 and IR for display control from the room system
• Ethernet management via e-Control 2 and RoomView

Typical Applications

• Legacy Crestron iMedia room systems needing a replacement receiver
• Small conference and training room AV distribution
• Analogue RGB projector installations
• Spares holding for an existing iMedia estate

Package Includes

• 1 x Crestron IM-RXV1-M receiver in a poly bag with desiccant
• Original outer carton

The required PW-1830RU 18 VDC power supply is not included, and no cables, mounting hardware or documentation are supplied.

Additional Information

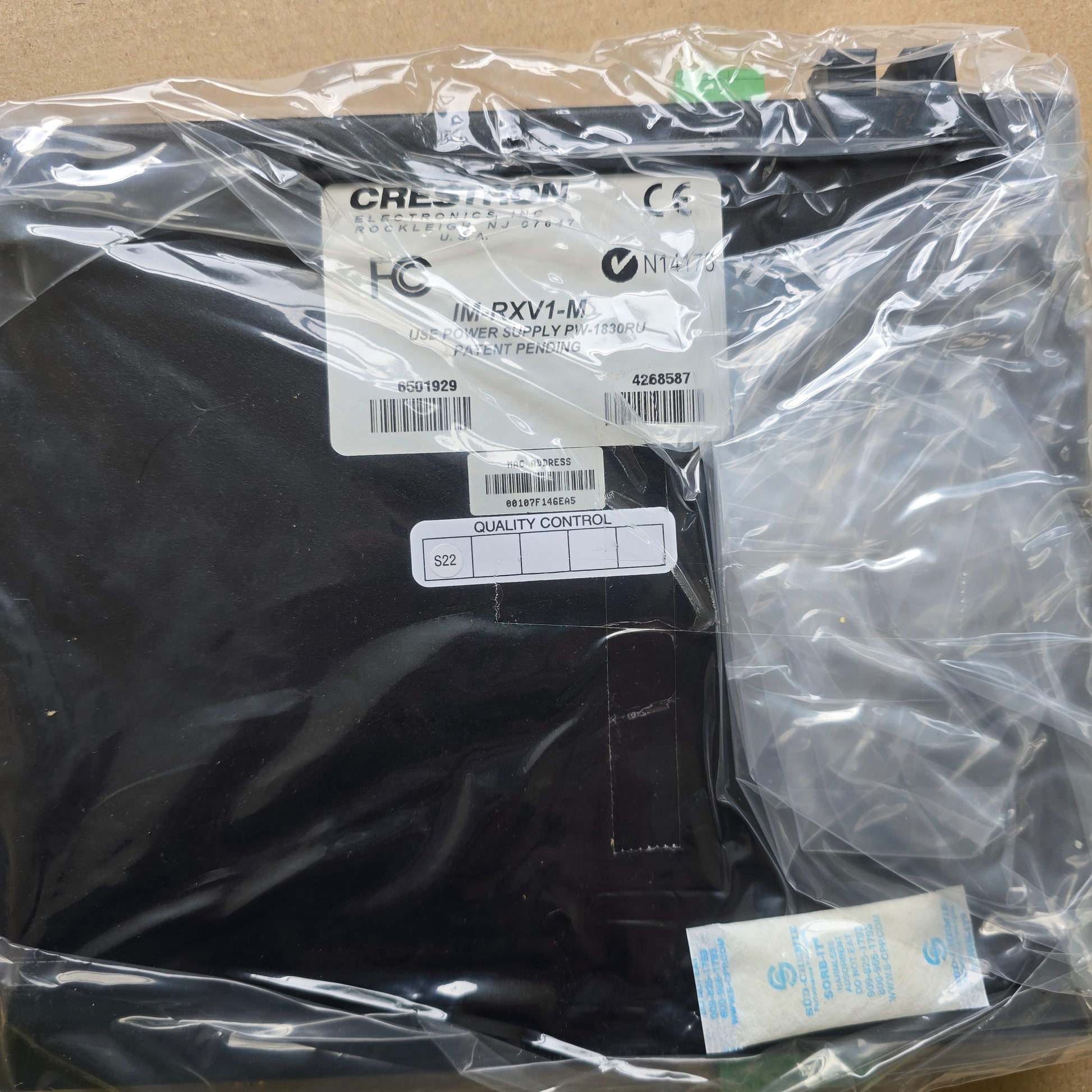

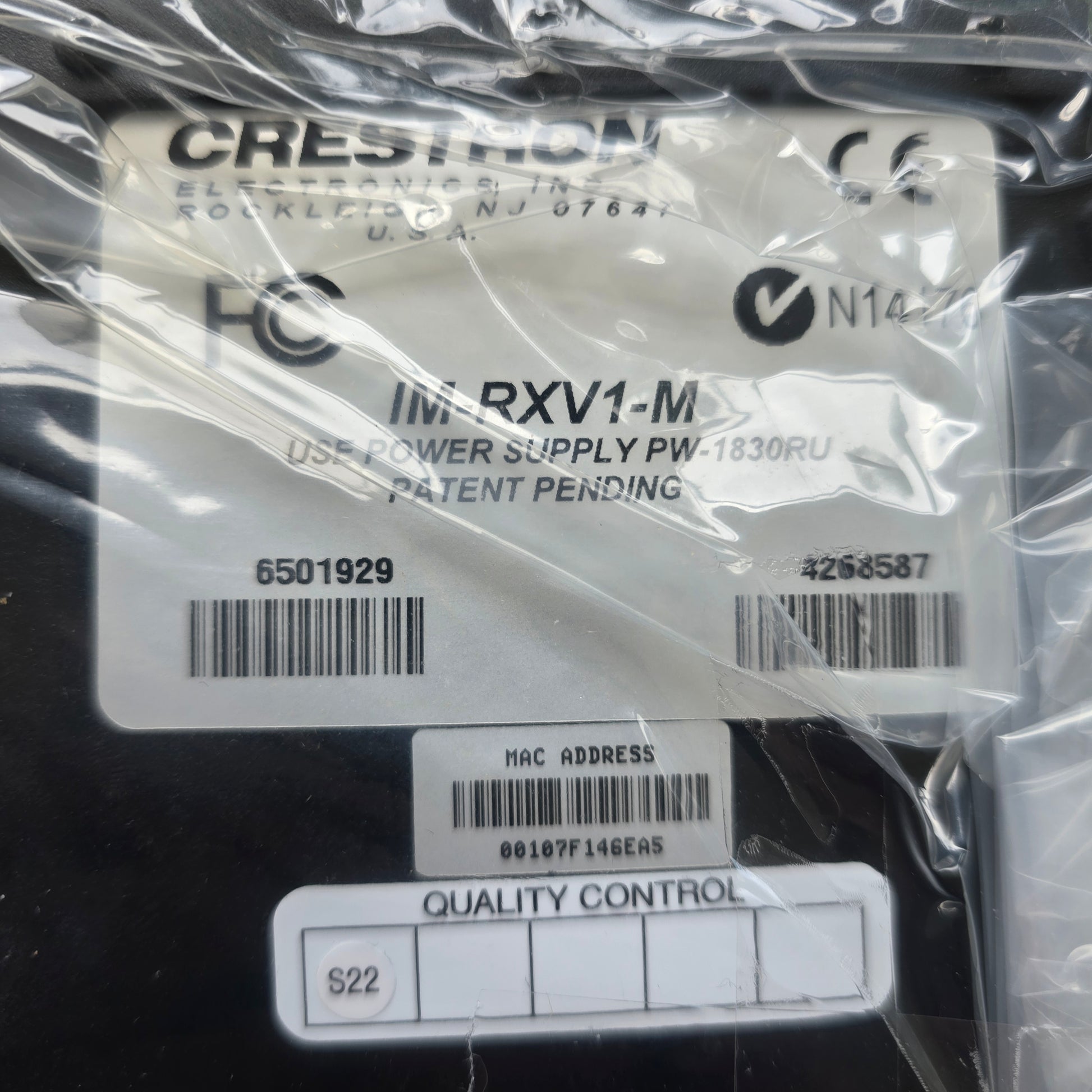

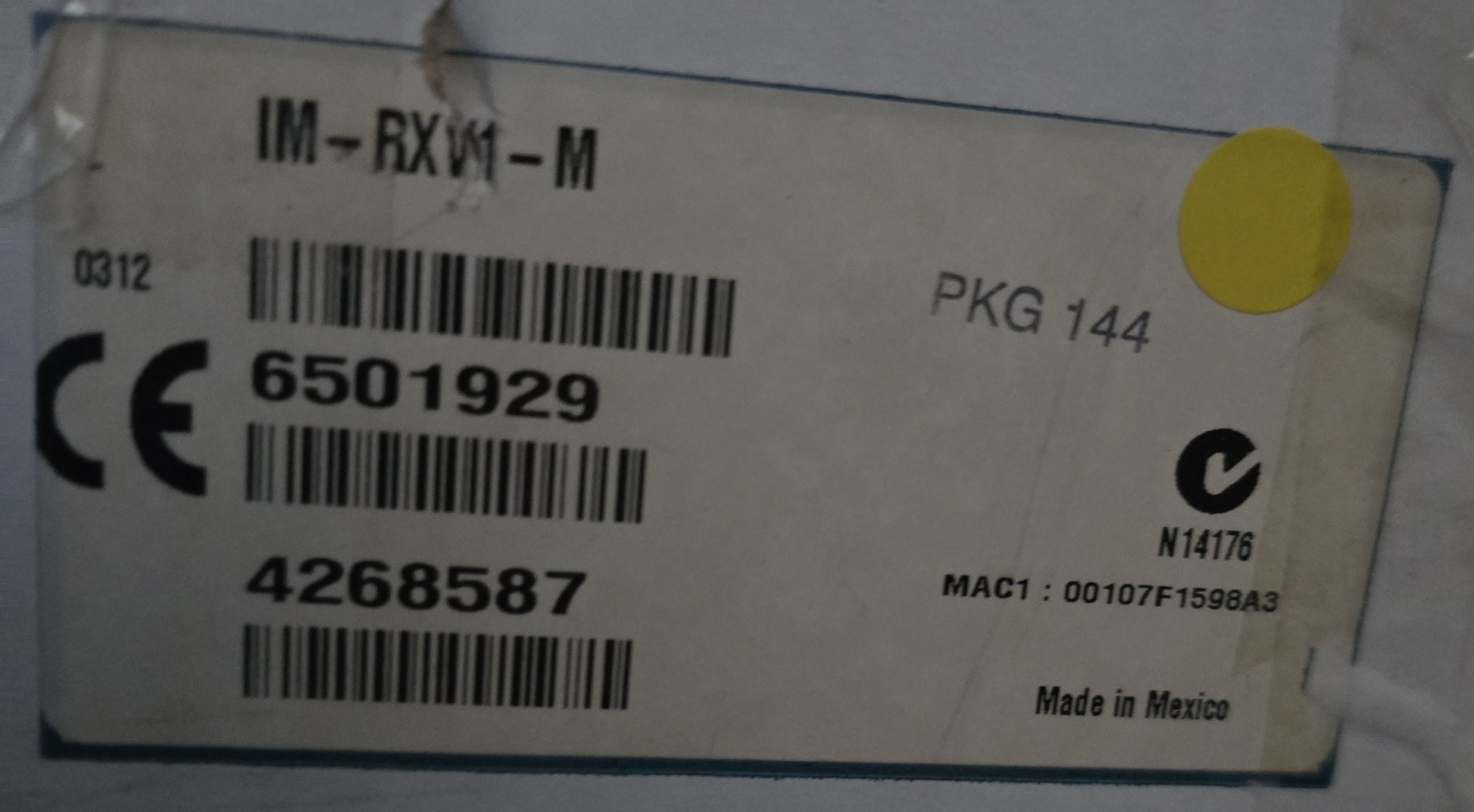

Our records did not carry a condition for this item, so it has been assessed from the photographs and is listed as pre-owned. Two points the buyer should know: the MAC address printed on the outer carton label does not match the MAC address on the unit's own label, so the unit inside is not the one originally packed in this box; and the unit carries a hand-marked quality control inspection tag. Both are consistent with a returned, inspected or repackaged unit rather than sealed new stock, and both are shown in the listing photographs.

This model is discontinued by Crestron. The item has not been powered up or function tested by us and is sold as-is. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
