Crestron HD-TXC-4KZ-101-1G-W DM Lite 4K60 Wall Plate Transmitter (New Opened)

The Crestron HD-TXC-4KZ-101-1G-W is a one-gang wall plate transmitter in white, Crestron part number 6511810 and regulatory model M202045001. It extends HDMI, RS-232 and IR over a single CATx cable to a DM Lite or DM Essentials receiver or a DMPS Lite switcher, putting the source connection point flush in the wall rather than on a bench or lectern.

Video support runs to 4K60 4:4:4, covering 4096x2160 DCI 4K, 3840x2160 UHD, 2560x1600 WQXGA and 1920x1080, with custom resolutions up to a 600 MHz pixel clock. The transmitter is HDCP 2.3 compliant and passes HDR10, HDR10+ and Dolby Vision. Reach is 40 m at 4K60 and 70 m at 1080p and 2K using DM-CBL-ULTRA cable, or 30 m and 60 m respectively on DM-CBL-8G. Connections are one HDMI Type A input, one shielded 8-pin RJ-45 DM Essentials output, a 3-pin RS-232 terminal block, a 4-pin IR in and out terminal block and a 2-pin 24 V power terminal. It fits a one-gang or larger US electrical box of at least 57 mm depth.

Specifications

Brand: Crestron

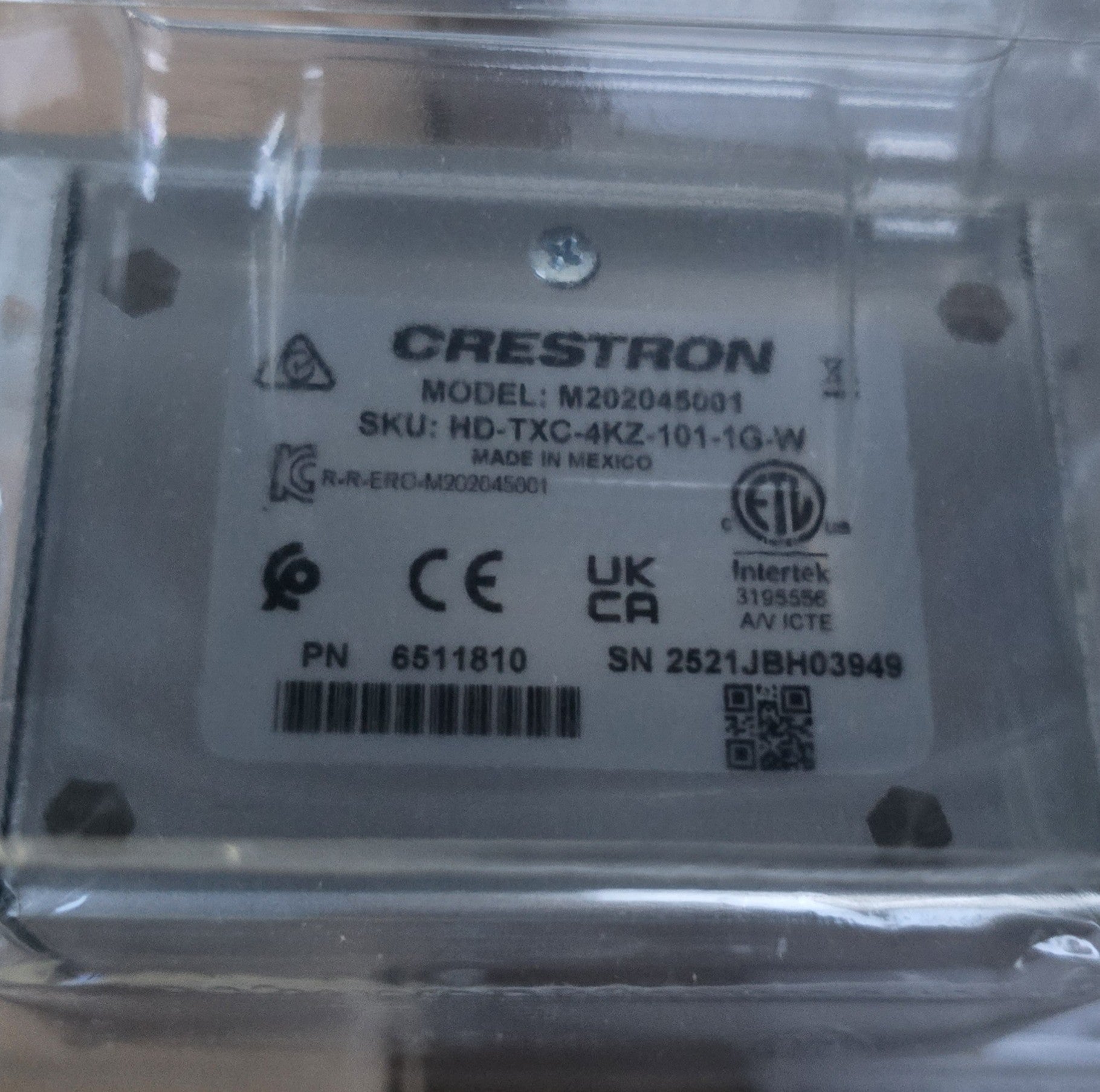

Model: HD-TXC-4KZ-101-1G-W, regulatory model M202045001

Part Number: HD-TXC-4KZ-101-1G-W

Alternate Part Number: 6511810

Product Type: Wall plate HDMI over CATx transmitter

Maximum Resolution: 4K60 4:4:4, pixel clock to 600 MHz

HDCP: 2.3

HDR Support: HDR10, HDR10+, Dolby Vision

Transmission Distance: 40 m at 4K60 and 70 m at 1080p and 2K with DM-CBL-ULTRA; 30 m and 60 m with DM-CBL-8G

Control: Two-way RS-232 pass-through to 115.2k baud, bidirectional IR pass-through to 60 kHz

Connectors: 1 x HDMI Type A input, 1 x shielded RJ-45 output, 1 x 3-pin RS-232, 1 x 4-pin IR, 1 x 2-pin 24 V power

Power: 24 VDC at 0.75 A, or powered from the receiver or switcher over the link

Mounting: One-gang or larger US electrical box, minimum 57 mm deep

Finish: White

Dimensions: 44 mm W x 105 mm H x 56 mm D

Weight: 157 g

Country of Origin: Mexico

Condition: New, opened box

Key Features

• Flush wall plate form factor keeps the source connection tidy and secure
• 4K60 4:4:4 with HDCP 2.3 and full HDR metadata support
• RS-232 and bidirectional IR carried on the same CATx cable as the video
• Can be powered over the link from the receiver or switcher
• Fits a standard one-gang electrical box

Typical Applications

• Meeting room and boardroom wall input plates
• Classroom and training room presenter connections
• Hotel and conference venue AV wall inputs
• Retrofit of a tidy HDMI input point into an existing wall box

Package Includes

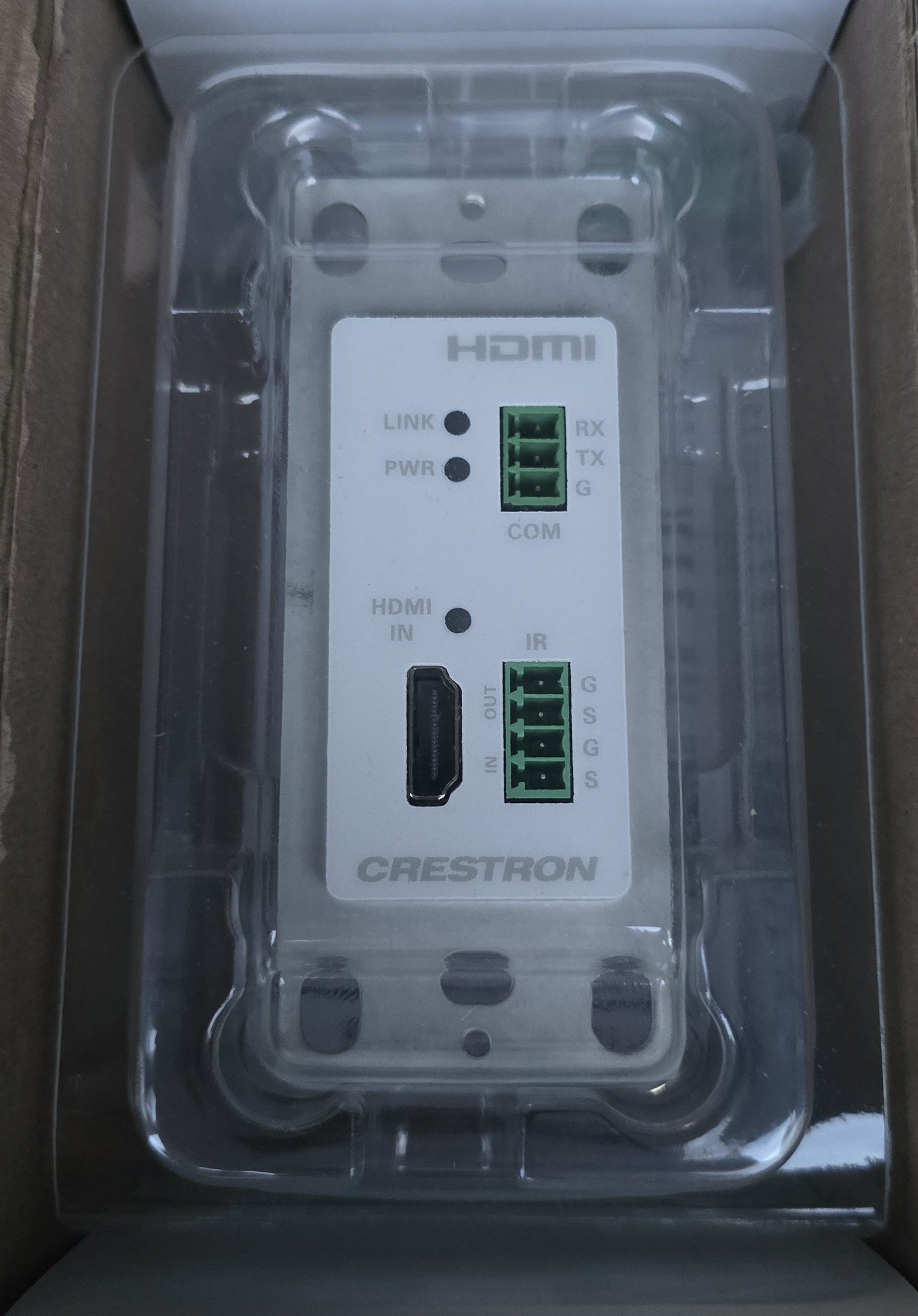

• 1 x Crestron HD-TXC-4KZ-101-1G-W wall plate transmitter, in its original clamshell insert
• Original Crestron carton

A PW-2407WUL power supply and mounting box are not included unless shown in the listing photographs.

Additional Information

The item is new in the manufacturer's original packaging, with the carton opened for photography and verification. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
