Crestron HD-TXC-101-C-E 6509872 DM Lite HDMI CATx 4K Transmitter (New Opened)

The Crestron HD-TXC-101-C-E is a surface mount DM Lite transmitter, Crestron part number 6509872. Paired with a DM Lite or DMPS Lite receiver, it provides point to point extension of HDMI, RS-232 and IR over a single CATx cable, replacing a long and expensive HDMI run with structured cabling.

The transmitter carries up to 3840x2160 at 60 Hz in 4:2:0, 4096x2160 DCI 4K at 24 to 30 Hz, 4K30 at 4:4:4 and 1080p60, with 3D and Deep Color support, and is HDCP 2.2 compliant. Reach is up to 70 m for 1080p, WUXGA and 2K signals and up to 40 m for UHD and 4K. Control is carried on the same cable, with bidirectional IR pass-through to 60 kHz and two-way RS-232 pass-through to 115.2k baud on transmit and receive lines. The chassis is metal in a black finish, and the supplied power pack accepts 100 to 240 VAC and outputs 24 VDC at 1.25 A.

Specifications

Brand: Crestron

Model: HD-TXC-101-C-E, DM Lite Transmitter

Part Number: HD-TXC-101-C-E

Alternate Part Number: 6509872

Product Type: HDMI over CATx transmitter

Maximum Resolution: 3840x2160 at 60 Hz 4:2:0, 4096x2160 at 24 to 30 Hz, 4K30 4:4:4, 1080p60

HDCP: 2.2

Transmission Distance: Up to 70 m at 1080p, WUXGA and 2K; up to 40 m at UHD and 4K

Control: Bidirectional IR to 60 kHz, two-way RS-232 to 115.2k baud

Connectors: HDMI input, RJ-45 DM Lite link, IR terminal block, RS-232 COM block, USB power port

Power Supply: 100 to 240 VAC input, 24 VDC at 1.25 A output

Chassis: Metal, black finish

Dimensions: 107 mm W x 104 mm D x 32 mm H

Weight: 282 g

Country of Origin: Taiwan

Condition: New, opened box

Key Features

• 4K and 1080p HDMI extension over a single CATx cable
• HDCP 2.2 compliant with 3D and Deep Color support
• RS-232 and bidirectional IR carried alongside the video
• Metal chassis suited to concealed and furniture mounting
• Simple point to point pairing with no configuration required

Typical Applications

• Meeting room and huddle space display extension
• Classroom projector feeds
• Digital signage source to screen runs
• Retail and hospitality display installations

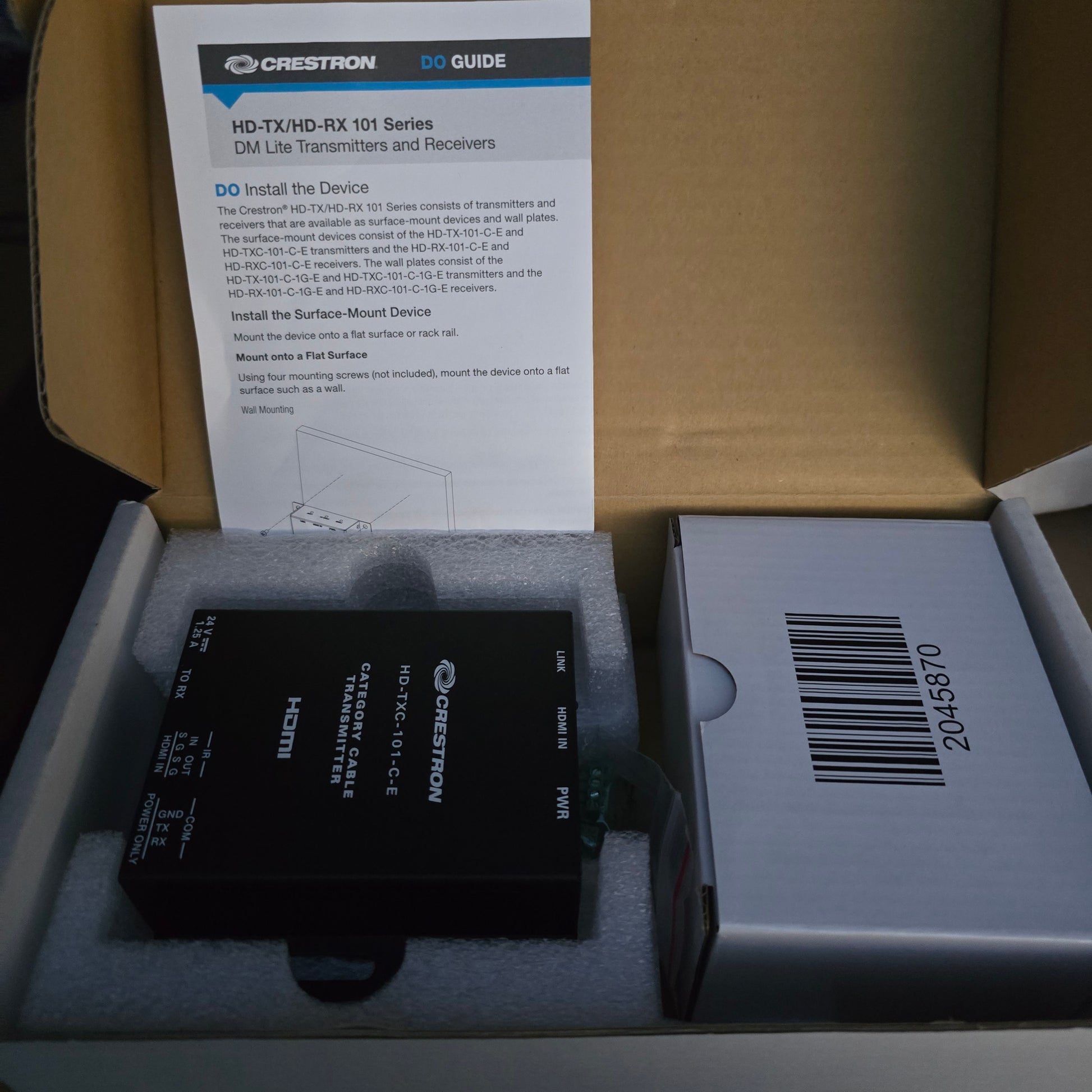

Package Includes

• 1 x Crestron HD-TXC-101-C-E transmitter in moulded foam packaging
• 1 x accessory box containing the power supply
• Crestron DO Guide leaflet
• Original Crestron carton

A matching DM Lite receiver and CATx cabling are not included.

Additional Information

The item is new in the manufacturer's original packaging, with the carton opened for photography and verification. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
