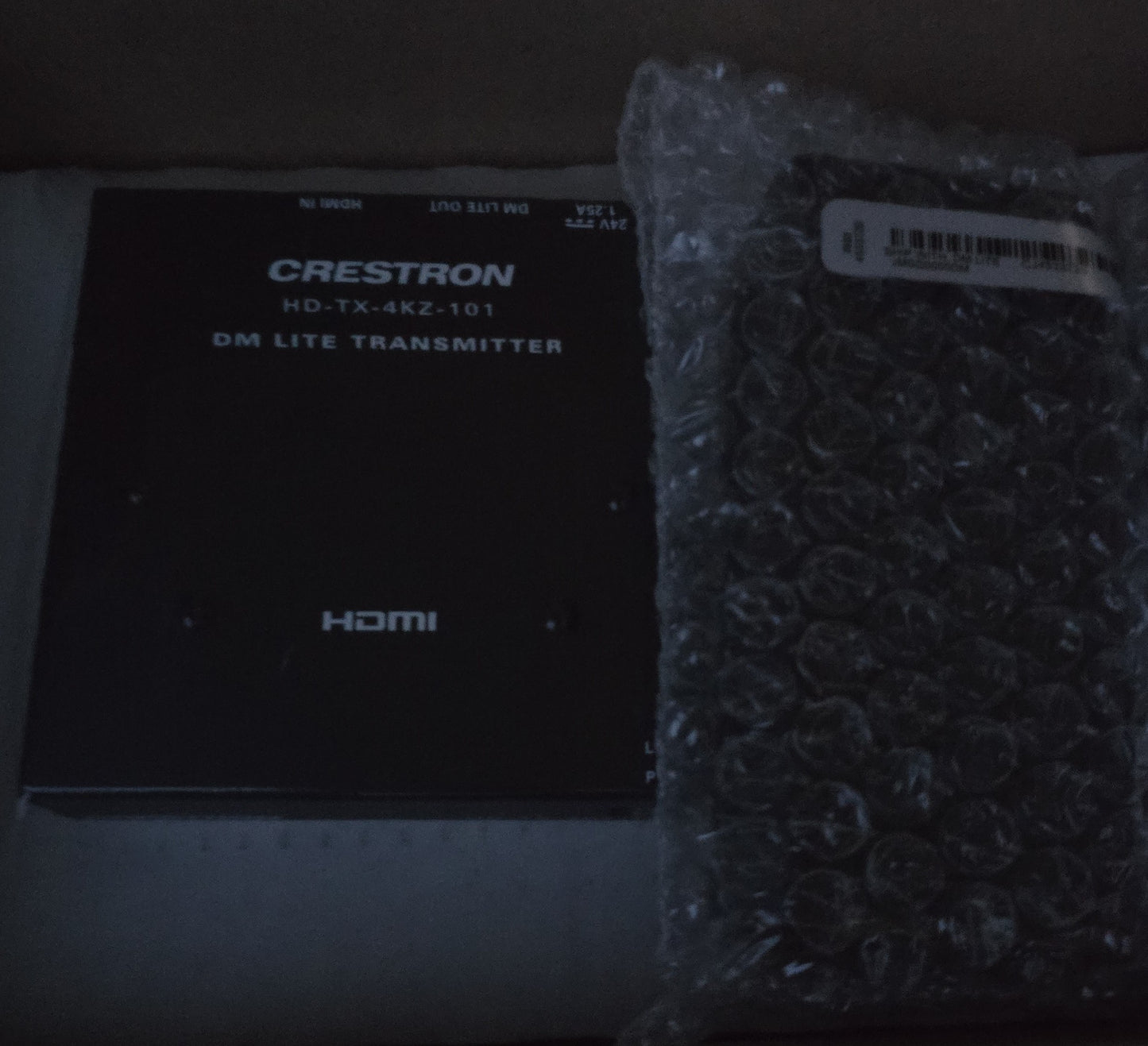

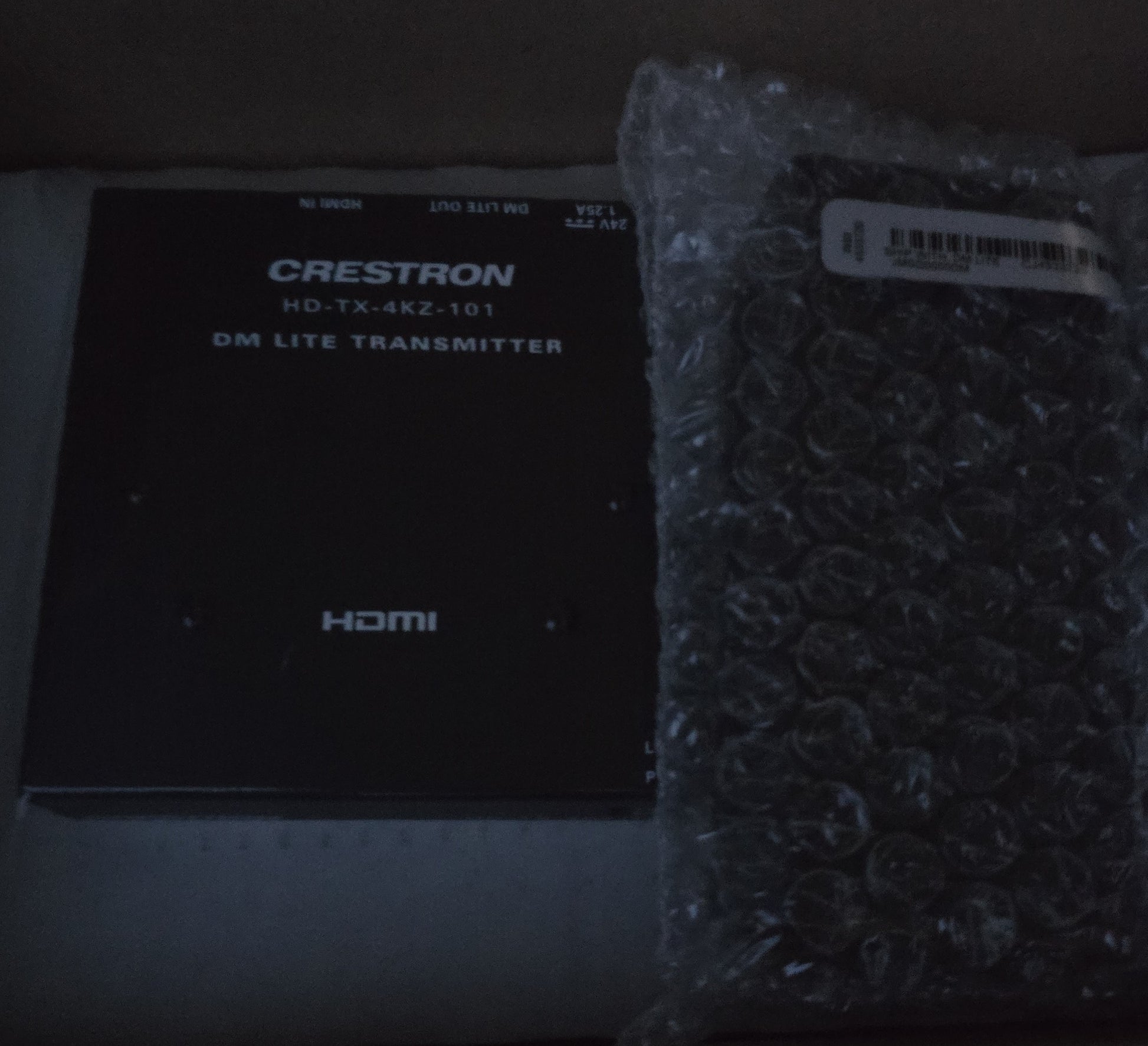

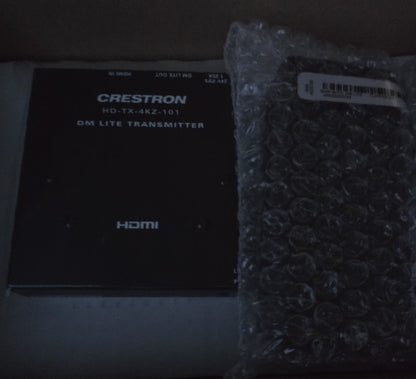

Crestron HD-TX-4KZ-101 6511808 DM Lite 4K60 HDMI CATx Transmitter (NEW Sealed)

The Crestron HD-TX-4KZ-101 is a point to point DM Lite transmitter, Crestron part number 6511808. It extends a single HDMI signal over one CAT5e or better twisted pair cable to a matching DM Lite receiver or a DMPS Lite switcher, removing the length limits of a direct HDMI run while keeping the installation to a single low cost cable.

The transmitter carries 4K60 4:4:4 video at up to 12-bit colour depth, with a maximum resolution of 4096x2160 at 60 Hz. It is HDCP 2.3 compliant and passes HDR10, HDR10+ and Dolby Vision metadata. Reach is 40 m for UHD and 4K signals and 70 m for 1080p, WUXGA and 2K. Connections are one HDMI Type A female input, one 8-pin RJ-45 DM Lite output and a 2.1 x 5.5 mm DC power input. The unit runs from 24 VDC at 1.25 A and can alternatively be powered remotely from the DM Lite receiver or DMPS Lite switcher at the far end of the link.

Specifications

Brand: Crestron

Model: HD-TX-4KZ-101, DM Lite Transmitter

Part Number: HD-TX-4KZ-101

Alternate Part Number: 6511808

Product Type: HDMI over twisted pair transmitter

Maximum Resolution: 4K60 4:4:4, 4096x2160 at 60 Hz, up to 12-bit colour

HDCP: 2.3

HDR Support: HDR10, HDR10+, Dolby Vision

Transmission Distance: 40 m at UHD and 4K, 70 m at 1080p, WUXGA and 2K

Connectors: 1 x HDMI Type A female input, 1 x 8-pin RJ-45 DM Lite output, 1 x 2.1 x 5.5 mm DC power

Power: 24 VDC at 1.25 A, or remote powered from the DM Lite receiver or DMPS Lite switcher

Dimensions: 106 mm W x 105 mm D x 27 mm H

Weight: 337 g

Country of Origin: Mexico

Condition: New, factory sealed

Key Features

• Full 4K60 4:4:4 support with 12-bit colour depth
• HDCP 2.3 and full HDR metadata pass-through
• Single CAT5e cable replaces a long HDMI run
• Can be powered remotely from the receiver, so no supply is needed at the source end
• Compact chassis suits lectern, credenza and behind-display mounting

Typical Applications

• Meeting room and huddle space display feeds
• Digital signage source to display extension
• Classroom projector and flat panel connection
• Retail and hospitality display distribution

Package Includes

• 1 x Crestron HD-TX-4KZ-101 transmitter

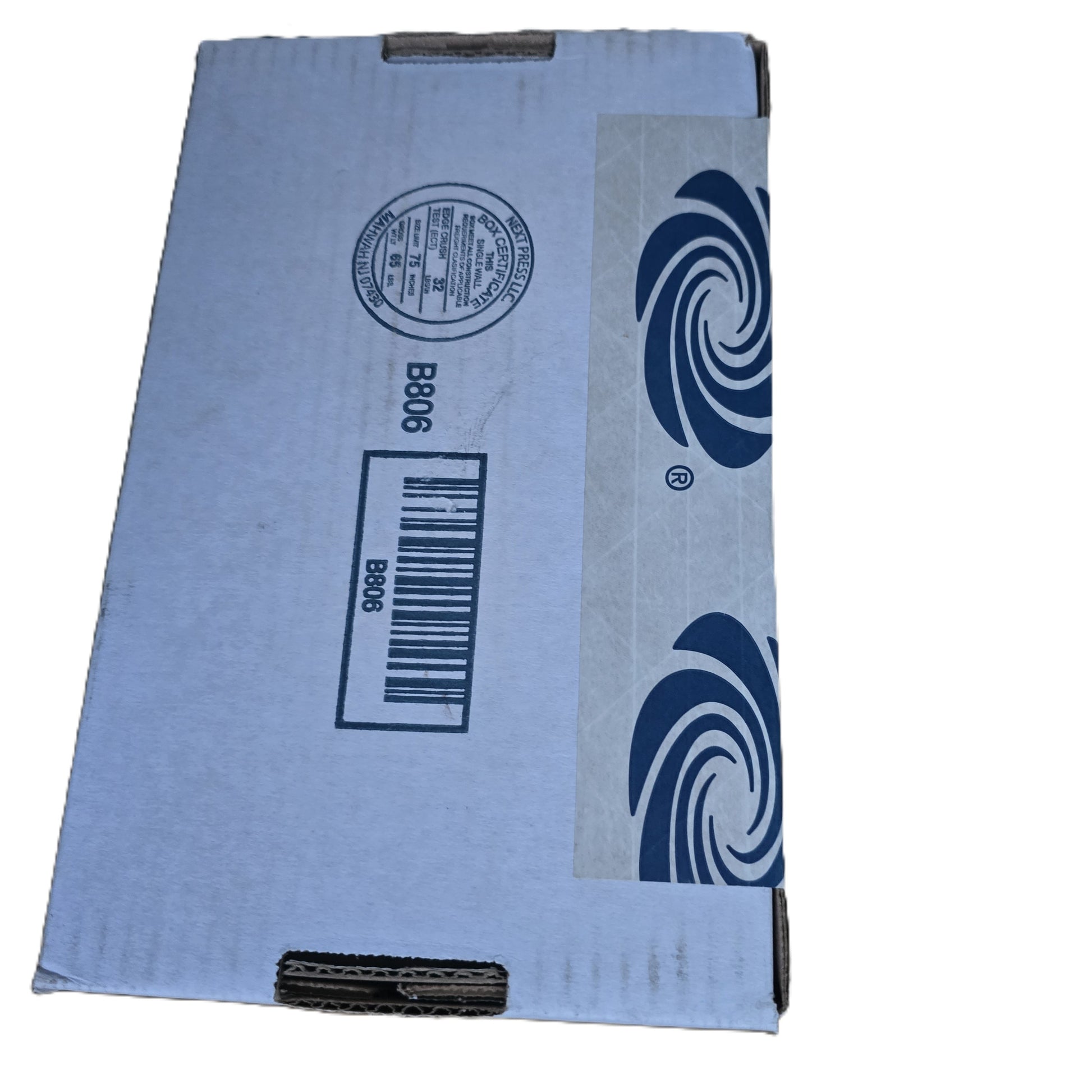

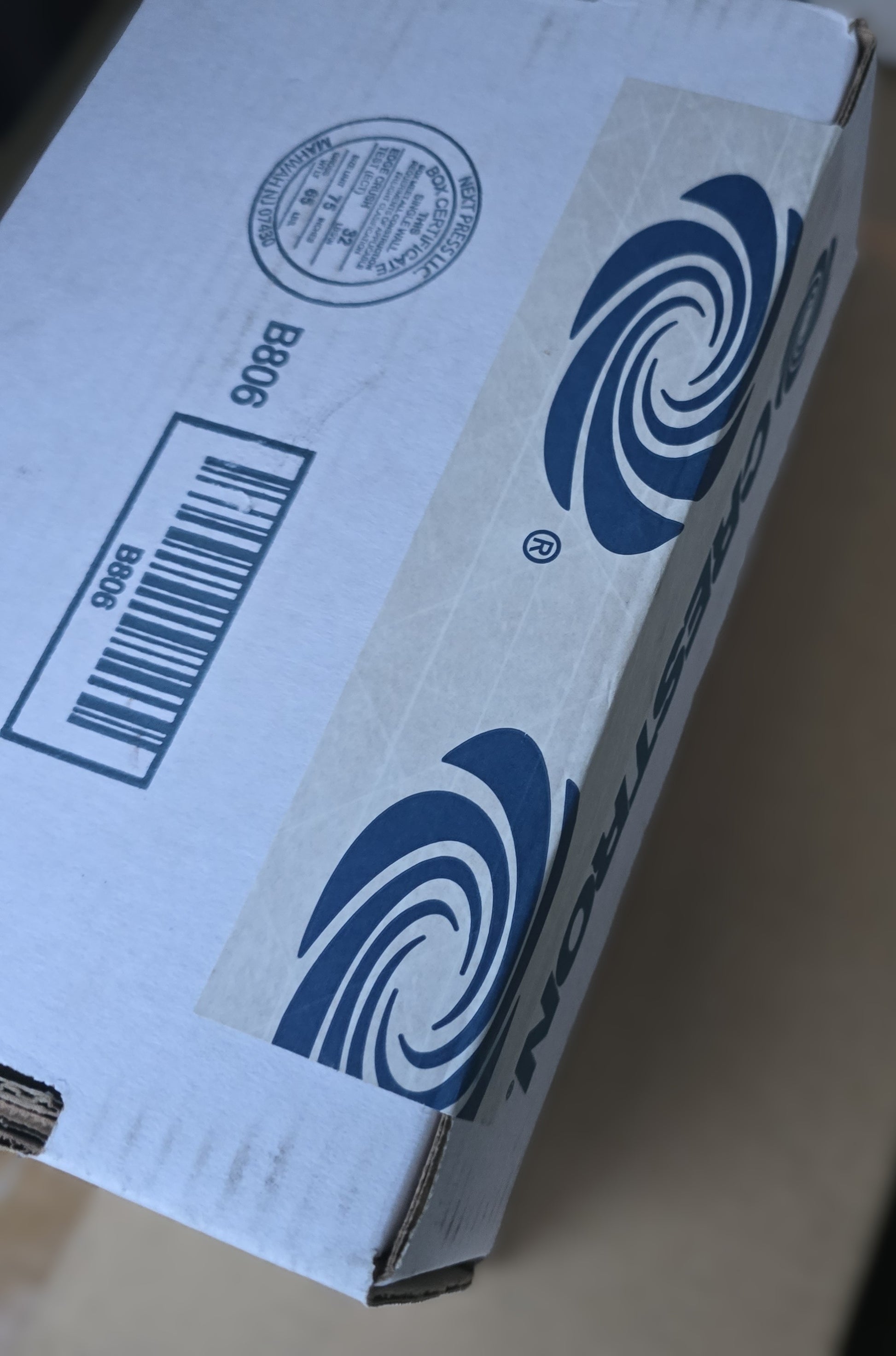

• Original Crestron packaging

A 24 VDC power pack is not included unless shown in the listing photographs.

Additional Information

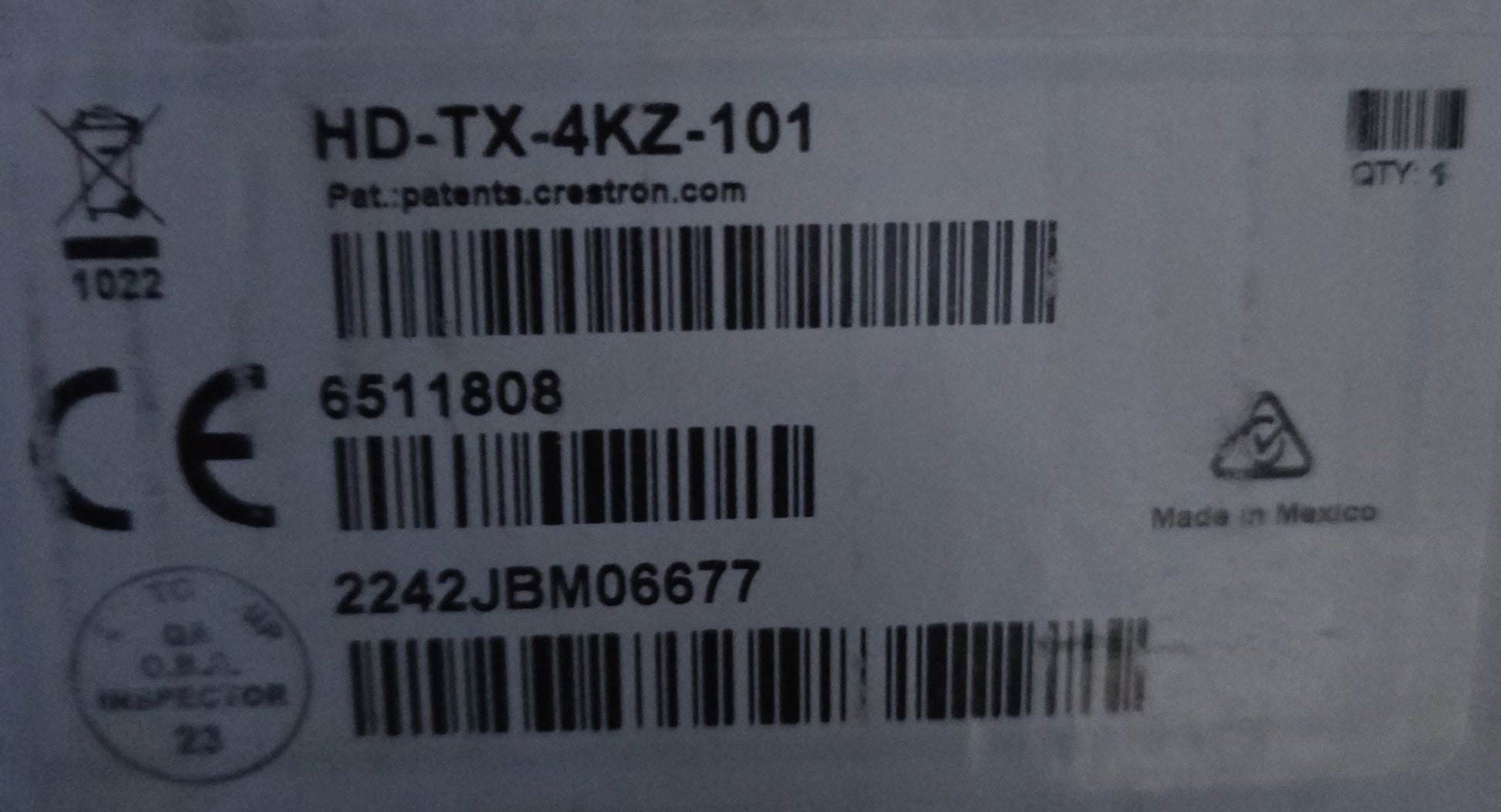

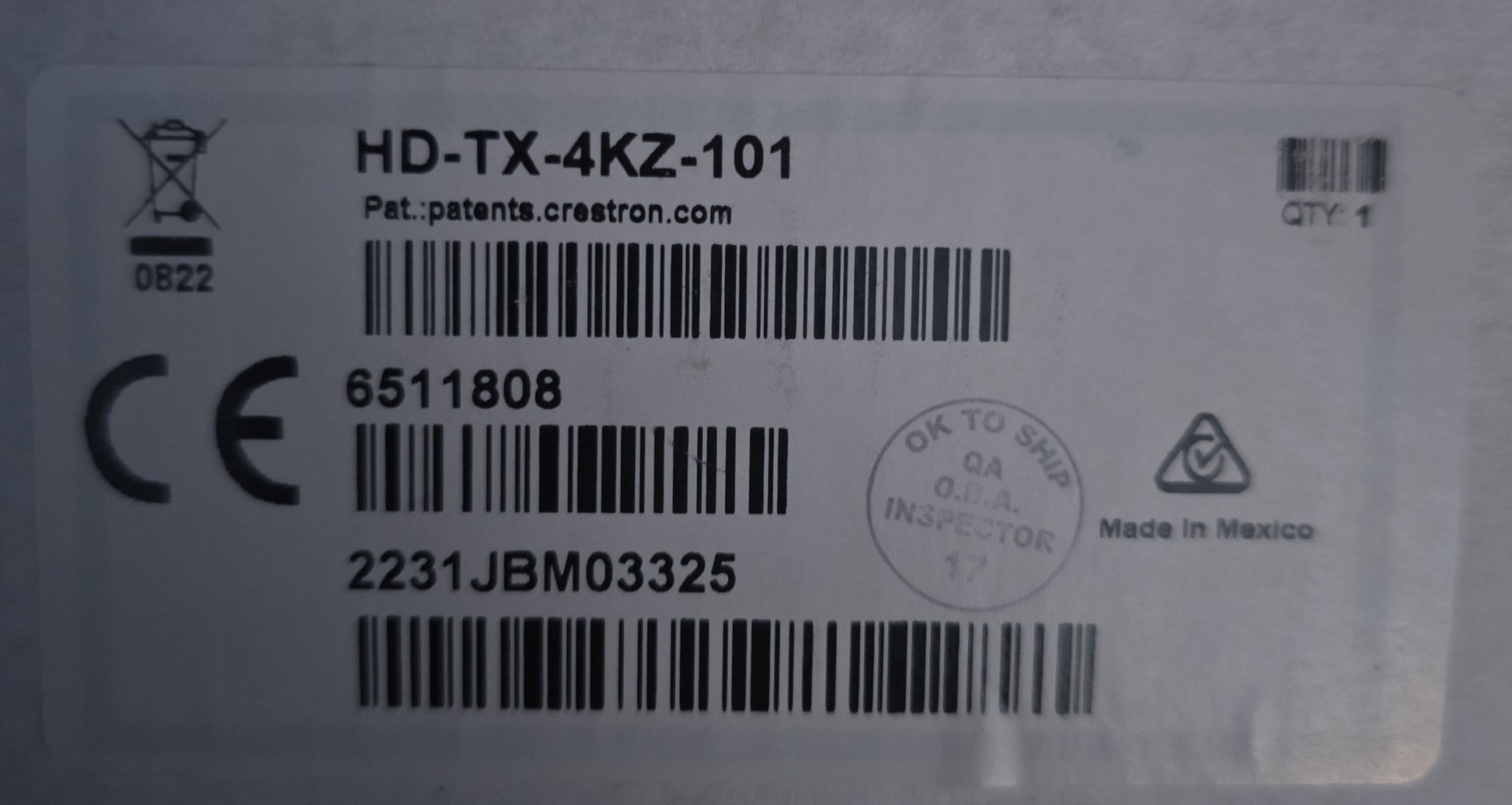

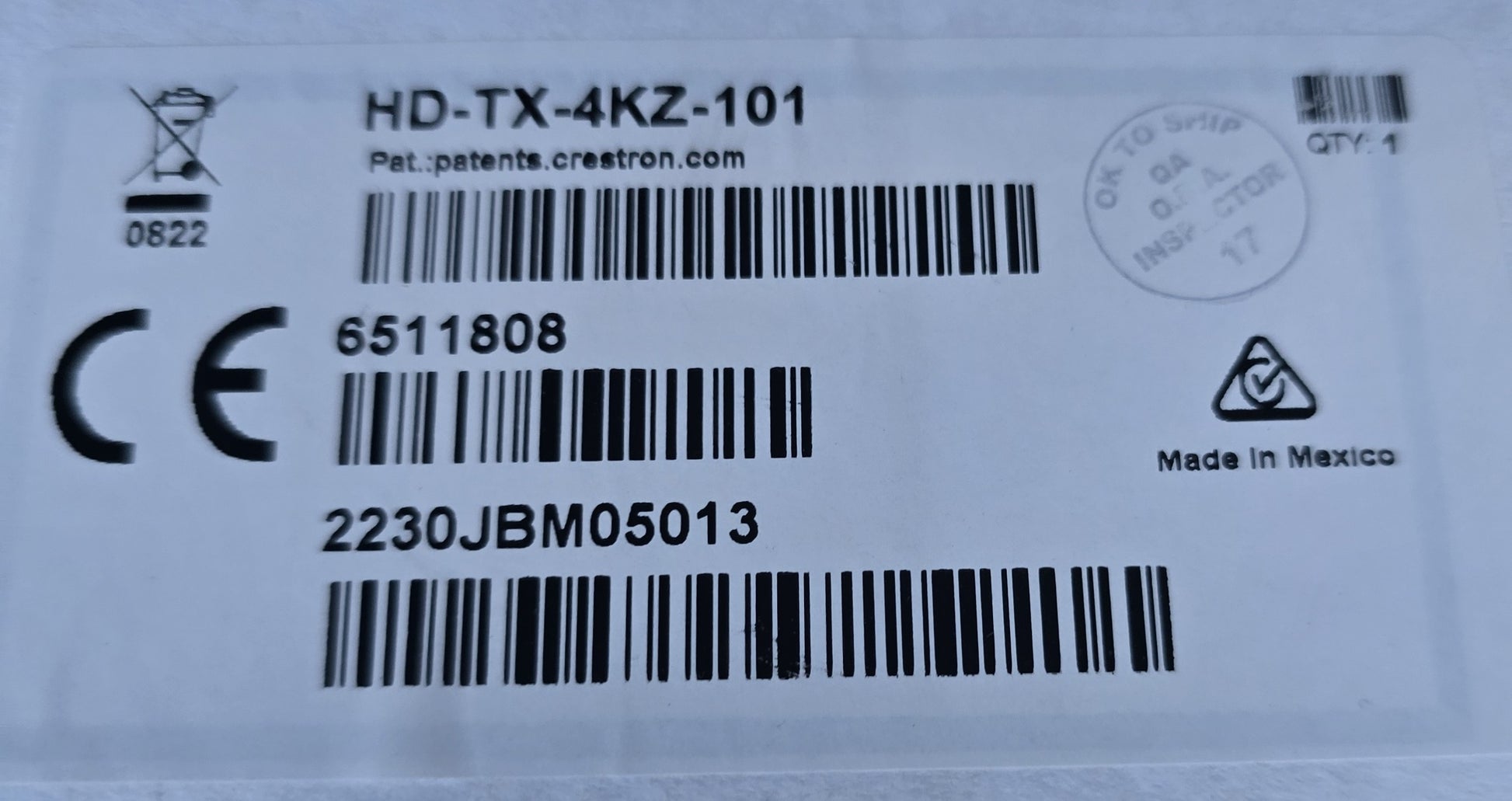

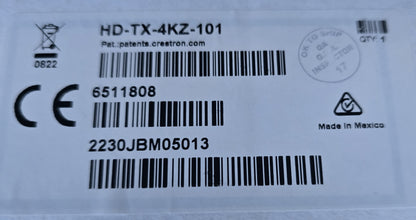

Quantity available is four units, each with its own Crestron serial number. The item is new in the manufacturer's original packaging. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
