Crestron FT2A-PWR-UN-1-C14 FlipTop Universal AC Power Module (NEW Sealed)

The Crestron FT2A-PWR-UN-1-C14 is a drop-in AC power outlet module for the Crestron FT2 Series FlipTop table box, Crestron part number 6510478. It provides one universal grounded receptacle inside the FlipTop so a presenter can plug in a laptop supply or other device directly at the table, with the mains feed brought in through an IEC 60320 C14 inlet on the underside of the module.

The universal receptacle accepts NEMA 5-15P from the United States, BS 1363 from the United Kingdom, CEE 7/3 Schuko from Europe and AS/NZS 3112 from Australia and New Zealand, which makes it suitable for boardrooms and conference venues serving international visitors. It is rated 10 A at 100 to 240 VAC, 50/60 Hz. The module is a precision fit black plastic drop-in that occupies two consecutive FT2 module spaces, and is rated for 0 to 45 degrees C at 10 to 90 percent relative humidity, non-condensing.

Specifications

Brand: Crestron

Model: FT2A-PWR-UN-1-C14

Part Number: FT2A-PWR-UN-1-C14

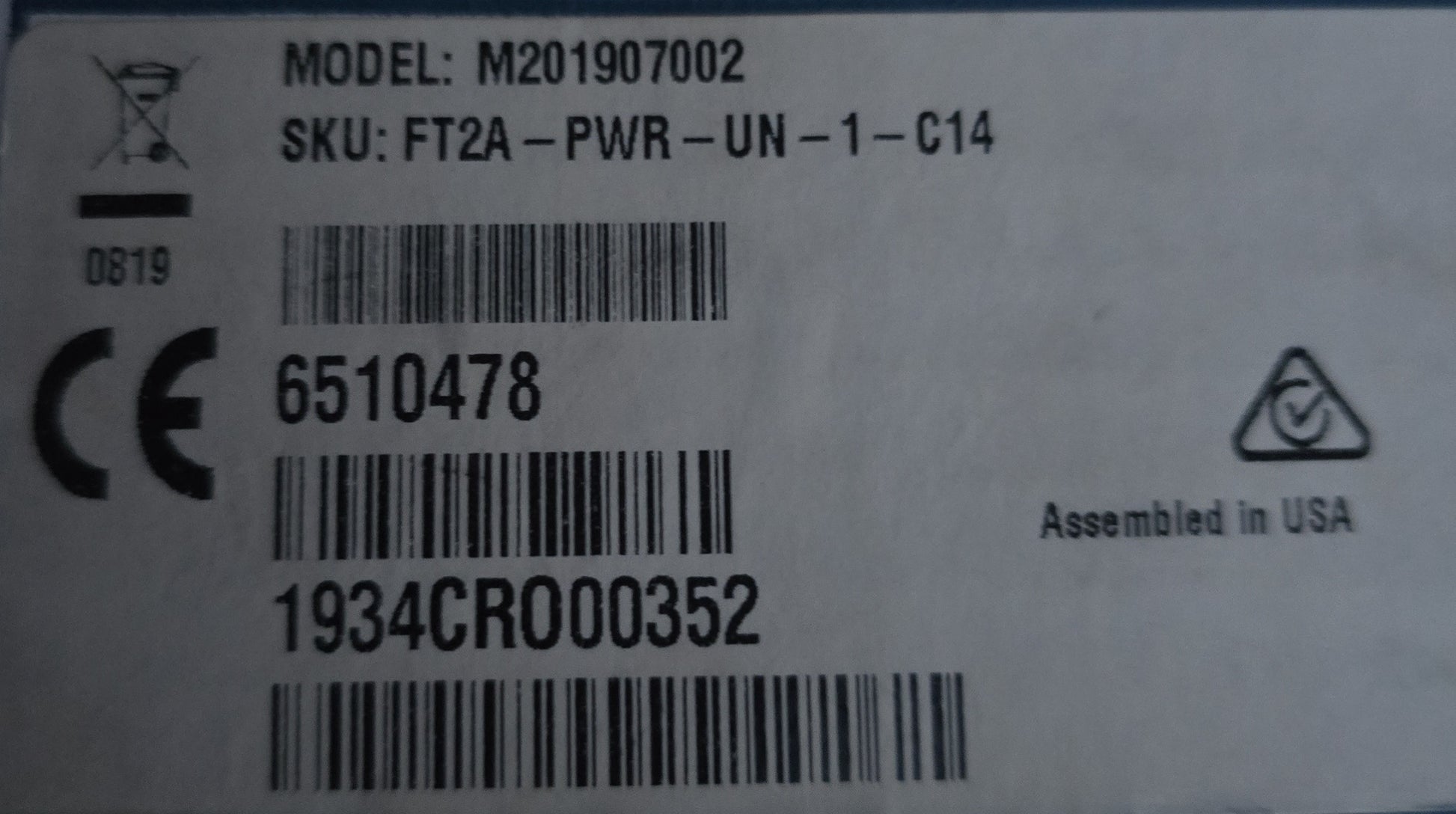

Alternate Part Number: 6510478, regulatory model M201907002

Product Type: FlipTop AC power outlet module

Outlets: 1 x universal grounded receptacle

Plug Types Accepted: NEMA 5-15P, BS 1363, CEE 7/3 Schuko, AS/NZS 3112

Rating: 10 A at 100 to 240 VAC, 50/60 Hz

Inlet: 1 x IEC 60320 C14 on the module underside

Module Size: Occupies two consecutive FT2 module spaces

Operating Conditions: 0 to 45 degrees C, 10 to 90 percent RH non-condensing

Finish: Black

Country of Origin: Assembled in USA

Condition: New, factory sealed

Key Features

• Universal receptacle accepts Australian, US, UK and European plugs
• Rated 10 A at 100 to 240 VAC for worldwide deployment
• IEC C14 inlet allows the module to be fed with a standard kettle-style lead
• Precision fit drop-in for the Crestron FT2 Series FlipTop
• Discreet black finish to match the FlipTop body

Typical Applications

• Boardroom and conference table power provision
• Lecture theatre and training room lecterns
• Hotel and venue meeting spaces serving international guests
• Retrofit or expansion of an existing Crestron FlipTop installation

Package Includes

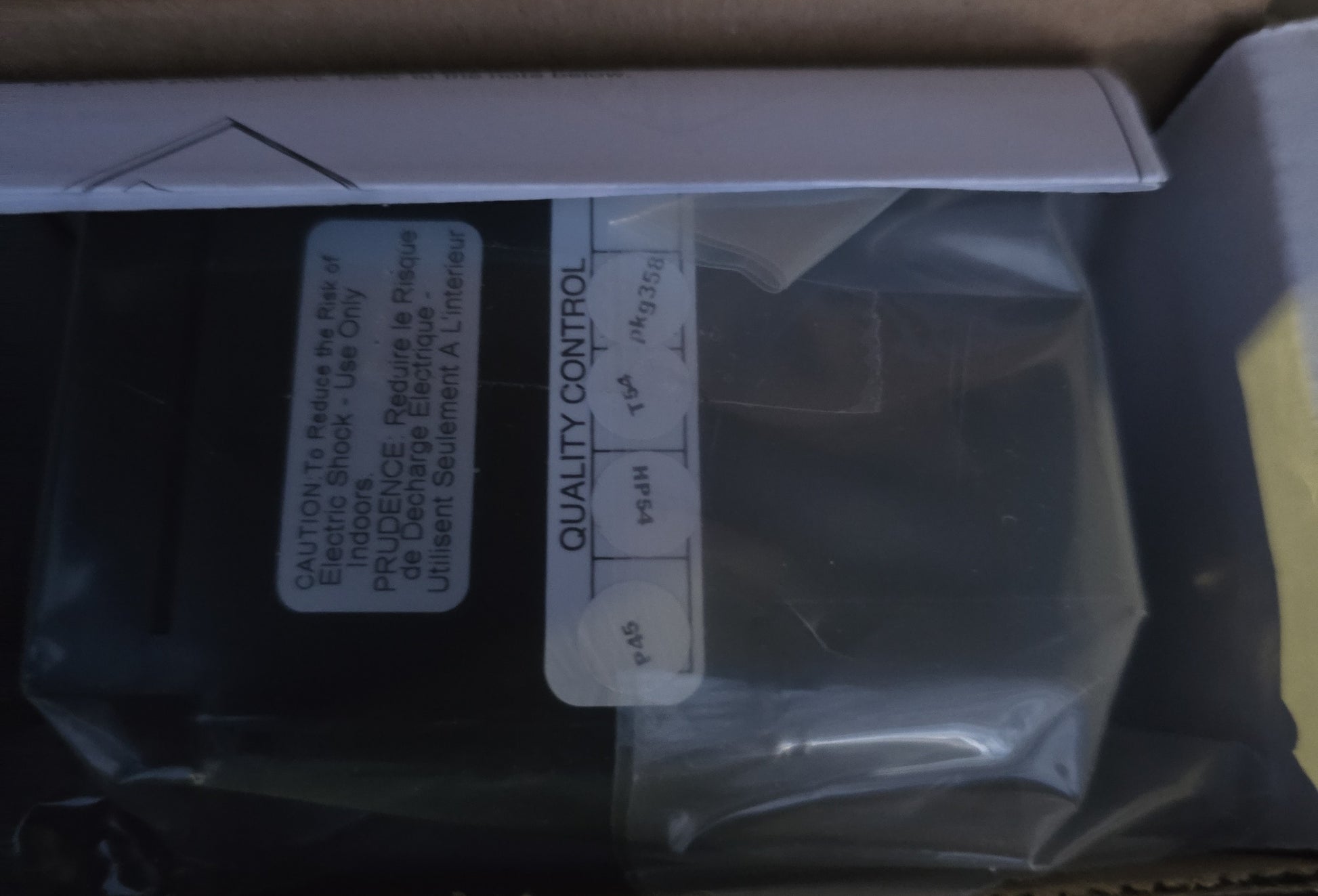

• 1 x Crestron FT2A-PWR-UN-1-C14 module, sealed in its original anti-static bag with the factory quality control tag
• Original Crestron carton

A power cord, FlipTop enclosure and any other FT2 modules are not included.

Additional Information

This is the power module only and must be installed into a Crestron FT2 Series FlipTop. Installation of mains-connected equipment should be carried out by a suitably qualified person.

The item is new in the manufacturer's original packaging. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
