Crestron DM-TX-201-C 6503838 DigitalMedia 8G+ Transmitter HDMI VGA (New Opened)

The Crestron DM-TX-201-C is a surface mountable DigitalMedia 8G+ transmitter and multimedia interface, marketed by Crestron as the DM Computer Center. It carries the Crestron part number 6503838. The unit takes an HDMI source and an analog RGB source, switches between them automatically, and sends the selected audio and video, plus Ethernet and USB HID, down a single CATx cable to a DM switcher, a DM receiver, or an HDBaseT certified display at distances up to 100 m.

Inputs comprise one HDMI connector, which is also DVI and dual-mode DisplayPort compatible via a passive adapter, one RGB analog input that additionally accepts component, S-Video and composite, and one analog stereo audio input. Outputs are one DM 8G+ RJ-45 link and one local HDMI pass-through. The transmitter supports resolutions from 640x480 up to 1920x1200 and 2048x1152 at 60 Hz with a pixel clock to 165 MHz, is HDCP compliant, and includes Crestron QuickSwitch HD. It is a PoDM powered device and is also HDBaseT PoE compatible, or it can be run from an optional 24 VDC power pack.

Specifications

Brand: Crestron

Model: DM-TX-201-C, DM Computer Center

Part Number: DM-TX-201-C

Alternate Part Number: 6503838

Product Type: DigitalMedia 8G+ transmitter with 2x1 auto-switching

Maximum Resolution: 1920x1200 at 60 Hz, 2048x1152 at 60 Hz, pixel clock to 165 MHz

Transmission Distance: Up to 100 m (330 ft) over CATx

Video Inputs: 1 x HDMI (DVI and dual-mode DisplayPort compatible), 1 x RGB analog

Audio Input: 1 x analog stereo

Outputs: 1 x DM 8G+ RJ-45, 1 x HDMI local output

Network: 10/100 Mbps Ethernet

Audio Formats: Dolby Digital, Dolby Digital EX, DTS, DTS-ES, DTS 96/24, LPCM up to 8 channels

Power: PoDM powered device, HDBaseT PoE compatible, or 24 VDC external supply

Dimensions: 186.9 mm W x 164.3 mm D x 31.5 mm H

Weight: 0.72 kg

Country of Origin: Mexico

Condition: New, opened box

Key Features

• Built-in 2x1 automatic switching between HDMI and analog RGB sources
• Single cable transport of AV, Ethernet and USB HID over CATx
• Local HDMI output for a confidence monitor or a second display
• HDCP compliant with Crestron QuickSwitch HD fast switching
• Powered over the DM link, so no local supply is required in most installs
• Metal enclosure with integral mounting flanges for surface or furniture mounting

Typical Applications

• Lectern and podium source connection in lecture theatres
• Boardroom and meeting room laptop and media inputs
• Classroom AV systems feeding a DM switcher
• Retrofit of legacy VGA sources into a modern DigitalMedia system

Package Includes

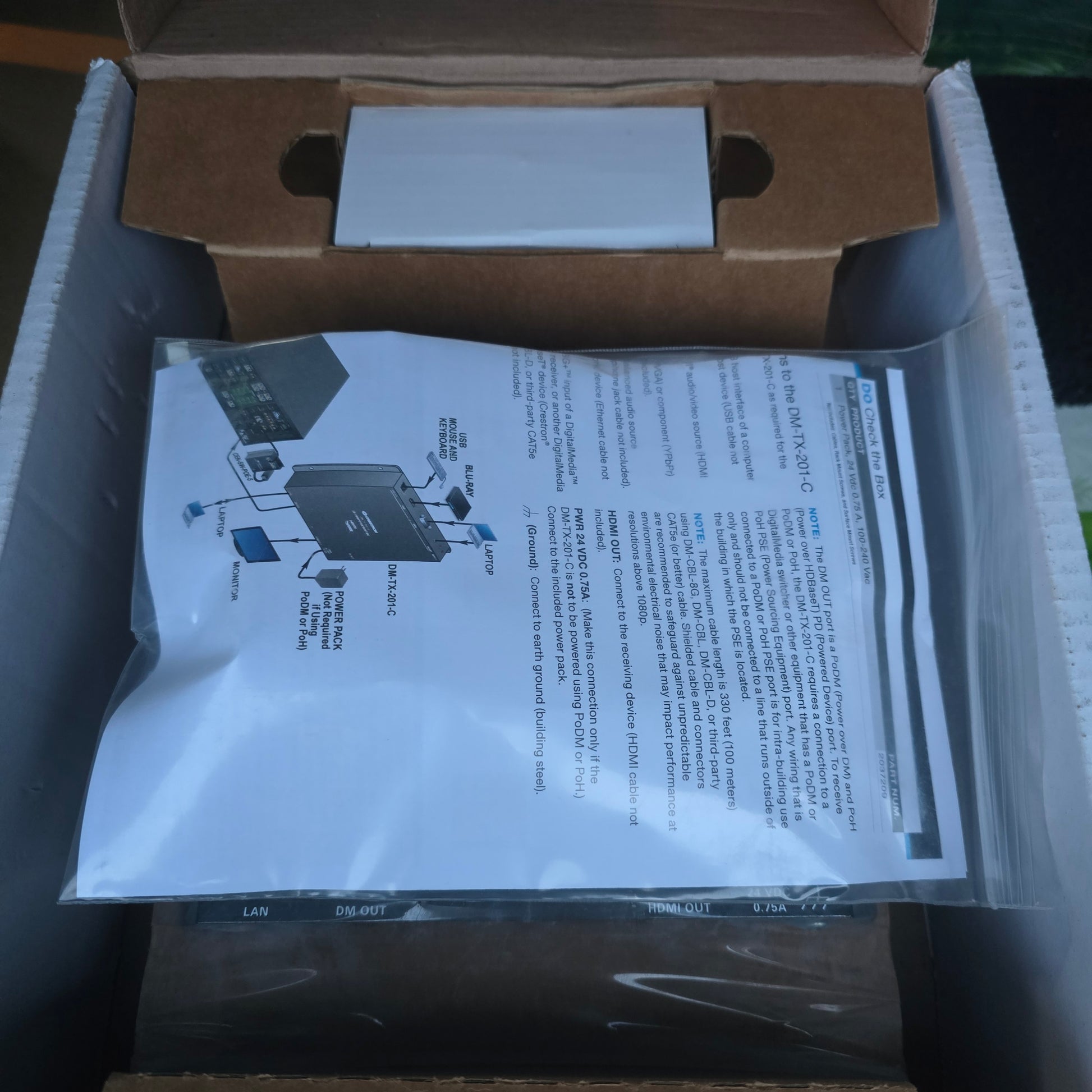

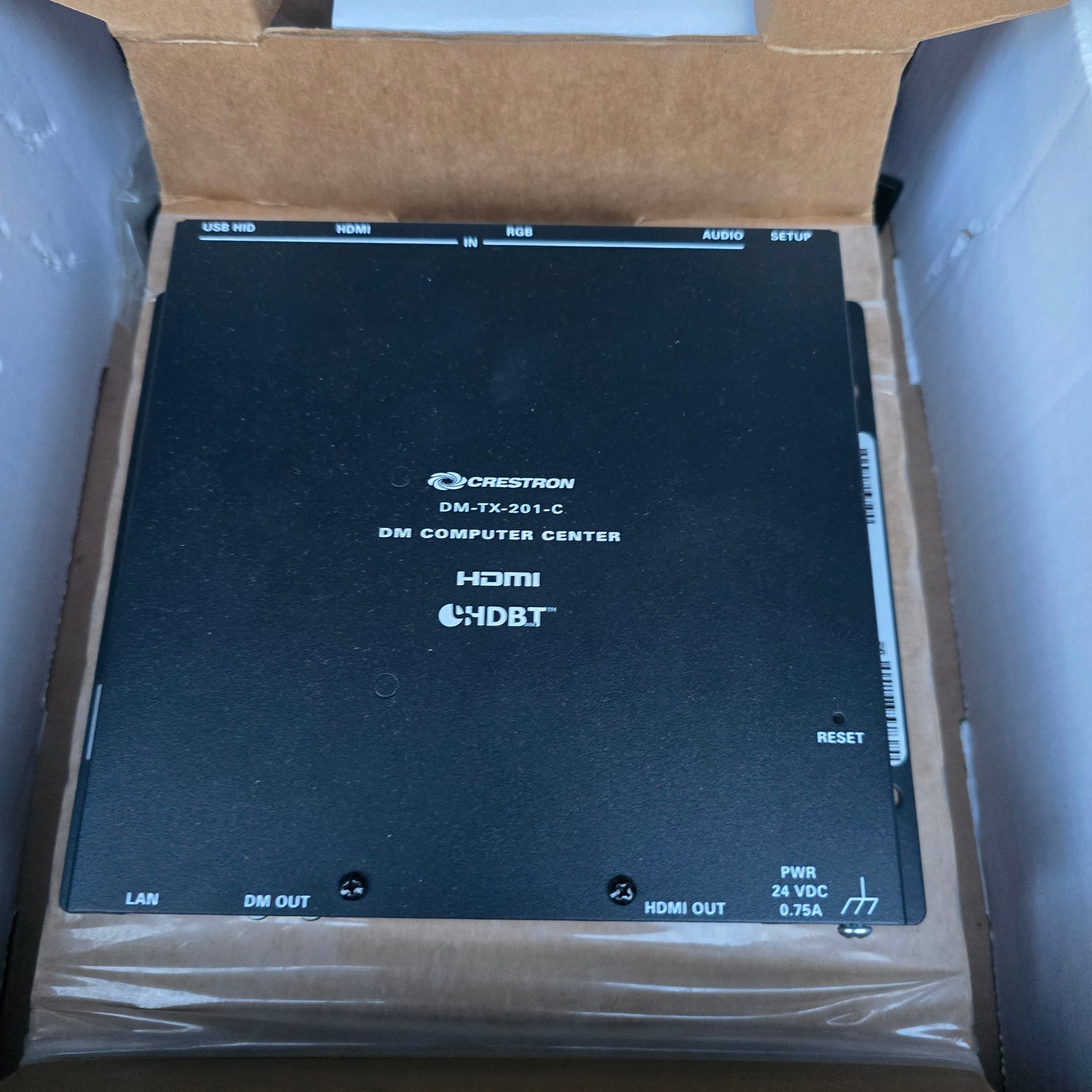

• 1 x Crestron DM-TX-201-C transmitter, in its original protective bag
• Crestron printed instruction sheet

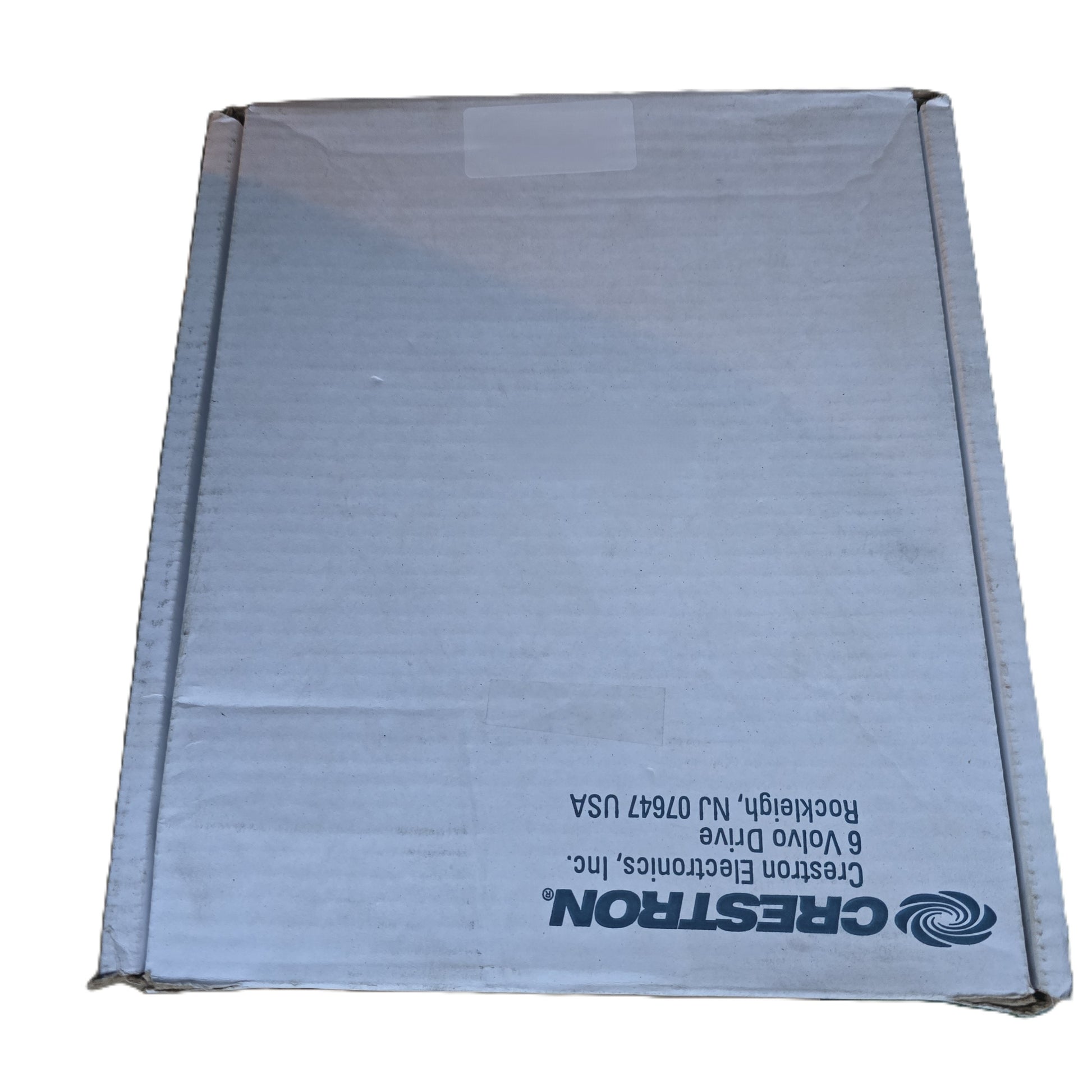

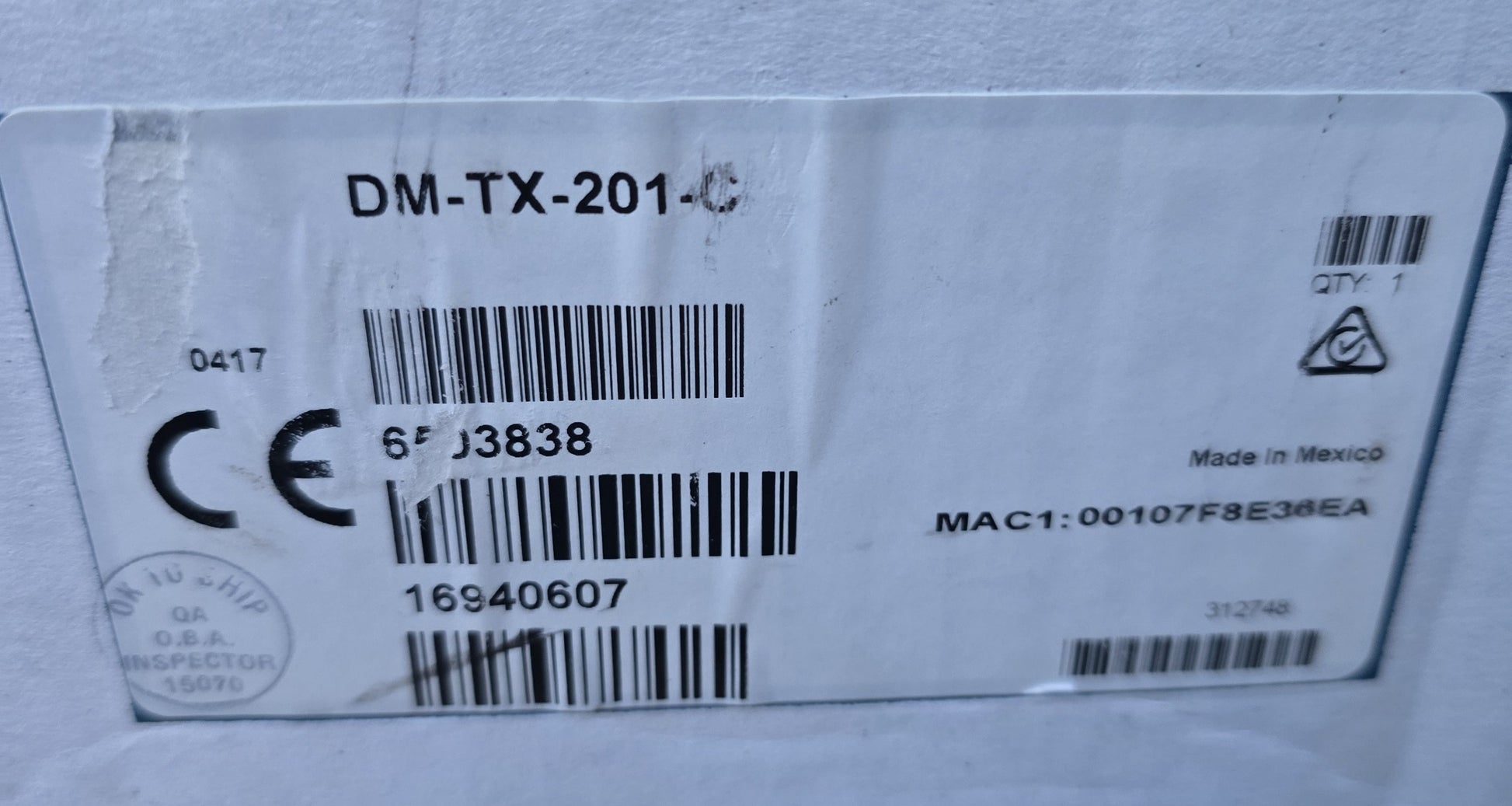

• Original Crestron shipping carton

An external power pack is not included unless shown in the listing photographs. The unit is normally powered over the DM link.

Additional Information

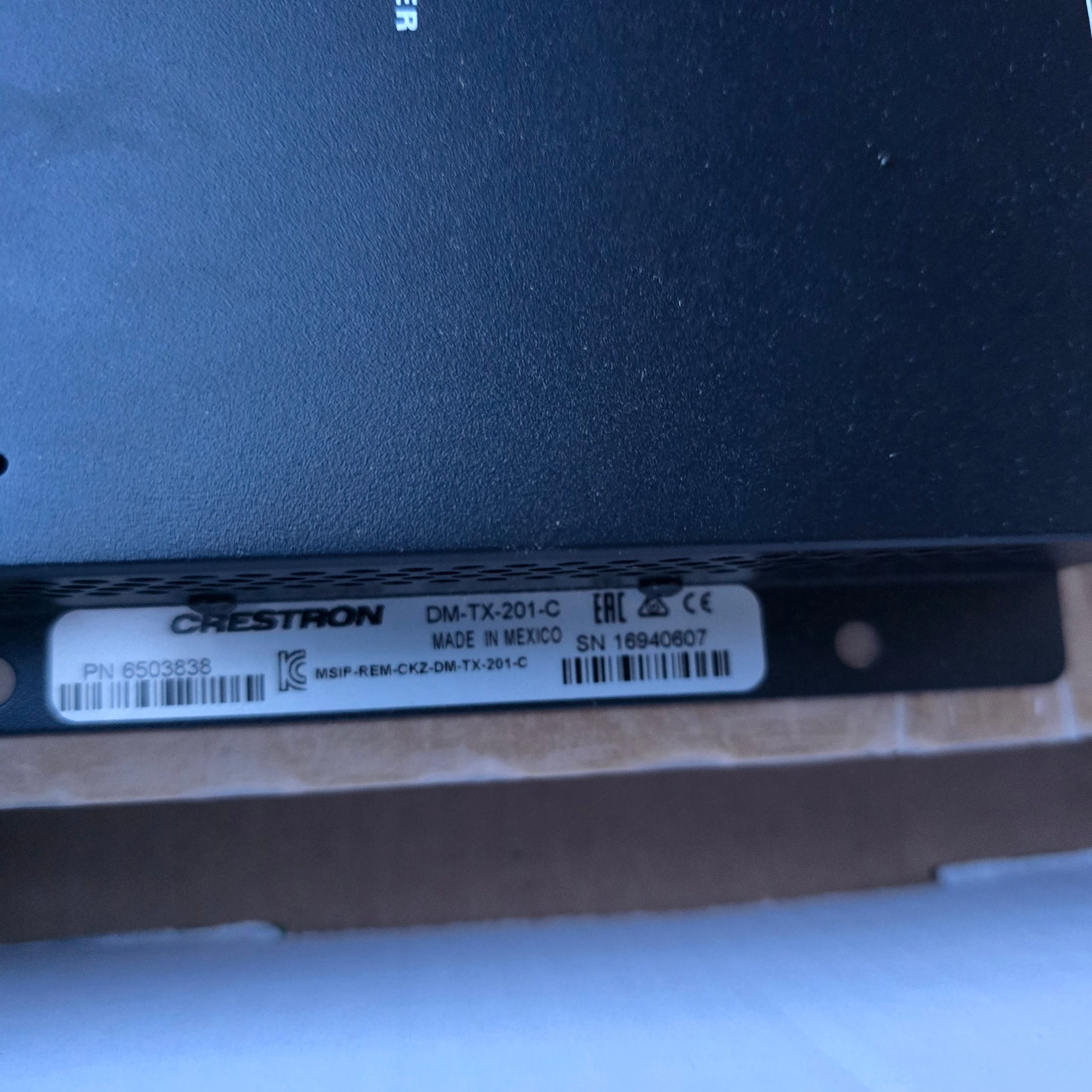

The item is new in the manufacturer's original packaging, with the carton opened for photography and verification. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
