Crestron DM-NVX-E20 6511648 4K60 Network AV Encoder HDMI PoE (NEW Sealed)

The Crestron DM-NVX-E20 is a DM NVX AV-over-IP encoder, Crestron part number 6511648 and regulatory model M202028003. It takes a single HDMI source and streams it across a standard Gigabit Ethernet network to any number of DM NVX decoders, so an AV distribution system is built on ordinary network switching rather than a dedicated matrix.

The encoder handles video up to 4K60 4:2:0, and 4K30 at 4:4:4, with a maximum input of 4096x2160 at 60 Hz. Bit rate is 200 to 950 Mbps with adaptive rate control that configures itself to the input, and a minimum of 350 Mbps is required for 4K60. HDCP 2.3 is supported on input and output. Audio runs to multichannel 7.1 with a 24-bit 48 kHz analog stereo line output. Connections are one HDMI Type A input, one 1000BASE-T RJ-45 with PoE, a 3.5 mm analog audio output, a 3.5 mm IR and serial port, a 3.5 mm RS-232 COM port and a 2.1 x 5.5 mm DC input. The unit is a fanless IEEE 802.3af Type 1 Class 3 powered device drawing 8.6 W typical, and supports 802.1X, TLS, SSH, HTTPS and AES-128.

Specifications

Brand: Crestron

Model: DM-NVX-E20, regulatory model M202028003

Part Number: DM-NVX-E20

Alternate Part Number: 6511648

Product Type: AV over IP network encoder

Maximum Resolution: 4K60 4:2:0, 4096x2160 at 60 Hz; 4K30 at 4:4:4

Bit Rate: 200 to 950 Mbps, adaptive; minimum 350 Mbps for 4K60

HDCP: 2.3 on input and output

Audio: Multichannel to 7.1; analog stereo line output, 24-bit 48 kHz, volume -80 to +20 dB

Network: 100/1000 Mbps auto-negotiating; TCP/IP, 802.1X, TLS, SSH, HTTPS, AES-128

Connectors: 1 x HDMI Type A input, 1 x RJ-45 1000BASE-T with PoE, 1 x 3.5 mm audio out, 1 x 3.5 mm IR/serial, 1 x 3.5 mm RS-232, 1 x DC power

Power: IEEE 802.3af Type 1 Class 3 PoE, 8.6 W typical, or optional 24 VDC supply

Mounting: Freestanding, surface mount or single rack rail, flanges included; fanless

Dimensions: 230 mm W x 128 mm H x 26 mm D

Weight: 600 g

Country of Origin: Assembled in USA

Condition: New, factory sealed

Key Features

• 4K60 AV distribution over a standard Gigabit Ethernet network
• Adaptive bit rate that matches the stream to the incoming signal
• Single-cable PoE operation, no local power supply required
• Enterprise security including 802.1X, TLS, HTTPS and AES-128
• Fanless chassis suitable for quiet rooms and concealed mounting
• Scales by adding decoders rather than replacing a matrix switcher

Typical Applications

• Corporate AV distribution across a campus network
• Divisible conference and training rooms
• Command and control video walls
• Education lecture capture and overflow room feeds
• Large venue and stadium digital signage

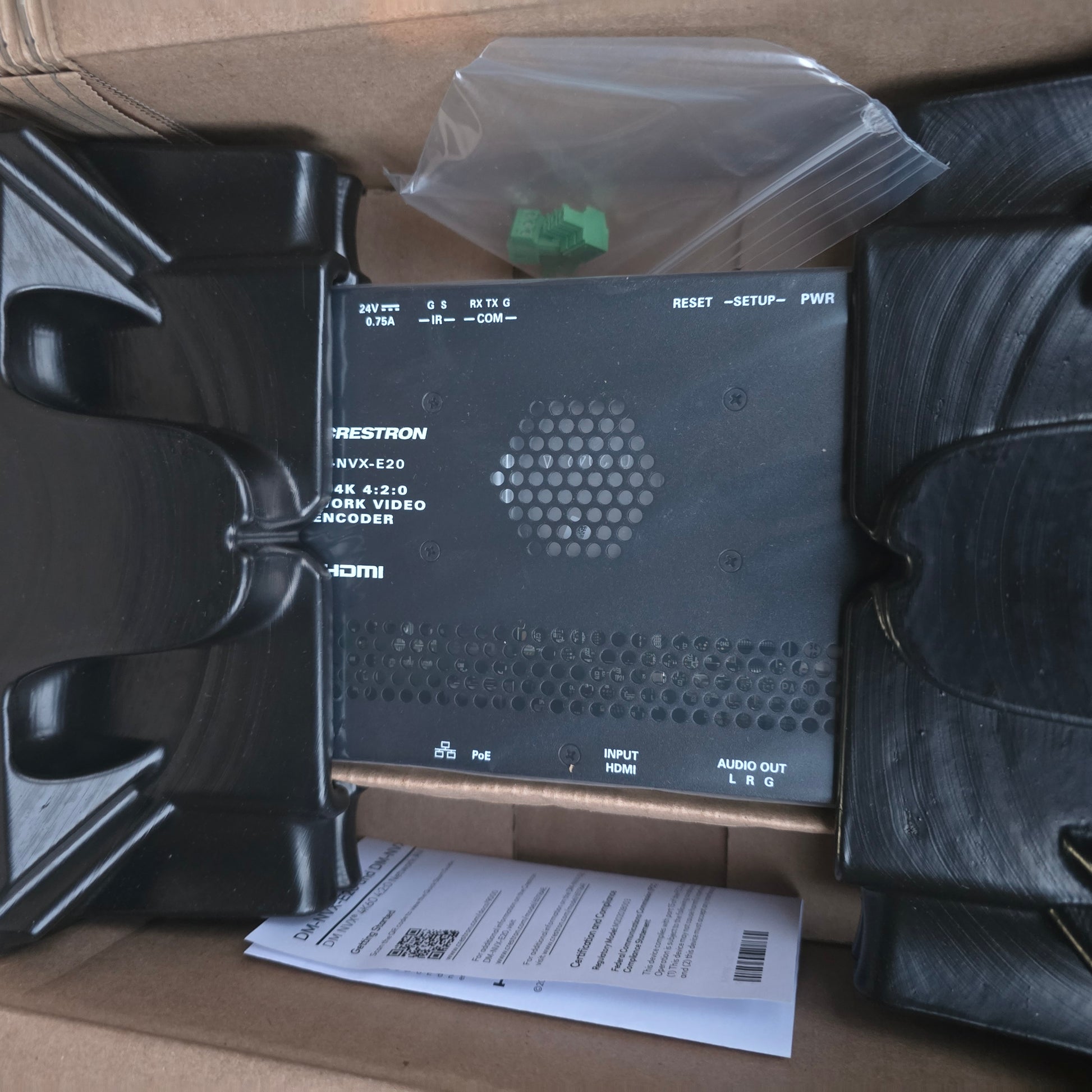

Package Includes

• 1 x Crestron DM-NVX-E20 encoder in original foam packaging
• Accessory bag with terminal block connector
• Crestron Getting Started and compliance sheet
• Original Crestron carton

An optional PW-2407WU power supply is not included; the unit is powered over PoE.

Additional Information

Quantity available is four units, each in its own Crestron carton with an individual serial number, all from the same delivery batch. The item is new in the manufacturer's original packaging. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
