Crestron DIN-HUB 6501751 DIN Rail Cresnet Distribution Hub (New Opened)

The Crestron DIN-HUB is a DIN rail mounted Cresnet distribution hub, Crestron part number 6501751. A single Cresnet segment is limited to roughly twenty devices, and the DIN-HUB removes that ceiling by providing three additional isolated Cresnet segments from one host connection, taking a system to around eighty devices in total. It requires no programming; it is fitted, wired and it works.

Connections are two paralleled 4-pin 3.5 mm detachable terminal blocks on the NET HOST port and six more across the NET A, NET B and NET C segments, two paralleled per segment, plus a 24 VDC NET PWR INPUT. Each segment can be jumpered to draw 24 VDC either from the host port or from an external Crestron supply using the HOST, EXT and G pin selection, and each segment carries up to 75 W, that is 3.13 A at 24 VDC. The hub itself draws only 0.6 W. Diagnostic LEDs show power and bus activity on each segment. Terminals are front accessible and take 14 to 26 AWG wire with an 11 mm strip. The unit snaps onto standard 35 mm DIN rail and occupies six DIN module spaces. Cresnet HP wire cannot be used with this hub.

Specifications

Brand: Crestron

Model: DIN-HUB, Cresnet Distribution Hub

Part Number: DIN-HUB

Alternate Part Number: 6501751

Product Type: DIN rail Cresnet distribution hub

Segments: 3 isolated Cresnet segments plus the host segment

Connectors: NET HOST 2 x 4-pin 3.5 mm paralleled; NET A, B, C 6 x 4-pin 3.5 mm, 2 paralleled per segment; NET PWR INPUT 24 VDC

Power per Segment: Up to 75 W, 3.13 A at 24 VDC, selectable HOST or EXT source

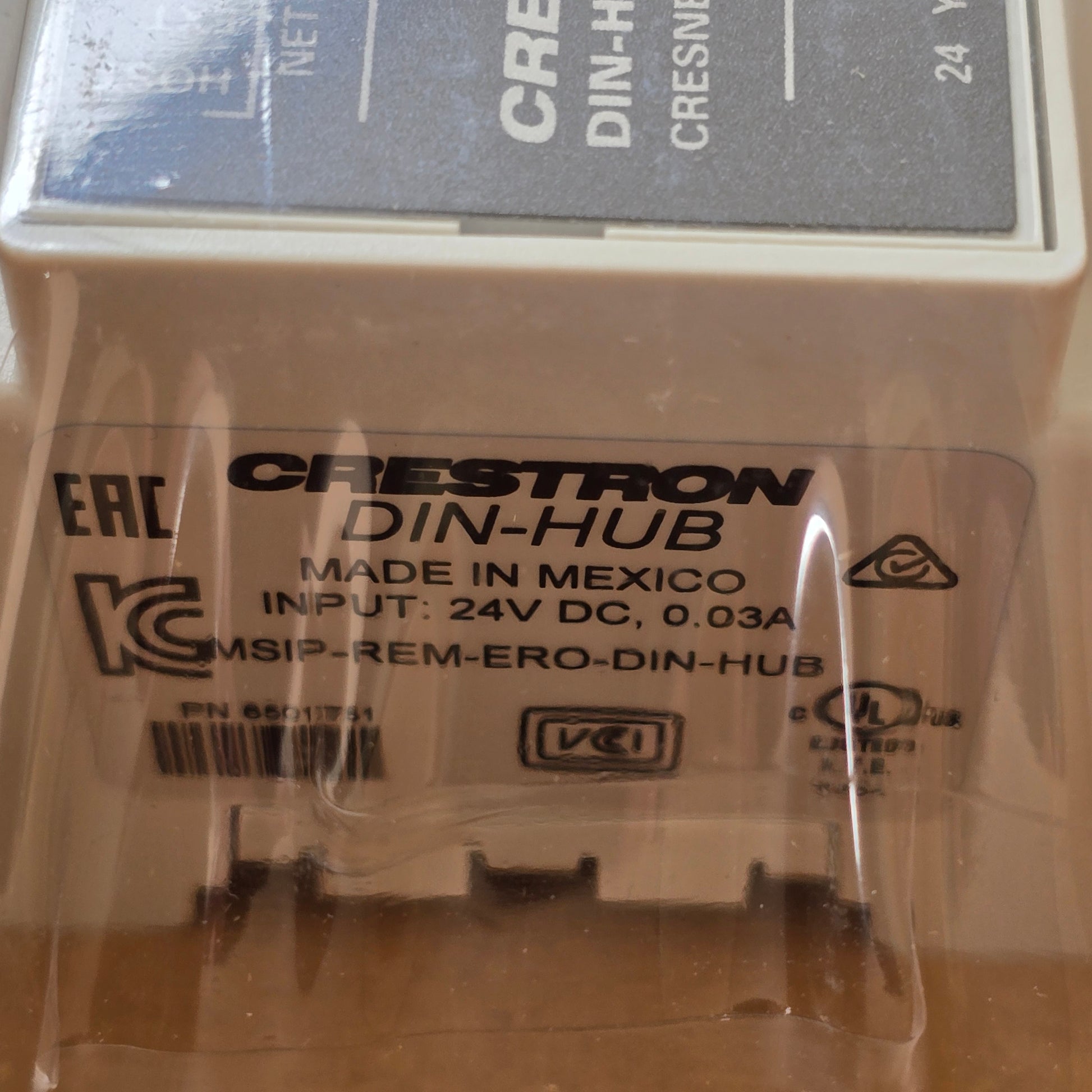

Hub Power Draw: 0.6 W, 0.03 A at 24 VDC

Wiring: 14 to 26 AWG, 11 mm strip length, front accessible screw terminals; Cresnet HP wire not supported

Indicators: Power and bus activity LEDs

Mounting: Standard 35 mm DIN rail, occupies 6 DIN module spaces

Operating Conditions: 0 to 40 degrees C, 10 to 90 percent RH non-condensing

Dimensions: 106.0 mm W x 94.2 mm H x 58.0 mm D

Weight: 170 g

Country of Origin: Mexico

Condition: New, opened box

Key Features

• Expands a Cresnet network from about twenty devices to about eighty
• Three electrically isolated segments, so a fault on one does not take down the others
• No programming or configuration required
• Per-segment power source selection between host and external supply
• Diagnostic LEDs make bus faults easy to locate
• Standard 35 mm DIN rail mounting for switchboard and equipment rack installs

Typical Applications

• Large Crestron control installations exceeding one Cresnet segment
• Building automation and lighting control panels
• Multi-room residential and commercial AV control
• Consolidating Cresnet wiring into a DIN rail enclosure

Package Includes

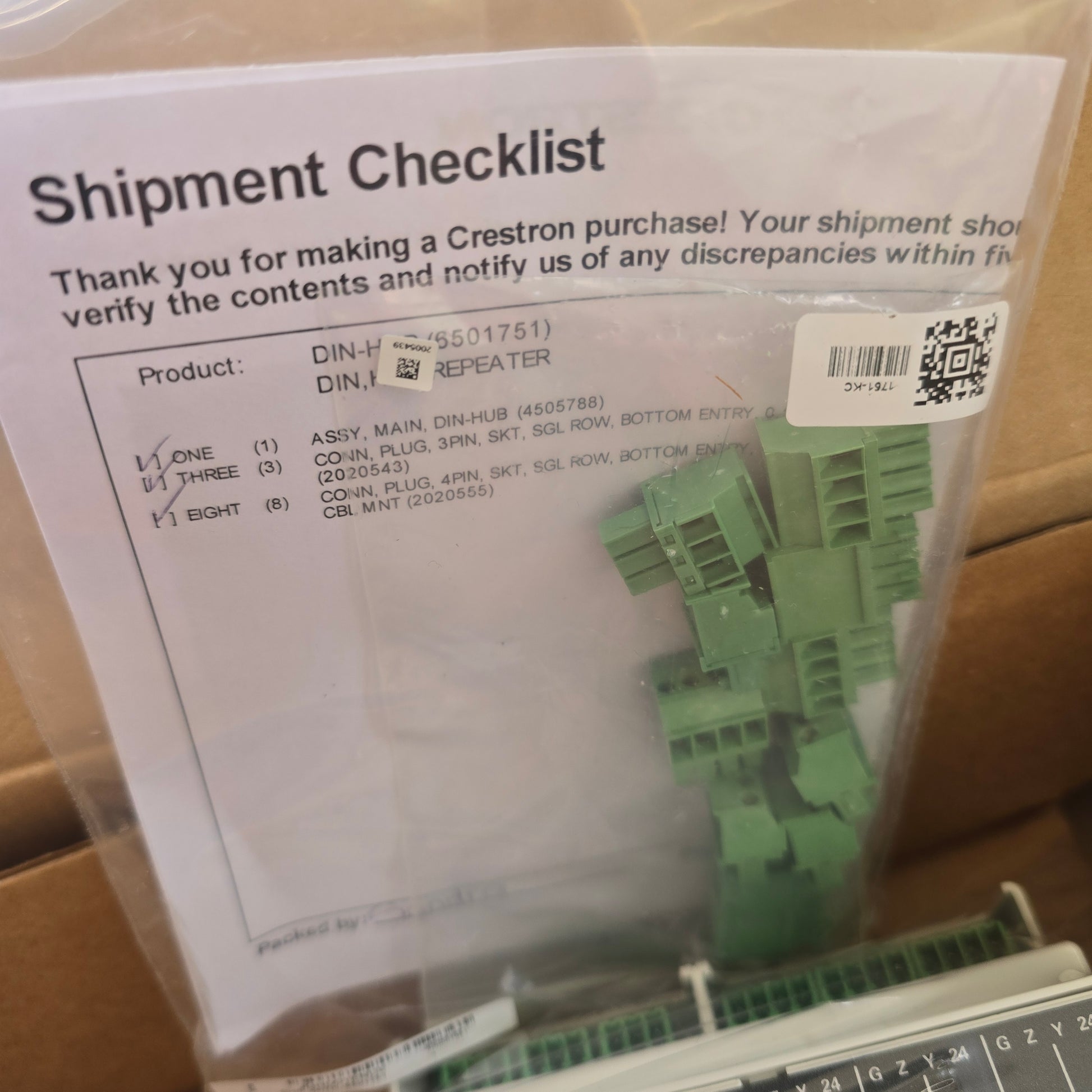

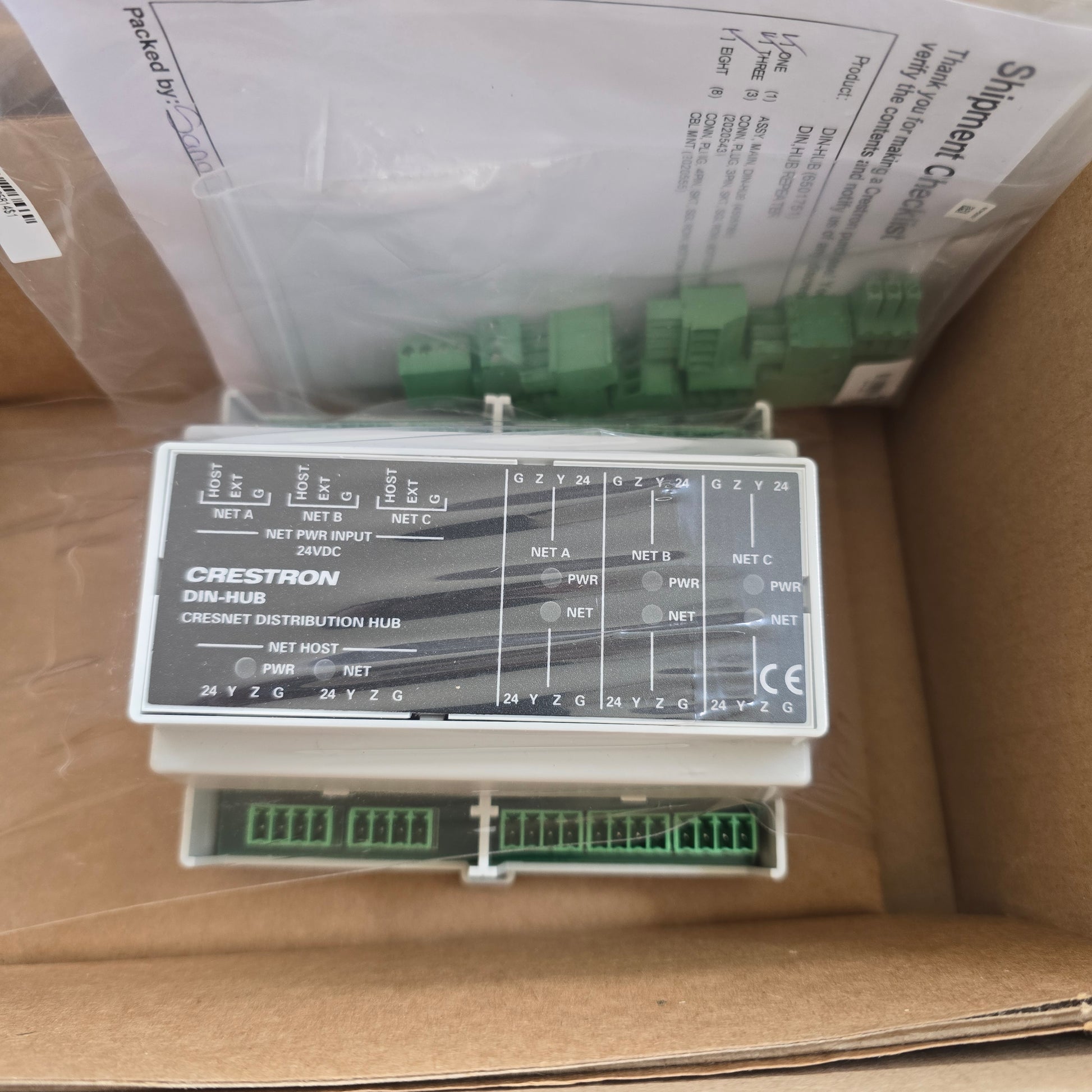

• 1 x Crestron DIN-HUB, sealed in its original factory bag
• 3 x 3-pin pluggable terminal block connectors
• 8 x 4-pin pluggable terminal block connectors
• Crestron shipment checklist

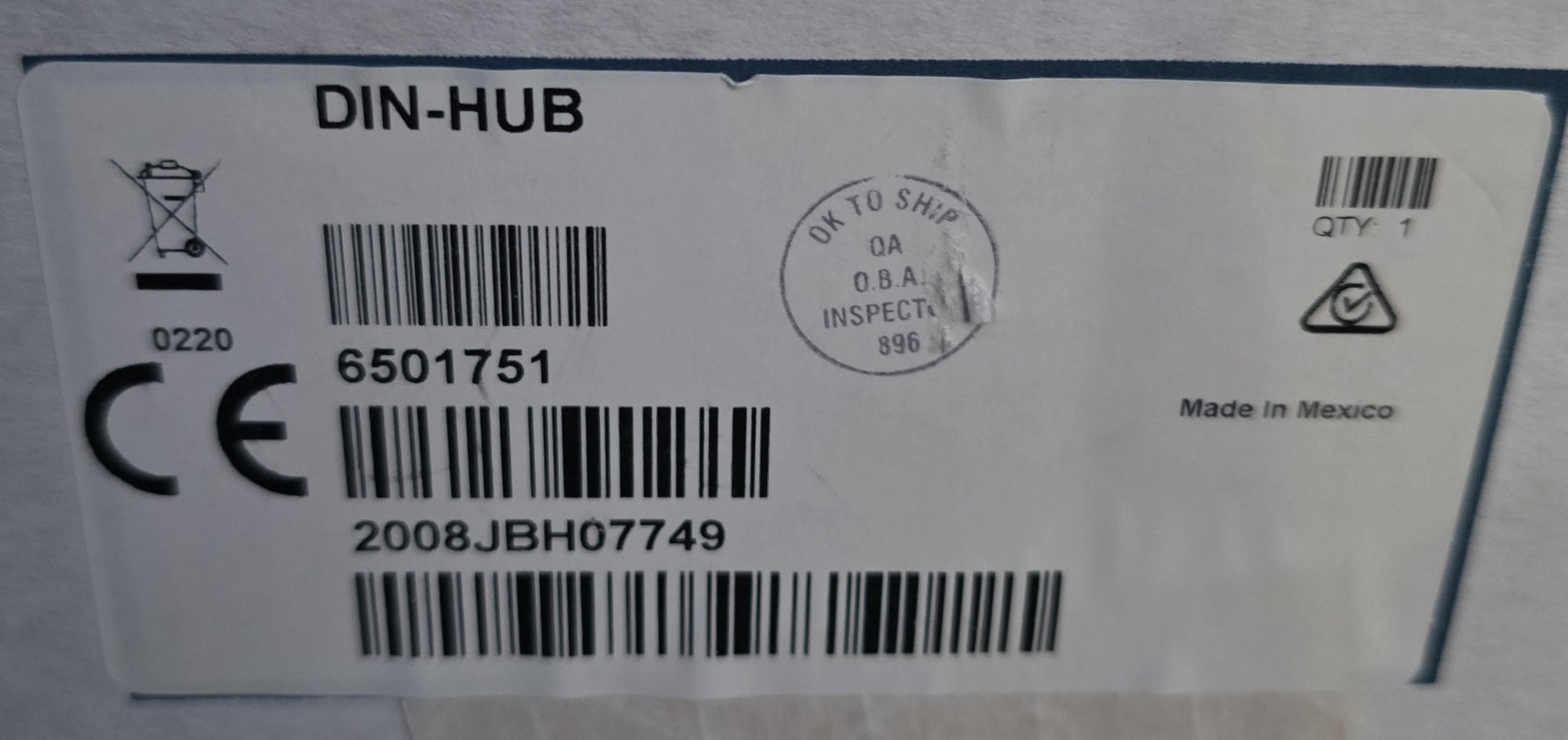

• Original Crestron carton

DIN rail, Cresnet cable and an external 24 VDC power supply are not included.

Additional Information

Our records did not carry a condition for this item, so it has been assessed from the photographs: the carton has been opened but the hub is still in its factory sealed bag with the original shipment checklist, and the terminal connectors are still in their own sealed bag with all quantities matching the checklist. It is listed as new in the manufacturer's original packaging with the box opened. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
