Crestron AM-3200 6511482 AirMedia Series 3 Wireless Presentation (Pre-owned)

The Crestron AM-3200 is an AirMedia Series 3 wireless presentation and conferencing receiver, Crestron part number 6511482 and regulatory model M202011001. It lets people present wirelessly from Windows, macOS, iOS, Android and Chrome OS devices without cables or dongles, supports Microsoft Teams and Zoom conferencing software, is managed through Crestron XiO Cloud, and doubles as a digital signage player when the room is idle.

AirMedia Canvas presents up to four simultaneous sources on screen, three of them over Miracast. The HDMI input accepts up to 1920x1080 at 60 Hz and the HDMI output drives up to 3840x2160 at 60 Hz, with the wireless presentation stream running to 1920x1080 at 30 Hz. Networking is dual LAN: one Gigabit PoE+ port and one LAN AUX port for a guest network. There is one USB 2.0 host and one USB 3.0 host port for conferencing peripherals, a balanced analogue audio output, RS-232 and IR display control, and a microSD slot for signage caching. Power is IEEE 802.3at PoE+ Class 4 at 14 W typical, or an optional PW-2412WU 24 VDC pack. The chassis is 188 x 166 x 33 mm and 0.86 kg, rated 0 to 40 degrees C.

Important: the AM-3200 has no built-in Wi-Fi. Crestron specifies that it requires a wired network connection to an external wireless access point, which is not included. The AM-3200-WF is the variant with built-in dual-band Wi-Fi and Bluetooth; this listing is for the base AM-3200.

Specifications

Brand: Crestron

Model: AM-3200, AirMedia Series 3 Receiver 200, regulatory model M202011001

Part Number: AM-3200

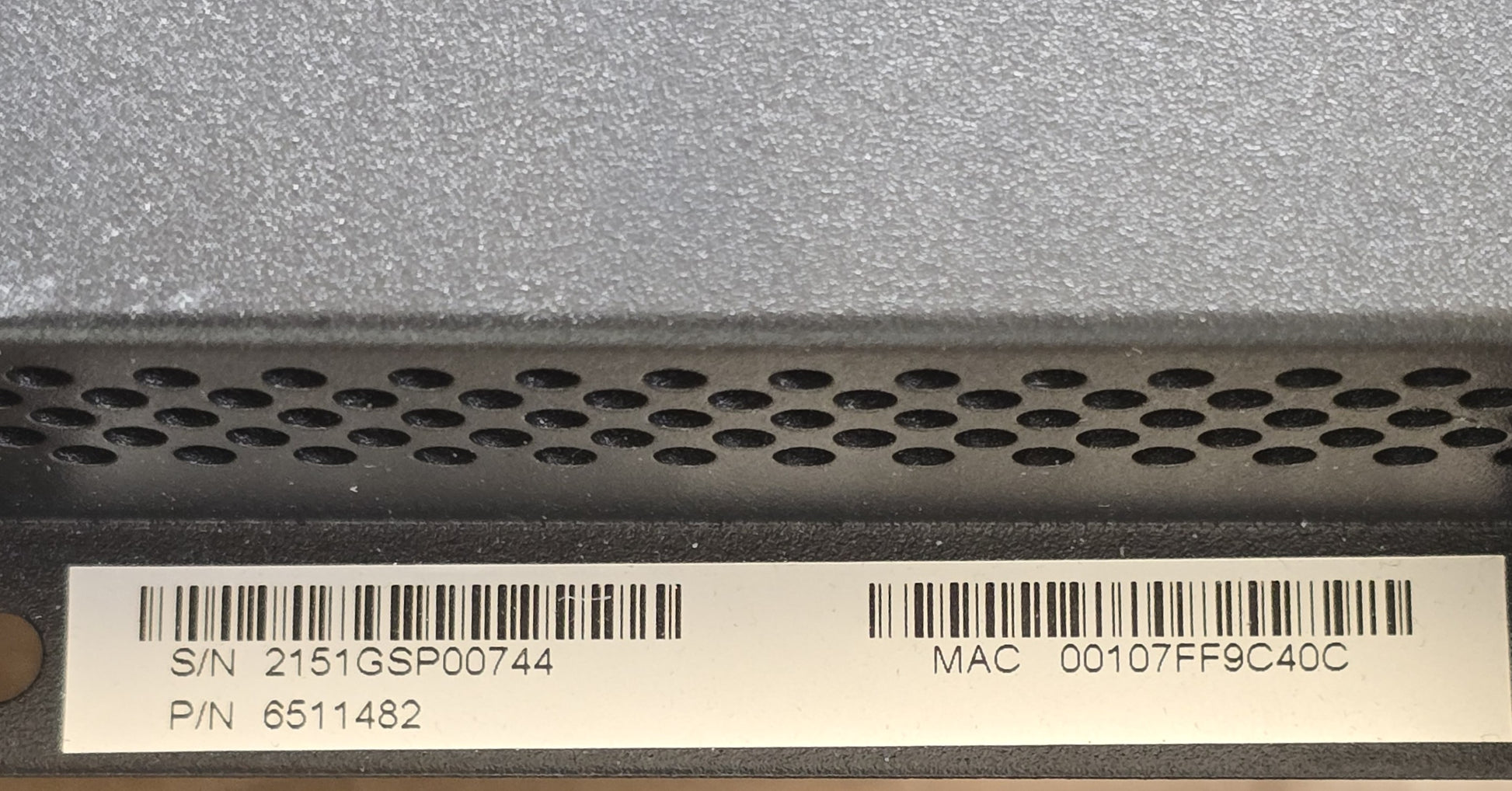

Alternate Part Number: 6511482

Product Type: Wireless presentation and conferencing receiver

Simultaneous Sources: Up to 4 on screen with AirMedia Canvas, 3 via Miracast

HDMI Input: Up to 1920x1080 at 60 Hz

HDMI Output: Up to 3840x2160 at 60 Hz

Wireless Stream: Up to 1920x1080 at 30 Hz

Network: Dual LAN, 1 x Gigabit PoE+ and 1 x LAN AUX for guest network

USB: 1 x USB 2.0 host, 1 x USB 3.0 host

Other I/O: Balanced analogue audio output, RS-232, IR, microSD slot

Power: IEEE 802.3at PoE+ Class 4, 14 W typical, or optional PW-2412WU 24 VDC supply

Management: Crestron XiO Cloud; Microsoft Teams and Zoom software supported

Wi-Fi: None built in; requires an external wireless access point

Operating Conditions: 0 to 40 degrees C, 10 to 90 percent RH

Dimensions: 188 mm W x 166 mm D x 33 mm H

Weight: 0.86 kg

Condition: Pre-owned

Key Features

• Cable-free presentation from any common laptop, tablet or phone platform
• Up to four sources on screen at once with AirMedia Canvas
• 4K60 HDMI output for modern room displays
• Dual LAN keeps guest traffic separate from the corporate network
• Single PoE+ cable for both power and network
• Managed at scale through Crestron XiO Cloud
• Built-in digital signage playback with microSD caching

Typical Applications

• Corporate meeting rooms and huddle spaces
• Education lecture and tutorial rooms
• Boardrooms serving both staff and visitors
• Rooms needing wireless presentation plus idle-time digital signage

Package Includes

• 1 x Crestron AM-3200 receiver

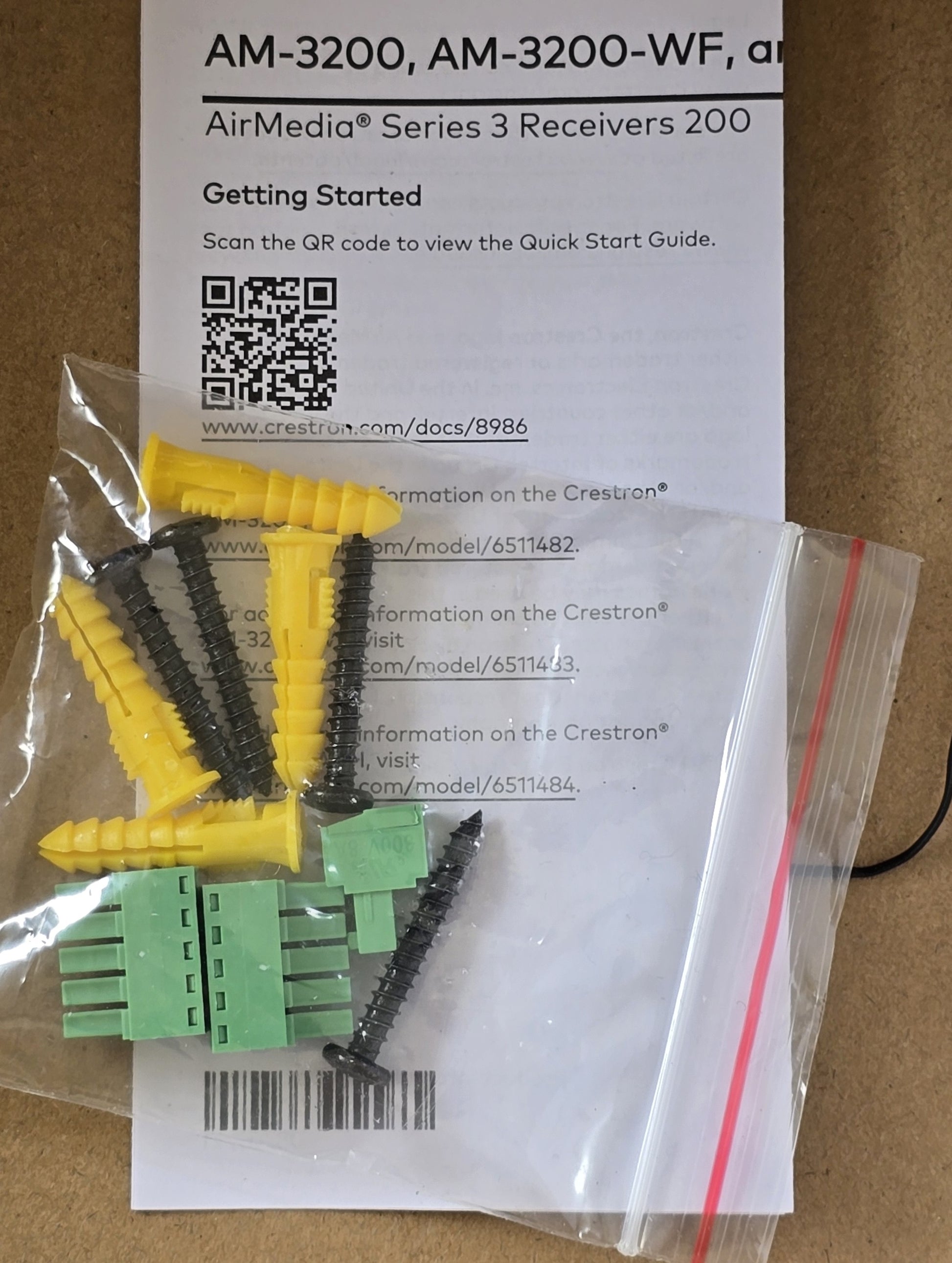

• Wall mount screws and wall anchors, unused and still bagged
• Pluggable terminal block connectors, unused and still bagged
• Getting Started and installation guide

There is no retail carton. A power supply, HDMI cabling, microSD card and wireless access point are not included.

Additional Information

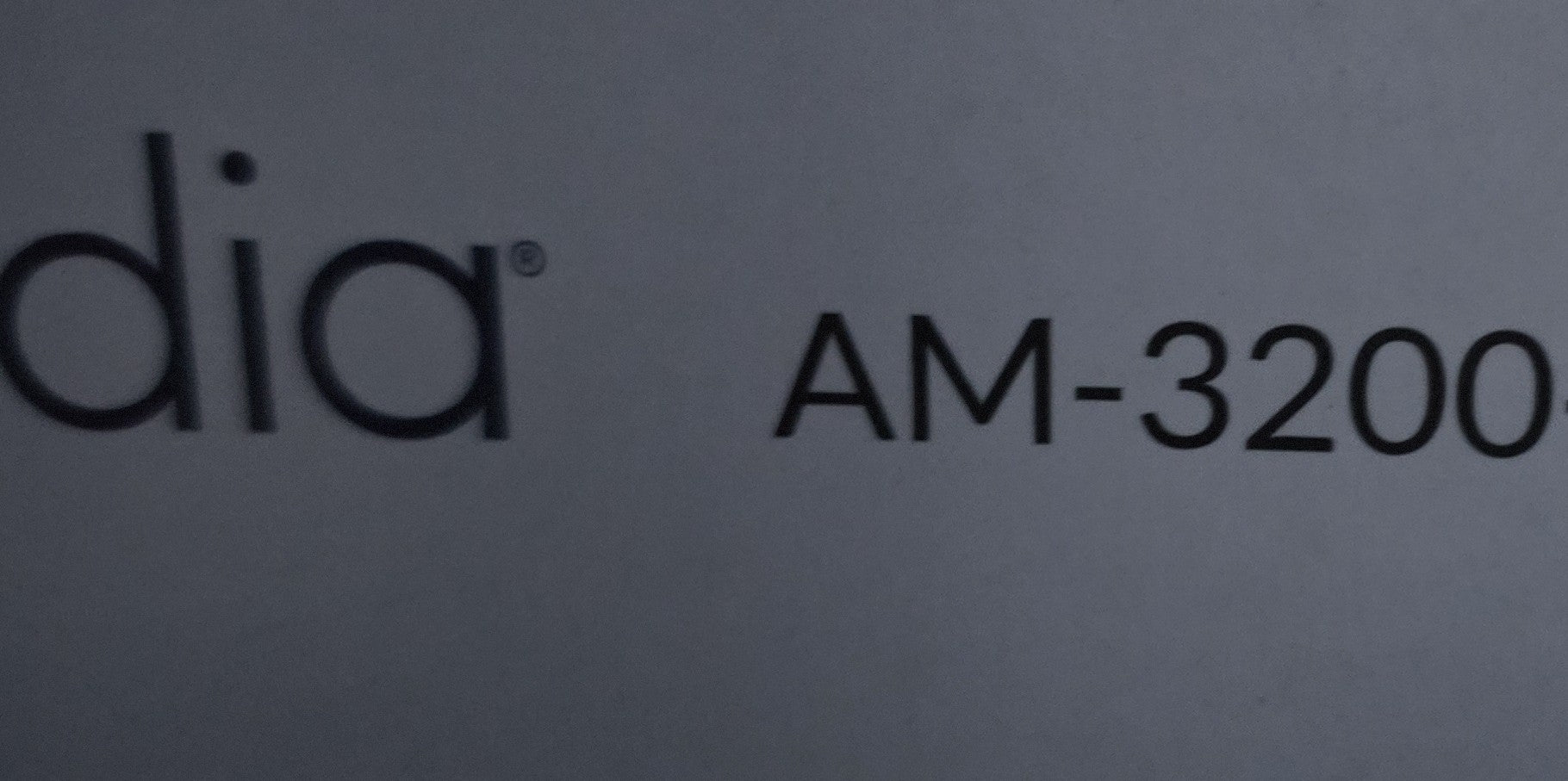

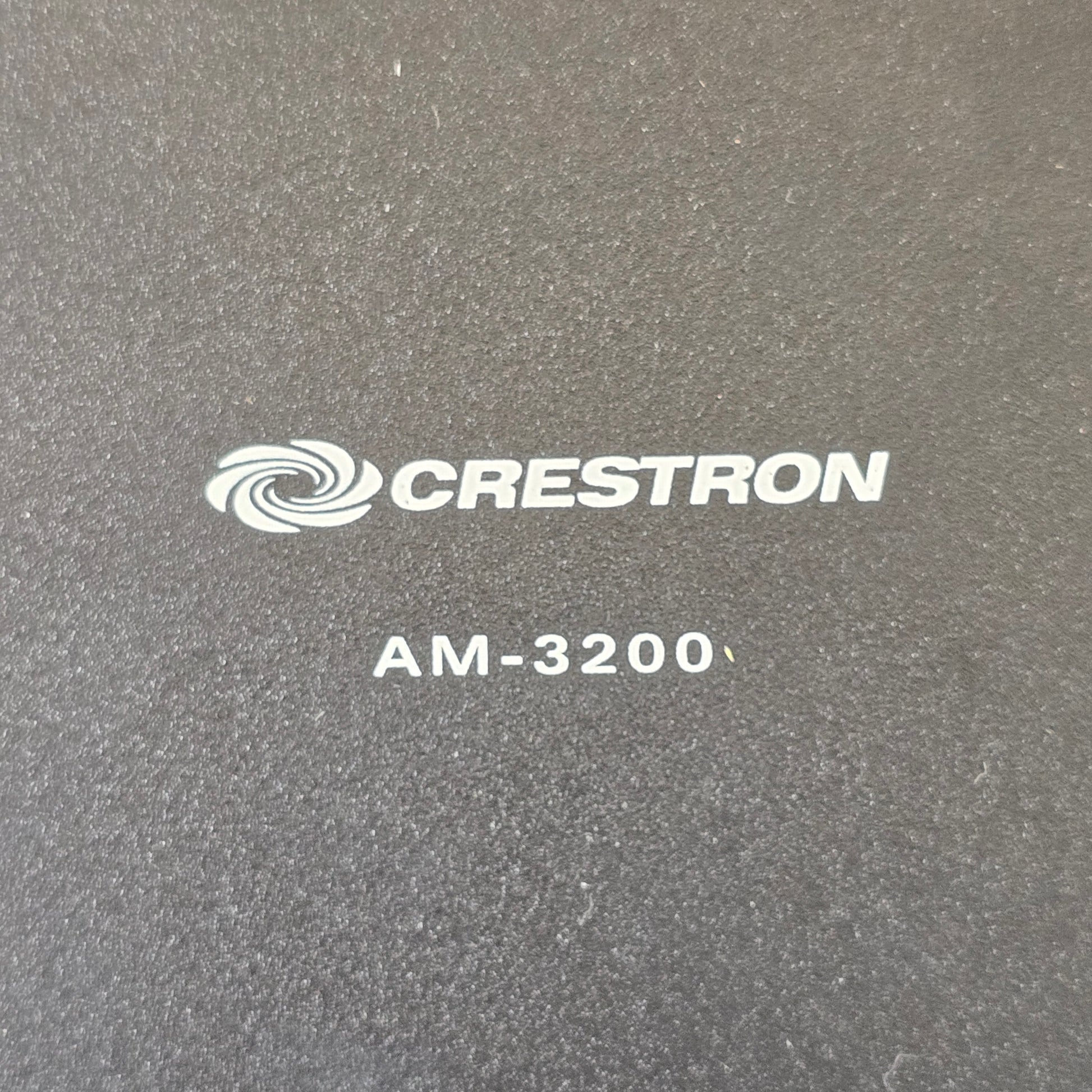

This is a pre-owned unit supplied without its original retail packaging. The visible casing is clean with no obvious scratches, and the mounting hardware and terminal connectors are unused and still sealed in their factory bag. The item has not been powered up or function tested by us and is sold as-is. Please refer to the photographs for the overall condition.

Country of origin is not marked on the unit and has therefore been left unspecified.

Shipping from Sydney, Australia.
