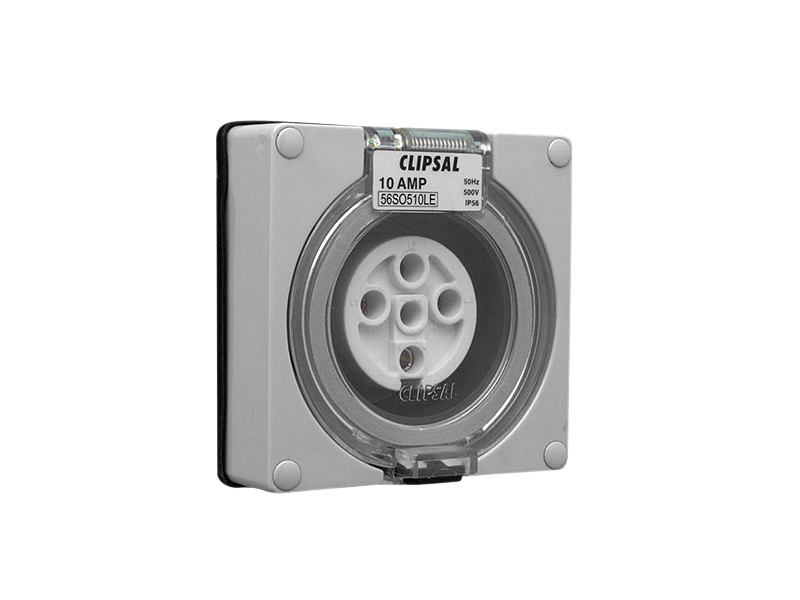

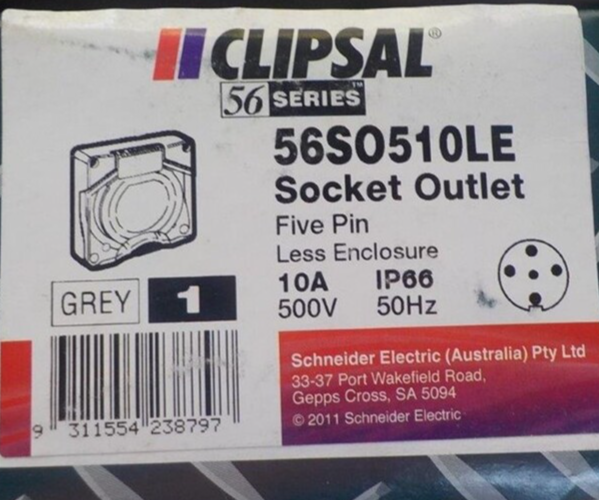

Clipsal 56SO510LE — Socket Outlet, 5-Pin, Round, 10A (Less Enclosure)

Overview

Clipsal 56 Series surface socket outlets feature hose-proof, dust-resistant flaps with automatic snap-catch latches. The transparent flap allows instant visual inspection of socket condition and pin configuration. Sockets accommodate both the older IP56 plain plugs and the current IP66 retention-ring plugs to minimise variant count.

Key Features

• Extra-low-voltage and 3-phase options

• 6 – 1.5 AWG conductor terminal

• Conforms to AS/NZS 3123

• Compatible with PVC solvent bonding

• “Mix and match” design within the 56 Series

• Less enclosure (LE)

Specifications

• Brand: Clipsal

• Sub-brand: 56 Series

• Model: Surface mounted

• Pins / Configuration: 5-pin, Type Q

• Current (IEC): 10 A

• Voltage (EN 60309-2): 500 V (50/60 Hz), identification colour: Black

• Clock-hour position: 7h

• Number of sockets: 1

• Material: PVC

• Fastening: External mounting

• Dimensions (mm): 101 (H) × 101 (W) × 39 (D)

Reference: Edition 93 Trade Product Guide, p. 205.
