CCG 053502 CCG 2 A2 M25 x 1.5 Brass Nickel Cable Gland IP66/68 [10 Pack] (NEW)

CCG 2A2 M25 Compression Cable Gland Pack of 10

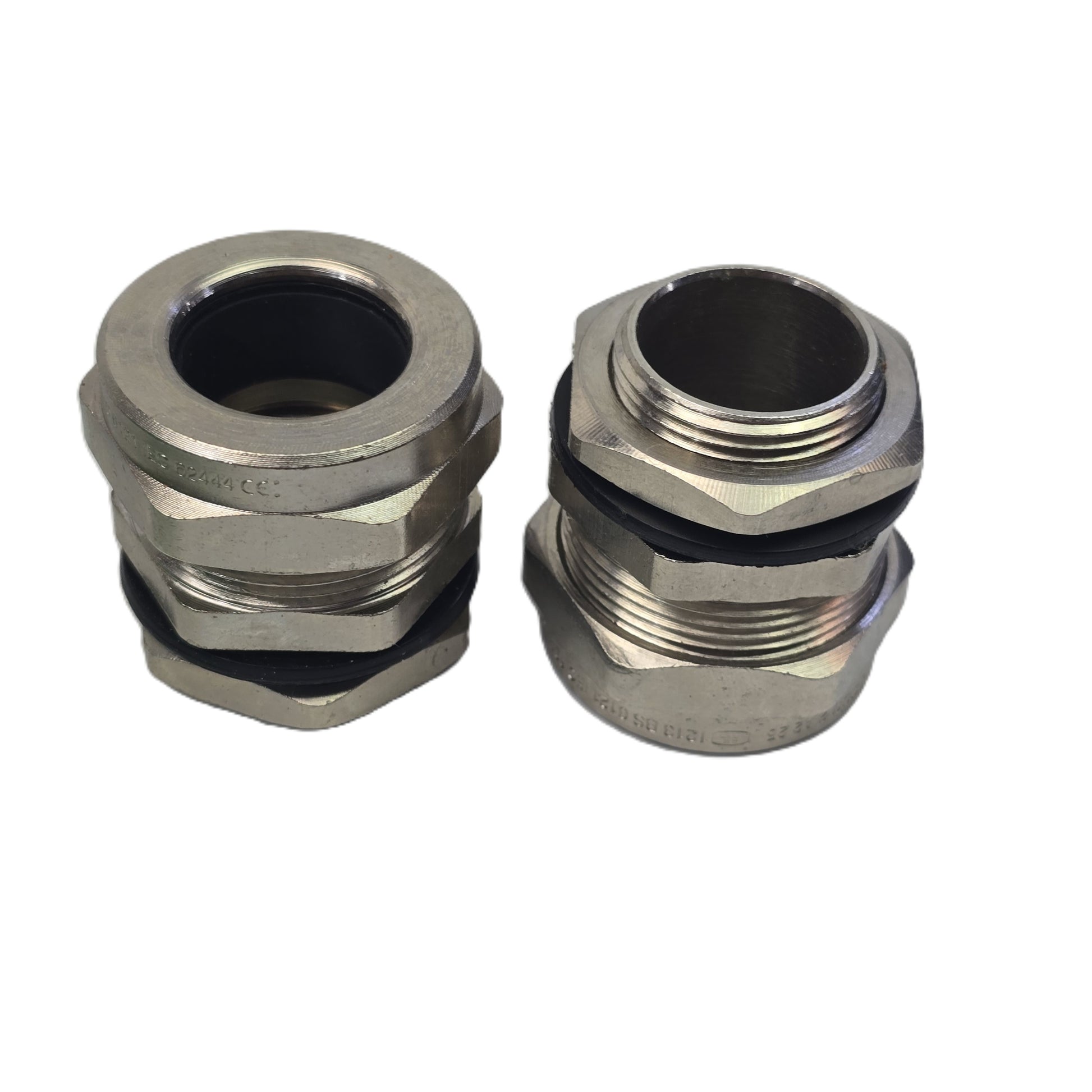

The CCG 2A2 M25 compression cable gland is designed for secure termination of single and multi-core unarmoured cables in industrial electrical installations. Manufactured from nickel plated brass, it provides excellent mechanical retention and environmental sealing for both indoor and outdoor applications.

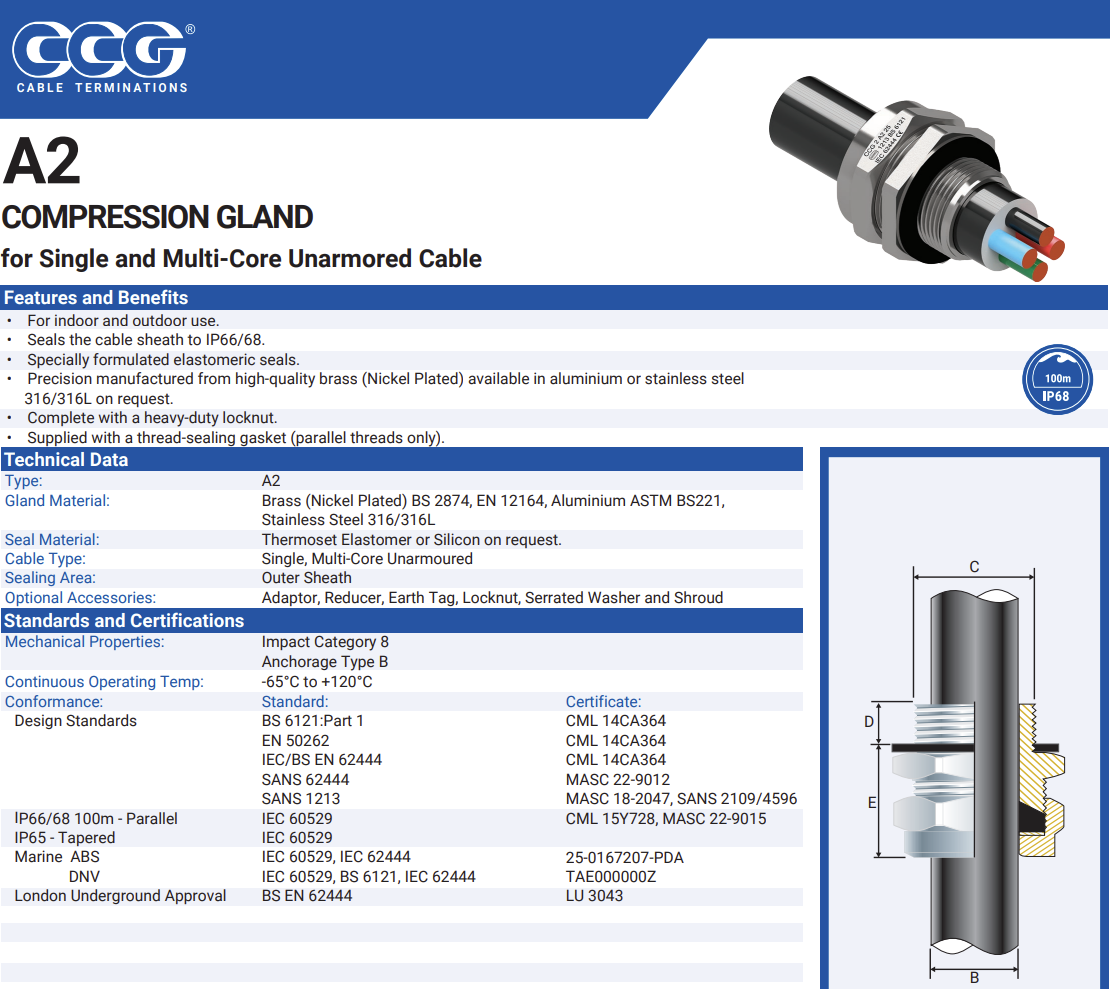

Part of the CCG A2 series, this compression gland incorporates thermoset elastomer sealing components and delivers IP66 and IP68 ingress protection when correctly installed. Supplied complete with locknuts and sealing gaskets for parallel thread applications.

Supplied as a pack of 10.

Specifications

Brand: CCG
Model: 2A2
Product Code: 605502
Product Type: Compression Cable Gland
Thread Size: M25 × 1.5
Material: Nickel Plated Brass
Cable Type: Single and Multi-Core Unarmoured Cable
Sealing Material: Thermoset Elastomer
Ingress Protection: IP66 / IP68
Operating Temperature: -65°C to +120°C
Application: Industrial Indoor and Outdoor Installations
Quantity: 10 Cable Glands
Condition: New

Key Features

• Nickel plated brass construction
• M25 × 1.5 metric thread
• Suitable for unarmoured cables
• Compression sealing design
• IP66 and IP68 ingress protection
• Includes locknuts and sealing gaskets
• Suitable for indoor and outdoor use
• Wide operating temperature range
• Designed for industrial electrical installations

Standards

• BS 6121 Part 1
• EN 50262
• IEC 62444

Typical Applications

• Control panels
• Industrial automation systems
• Electrical switchboards
• Outdoor electrical installations
• Instrumentation systems
• Power distribution equipment

Package Includes

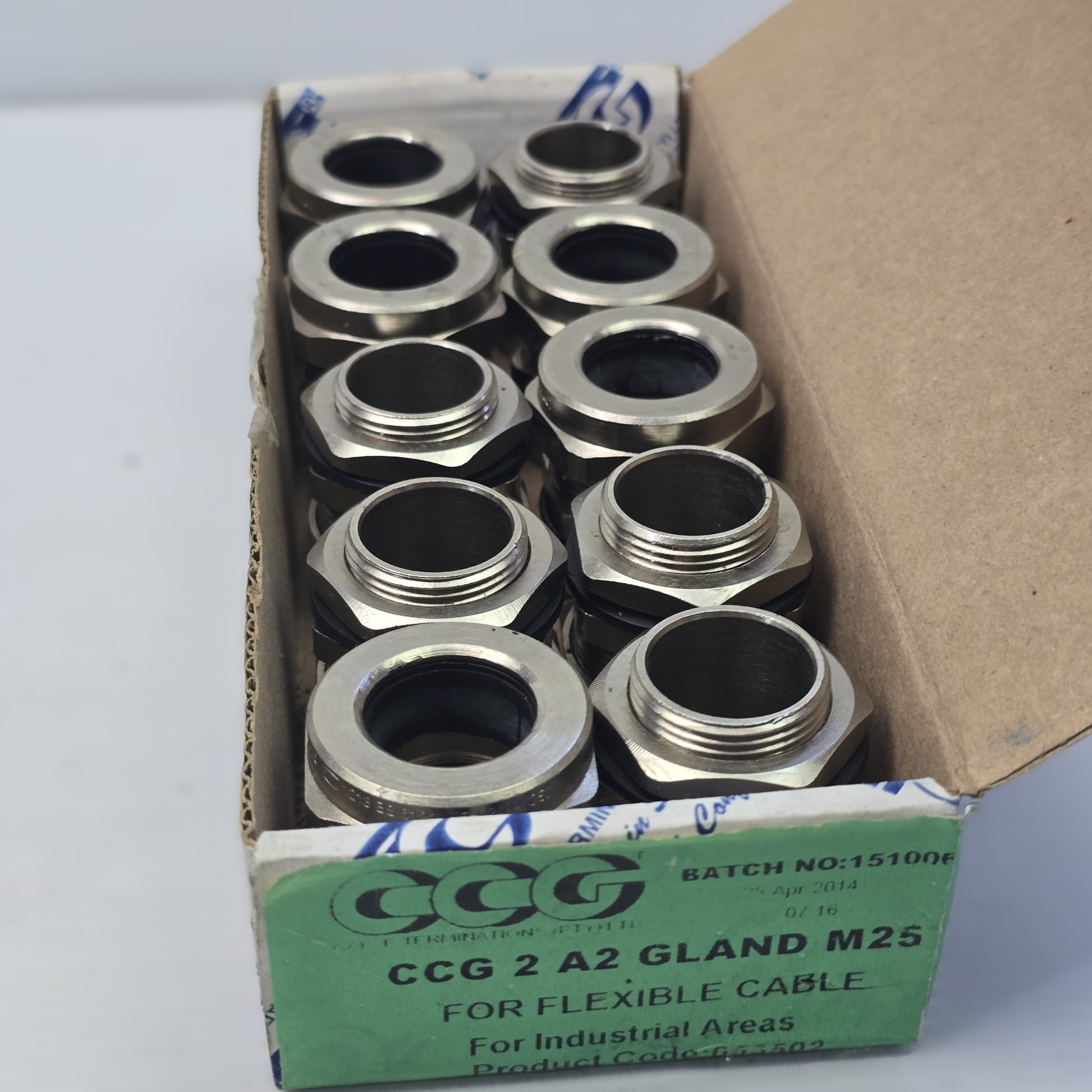

10 × CCG 2A2 M25 Compression Cable Glands

Additional Information

HS Code: 853890
Country of Origin: Not Specified
Shipping from Sydney, Australia.
