CCG 0535-0 CCG 0 A2 M20 x 1.5 Brass Nickel Cable Gland IP66/68 [10 Pack] (NEW)

CCG 0535-0 0 A2 M20 x 1.5 Brass Nickel Plated Cable Gland IP66/68 (Pack of 10)

Brand: CCG Cable Terminations
Product Code: 0535-0
Model: 0 A2
Type: A2 Compression Cable Gland
Thread Size: M20 x 1.5 (Metric Parallel)
Min Cable Diameter: 7.0mm
Max Cable Diameter: 11.5mm
Maximum Length (E): 20.0mm
Hex Size (Across Flats): 24.0mm
Material: Brass (Nickel Plated)
Seal Material: Thermoset Elastomer
Cable Type: Single & Multi-Core Unarmoured Cable
IP Rating: IP66 / IP68 (Parallel Threads up to 100m)
Operating Temperature: -65°C to +120°C
Standards: BS 6121 Part 1, EN 50262, IEC 62444, SANS 1213
Application: Industrial Indoor & Outdoor Use
Includes: Locknut
Quantity Included: Pack of 10

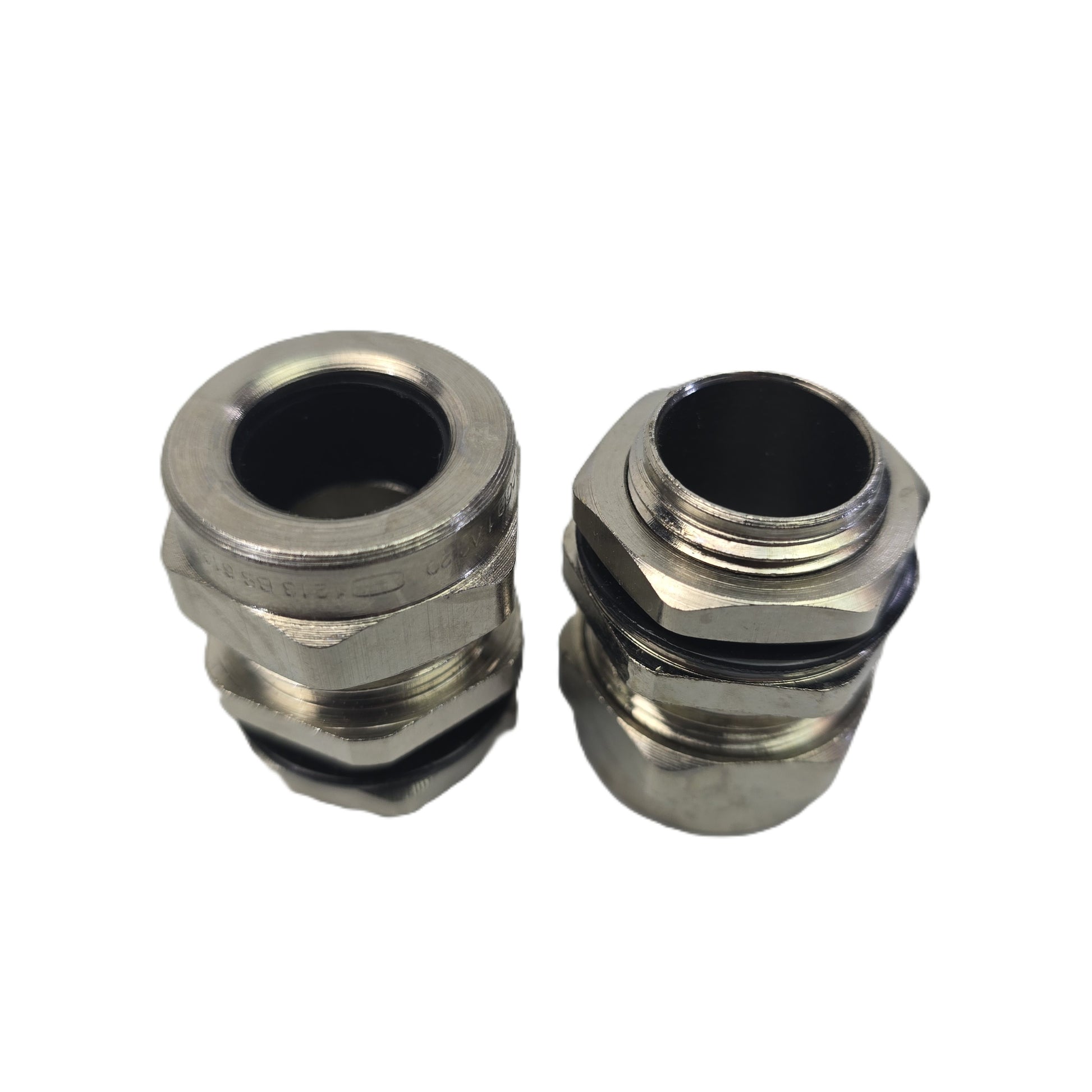

Description: Genuine CCG 0 A2 compression cable glands, product code 0535-0. Designed for terminating flexible unarmoured cable in industrial environments. Manufactured from high-quality nickel plated brass for corrosion resistance and long service life. Provides secure mechanical retention and environmental sealing to IP66/IP68 when installed with parallel metric threads. Supplied boxed as shown.
UPC: Not Available
Country of Origin: Not Specified on Packaging
HS Code: 853890
