Access Control Kit — 2-Door Controller + ButterflyMX Keypad

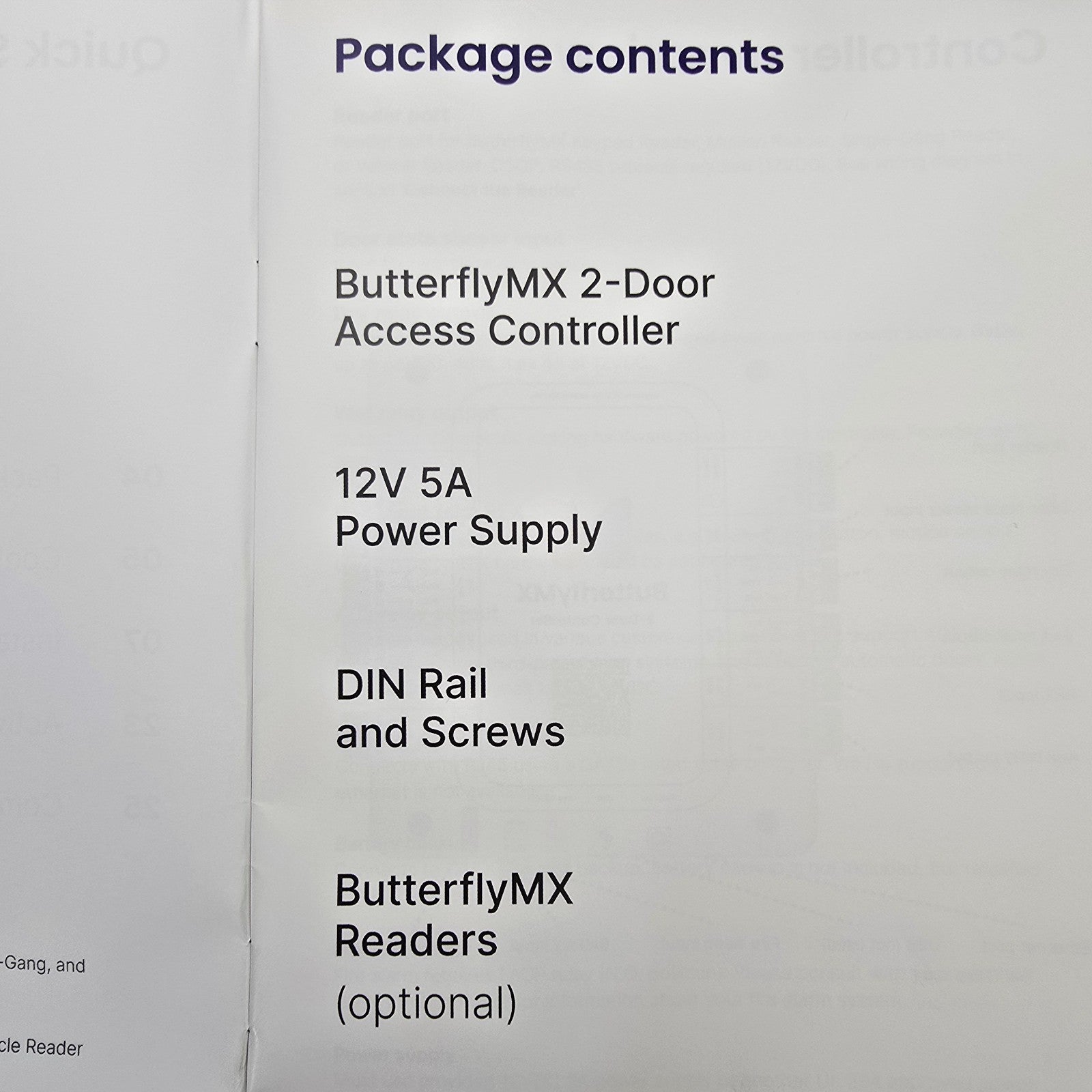

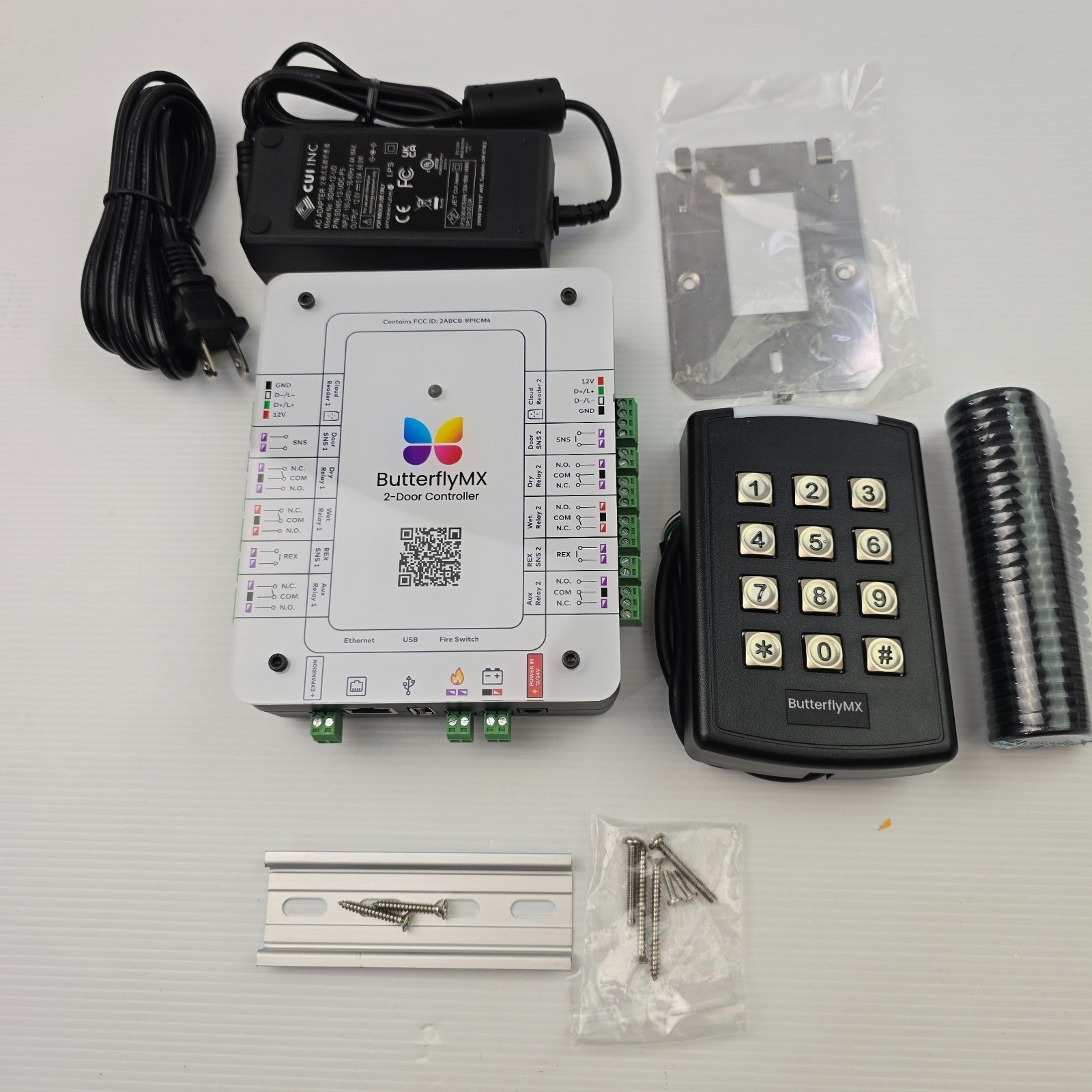

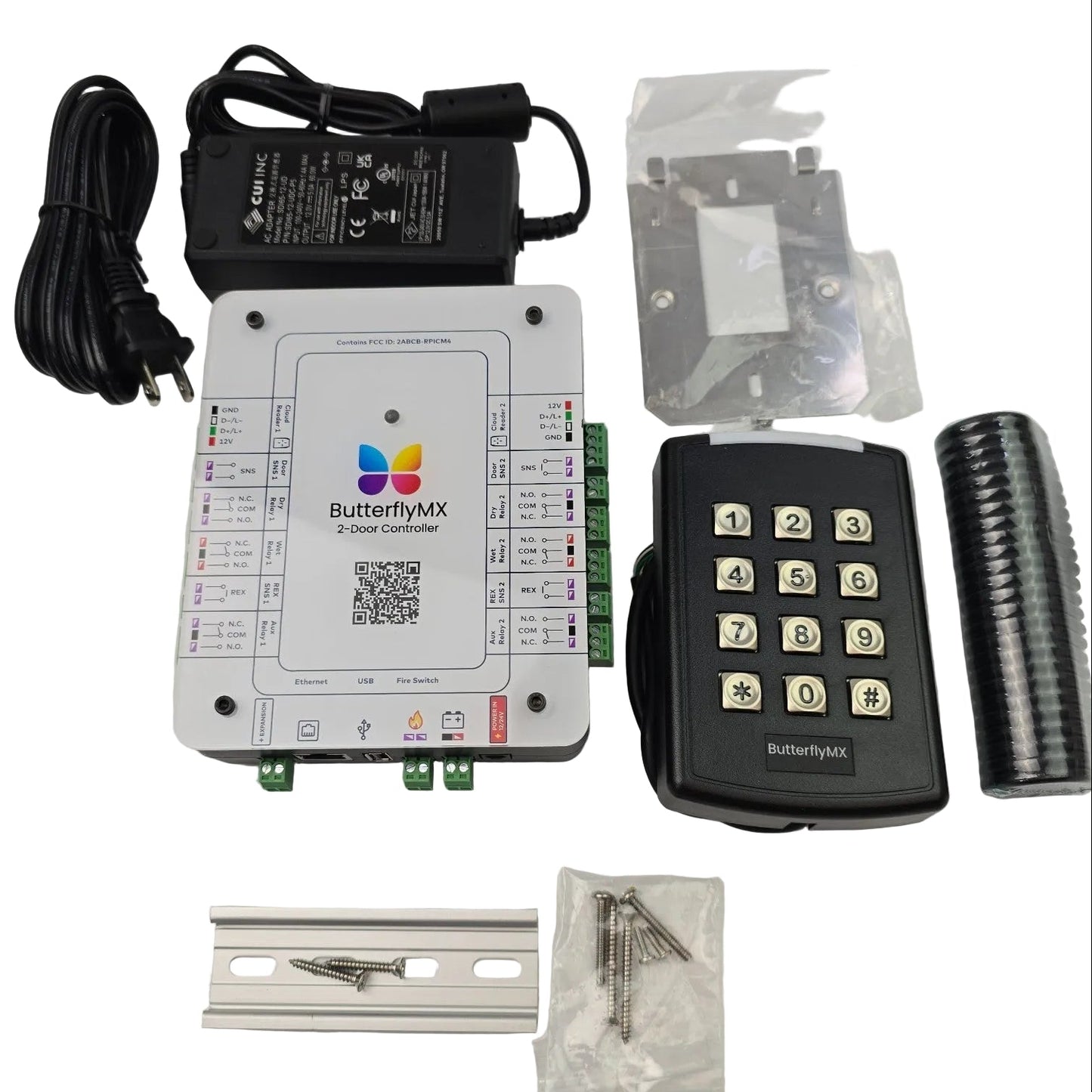

Kit Includes

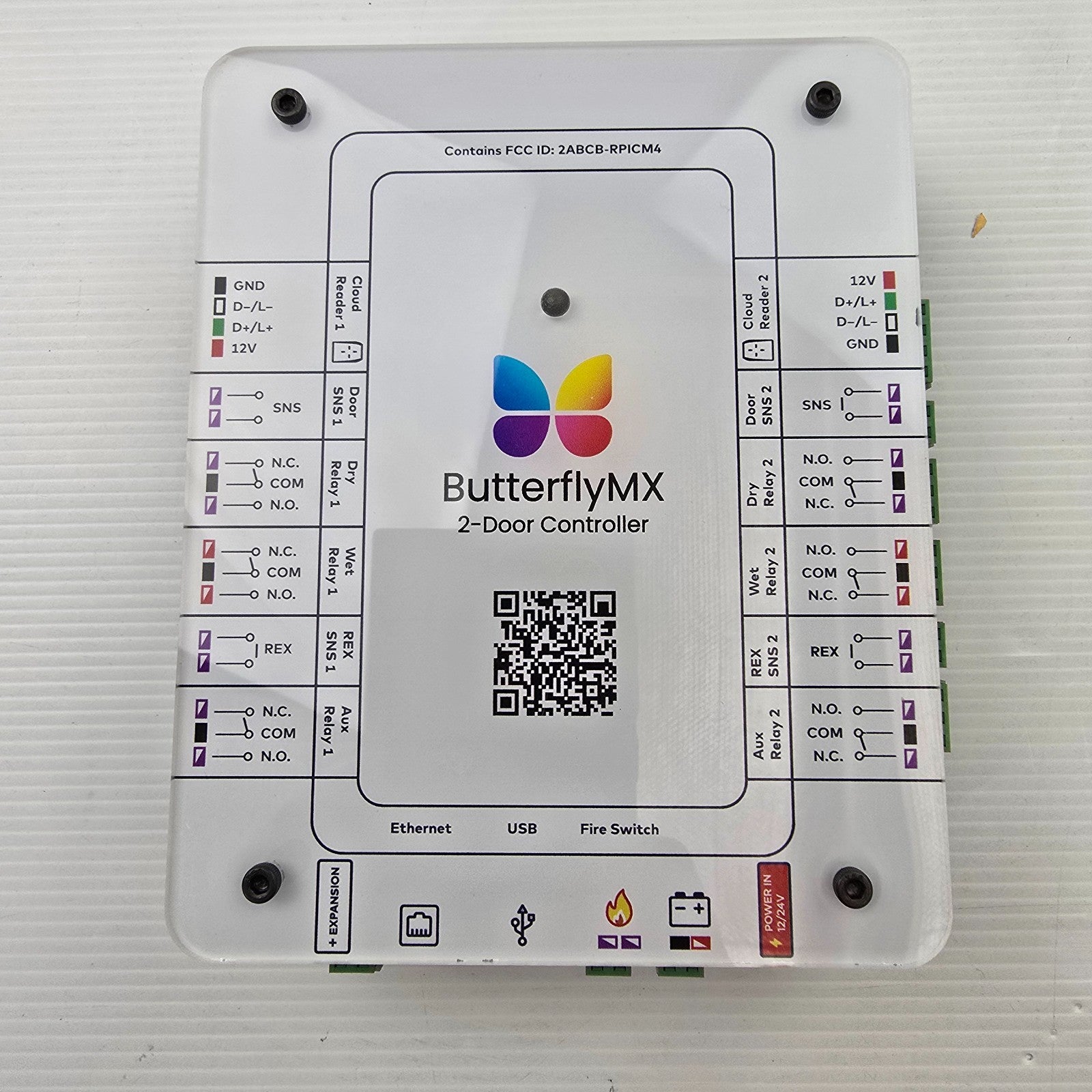

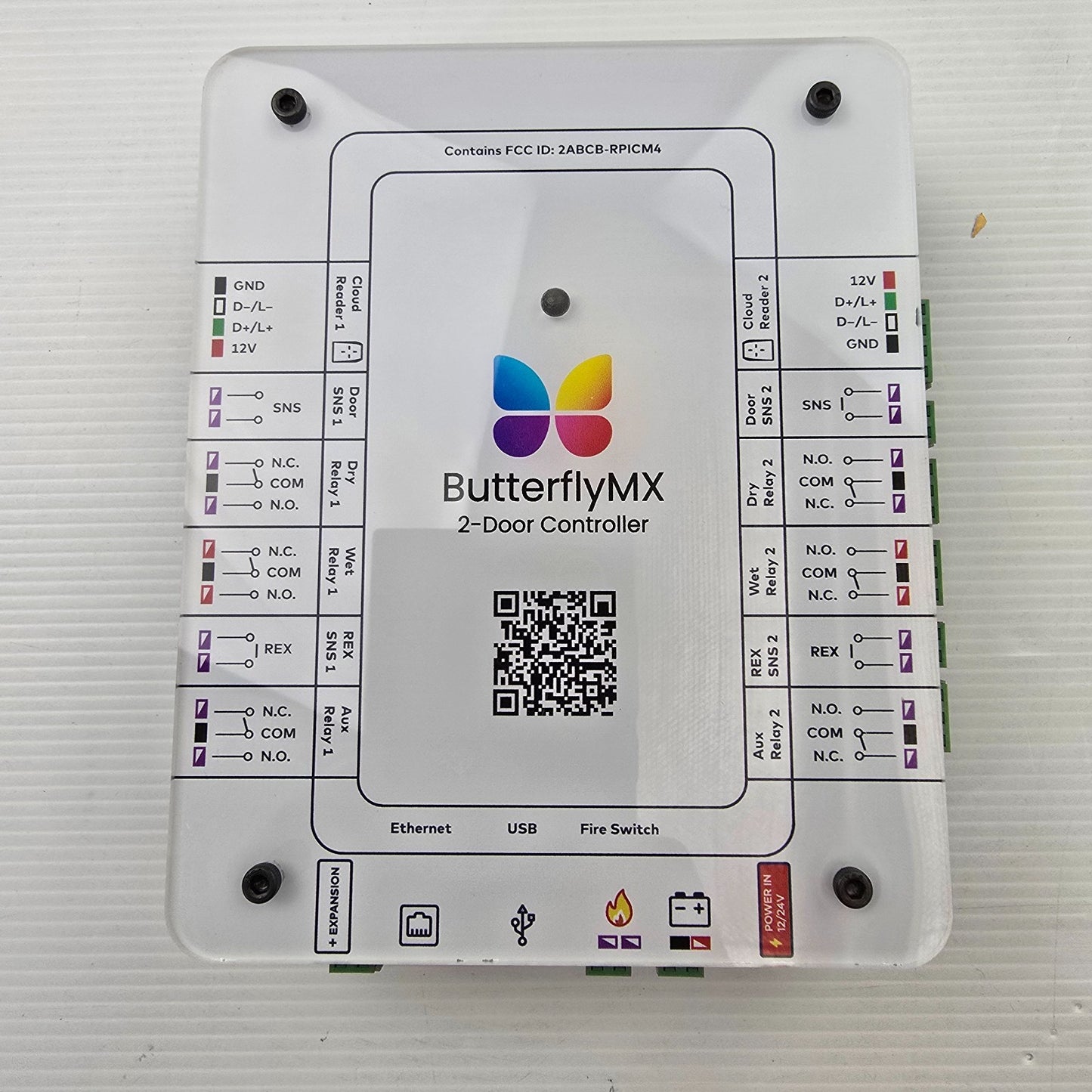

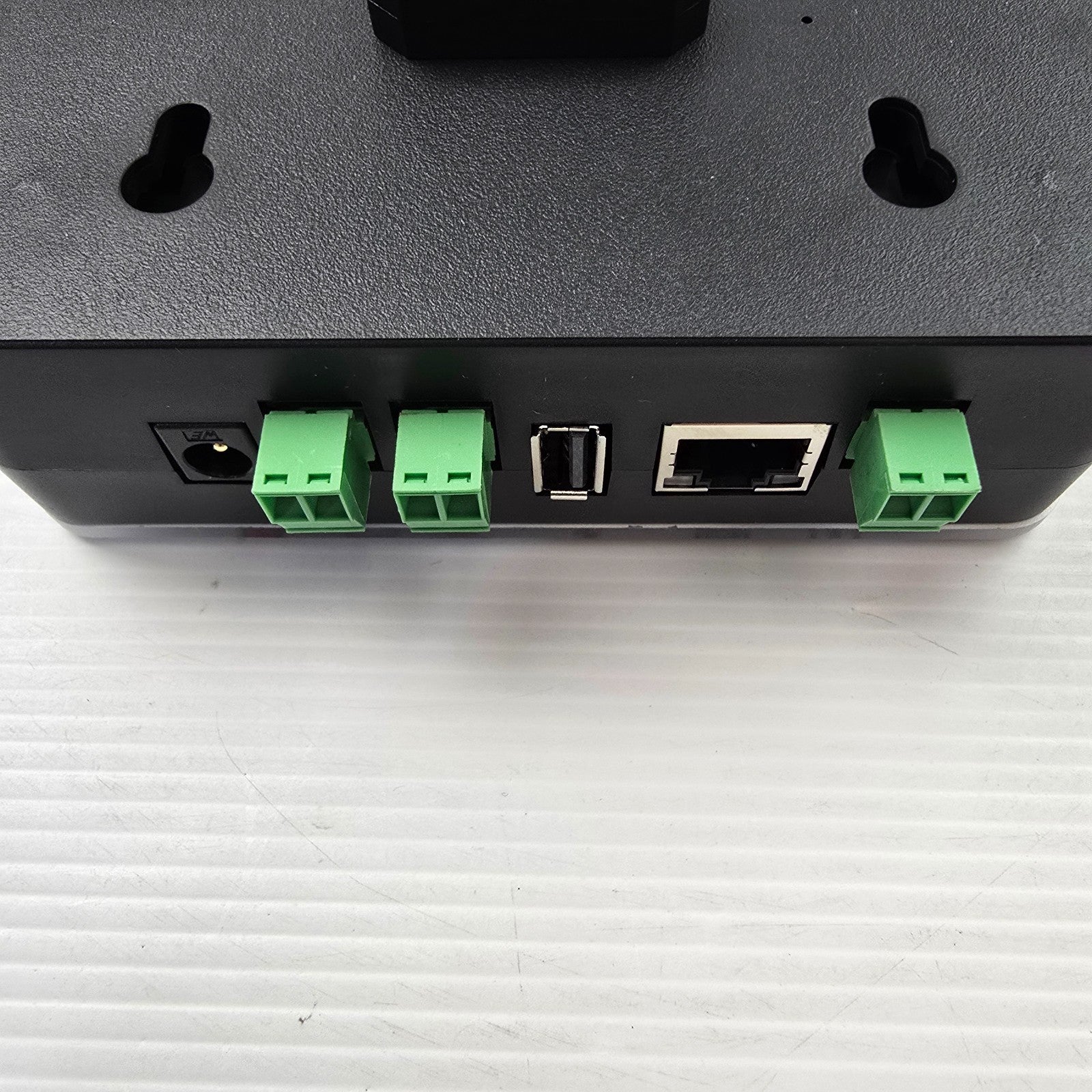

• 1 × 2-Door Access Controller

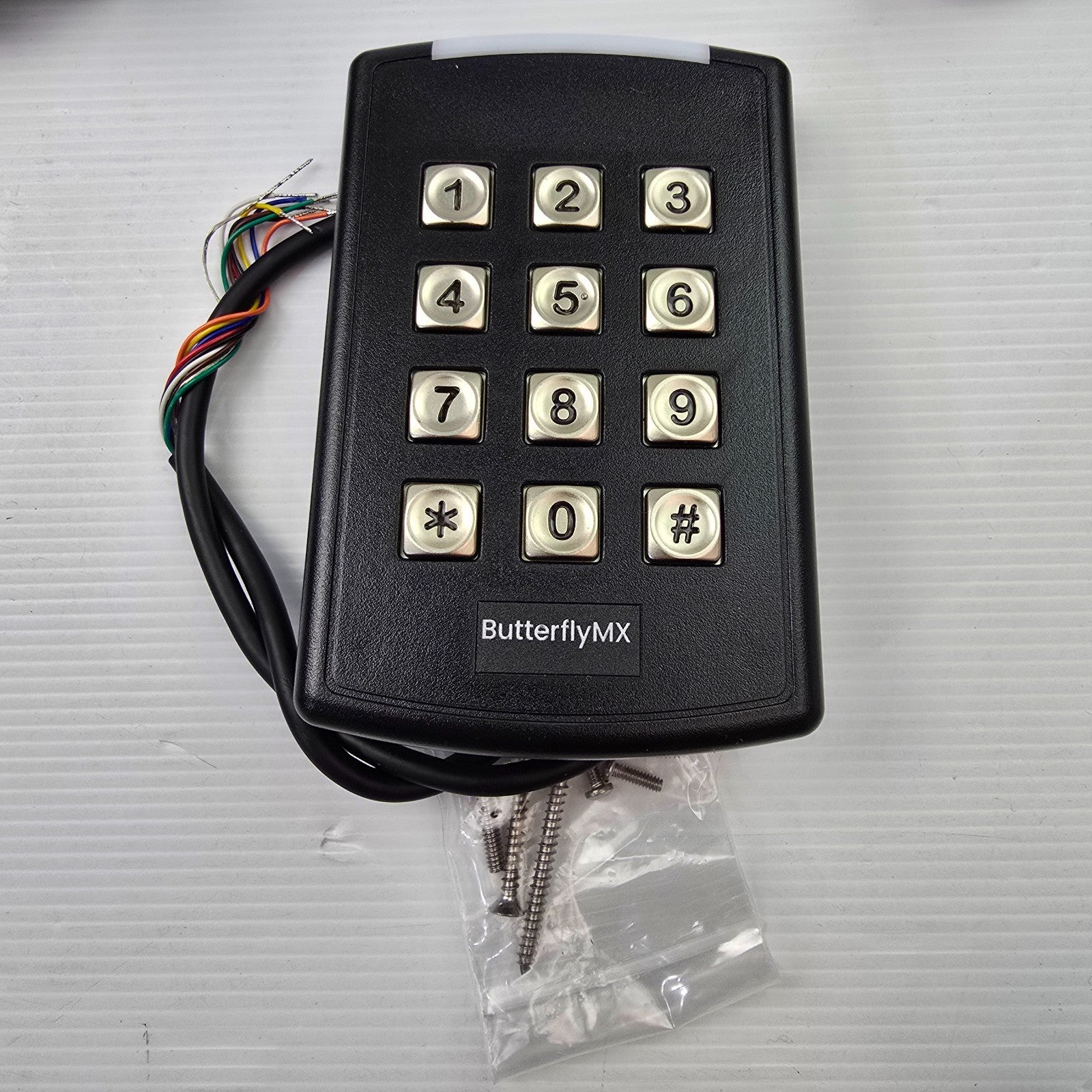

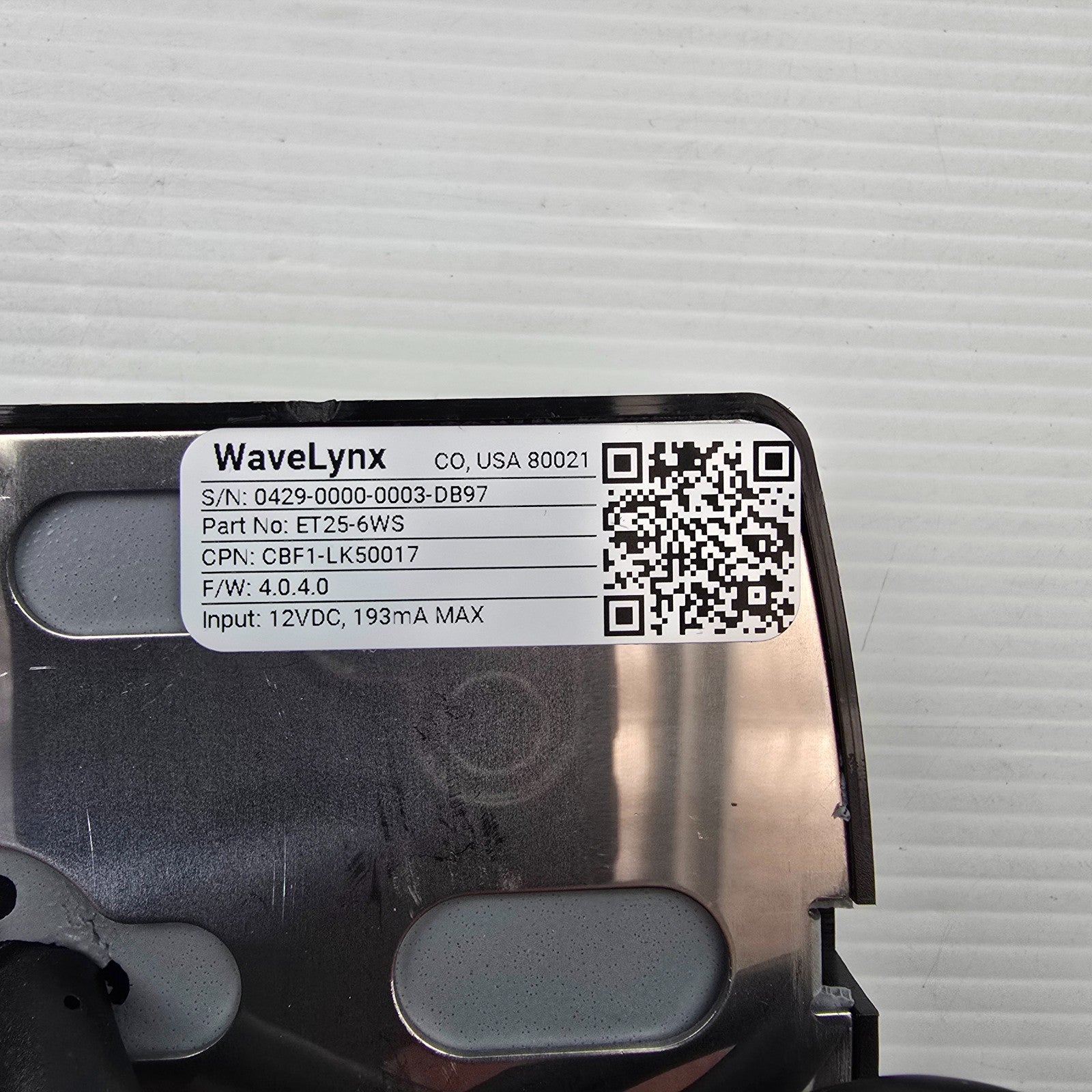

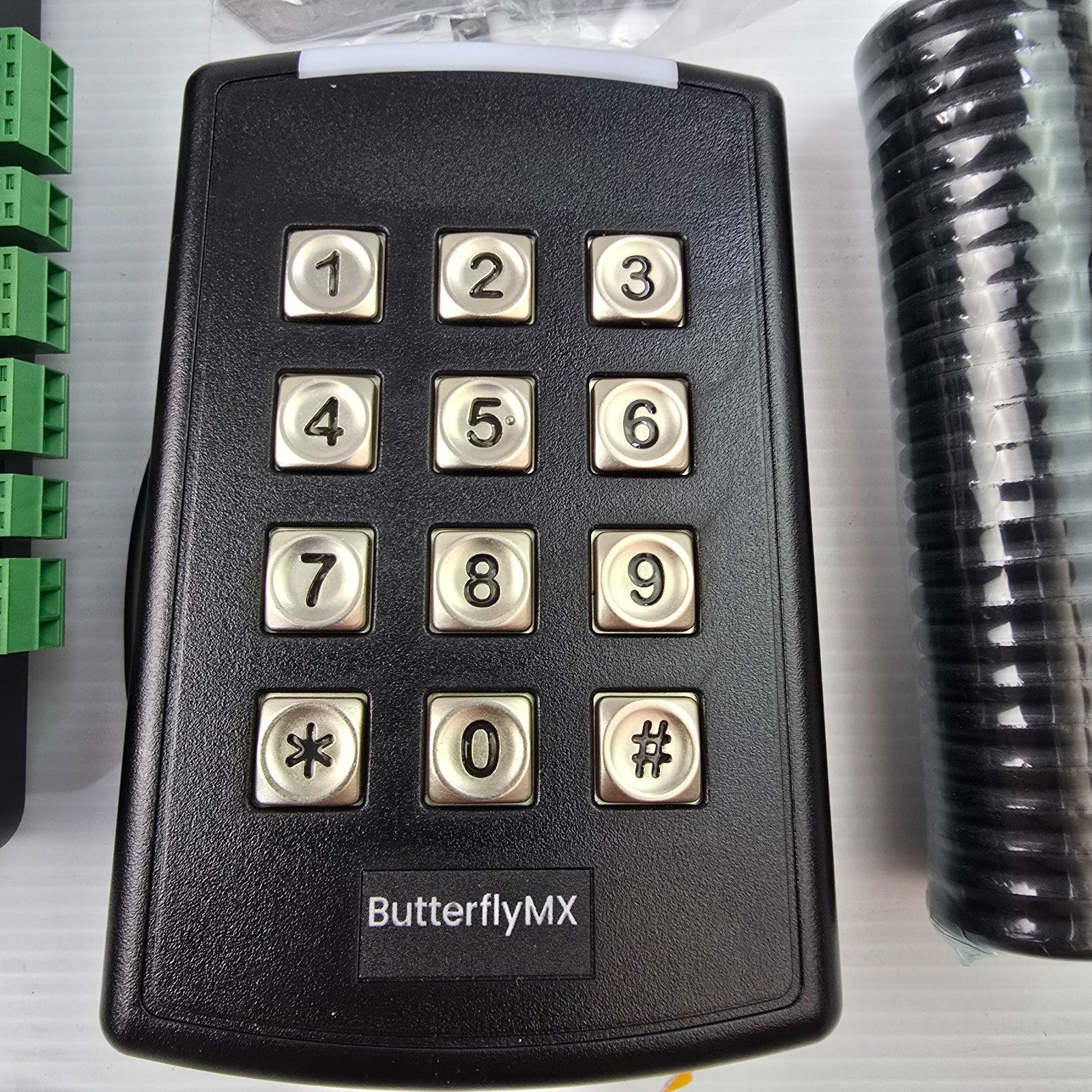

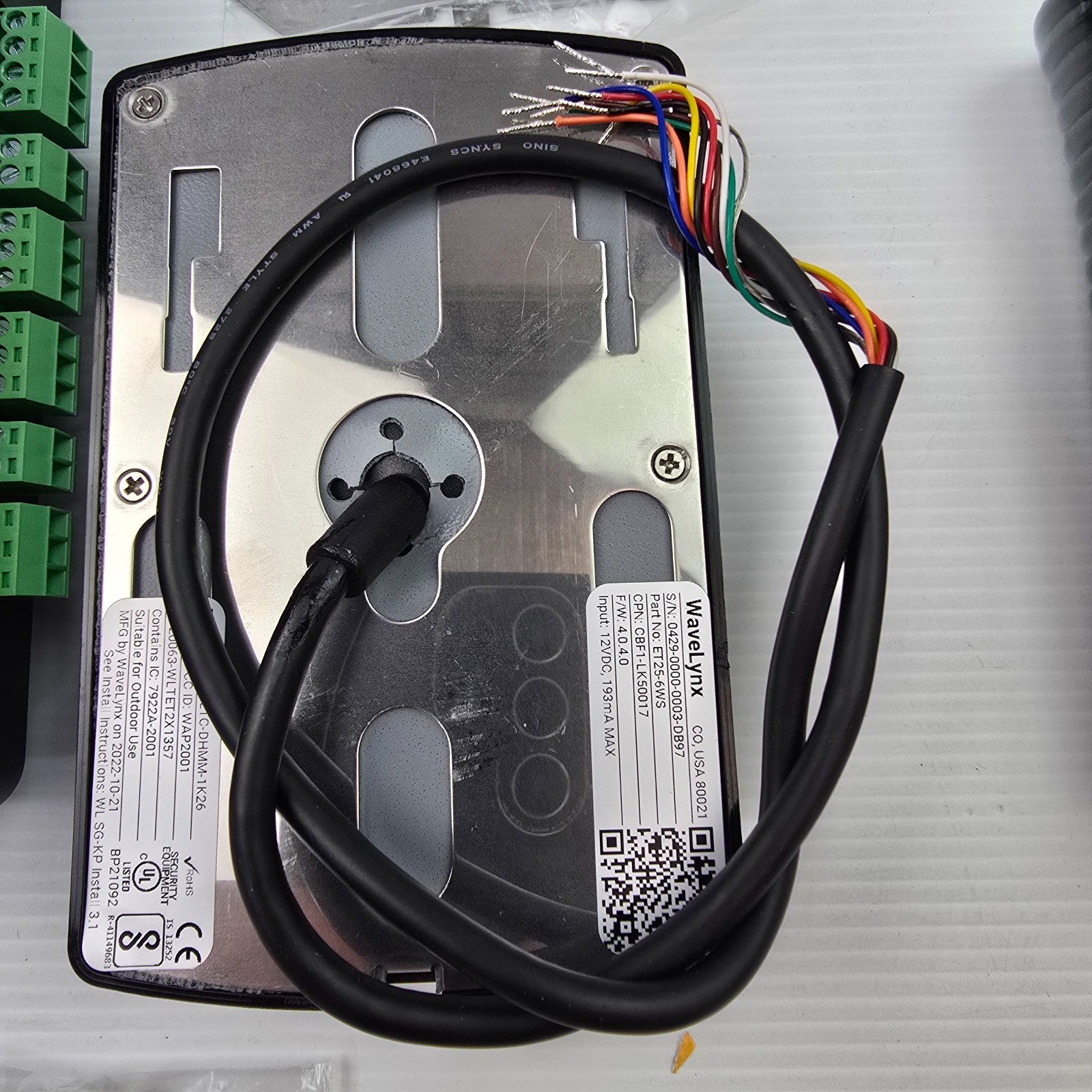

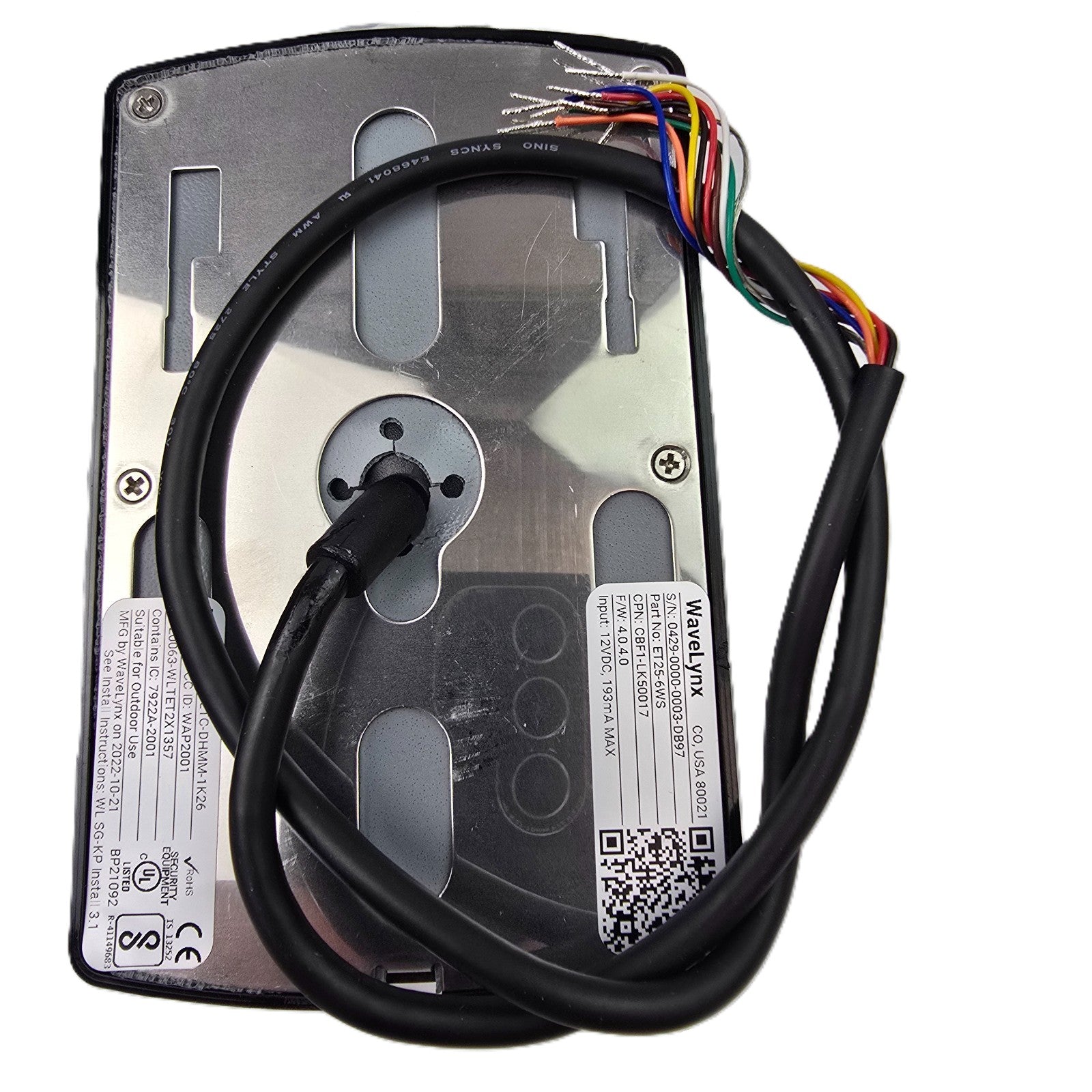

• 1 × ButterflyMX Keypad Reader

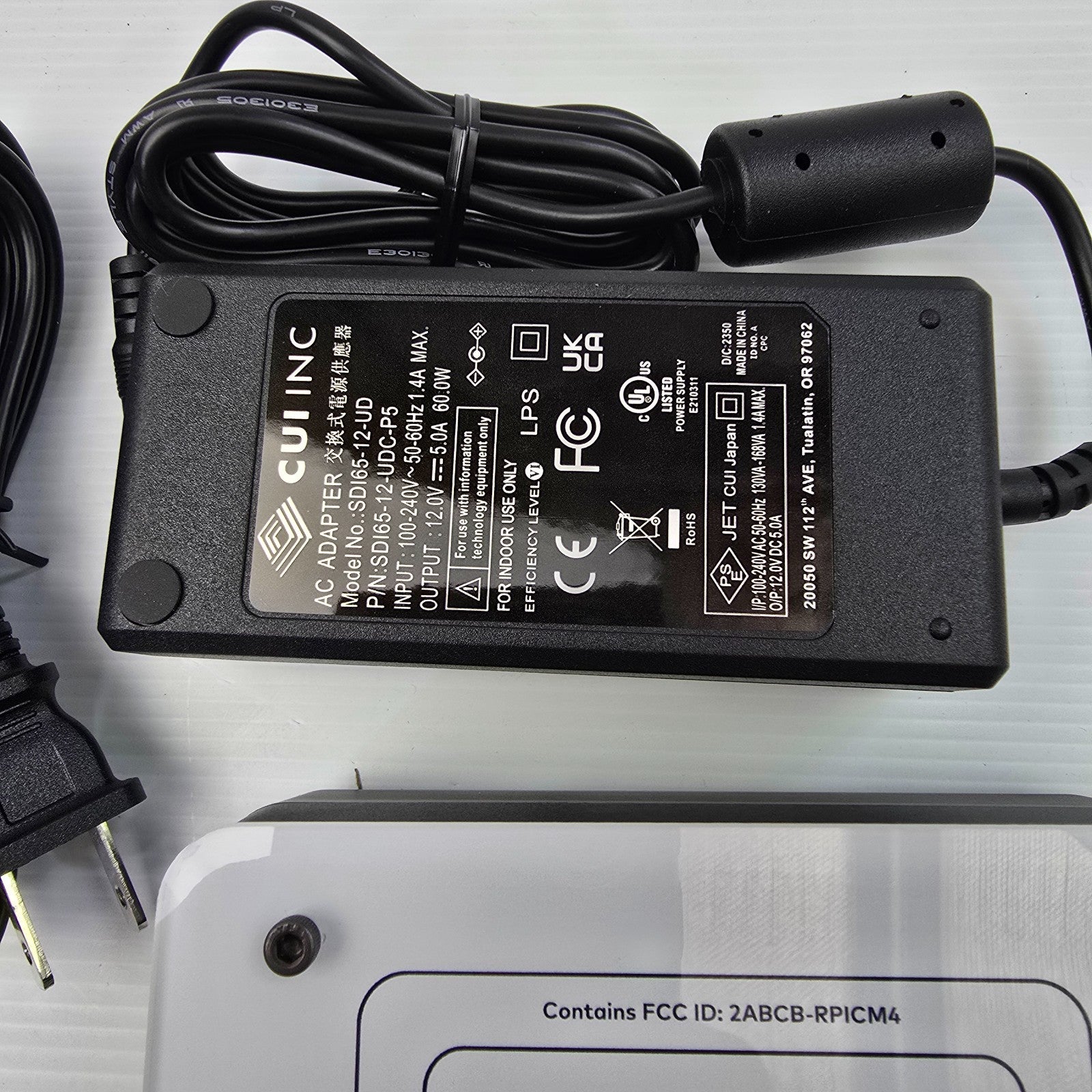

• 1 × 12 VDC Power Supply (PSU) — US 2-pin lead supplied; uses standard figure-8 (IEC C7) plug, works on 100–240 VAC.

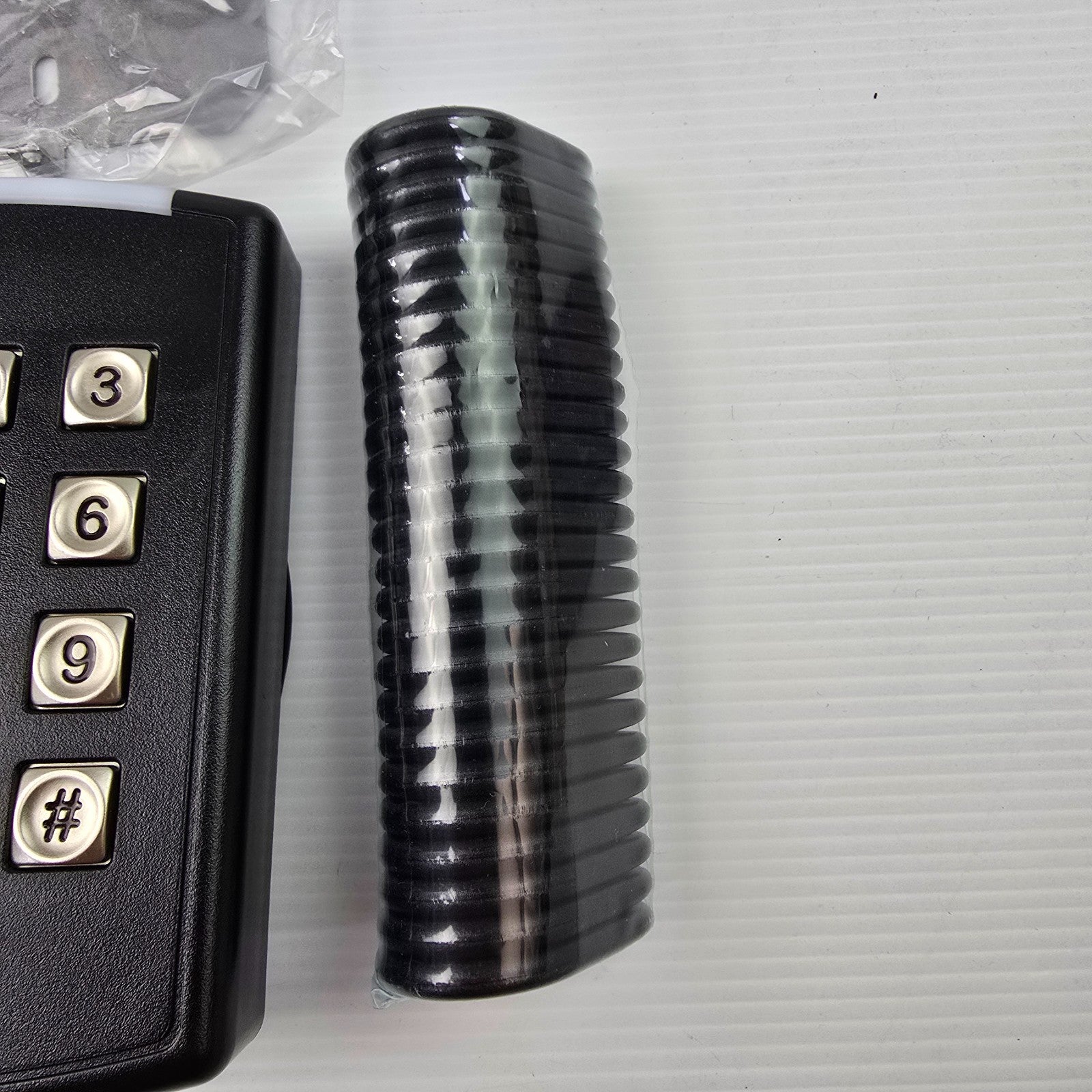

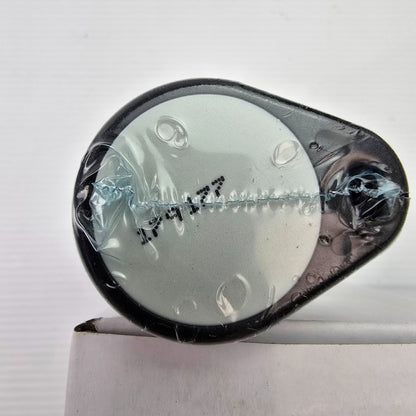

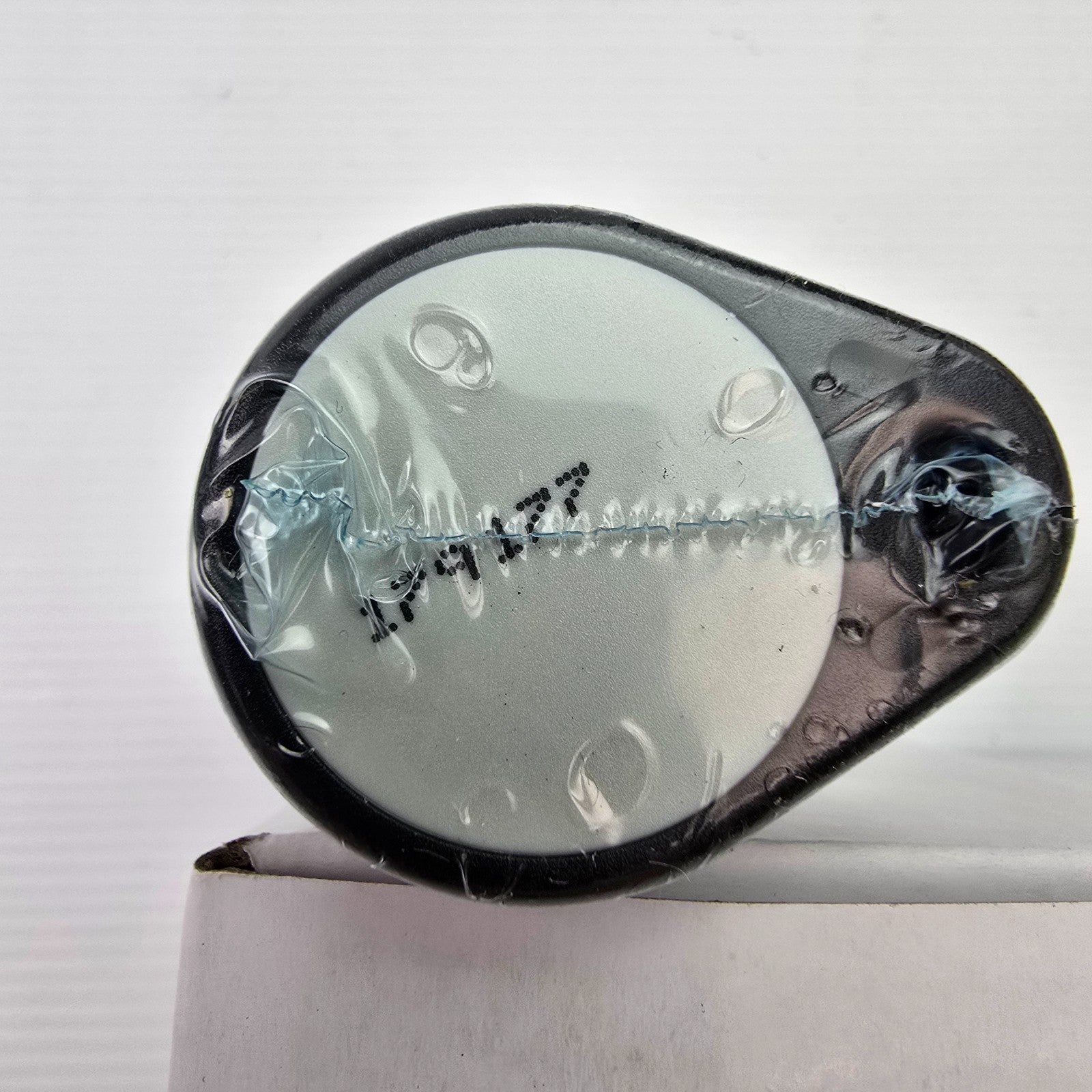

• 25 × Key fobs

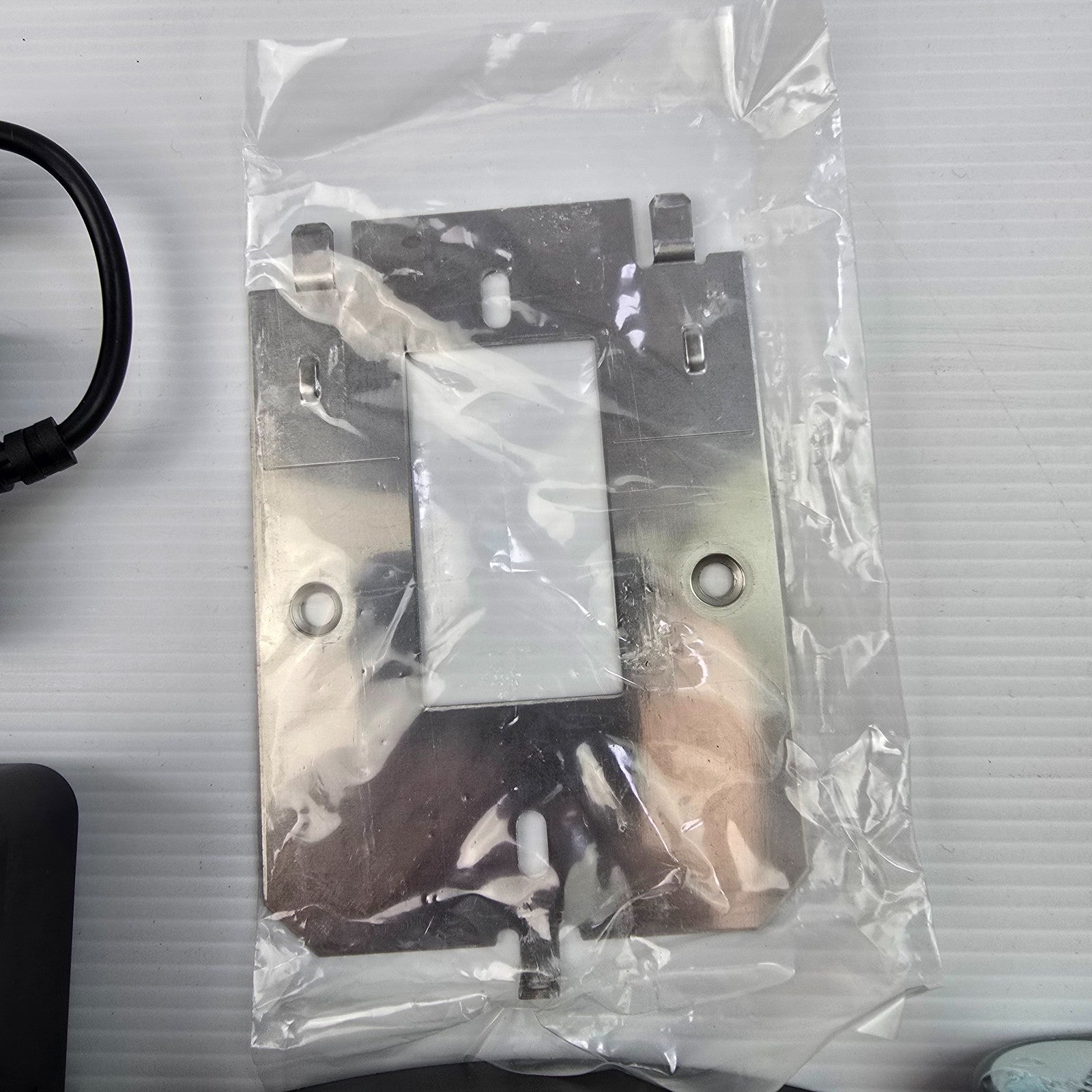

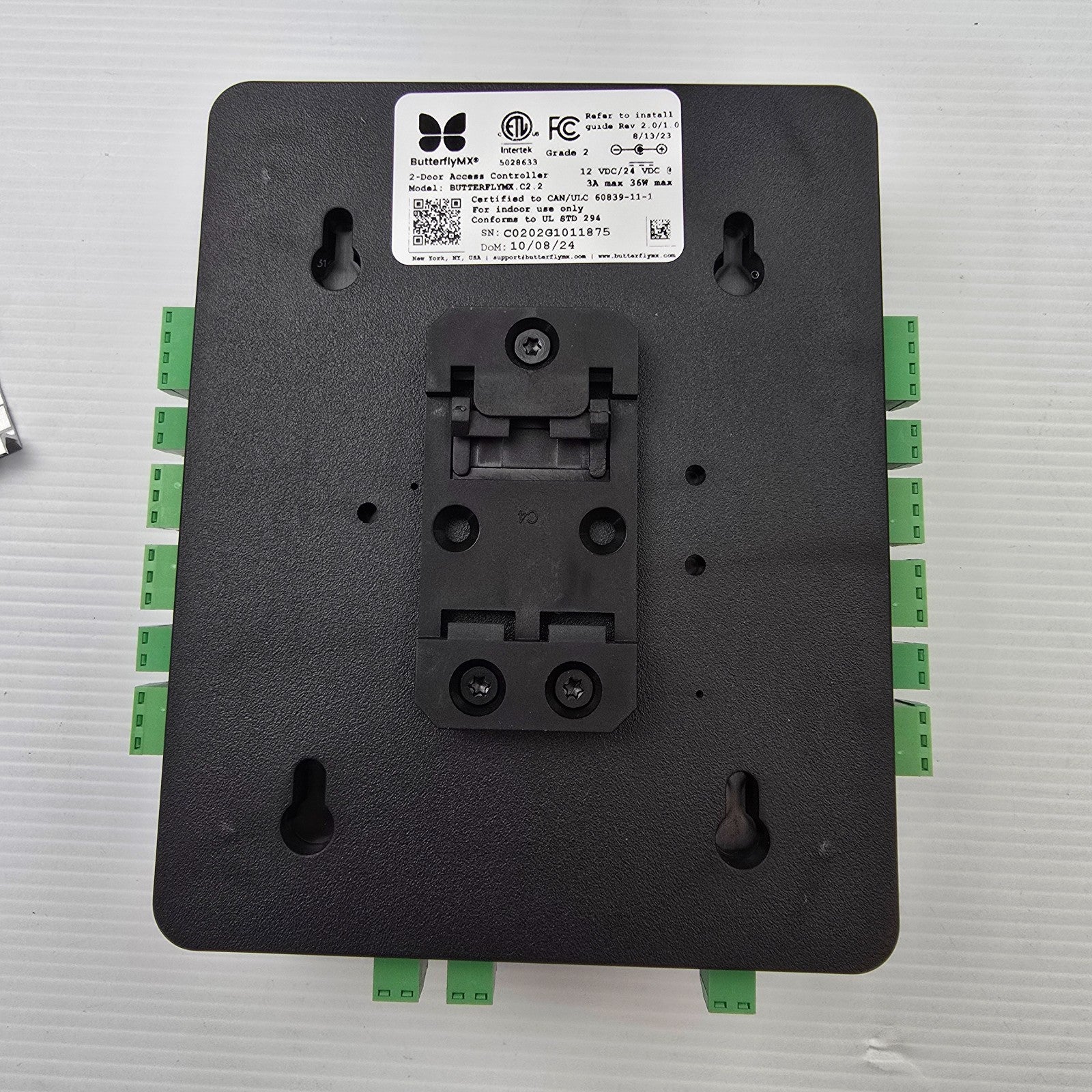

• 1 × DIN mount with brackets & screws

Overview

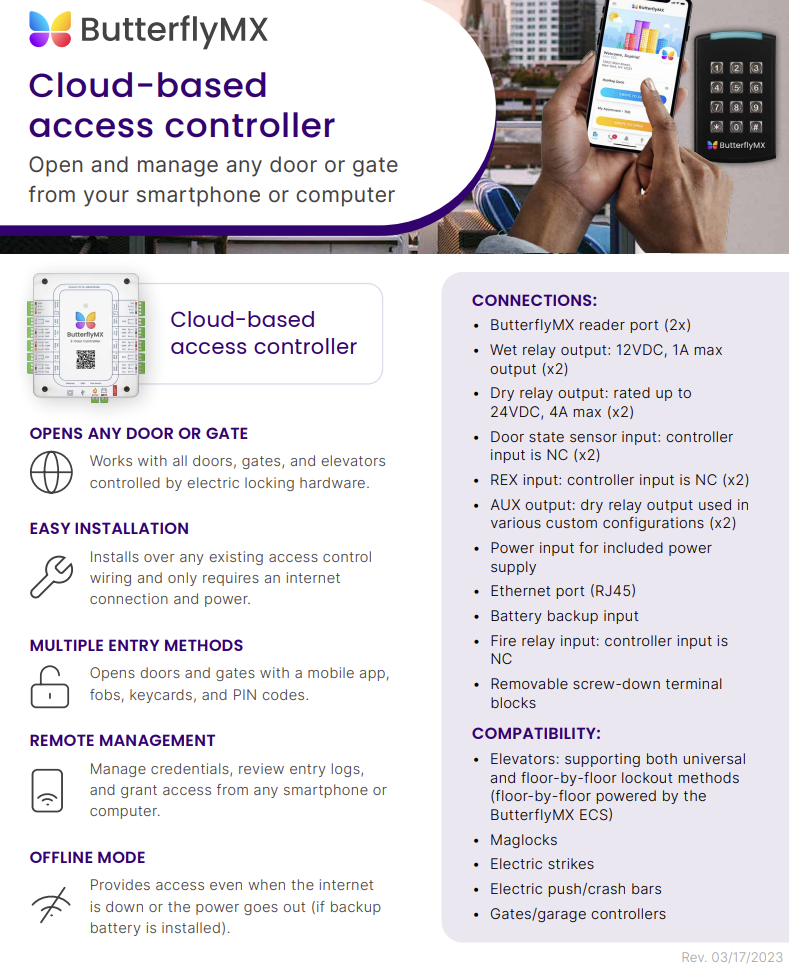

Cloud-based, contactless access control that works whether you’re onsite or remote. Manage doors, users, and credentials from anywhere.

Key Features

• Cloud-based access control with remote management

• Readers: IP55 outdoor-rated; resistant to water, dust, and common chemicals

• Connectivity: Ethernet and Wi-Fi

• Enclosure: ABS plastic

• Operating environment: −31 °F to +150 °F (−35 °C to +66 °C), up to 95% RH

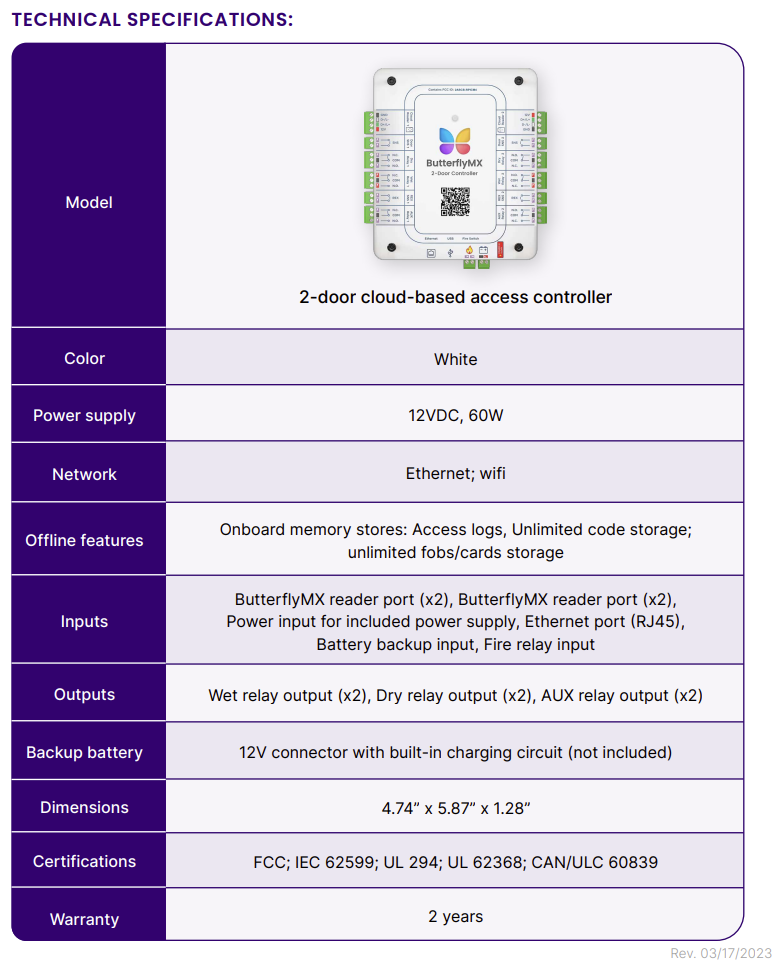

Dimensions

• Access controller: 5.9" H × 4.7" W × 1.3" D

• Mullion reader: 5.1" H × 1.7" W × 0.7" D

• Keypad reader: 5.1" H × 3.2" W × 0.7" D

• Single-gang reader: 5.1" H × 3.2" W × 0.7" D

• Vehicle reader: 11" H × 13.7" W × 1.8" D

Power

• Access controller: 12–24 VDC, 60 W

• Readers: 5–16 VDC

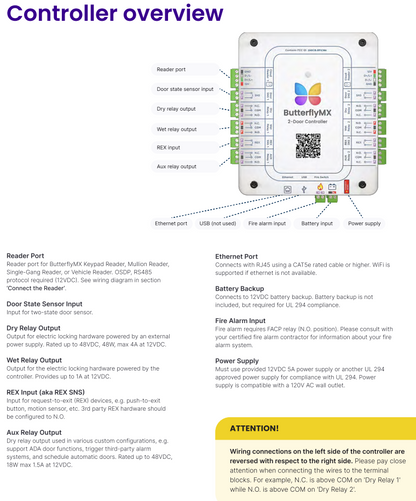

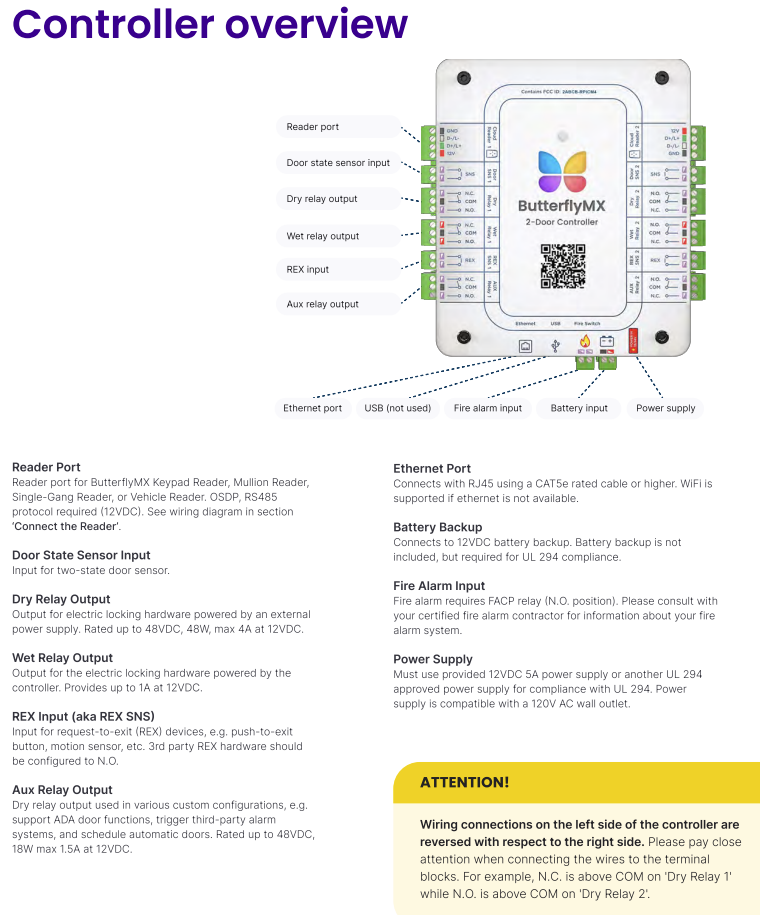

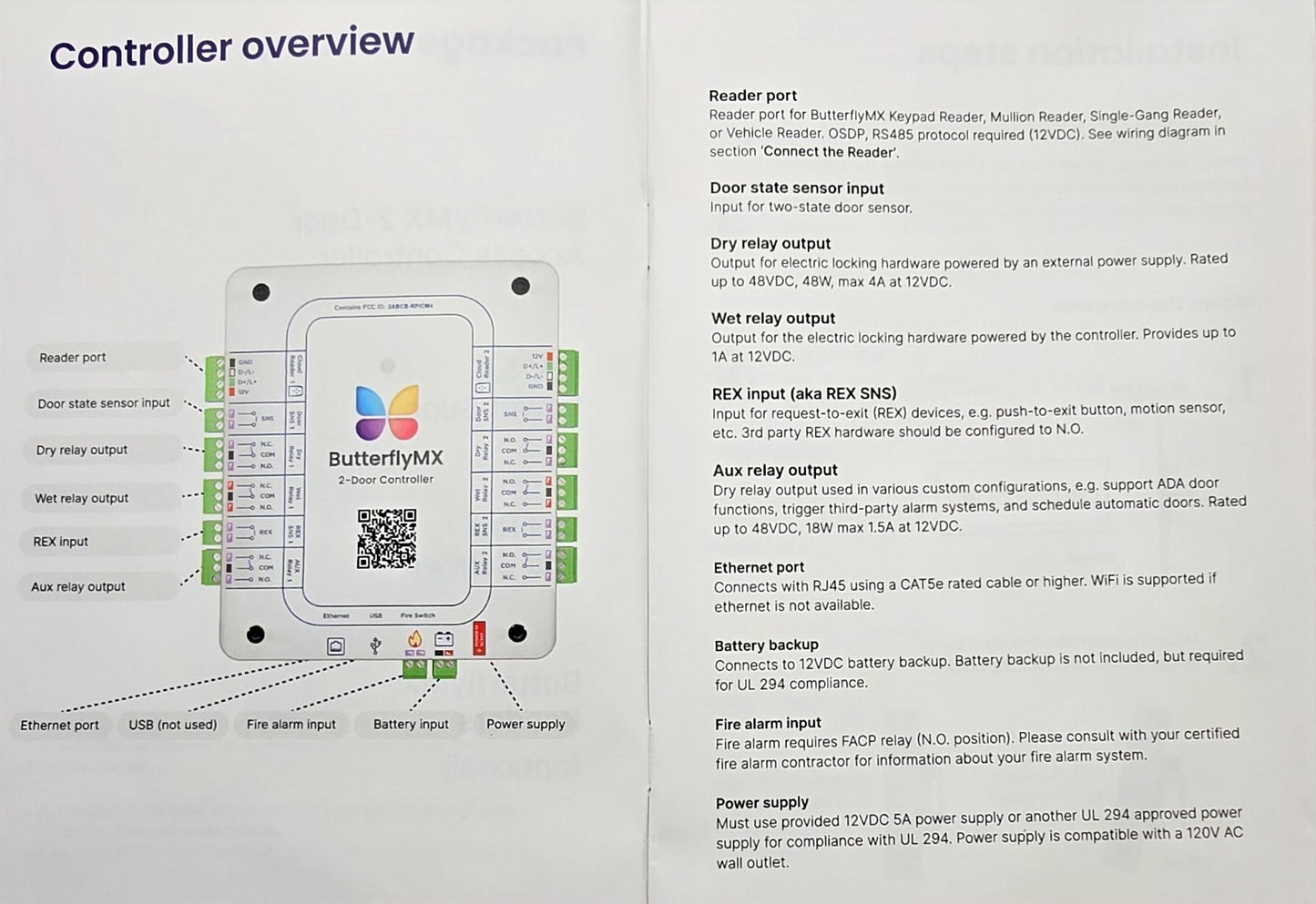

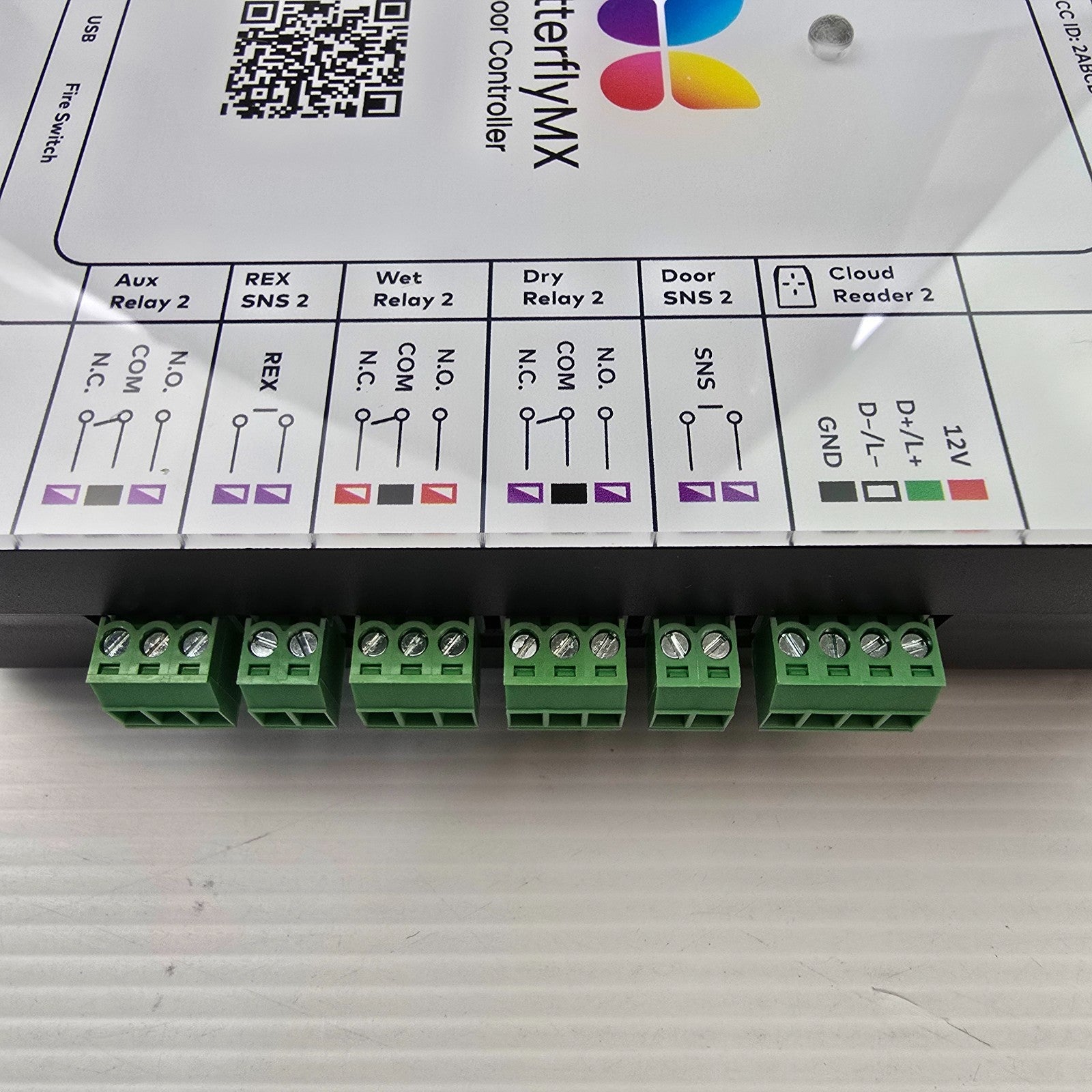

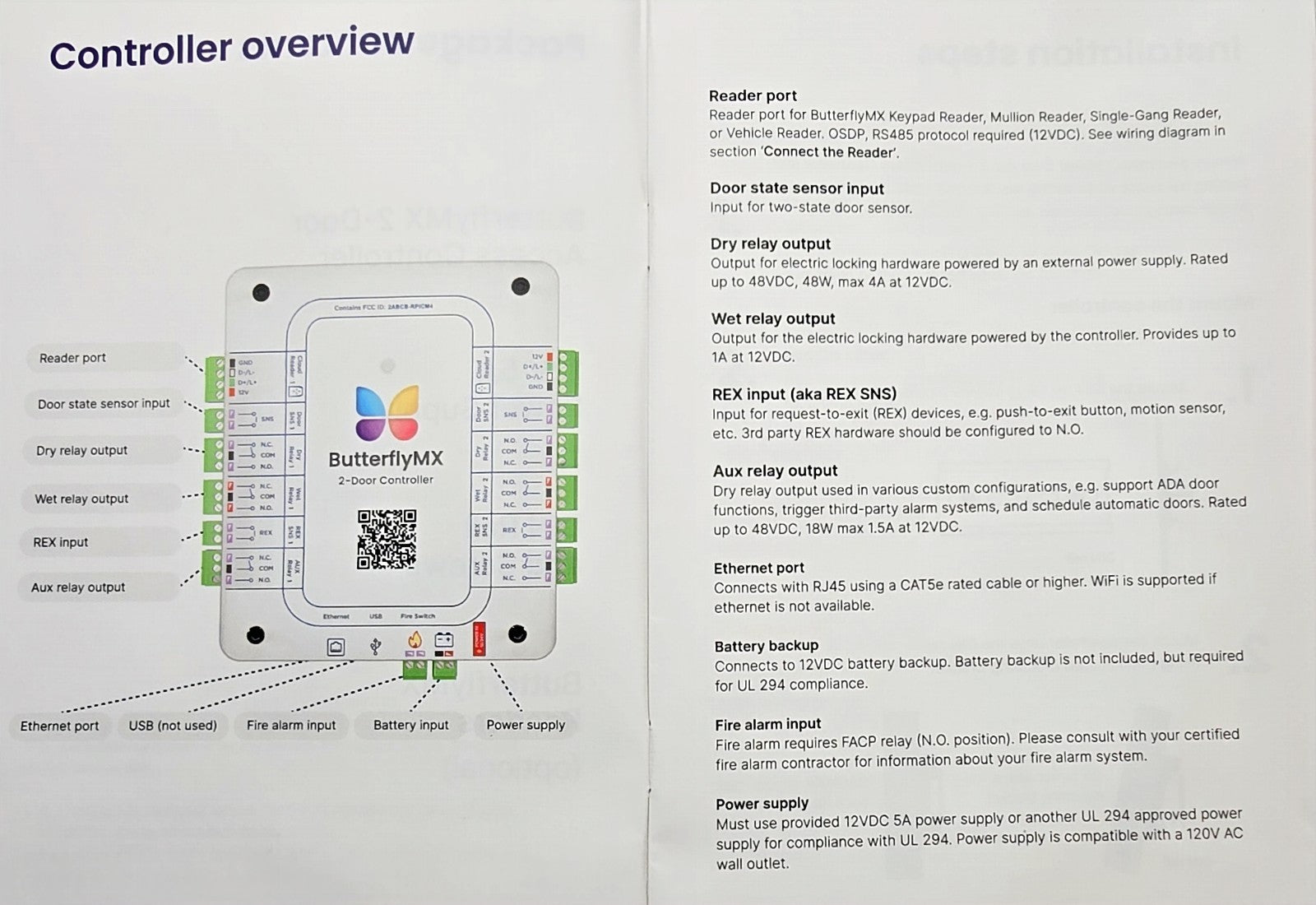

Inputs (Controller)

• REX/motion sensor compatible

• Emergency unlock switch

• Fire exit momentary switch

• Push-to-exit button

• Door state sensor

• Power: 12 VDC, 2 A (PSU included)

Outputs (Controller)

• Electric strike

• Magnetic lock

• Electric push/crash bars

• Elevator panels

• Gate/garage controllers

• Dry relay

RF/Credential Tech

• Mobile app

• RFID (with included key fobs)

Certifications

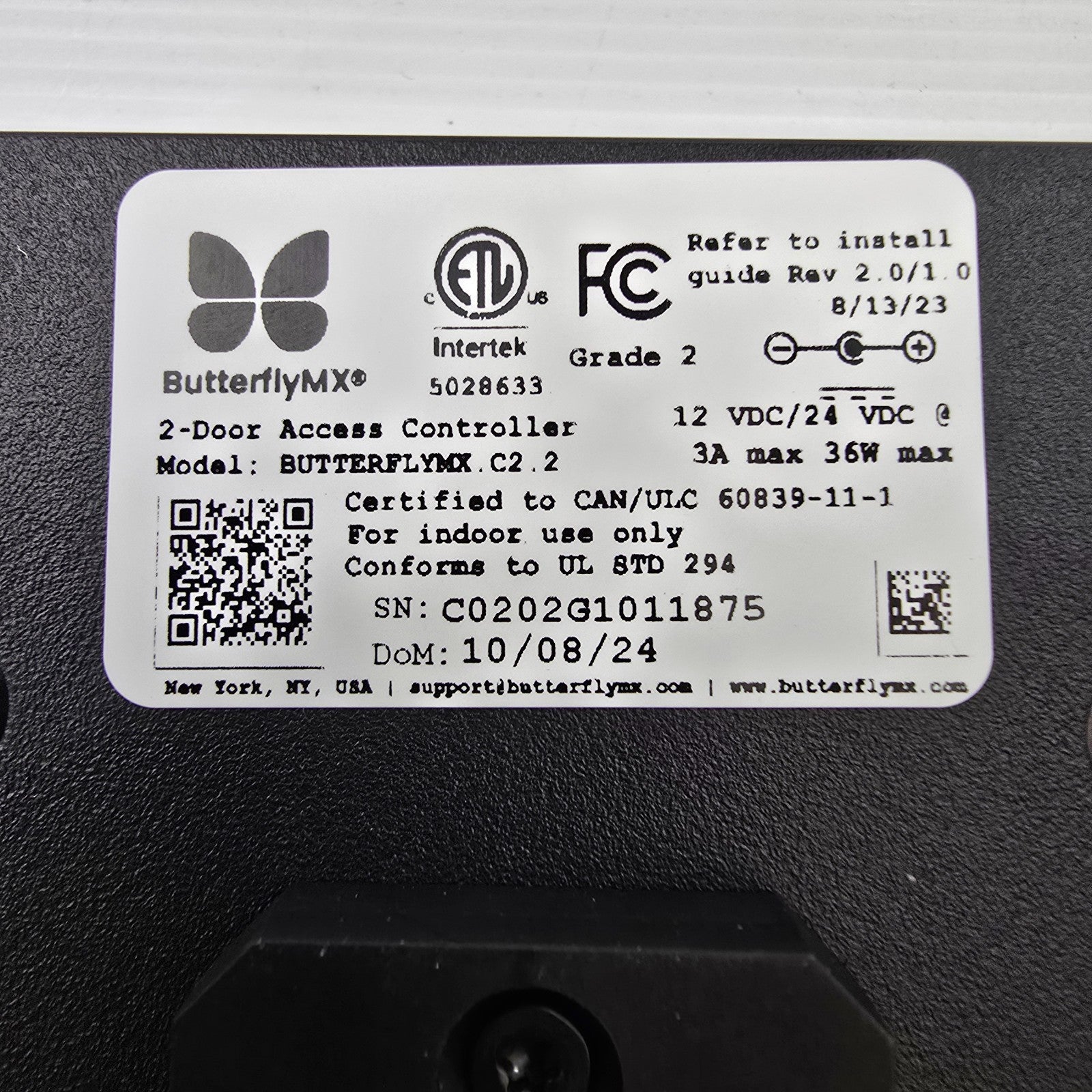

• Access controller: FCC, IEC 62599, UL 294, UL 62368, IC, CAN/ULC 60839

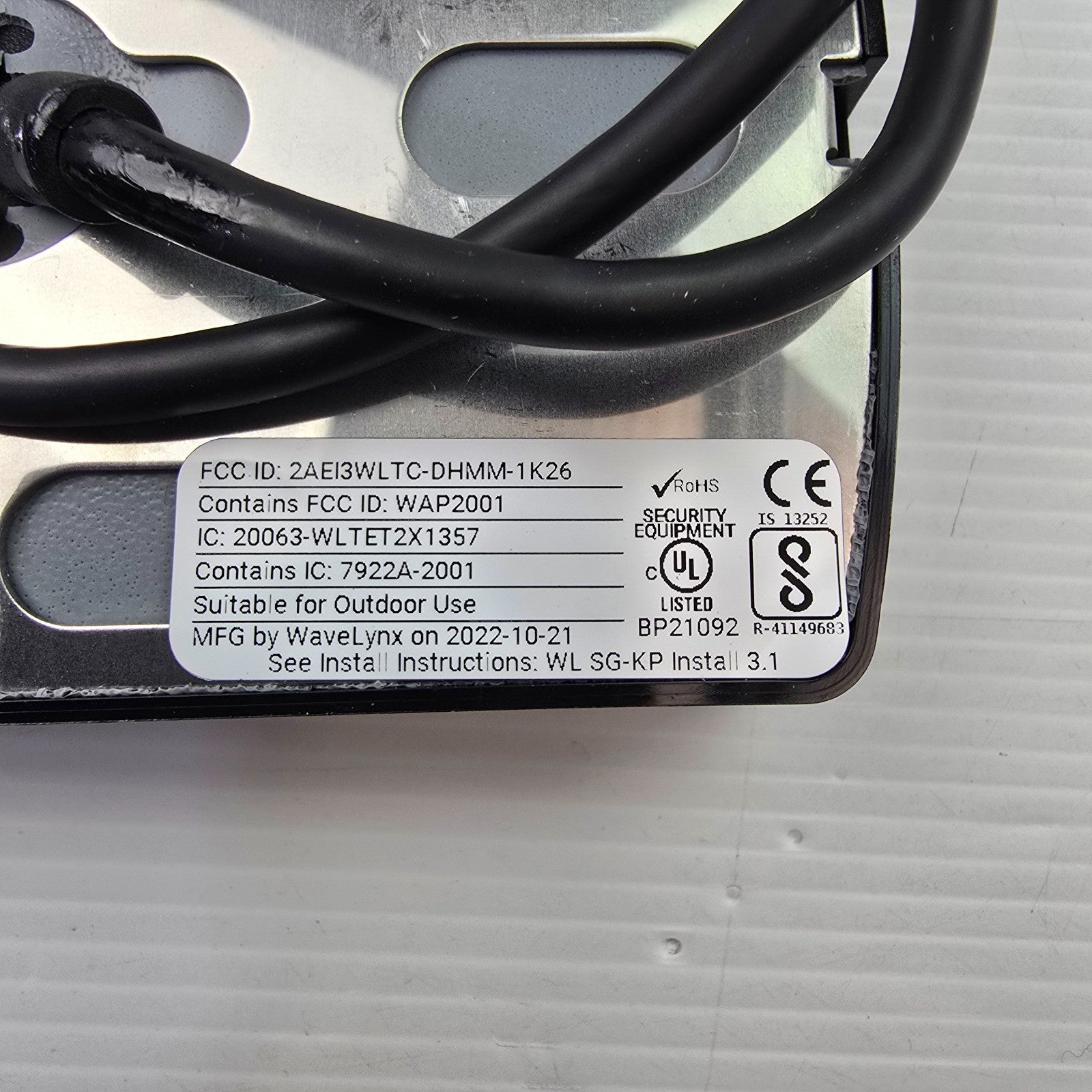

• Readers: FCC, IC, CE, UL 294, UL 62368, EN 302291/301489/300330/50130-4, IP55, BIS IS 13252
