BLUSTREAM HEX70SL-TX Slimline HDBaseT Transmitter 70m 4K HDMI PoC (NEW In Box)

The Blustream HEX70SL-TX is a slimline single-input HDBaseT transmitter that extends HDMI over one CAT5e, CAT6 or CAT6a cable to a matching HEX70SL-RX receiver. Its very low profile chassis is designed to sit behind a display or inside furniture where a full size extender will not fit. Blustream is an Australian developed brand and the product is manufactured in China.

The transmitter carries 1080p up to 70 m and 4K UHD up to 40 m. Supported resolutions include 3840x2160 at 30 Hz 4:4:4, 4096x2160 at 24 Hz 4:4:4, 4K at 60 Hz 4:2:0 and all standard resolutions from VGA to WUXGA. It is HDCP 2.2 compliant, uses Smart EDID management and transmits uncompressed with zero latency. Audio pass-through covers Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio. Connections are one HDMI Type A 19-pin female input, one HDBaseT RJ-45 output, a 3.5 mm stereo jack IR input and a 3.5 mm mono jack IR output, with bi-directional IR pass-through and bi-directional PoC. Power is 12 V 1 A DC or drawn over PoC from the receiver. The chassis measures 106 x 73 x 16 mm and operates from -5 to +55 degrees C.

Specifications

Brand: Blustream

Model: HEX70SL-TX

Part Number: HEX70SL-TX

Product Type: Slimline HDBaseT transmitter

Transmission Distance: 70 m at 1080p, 40 m at 4K UHD

Resolutions: 3840x2160 at 30 Hz 4:4:4, 4096x2160 at 24 Hz 4:4:4, 4K at 60 Hz 4:2:0, VGA to WUXGA

HDCP: 2.2

EDID: Smart EDID management

Latency: Zero latency, uncompressed transmission

Audio Pass-through: Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio

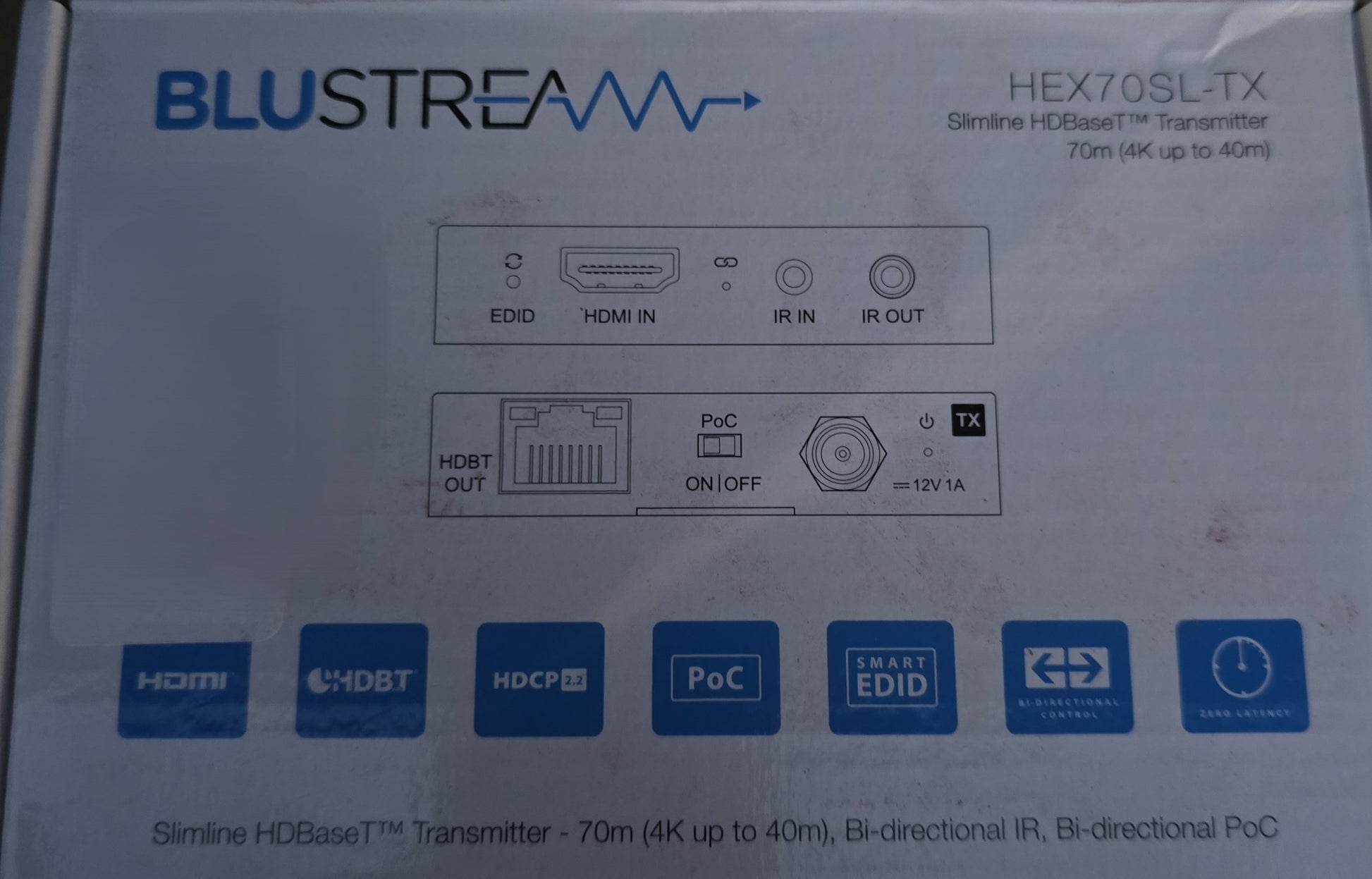

Connectors: 1 x HDMI Type A 19-pin female input, 1 x HDBaseT RJ-45 output, 1 x 3.5 mm stereo IR in, 1 x 3.5 mm mono IR out

Control: Bi-directional IR pass-through

Power: 12 V 1 A DC, or bi-directional PoC from the receiver

Operating Temperature: -5 to +55 degrees C, storage -25 to +70 degrees C

Dimensions: 106 mm L x 73 mm W x 16 mm H

Barcode: 9340242003331

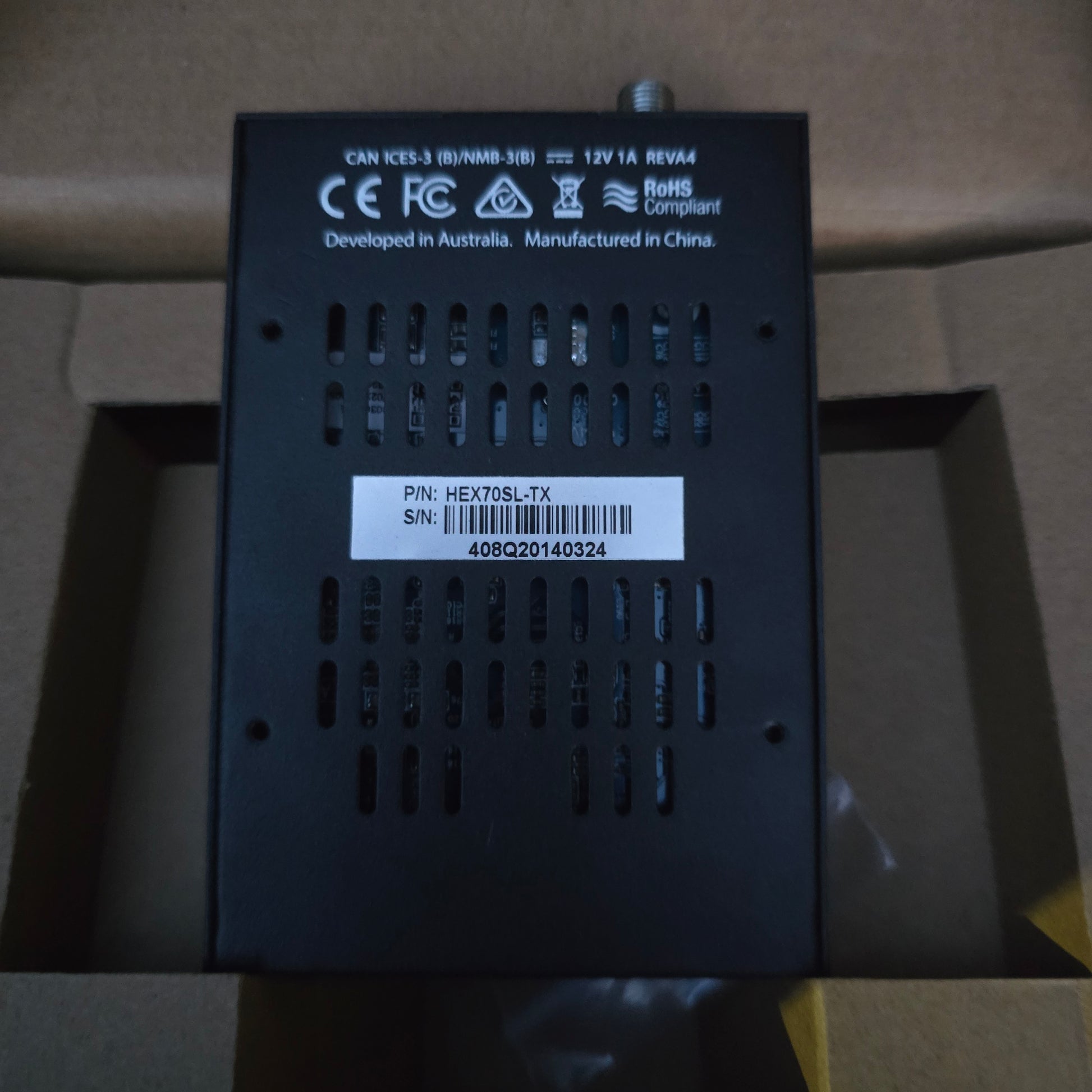

Country of Origin: China

Condition: New in box

Key Features

• Slimline 16 mm high chassis fits behind a display or in shallow furniture
• Bi-directional PoC, so the unit can be powered from the receiver end
• Bi-directional IR for control in either direction over the same cable
• Smart EDID management to avoid handshake problems
• Full lossless audio format pass-through
• Designed and supported in Australia

Typical Applications

• Residential media rooms and whole-home AV distribution
• Commercial meeting rooms and huddle spaces
• Digital signage installations with concealed hardware
• Education and training room display feeds

Package Includes

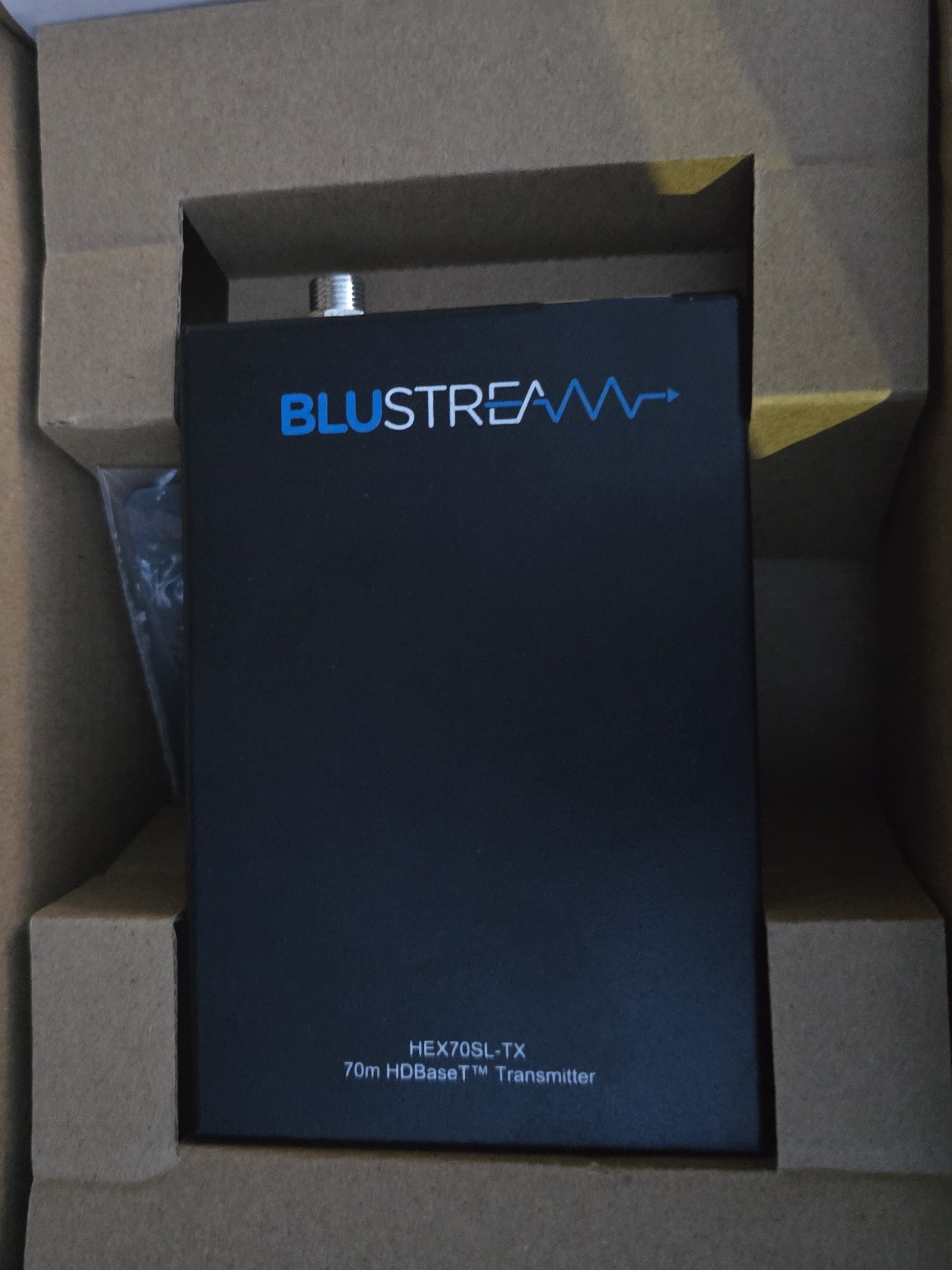

• 1 x Blustream HEX70SL-TX transmitter

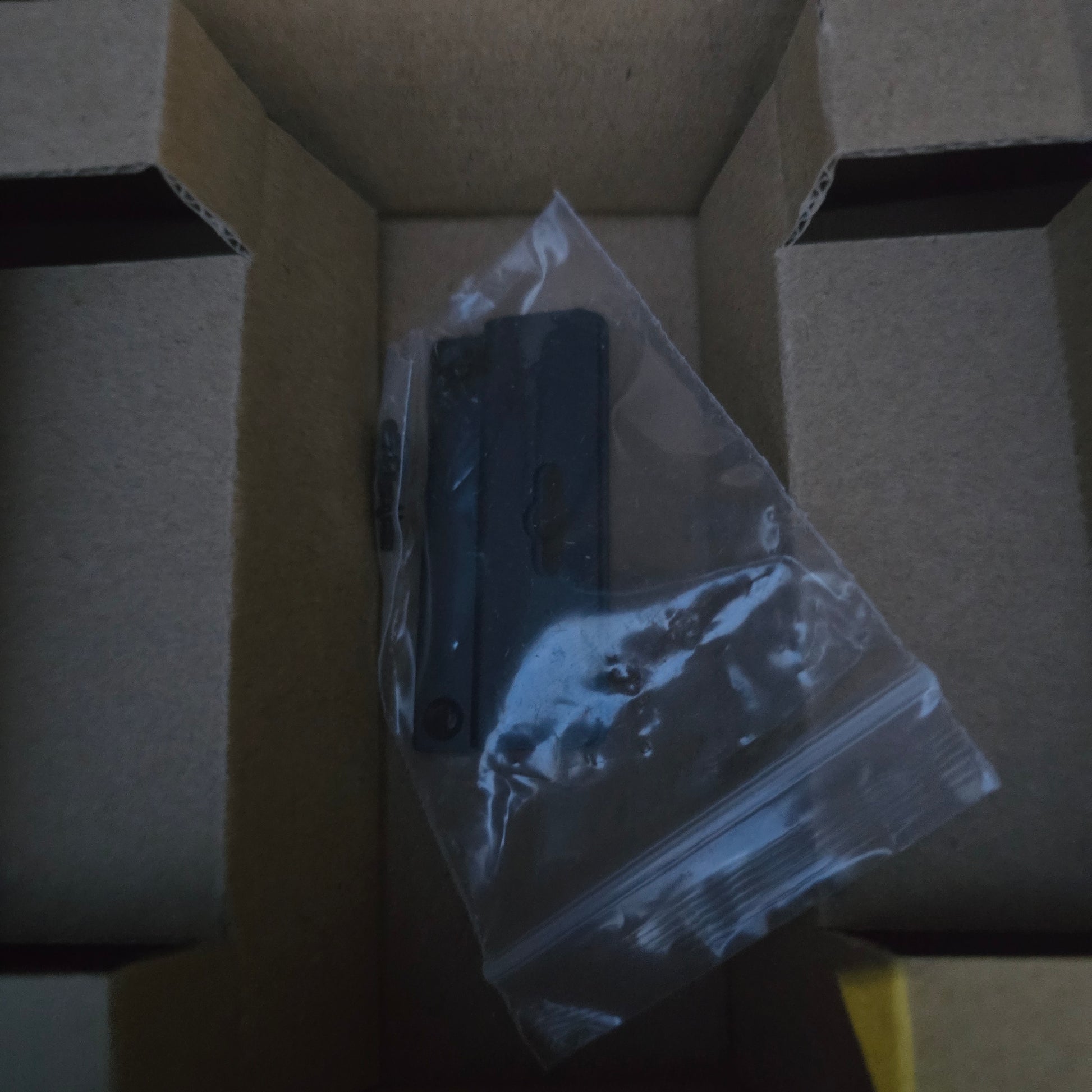

• 1 x mounting kit
• 1 x quick reference guide
• Original Blustream retail box with foam insert

A matching HEX70SL-RX receiver, power supply and CAT cabling are not included unless shown in the listing photographs.

Additional Information

This listing is for the transmitter only, not the full HEX70SL-KIT extender set. The item is new in the manufacturer's original packaging, opened for photography and verification. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
