Axis USB-5VS Waterproof Dual USB Charger 12V 3.1A IP66 Marine (NEW In Box)

The axis USB-5VS is a waterproof dual port USB charger for 12 volt vessels and vehicles. It mounts through a flat panel or dashboard and is sealed to IP66 with a tethered screw on cap, so it can be fitted in an exposed position on a boat, a rigid inflatable, a golf car, a caravan or a UTV.

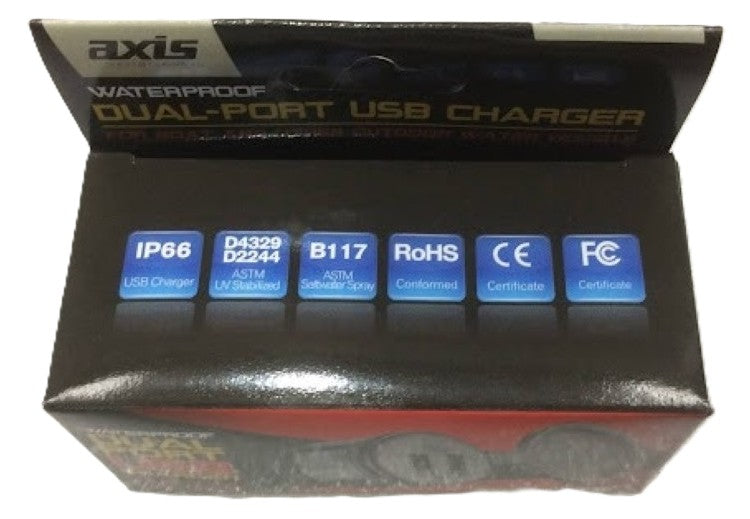

Two USB-A ports share a 3.1 A output at 5 V DC. One port supplies up to 2.1 A for tablets and the other up to 1.0 A for phones and smaller devices. The unit is supplied with a fitted 1.78 metre two core lead for connection to the 12 V battery or a switched supply. The housing is UV stabilised to ASTM D4329 and D2244 and salt spray tested to ASTM B117. It carries CE, FCC, RoHS and the Australian supplier code N110.

Specifications

Brand: axis (distributed in Australia by Audioxtra Pty Ltd)

Model: USB-5VS

Part Number: USB-5VS

Product Type: Waterproof panel mount dual USB charger

Input Voltage: 12 V DC

Output: 5 V DC, 3.1 A total

Port 1: 2.1 A fast charge USB-A

Port 2: 1.0 A fast charge USB-A

Ingress Protection: IP66 with the cap fitted

UV Stabilisation: ASTM D4329 and ASTM D2244

Salt Spray: ASTM B117

Lead Length: 70 inch, approximately 1.78 m

Mounting: 38.1 mm (1.5 inch) diameter hole in a flat panel or dashboard, secured with a rear nut and gasket

Wiring: Red to positive, black to negative, to the 12 V DC battery or a switched supply

Approvals: CE, FCC, RoHS, Australian supplier code N110

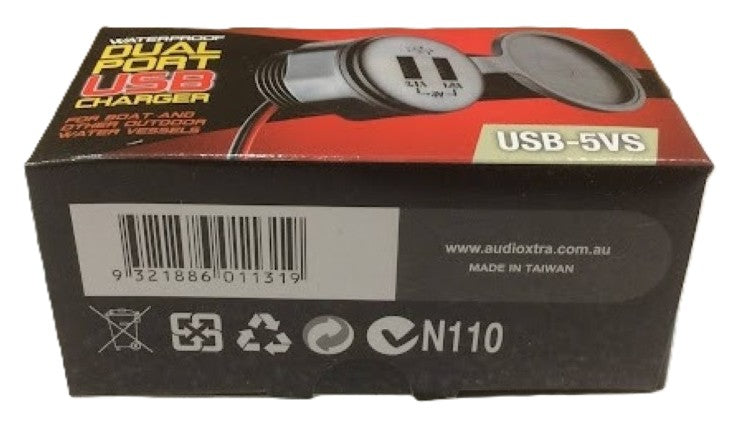

EAN: 9321886011319

Country of Manufacture: Taiwan

Condition: New in box

Key Features

• IP66 sealed with a tethered screw on cap
• Two USB-A ports, 2.1 A and 1.0 A, 3.1 A total
• UV stabilised and salt spray tested for marine use
• 1.78 m lead already fitted, no soldering at the unit
• Single 38.1 mm hole installation with rear nut and gasket
• Carries the Australian supplier code N110

Typical Applications

• Boats, rigid inflatables and tenders
• Caravans, camper trailers and recreational vehicles
• Golf cars, UTVs and side by sides
• Spa and outdoor equipment running on 12 V

Package Includes

• One axis USB-5VS dual USB charger with fitted 1.78 m lead, threaded barrel, securing nut, panel gasket and tethered cap

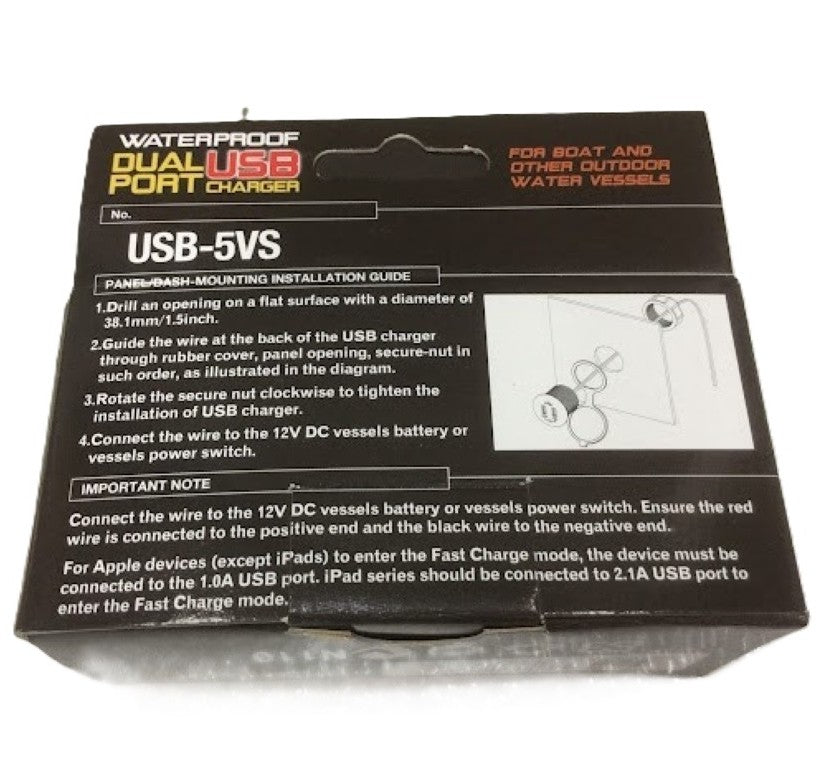

• Retail carton with the installation guide printed on it
• No inline fuse, no ring terminals and no hole saw are included

Additional Information

Please read this before ordering. This is the Australian 12 volt accessory brand axis, distributed by Audioxtra. It is not a product of Axis Communications, the network camera manufacturer.

The unit is rated for 12 V DC only. No 24 V rating is published, so do not use it on a 24 V system.

Total output is 3.1 A shared across the two ports, 2.1 A and 1.0 A. It is not a USB Power Delivery or Quick Charge device and there is no USB-C port. Both ports are USB-A.

The IP66 rating applies with the cap screwed on. With a device plugged in the ports are exposed, which is normal for this style of product.

Installation requires drilling a 38.1 mm hole in the panel or dashboard. No inline fuse is supplied and one should be fitted as part of any competent 12 V installation.

This model is no longer listed by axis Australia and is offered as new old stock. No current manufacturer warranty is implied.

The item is new and supplied in the manufacturer's box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
