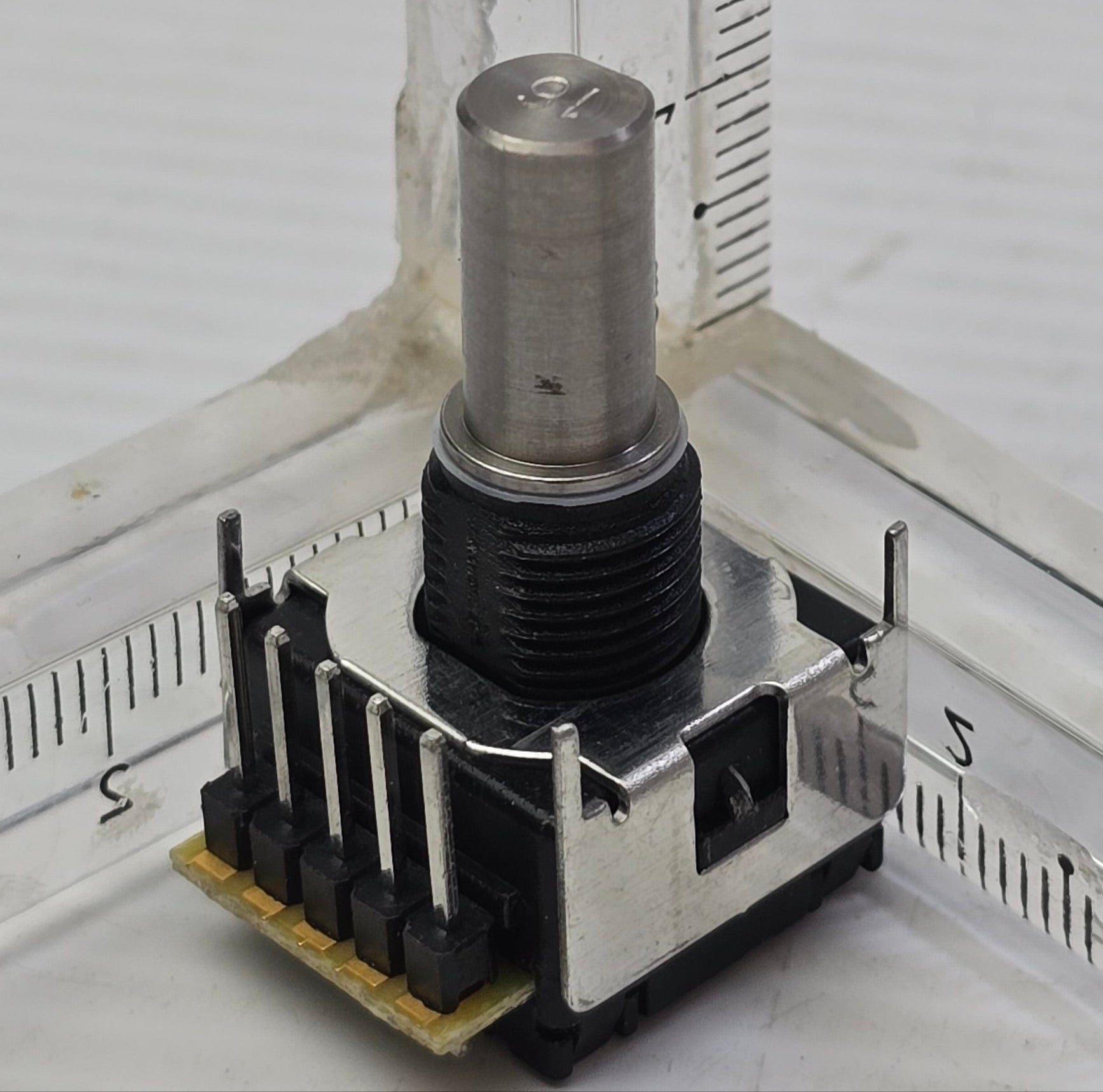

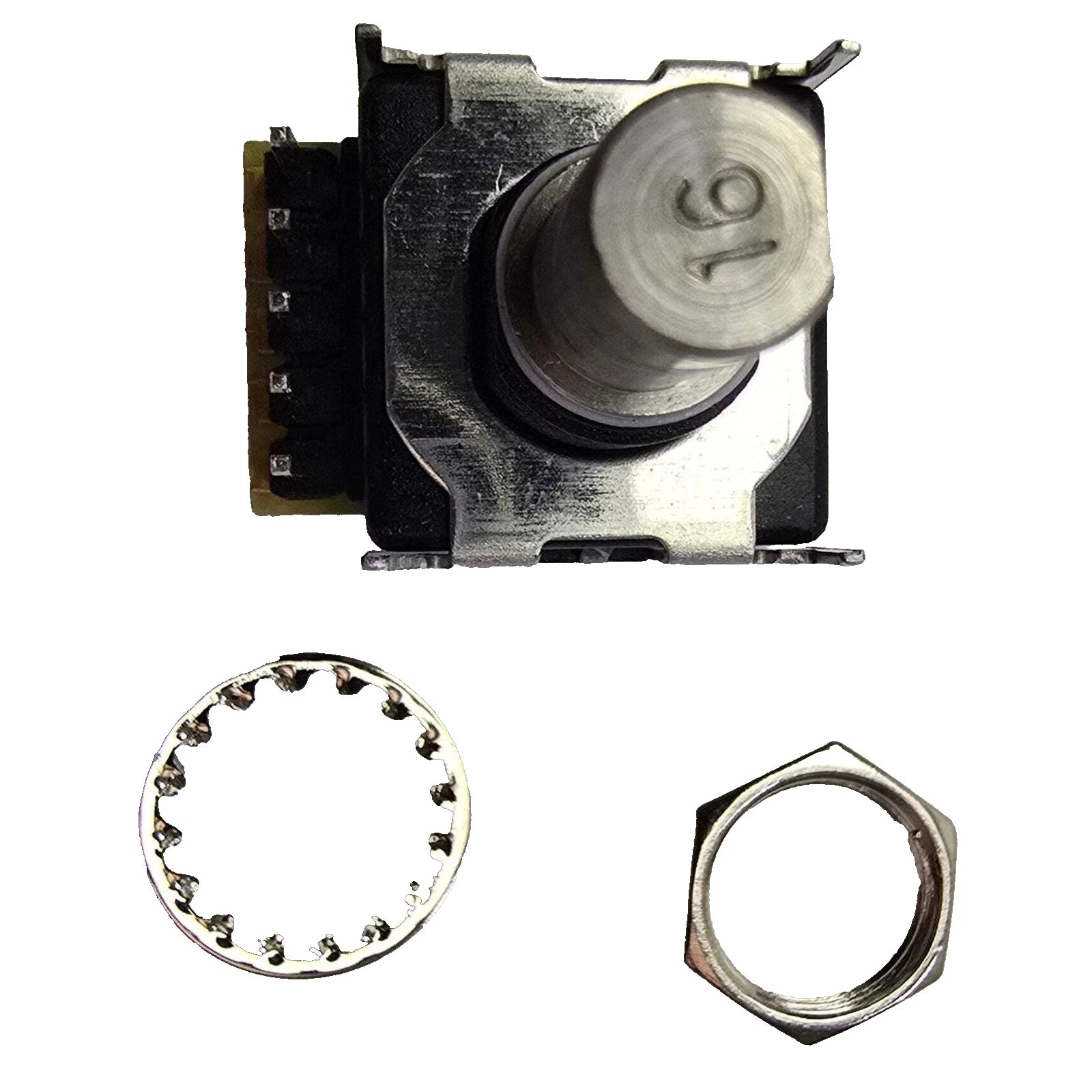

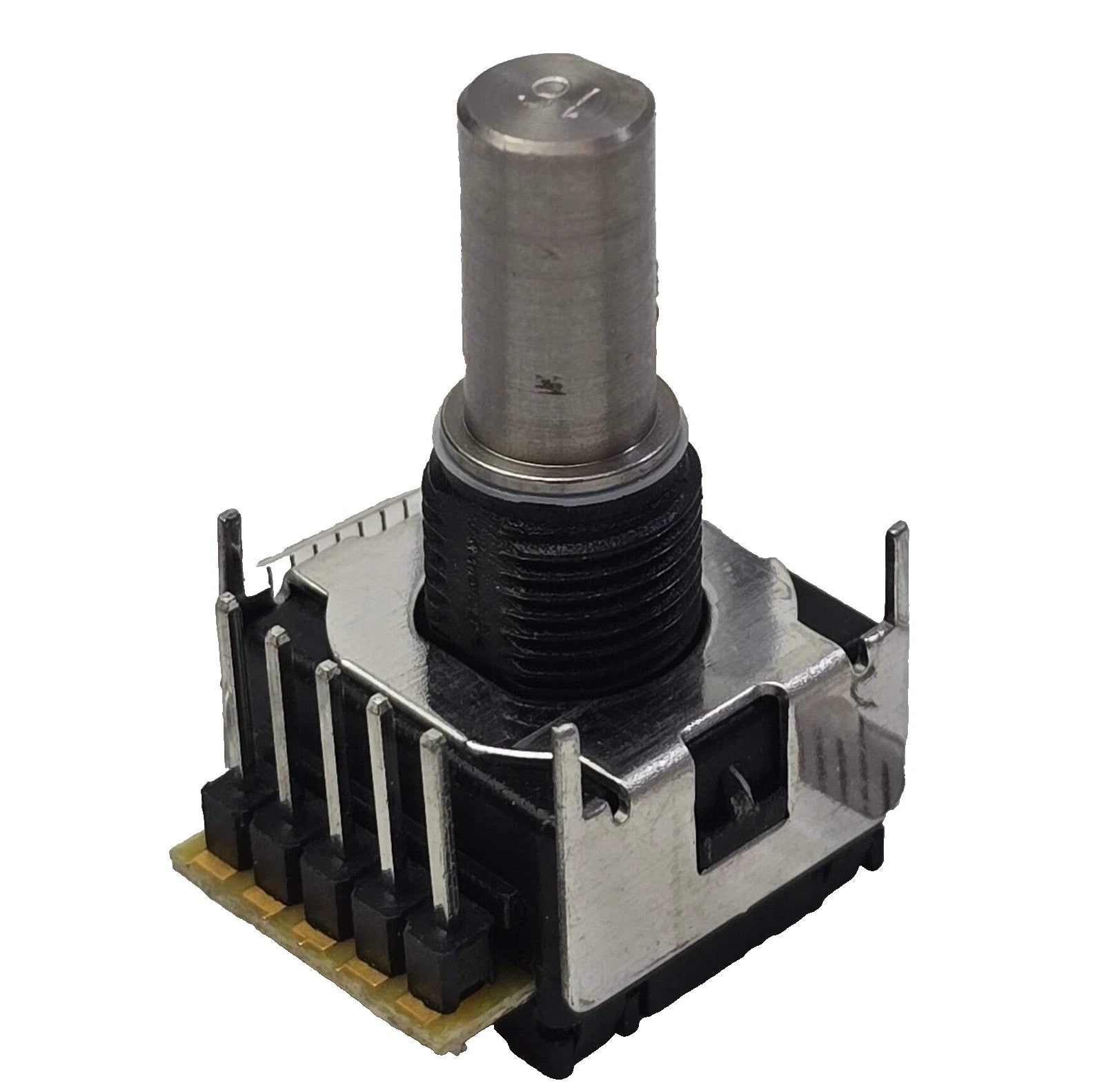

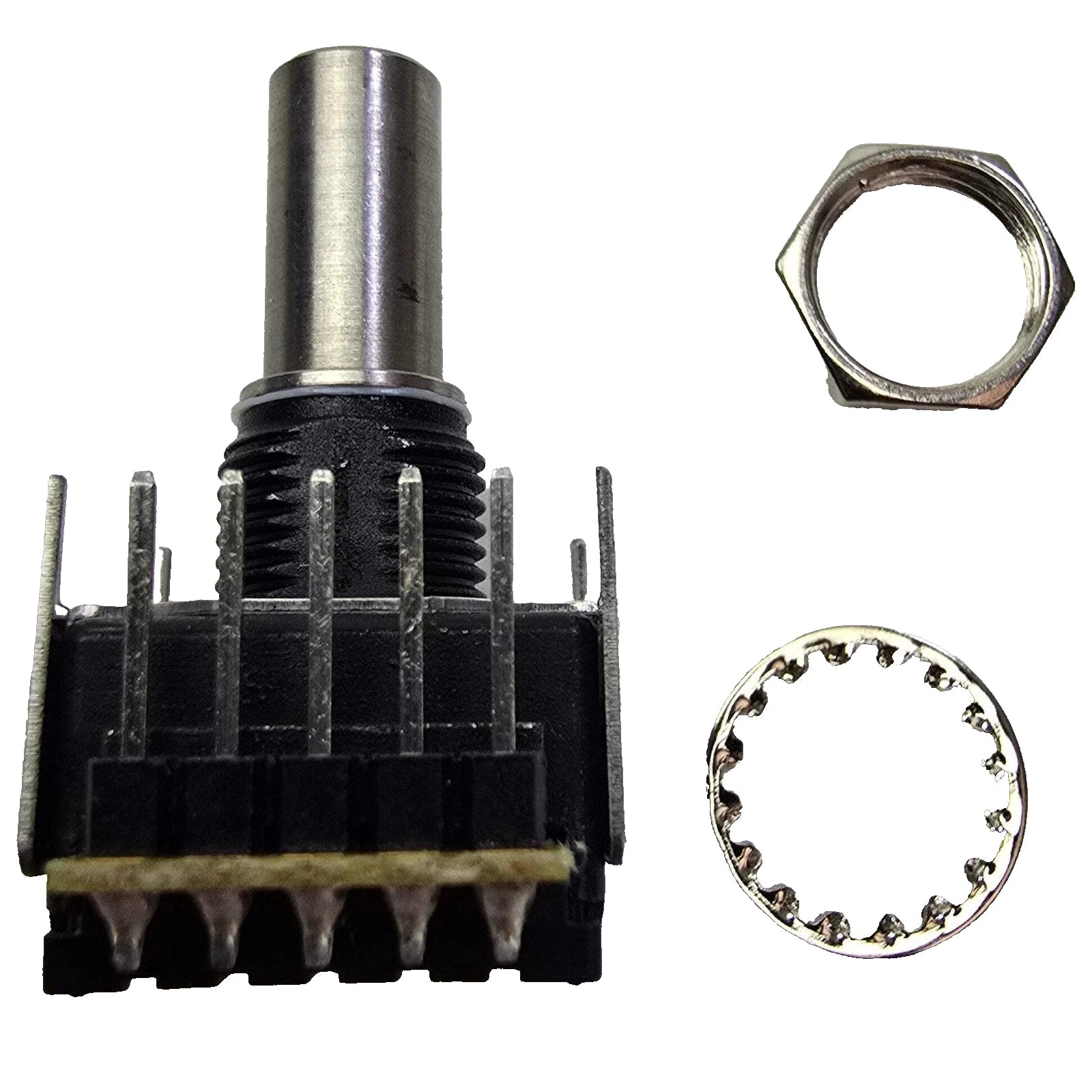

Description: The Broadcom (Avago) HRPG-ASCA#16F is a high-quality optical rotary encoder designed for precision position sensing. With 120 pulses per revolution and quadrature outputs, it is ideal for motion control, robotics, automation, and CNC applications. Compact and panel-mountable, this encoder offers reliable performance with long service life.
Specifications: Manufacturer: Broadcom Limited Series: HRPG-ASCA Mounting Style: Panel Mount Type: Incremental Optical Encoder Technology: Rotary Resolution: 120 PPR Number of Channels: 2 (Quadrature) Detents: None Termination: PC Pin Output: Quadrature Shaft Diameter: 1/4 in Shaft Type: D / Flatted Shaft Length: 0.5 in Bushing Material: Plastic Bushing Size: 3/8 in × 0.23 in Bushing Thread: 3/8-32 UNEF Operating Voltage: 5 VDC Operating Temperature: 0 °C to +70 °C

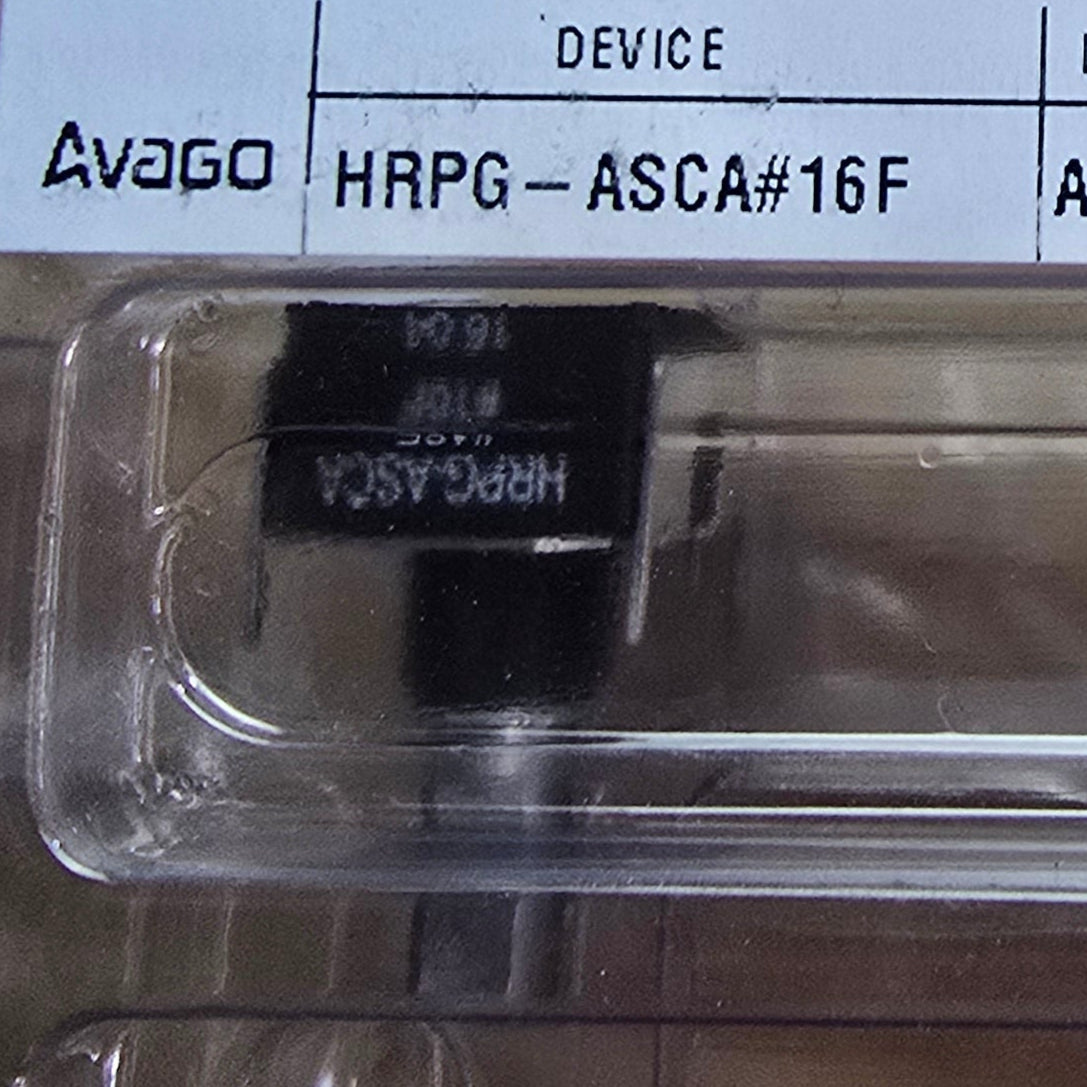

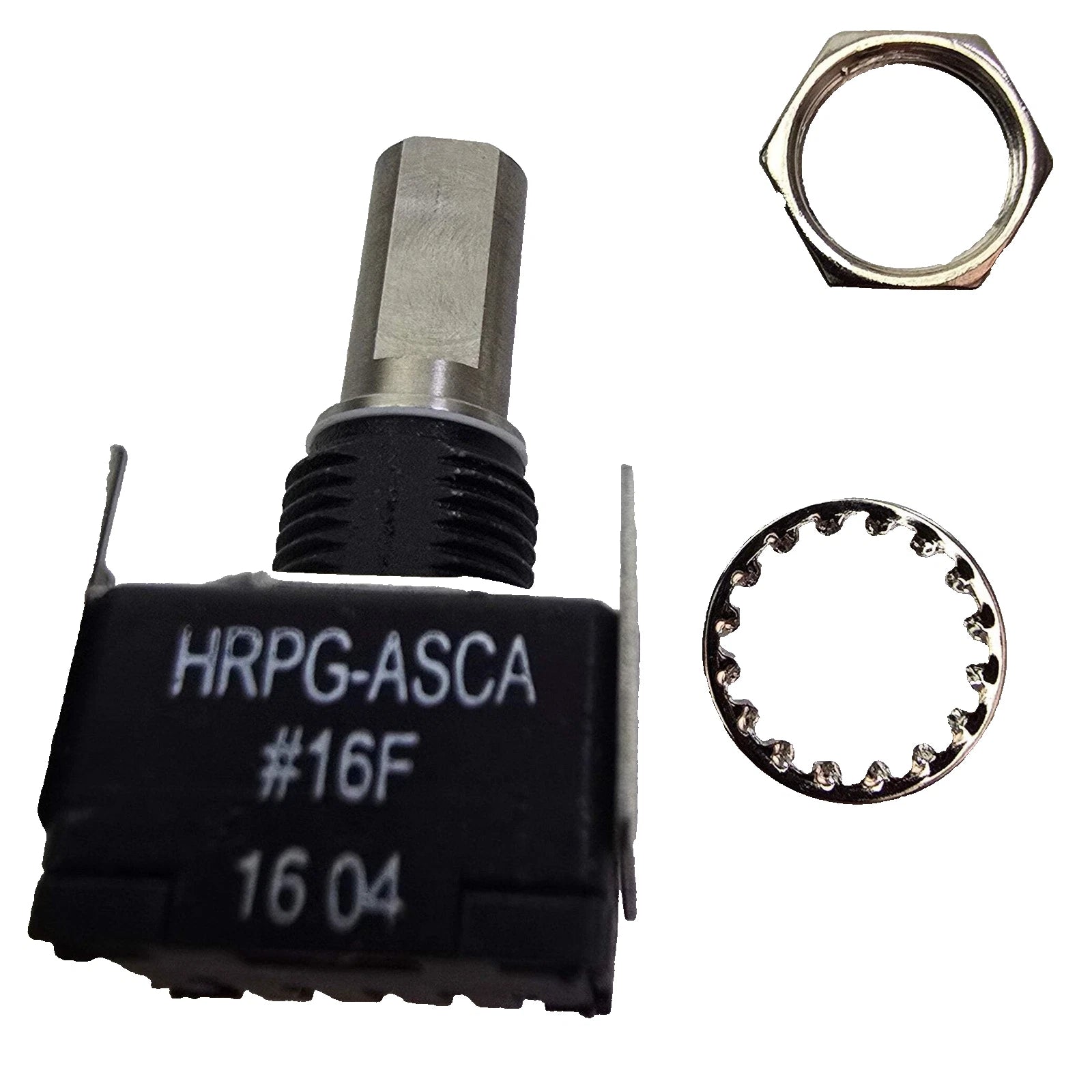

Identifiers: Manufacturer Part Number: HRPG-ASCA#16F Brand: Broadcom / Avago
HS Code: 85437090 – Electrical machines and apparatus having individual functions, not specified elsewhere (covers encoders)
