AUDAC BAE100 Bluetooth Antenna Extender Kit 7dBi Rackmount SMA (NEW Sealed)

The AUDAC BAE100 is a Bluetooth antenna extender kit for AUDAC commercial audio equipment. It relocates the Bluetooth antenna of a rack mounted AUDAC device out of the rack or enclosure, where the metalwork would otherwise block the signal, and mounts it somewhere with a clear path to the room. AUDAC lists it as suitable for the PRE116, PRE126, PRE220 and PRE240 preamplifiers and the BMP40 and BMP42 SourceCon Bluetooth modules.

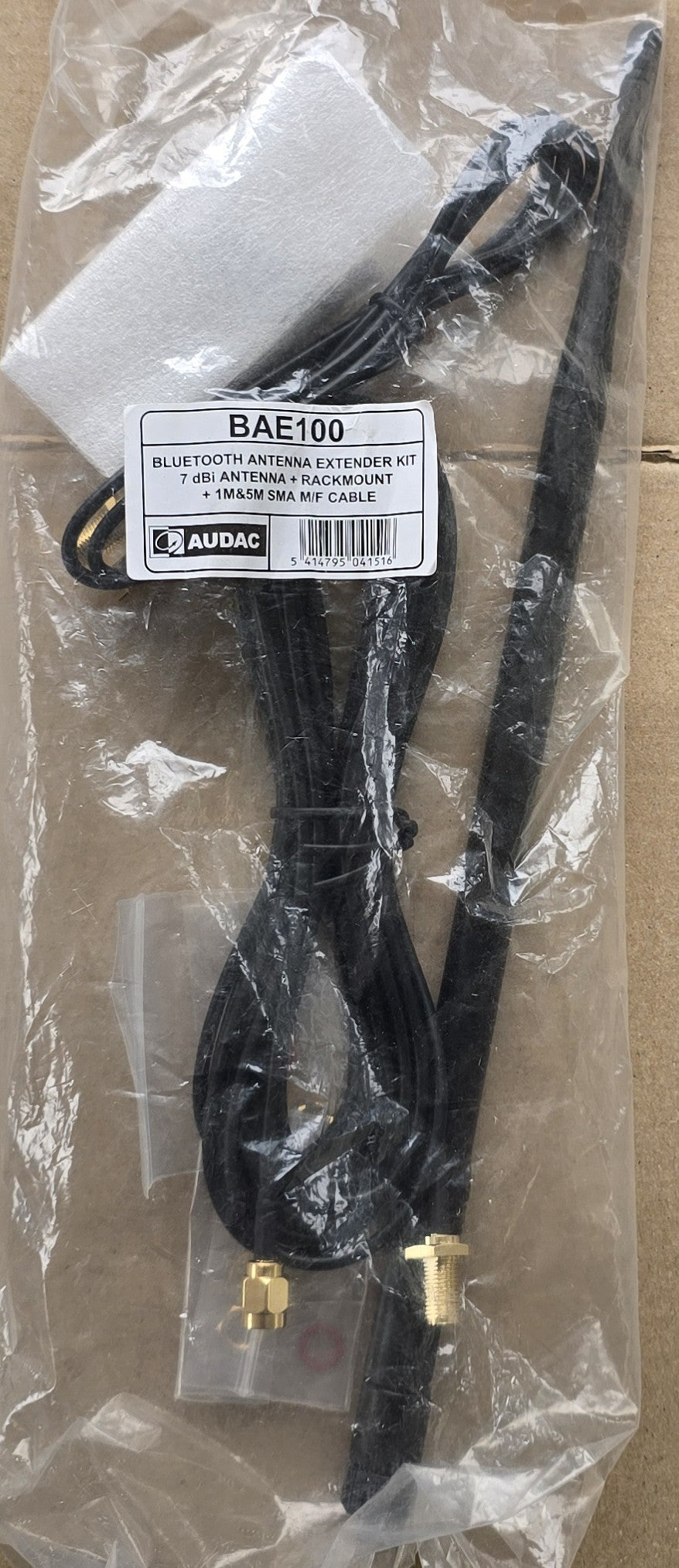

This is a passive kit. It contains no Bluetooth radio, no receiver and no audio circuitry, and it needs no power. The kit consists of a 7 dBi omnidirectional 2.4 GHz antenna on a reverse polarity SMA connector, two SMA extension cables of 1 metre and 5 metres, and a multifunctional bracket that mounts the antenna either in a single 19 inch rack space or on a wall or other surface.

Specifications

Brand: AUDAC

Model: BAE100 Bluetooth Extender Kit

Part Number: BAE100

Product Type: Passive Bluetooth antenna extension kit

Frequency Range: 2.4 GHz to 2.5 GHz

Antenna Gain: 7.0 dBi

Polar Pattern: Omnidirectional

Impedance: 50 ohm

Connector: SMA straight plug, reverse polarity (RP-SMA)

Antenna Dimensions: 12 mm diameter x 279 mm long

Cables Supplied: 1 m and 5 m SMA male to female

Mounting: Multifunctional bracket, 1 x 19 inch rack space or wall mount

Housing Material: ABS

Weight: 135 g including accessories

Power: None, the kit is entirely passive

Compatibility: AUDAC PRE116, PRE126, PRE220, PRE240, BMP40 and BMP42

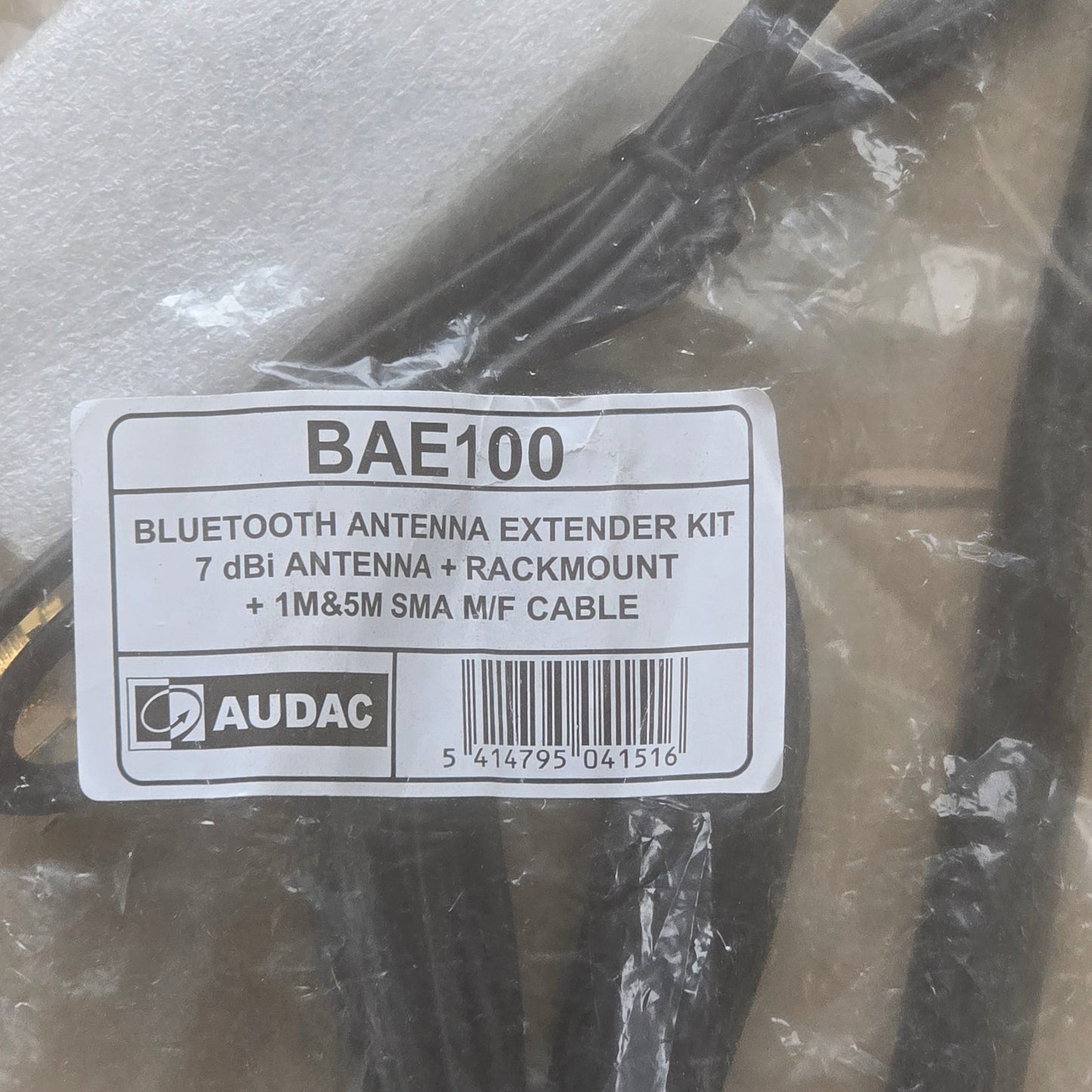

Barcode: 5414795041516

Condition: New, factory sealed

Key Features

• Moves the Bluetooth antenna out of a metal rack to restore pairing range
• 7 dBi omnidirectional antenna covering the full 2.4 GHz band
• Two cable lengths supplied so the antenna can be placed close by or across the rack
• Bracket mounts in a single rack unit or directly to a wall
• Fully passive, no power supply and no configuration required

Typical Applications

• AUDAC preamplifiers installed in a closed or metal equipment rack
• Bluetooth audio input points where users pair from across a room
• Ceiling or riser cupboard installations with poor RF line of sight
• Retail, hospitality and background music systems using AUDAC hardware

Package Includes

• 1 x 7 dBi antenna, 279 mm, RP-SMA
• 1 x 1 m SMA male to female connection cable
• 1 x 5 m SMA male to female connection cable
• 1 x multifunctional mounting bracket for rack or wall
• No AUDAC amplifier, preamplifier or Bluetooth module is included

Additional Information

Please note this is an antenna extension kit, not a Bluetooth receiver and not a wall panel module. It has no radio and no audio path, and it does not add Bluetooth to a device that does not already have it. It extends the antenna of AUDAC equipment that already includes a Bluetooth radio.

AUDAC does not publish a country of origin for this kit, so none is stated.

The item is new in the manufacturer's original sealed packaging.

Shipping from Sydney, Australia.
