Aritech TS1061 Tecom ChallengerPlus Dual Wiegand Interface Unit (NEW In Box)

The Aritech TS1061 is a dual Wiegand interface unit for the Tecom ChallengerPlus and the Tecom Network Access Controller, sold in Australia under the Tecom part number S7017A. It connects Wiegand technology card readers to the system and expands door capacity, providing two reader ports, two relay outputs, four inputs and a tamper input on a single board.

It is an RS-485 data bus device with plug on connectors for the bus and for lock power, and can run up to 1,500 metres from the control panel. Power is 11 to 14 V DC taken from the data bus or from an external 12 V supply, with the board drawing around 80 mA and the connected readers sharing a 450 mA budget. The firmware is remotely upgradeable through CTPlus installer software, and multiple end of line resistor values are supported. This is the newest generation module of its type in the Tecom range and carries a seven year warranty class on the distributor label.

Specifications

Brand: Aritech (Carrier)

Model: Tecom Dual Wiegand Interface Unit

Part Number: TS1061

Alternate Part Number: TECOM S7017A

Product Type: Wiegand reader interface and door expansion module, PCB only

Reader Ports: 2 x Wiegand

Relay Outputs: 2

Inputs: 4 plus 1 tamper input

Bus: RS-485 data bus with plug on connectors for the bus and NAC lock power

Power: 11 to 14 V DC from the RS-485 data bus or an external 12 V supply

Current Draw: 80 mA, or 73 mA from a 12 V supply standalone

Reader Budget: Connected Wiegand readers draw a combined maximum of 450 mA

Maximum Cable Distance: 1,500 m from the control panel

Addressing: ChallengerPlus COMMS 1 and 2, addresses 1 to 12, twelve units per bus. Network Access Controller BUS 1 addresses 1 to 15, BUS 2 addresses 1 to 16

Compatible Panels: Tecom ChallengerPlus (TS-CHPLUS) and Tecom Network Access Controller (TS1066, TS1067)

Firmware: Remote flash upgradeable via CTPlus installer software

End Of Line Resistors: Multiple values supported

Dimensions: 128 x 78 x 21 mm

Weight: 225 to 255 g depending on the manufacturer document

Operating Temperature: 0 to 50 degrees C

Enclosure: PCB only. Must be installed in an ENC-LGE Large Enclosure, not supplied

Optional Accessory: TS1066P adaptor plate for retrofit installations

Compliance: RCM

Warranty Class On Label: 7 year

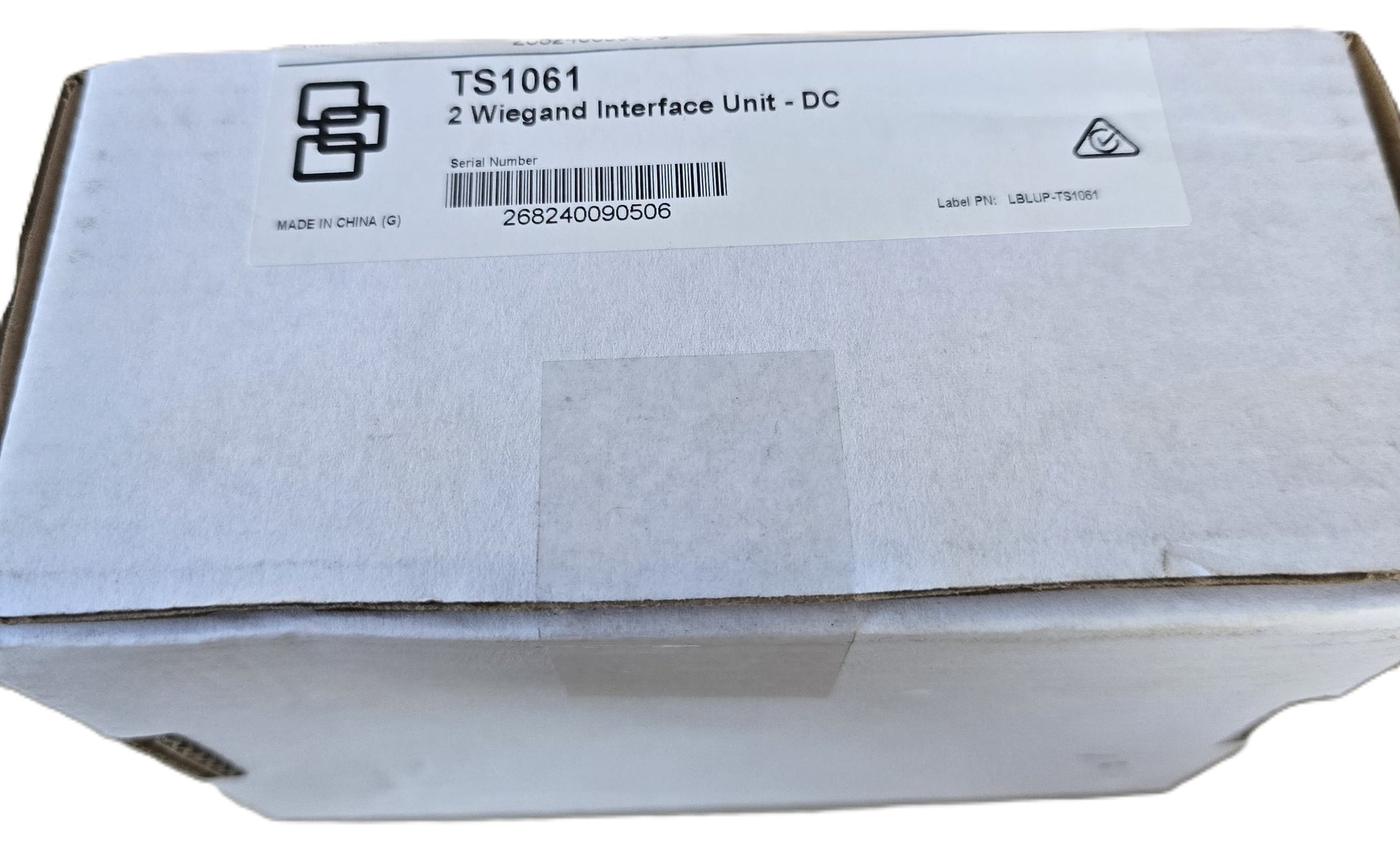

Serial Number: 268240090506

Country of Manufacture: China

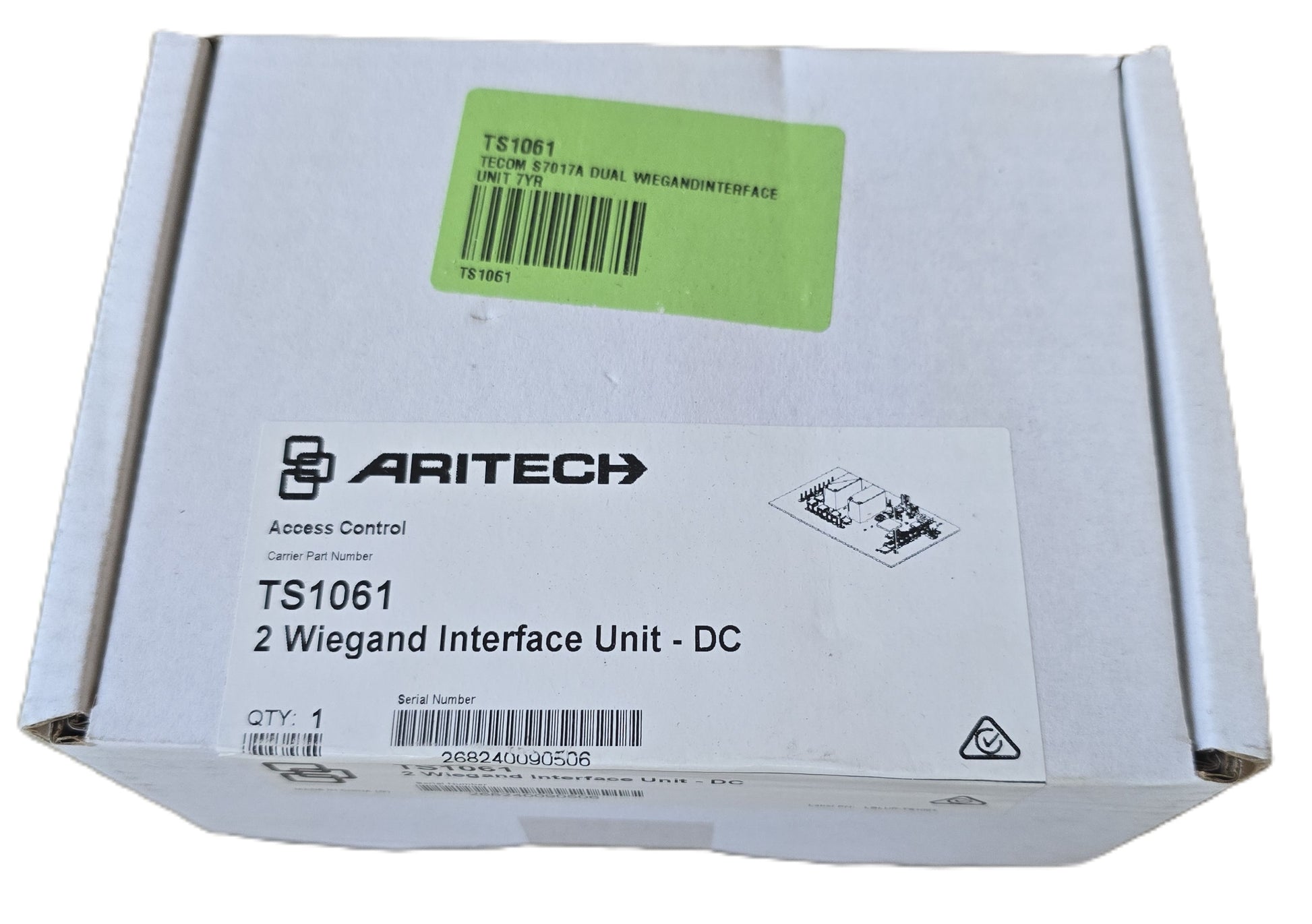

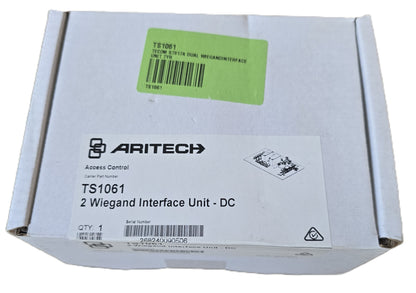

Condition: New in box

Key Features

• Two Wiegand reader ports on one board
• Two relay outputs, four inputs and a tamper input
• RS-485 bus device, up to 1,500 m from the panel
• Up to twelve units on a ChallengerPlus COMMS bus
• Firmware upgradeable remotely through CTPlus
• Seven year warranty class on the Australian distributor label

Typical Applications

• Adding doors to a Tecom ChallengerPlus access control system
• Connecting existing Wiegand card readers to a Tecom system
• Expanding a Tecom Network Access Controller installation
• Retrofitting Wiegand readers with the optional TS1066P adaptor plate

Package Includes

• One TS1061 board
• Installation manual
• Mounting screws and standoffs
• Terminal connectors and end of line resistors
• RS-485 and lock power cables and an earth lead
• No enclosure, no readers and no power supply are included

Additional Information

Please read this before ordering. This module works with the Tecom ChallengerPlus and the Tecom Network Access Controller only. It will not work with Challenger10 or Challenger V8. This is the most common cause of a return on this part, so please confirm your panel before buying.

It is not an Aritech ATS or Advisor Advanced part.

This is a bare PCB and the installation manual specifically requires it to be mounted in an ENC-LGE Large Enclosure, which is not supplied. No Wiegand readers, lock hardware or power supply are included.

Bus address limits apply. A maximum of twelve units can sit on a ChallengerPlus COMMS bus, and fifteen or sixteen on a Network Access Controller bus depending on which bus is used.

Wiegand readers connected to this unit share a 450 mA supply budget.

Installation should be carried out by a licensed security technician.

The item is new and supplied in the manufacturer's box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
