Description

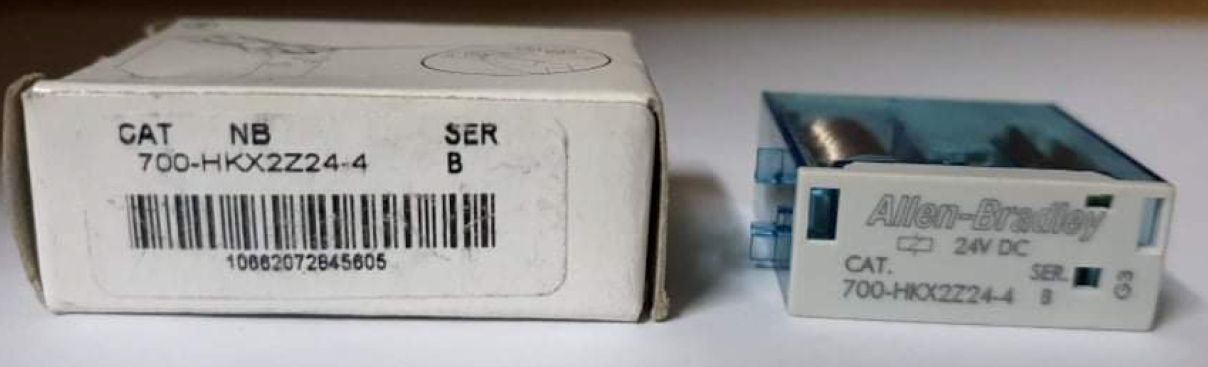

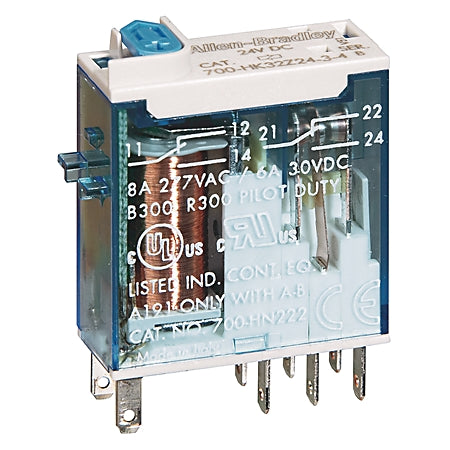

Slim Line Relay with Pilot Light — Coil: 24 VDC · Amperage: 10 A · Contacts: DPDT
Contact rating: 16 A
Poles: 2
Enclosure: Transparent dust cover
Insulation voltage: UL/CSA 300 V, IEC 250 V
Withstand voltage: Pole-to-pole 2000 V; Contact-to-coil 4000 V
Housing material: Molded high dielectric, transparent
Operating cycles: Mechanical 10,000,000
Temperature rating: −40 to +70 °C
Environmental: Storage −40 to +85 °C (−40 to +185 °F); Altitude 2000 m

Specifications

• Item name: Slim Line Relay with Pilot Light

• Coil: 24 VDC

• Amperage rating: 10 A

• Contact configuration: DPDT

• Contact rating: 16 A

• Number of poles: 2

• Enclosure: Transparent dust cover

• Insulation voltage: UL/CSA 300 V; IEC 250 V

• Withstand voltage: 2000 V (pole-to-pole), 4000 V (contact-to-coil)

• Housing material: Molded high dielectric

• Color: Transparent

• Operating cycles: Mechanical 10,000,000

• Temperature rating: −40 to +70 °C

• Environmental: Storage −40 to +85 °C; Altitude 2000 m

Features

• Pilot light included

• Standards: UL/cUL listed, CSA certified, CE marked
