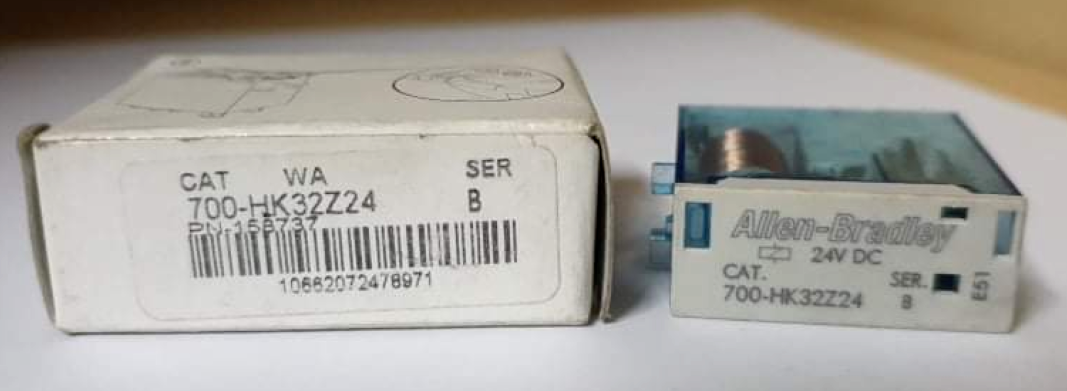

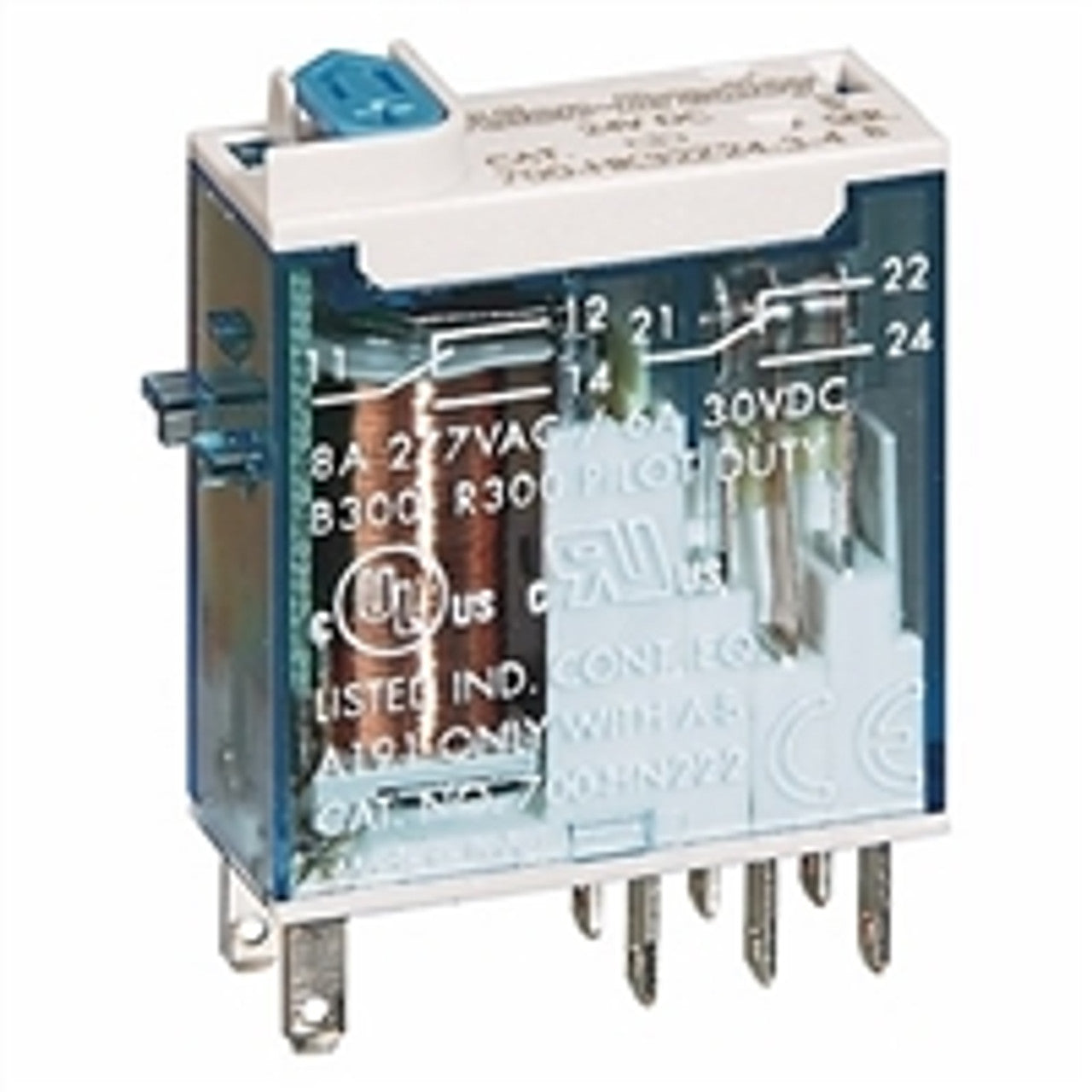

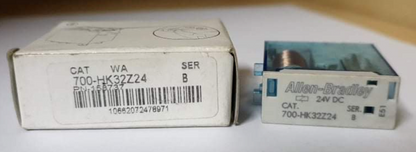

Slim Line Relay — Coil: 24 VDC · Contacts: DPDT
Contact ratings

• AC inductive (pilot duty): 2.9 A B300; 3.0 A 1/4 HP (0.18 kW) 1-ph at 120 VAC; 1.4 A B300; 1.5 A 1/2 HP (0.37 kW) 1-ph at 240 VAC; 0.37 kW 1-ph at 230 VAC

• DC inductive/pilot duty: 3 A at 24 VDC; 0.2 A R300; 0.22 A at 125 VDC; 0.1 A R300; 0.11 A at 250 VDC

• AC resistive: 8 A at 230/277 VAC

Poles: 2 · Enclosure: IP20 · Connection: Socket
Contact material: Silver nickel · Phase: 1-phase
Size: 1-19/64 in (H) × 1-9/64 in (W) × 1/2 in (D)
Insulation voltage: UL/CSA 300 V; IEC 250 V
Withstand voltage: Pole-to-pole 2000 V; Contact-to-coil 4000 V
Operating cycles: Mechanical 10,000,000; Electrical ≥100,000
Temperature rating: −40 to +70 °C
Environmental: Storage −40 to +85 °C; Vibration 2.5 G; Shock 15 G (operational) / 50 G (non-operational); Altitude 2000 m

Specifications

• Item name: Slim Line Relay

• Coil: 24 VDC

• Contact configuration: DPDT

• Number of poles: 2

• Enclosure: IP20

• Connection: Socket

• Contact material: Silver nickel

• Dimensions: 1-19/64 in H × 1-9/64 in W × 1/2 in D

• Insulation voltage: UL/CSA 300 V; IEC 250 V

• Withstand voltage: 2000 V (pole-to-pole); 4000 V (contact-to-coil)

• Operating cycles: Mechanical 10,000,000; Electrical ≥100,000

• Temperature rating: −40 to +70 °C

• Environmental: Storage −40 to +85 °C; Vibration 2.5 G; Shock 15 G / 50 G; Altitude 2000 m

(AC/DC contact ratings as listed in Description.)

Features

• Plug-in blade-style terminals

• Retainer clip with sockets

• Standard ON/OFF flag indicator

• Relay faceplate accepts optional Bulletin 1492 snap-in markers

Standards/Approvals:
CSA Certified 22.2 No. 14 (File 75088); UL Recognized (File E3125, Guides NLDX2/NLCX8); cULus Listed 508 with Allen-Bradley sockets (File 3125, Guides NLDX/NLDX7); CE marked; EN 61810-1.
