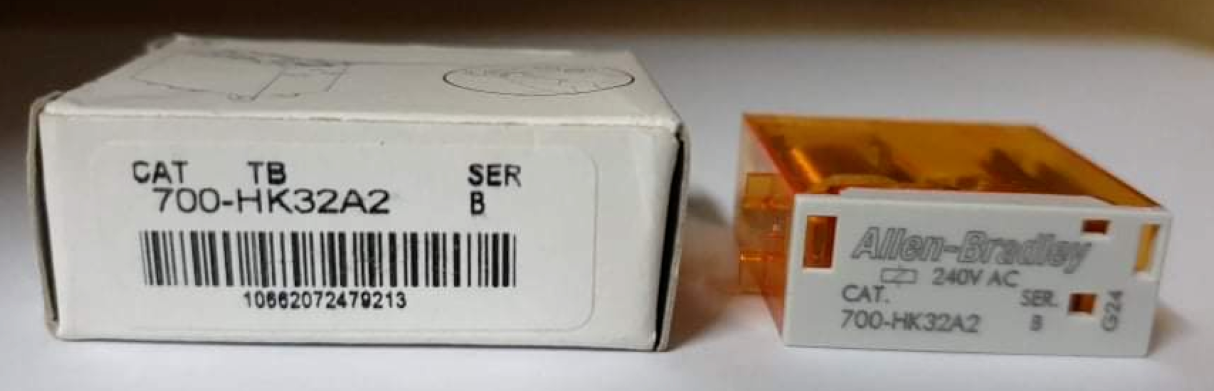

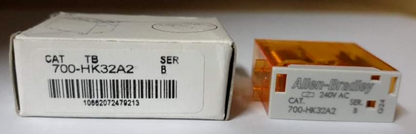

Allen-Bradley 700-HK32A2 700-HK General Purpose Slim Line Relay, 8 Amp Contact

Slim Line Relay, Coil: 240 VAC, Contact Configuration: DPDT, Contact Rating:

• Inductive VAC: 2.9 A B300 Pilot Duty, 3.0 A 1/4 HP (0.18 kW) 1 PH at 120 VAC

• 1.4 A B300 Pilot Duty, 1.5 A 1/2 HP (0.37 kW) 1 PH at 240 VAC

• 0.37 kW, 1 PH at 230 VAC

• Inductive VDC: 3 A at 24 VDC, 0.2 A R300 Pilot Duty, 0.22 A at 125 VDC, 0.1 A R300 Pilot Duty, 0.11 A at 250 VDC

• Resistive: 8 A at 230/277 VAC

Number of Poles: 2
Enclosure: IP20
Connection: Socket
Contact Material: Silver Nickel
Phase: 1 PH
Frequency Rating: 50/60 Hz
Size: 1-19/64 in H x 1-9/64 in W x 1/2 in D
Insulation Voltage: UL/CSA: 300 V, IEC: 250 V
Withstand Voltage: Pole-to-Pole: 2000 V, Contact-to-Coil: 4000 V
Operating Cycles: Mechanical: 10,000,000 / Electrical: 100,000
Temperature Rating: -40 to +70 °C
Environmental: Storage Temp -40 to +85 °C, Vibration 2.5 G, Shock 15 G (Operational), 50 G (Non-Operational), Altitude 2000 m

SPECIFICATIONS

• Item Name: Slim Line Relay

• Coil: 240 VAC

• Contact Configuration: DPDT

• Contact Rating: As listed above

• Number of Poles: 2

• Enclosure: IP20

• Connection: Socket

• Contact Material: Silver Nickel

• Phase: 1 PH

• Frequency Rating: 50/60 Hz

• Size: 1-19/64 in H x 1-9/64 in W x 1/2 in D

• Insulation Voltage: UL/CSA 300 V, IEC 250 V

• Withstand Voltage: Pole-to-Pole 2000 V, Contact-to-Coil 4000 V

• Operating Cycles: Mechanical 10,000,000 / Electrical 100,000

• Temperature Rating: -40 to +70 °C

• Environmental: Storage Temp -40 to +85 °C, Vibration 2.5 G, Shock 15 G (Operational) / 50 G (Non-Operational), Altitude 2000 m

FEATURES

• Plug-in blade-style terminals

• Retainer clip with sockets

• Options: LED, push-to-test and manual override, socket-mounted surge suppressor module, timer module

• Standard on/off flag indicator

• Relay faceplate accepts optional Bulletin 1492 snap-in markers

• Standards: EN61810-1, CSA 22.2 No. 14, UL Listed 508, CSA Certified, UL Recognized, C/US UL Listed, CE Marked
