Alcatel-Lucent 8135S IP Conference Phone SIP PoE 3MG08015AA (NEW In Box)

The Alcatel-Lucent 8135s is a SIP conference phone for meeting rooms, sold by ALE as part of the OmniTouch range under part number 3MG08015AA. It uses OmniSound HD audio with a 360 degree omnidirectional microphone, automatic echo cancellation and noise suppression, and covers a room of up to 30 square metres and about twelve people. Coverage extends to around 70 square metres with the optional expansion microphones.

It is a full SIP version 2 endpoint supporting UDP, TCP, TLS and SIPS signalling with RTP and SRTP media, and the G722, G711 A-law, G711 mu-law and G729ab codecs. Two SIP accounts can be configured and a local five way audio bridge is built in. The phone is powered over 802.3af PoE Class 3, or from an optional mains adapter. Bluetooth Low Energy and NFC are provided for pairing with the ALE Unite mobile application, and a USB 2.0 Mini-B port is fitted.

Specifications

Brand: Alcatel-Lucent Enterprise

Model: 8135s Conference Phone

Part Number: 3MG08015AA

Product Type: SIP IP conference phone, indoor use

Protocol: SIP v2, RFC 3261 and companion RFCs

Signalling: UDP, TCP, TLS, SIPS

Media: RTP, SRTP

Codecs: G722, G711 A-law, G711 mu-law, G729ab

Audio: OmniSound HD, full duplex, automatic echo cancellation, noise suppression

Microphone: Omnidirectional 360 degree pickup, up to 12 people or 30 square metres

Expansion: Up to 70 square metres with optional expansion microphones, part 3GV28134AA

Speaker: 200 to 20,000 Hz, maximum 90 dB

Display: Backlit black and white LCD, 128 x 64 pixels

Network: 10/100BaseT RJ45

Power over Ethernet: IEEE 802.3af, Class 3

Optional Mains Adapter: 3GV28133, 100 to 240 V AC in, 14 V DC 1500 mA out. Not included

Bluetooth: Low Energy profiles for control only, no audio streaming

NFC: For pairing with the ALE Unite mobile application

USB: 2.0 Mini-B

Conference Bridge: Local 5 way

SIP Accounts: 2 configurable

Directory: LDAP, up to 1,000 local entries per user profile

Security: Kensington security slot

Dimensions: 240 mm wide x 77 mm high

Weight: 1 kg

Colour: Licorice black

Operating Temperature: 5 to 40 degrees C, 20 to 80 percent non condensing

Compliance: CE under RED 2014/53/EU and RoHS 2011/65/EU, FCC Part 15 Class B

Manufactured: 2019

Country of Manufacture: China

Condition: New in box

Key Features

• OmniSound HD full duplex audio with 360 degree pickup
• Covers up to 12 people, extendable with optional expansion microphones
• Powered by 802.3af PoE, a single cable to the table
• Two SIP accounts and a local five way conference bridge
• Bluetooth Low Energy and NFC for the ALE Unite application
• LDAP directory with 1,000 local entries per profile
• Kensington security slot

Typical Applications

• Meeting rooms and boardrooms on an Alcatel-Lucent OXO or OXE platform
• Any standards based SIP PBX or hosted SIP service
• Project rooms and huddle spaces cabled for PoE
• Spare or expansion stock for an existing 8135s fleet

Package Includes

• One Alcatel-Lucent 8135s conference phone

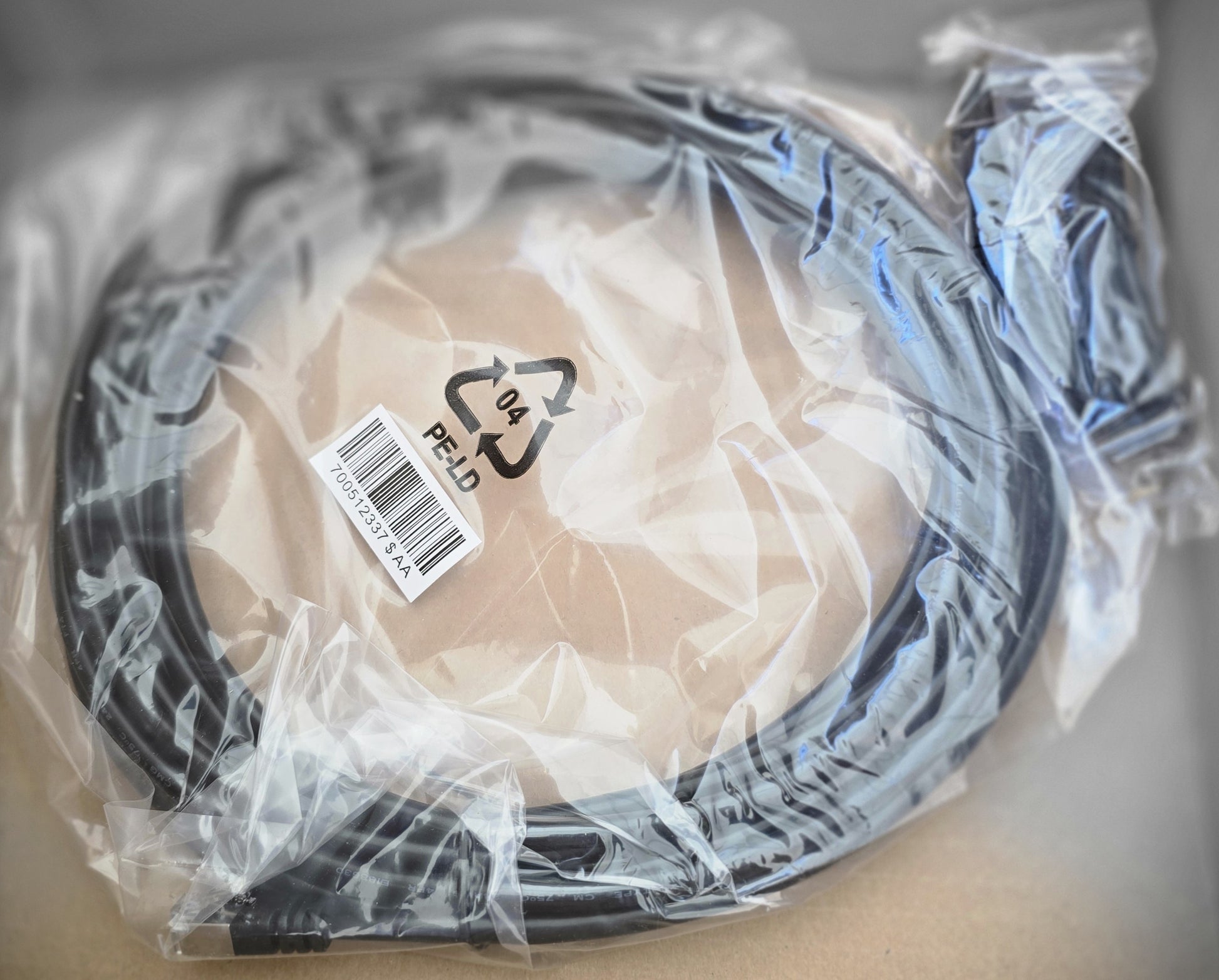

• One Ethernet patch cable

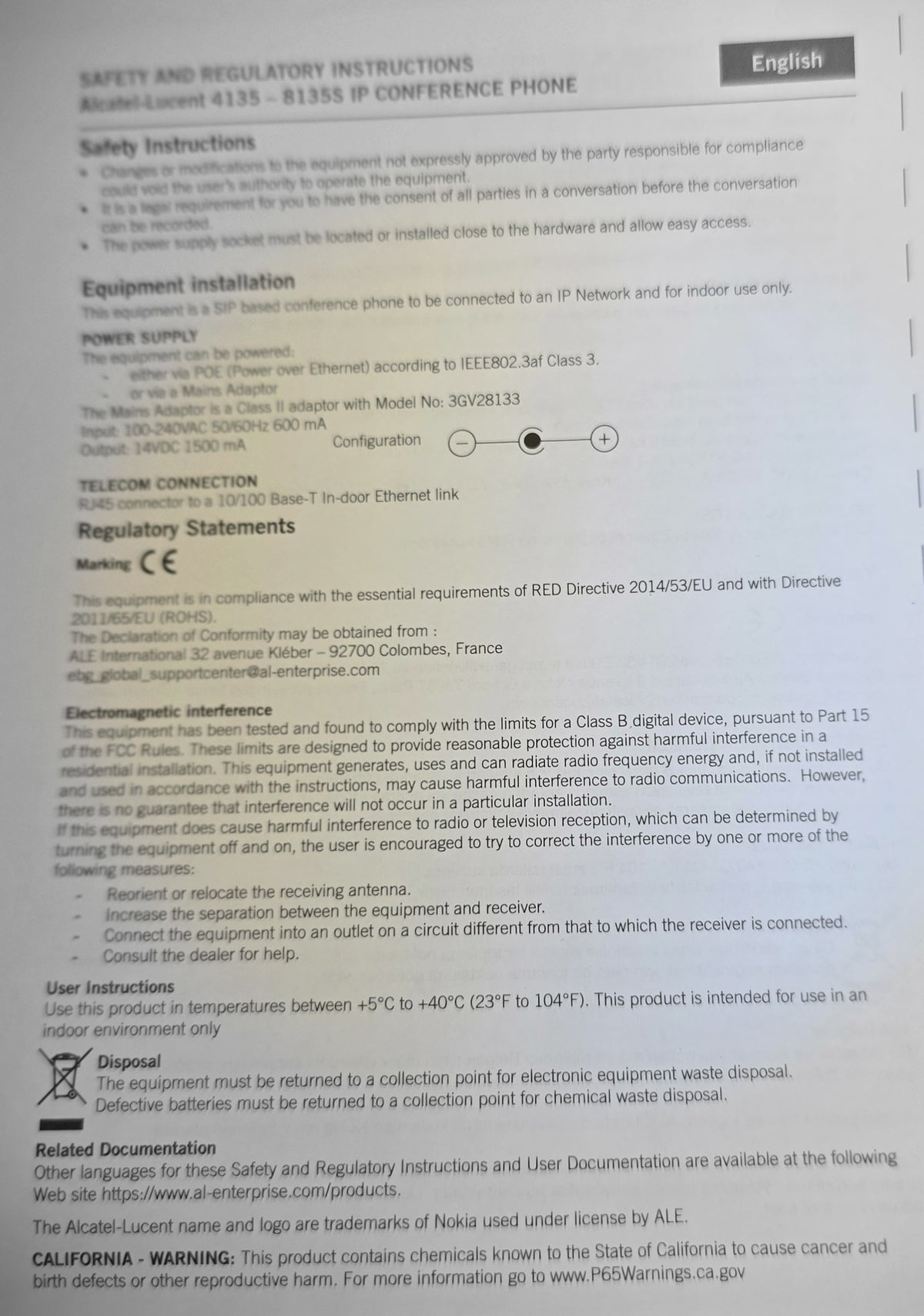

• Printed Safety and Regulatory Instructions leaflet
• No power supply, no expansion microphones and no USB cable are included

Additional Information

Please read this before ordering. This is the phone only pack, part number 3MG08015AA. It contains the phone, an Ethernet cable and a safety sheet. It does not include the mains power adapter and it does not include expansion microphones. The pack that bundles those items is a different part number, 3MG07040AA. Please compare like with like when checking prices.

The phone must therefore be powered by 802.3af PoE Class 3, or the buyer must separately obtain the 3GV28133AA 14 V DC adapter.

This is a SIP device. It requires a SIP or IP platform such as Alcatel-Lucent OXO or OXE, or a compatible SIP PBX. It will not work on a plain analogue phone line.

Bluetooth on this model is control and Low Energy only. It will not stream call audio from a mobile phone.

The unit carries CE and FCC marks. No Australian RCM mark was visible on the carton label. The batch code indicates 2019 manufacture, so this is new old stock and any original manufacturer warranty has expired.

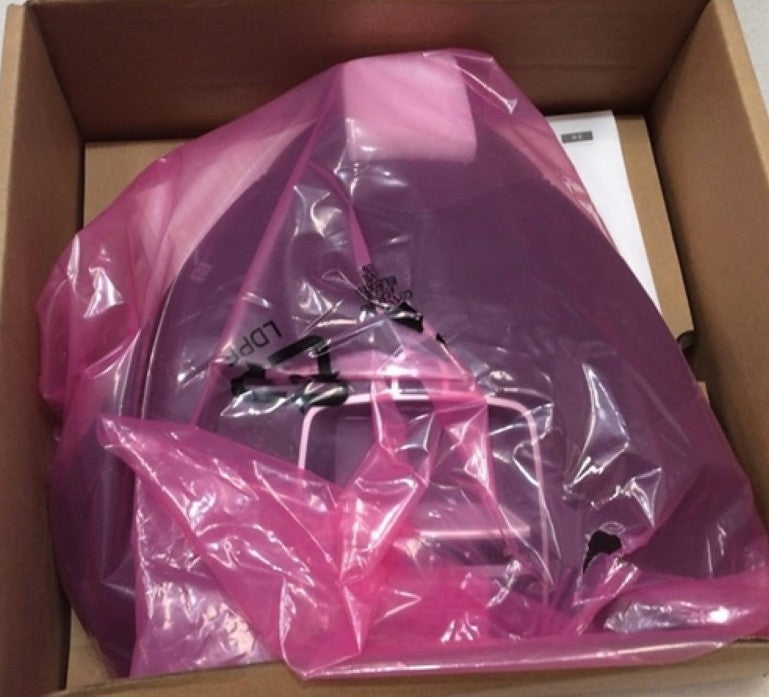

The item is new and supplied in the manufacturer's box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
