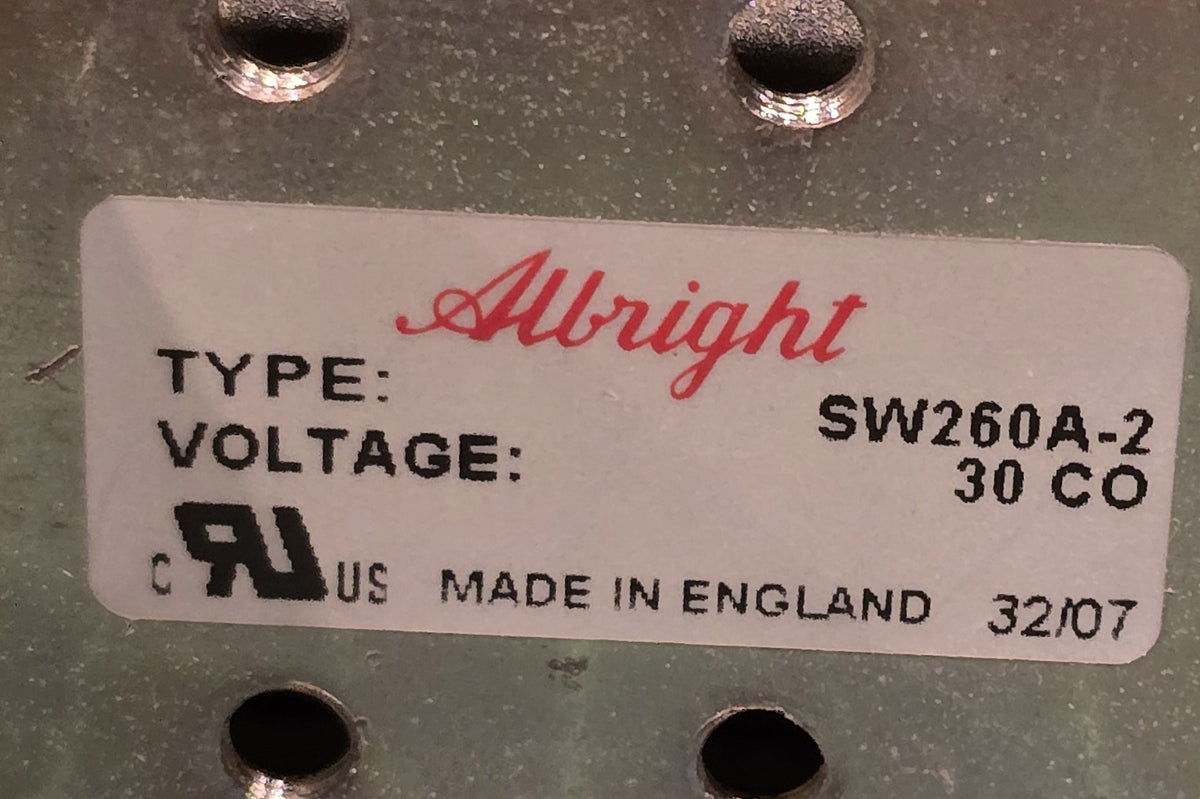

The Albright SW260A-2 is a heavy duty single pole DC contactor from the Albright International SW260 busbar series. The label reads 30V CO, meaning a continuously rated coil in the 24 V class, and the -2 suffix denotes the 24 V coil. It is designed to mount directly on busbars in battery powered equipment.

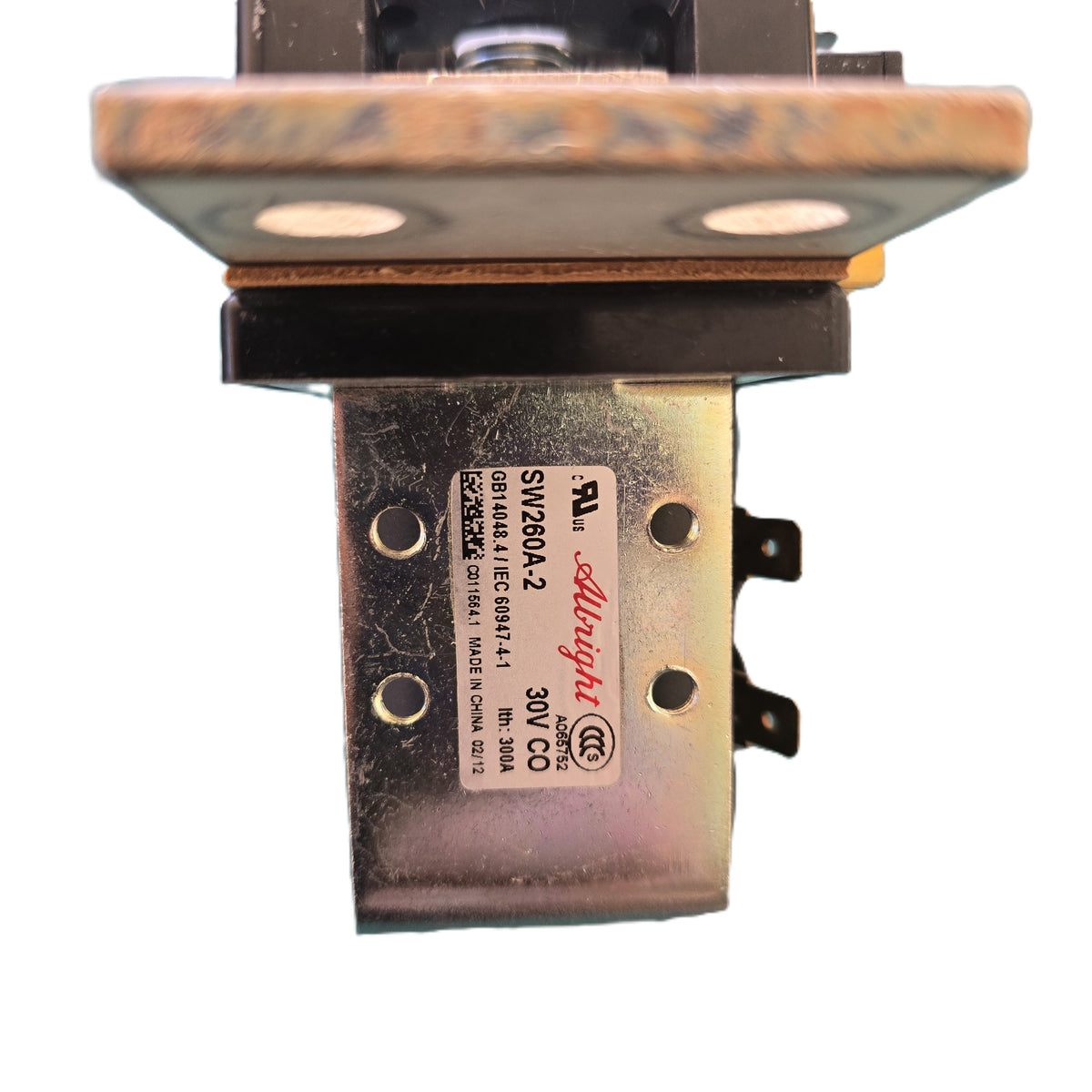

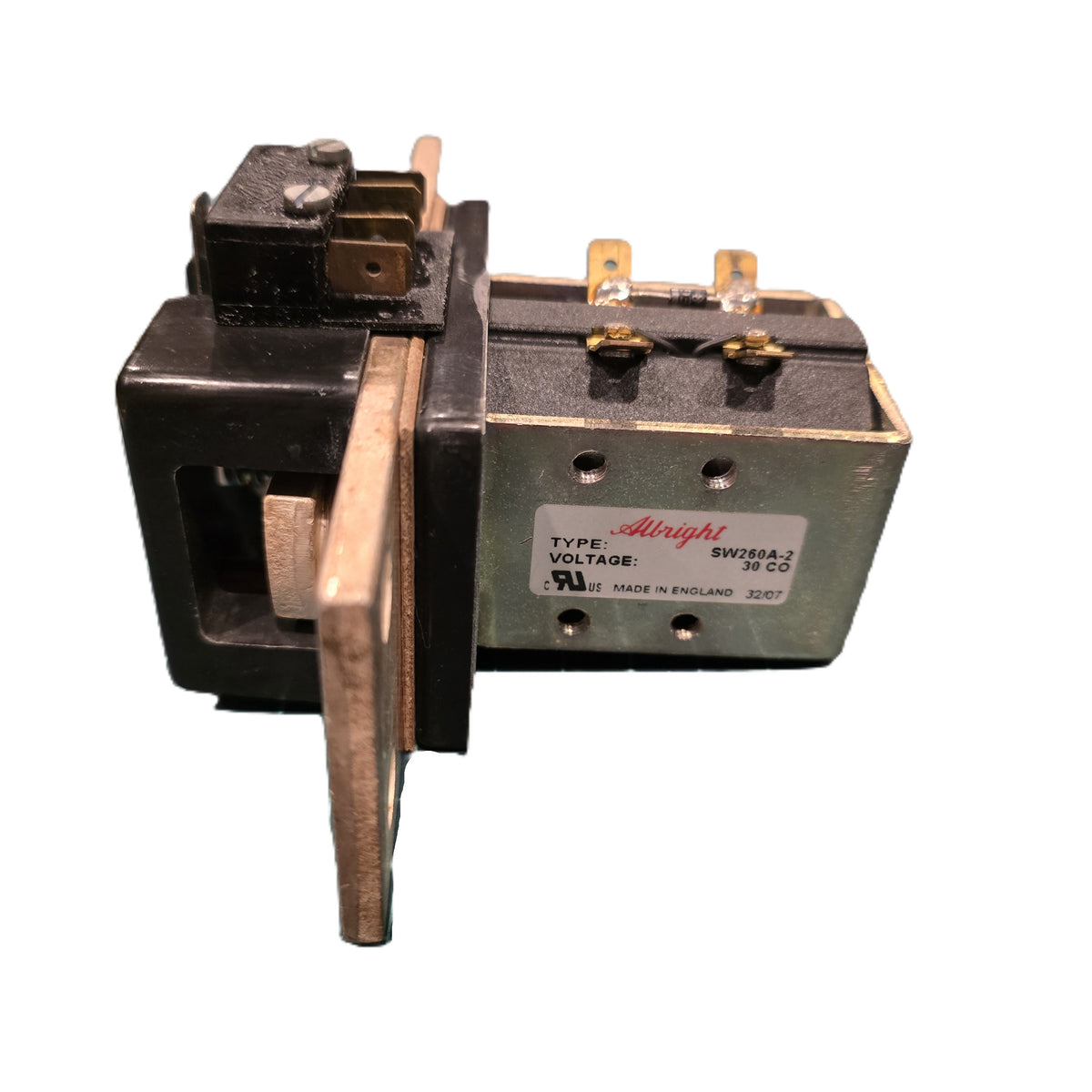

The SW260 series is rated 300 A uninterrupted thermal current with double breaking silver alloy contacts and a breaking capacity of 450 A at 60 V DC. Two units are available: one made in England (date code 32/07) and one made in China (02/12). Both are used pulls, sold untested.
Specifications
Brand: Albright International
Model: SW260A-2
Part Number: SW260A-2
Alternate Part Number: SW260-2, SW260-1 (30 V), superseded by SW260-300
Product Type: DC busbar contactor
Contacts: SPST normally open, double breaking silver alloy
Continuous Current: 300 A (Ith)
Breaking Capacity: 450 A at 60 V DC
Coil: 24 V DC continuous (label 30V CO)
Weight: Approx. 950 g
Condition: Used, untested
Key Features
- 300 A continuous rating
- Busbar mounting, vertical or horizontal
- Continuously rated 24 V coil
- Double breaking silver alloy contacts
- Mechanical life over 1,000,000 cycles
Typical Applications
- Forklift and electric vehicle traction circuits
- Battery disconnect and DC power switching
- Telecom and UPS DC distribution
Package Includes
- 1 x Albright SW260A-2 contactor
Additional Information

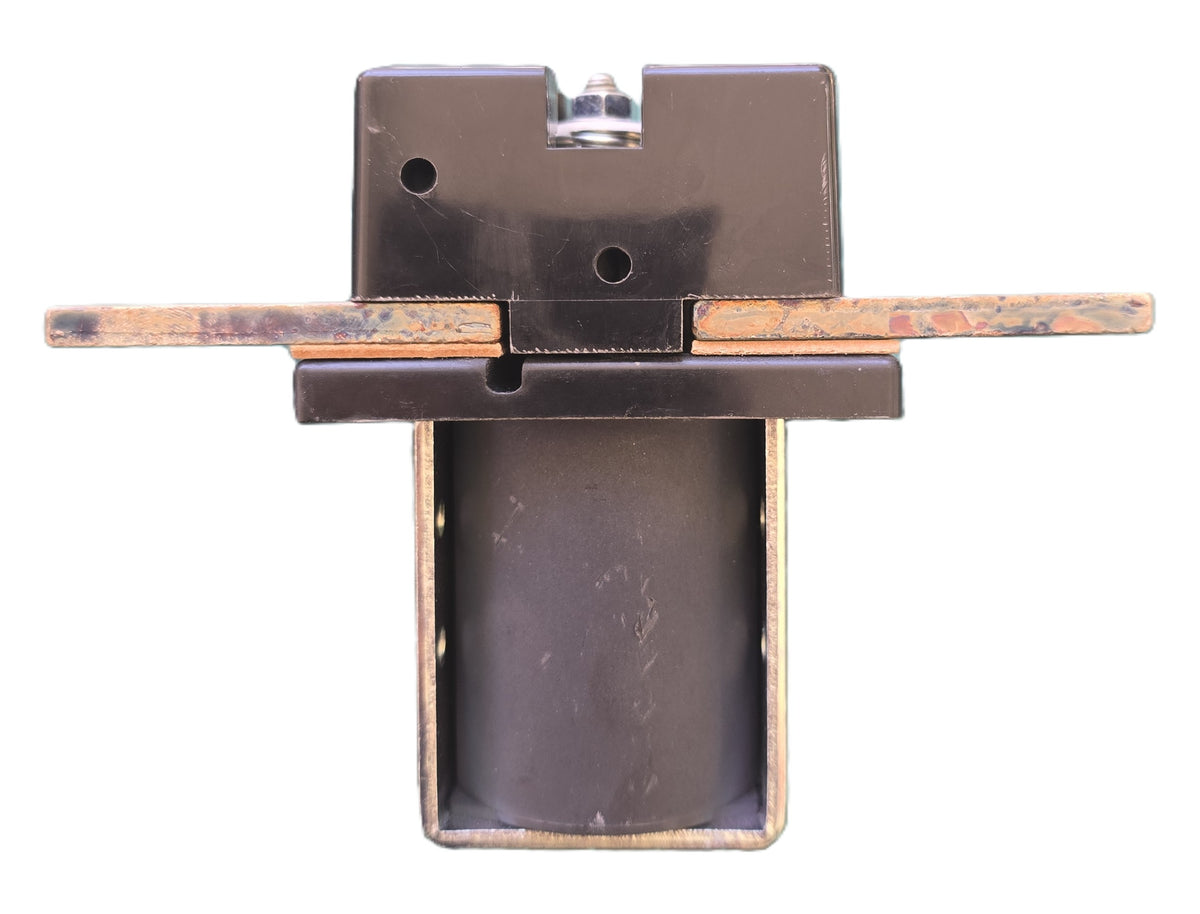

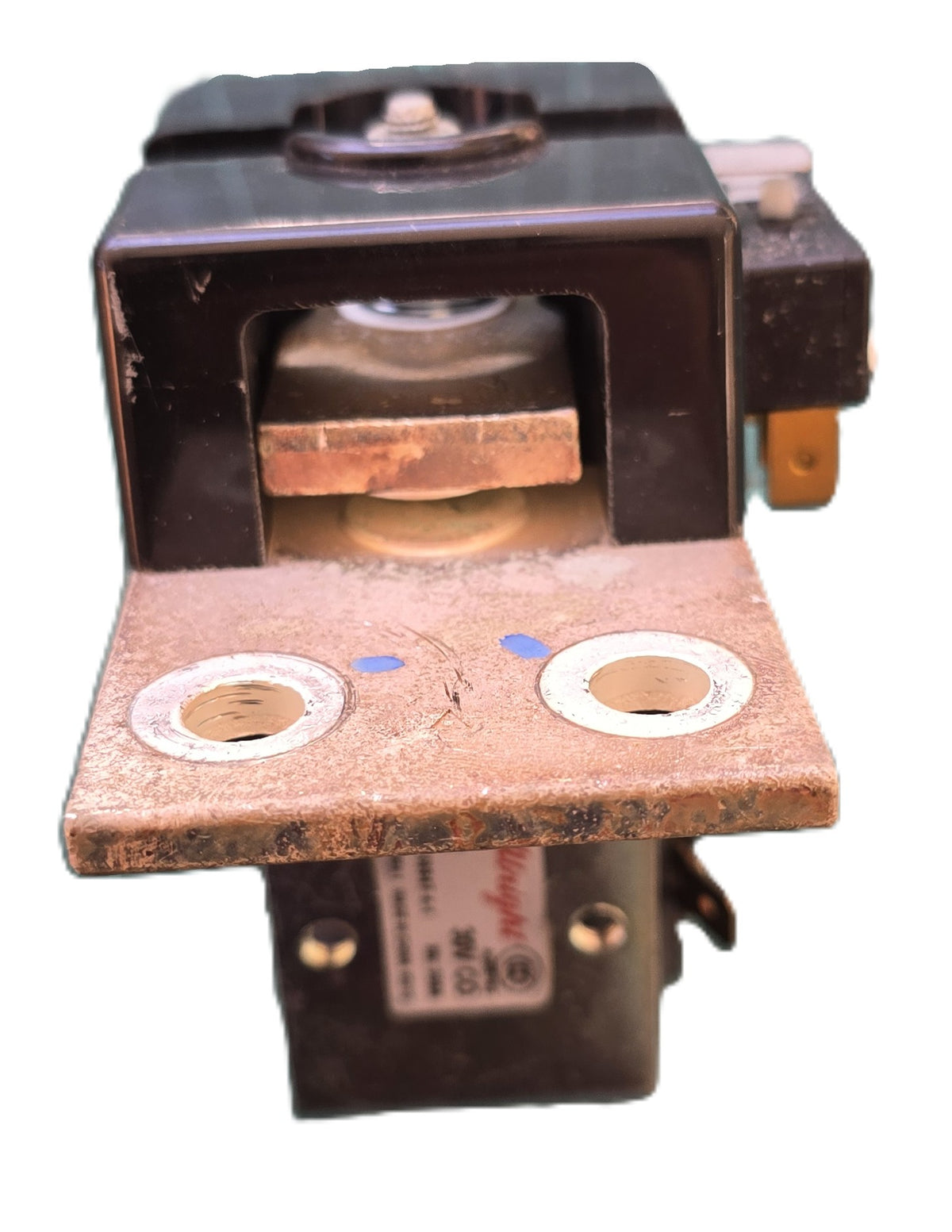

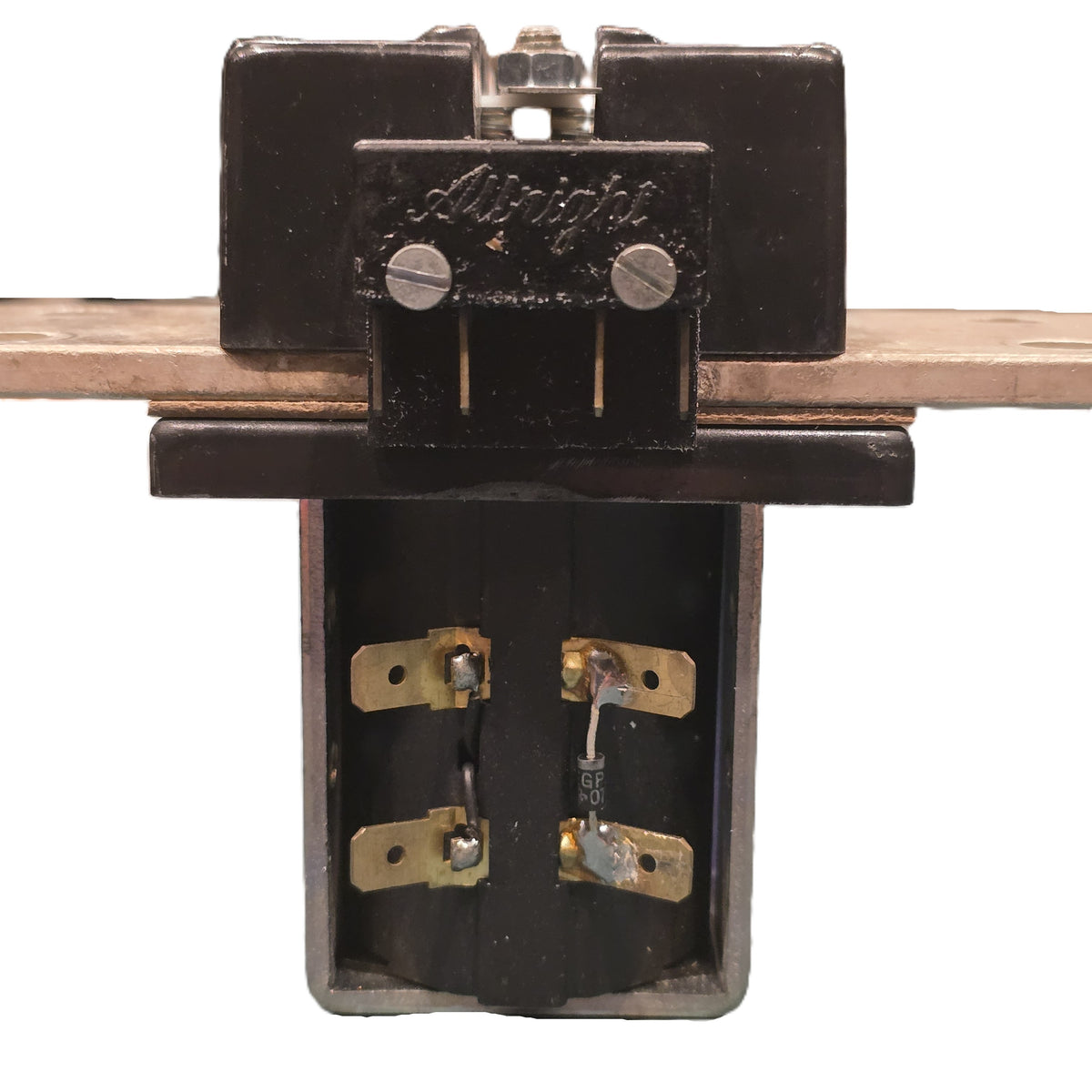

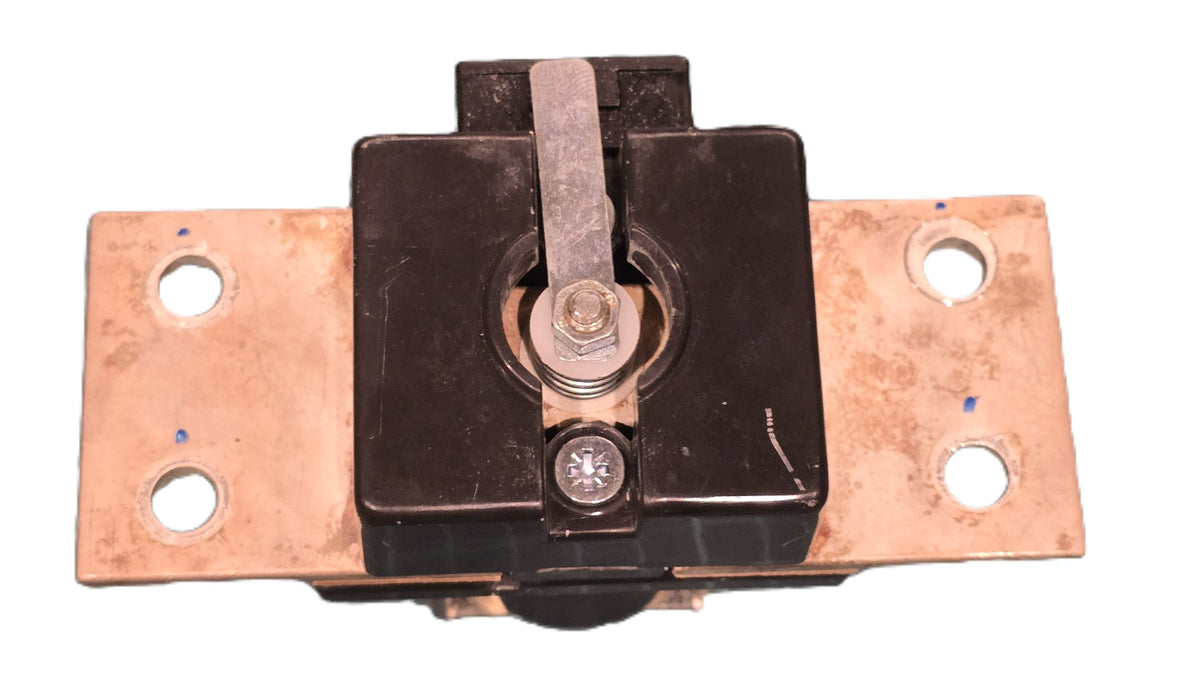

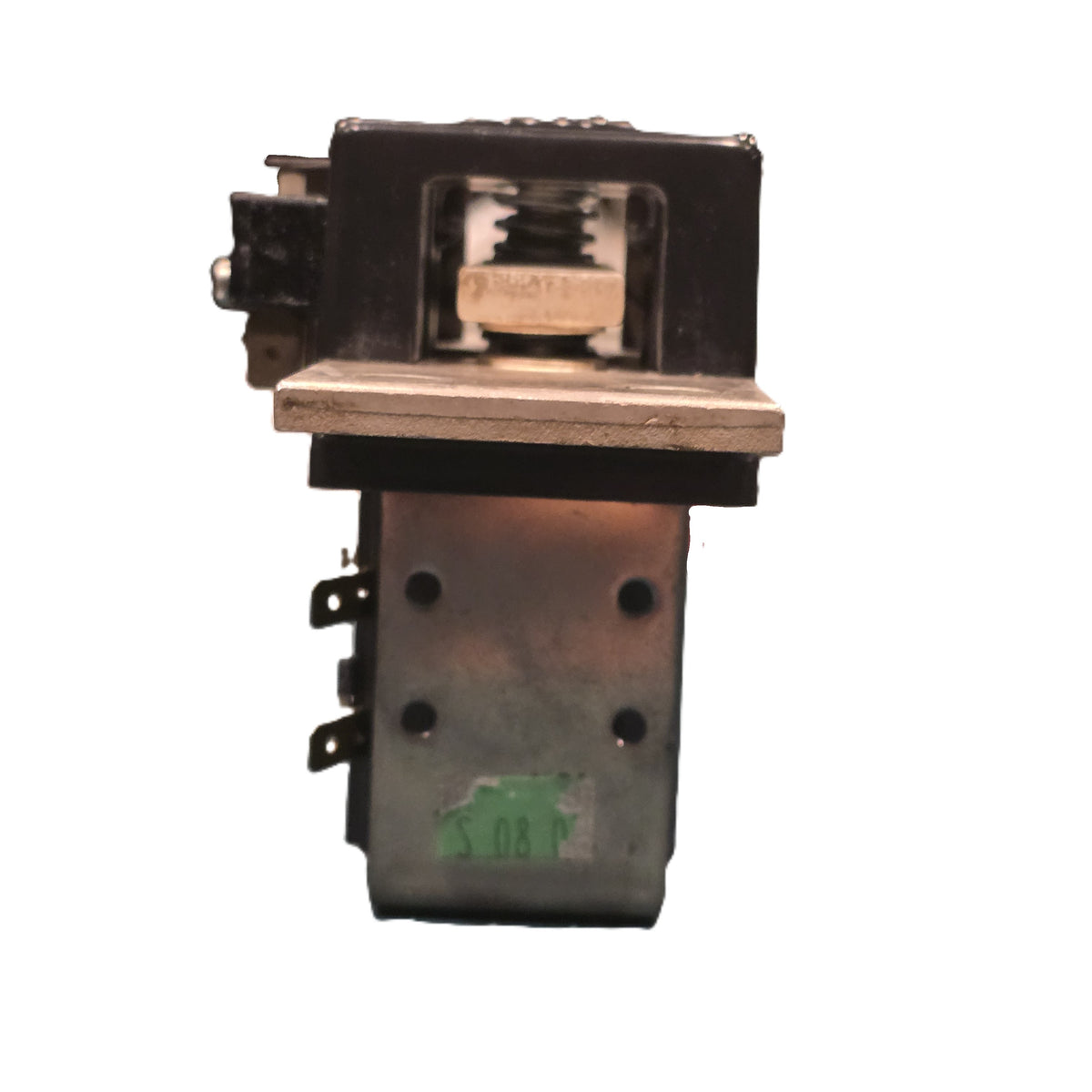

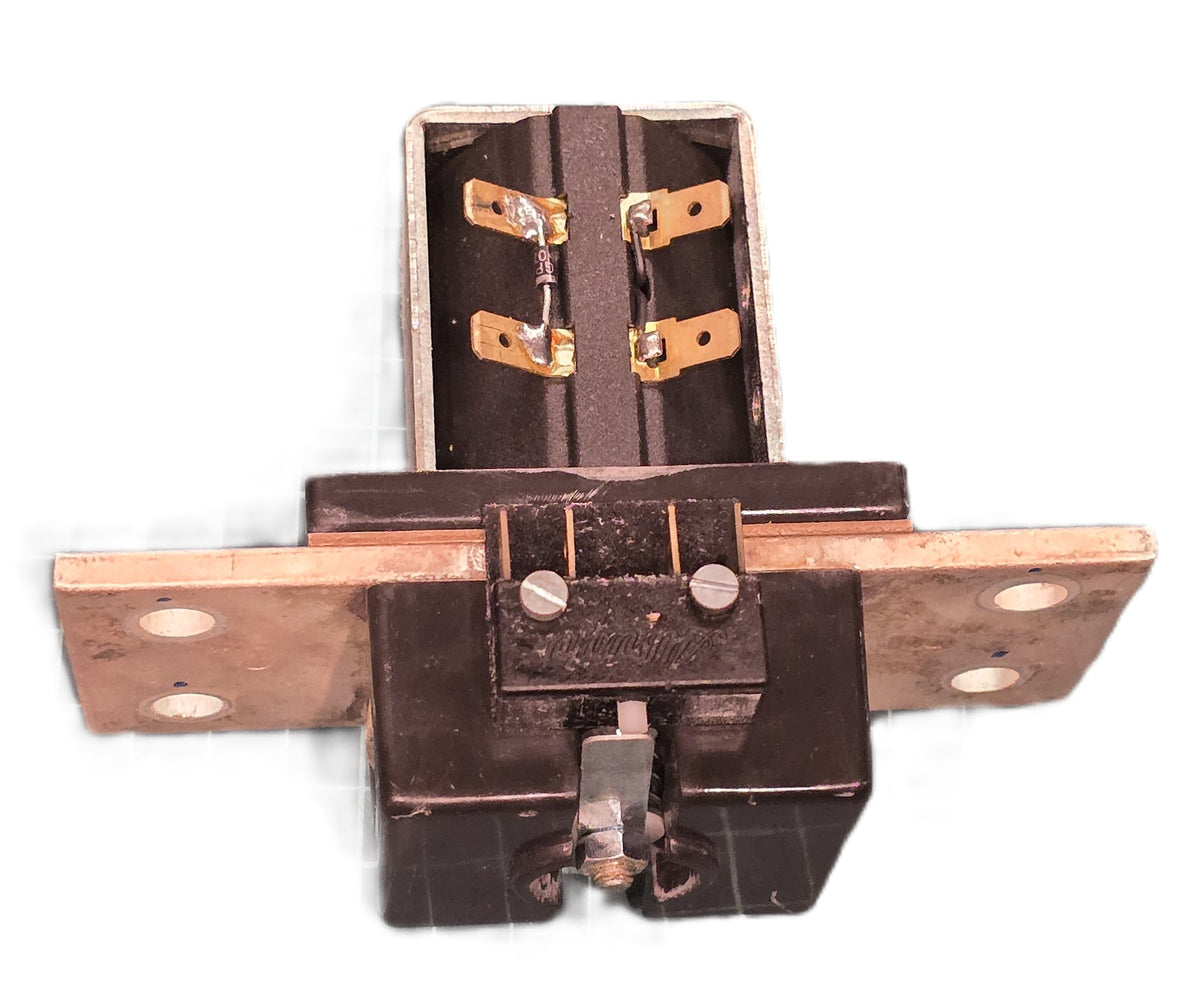

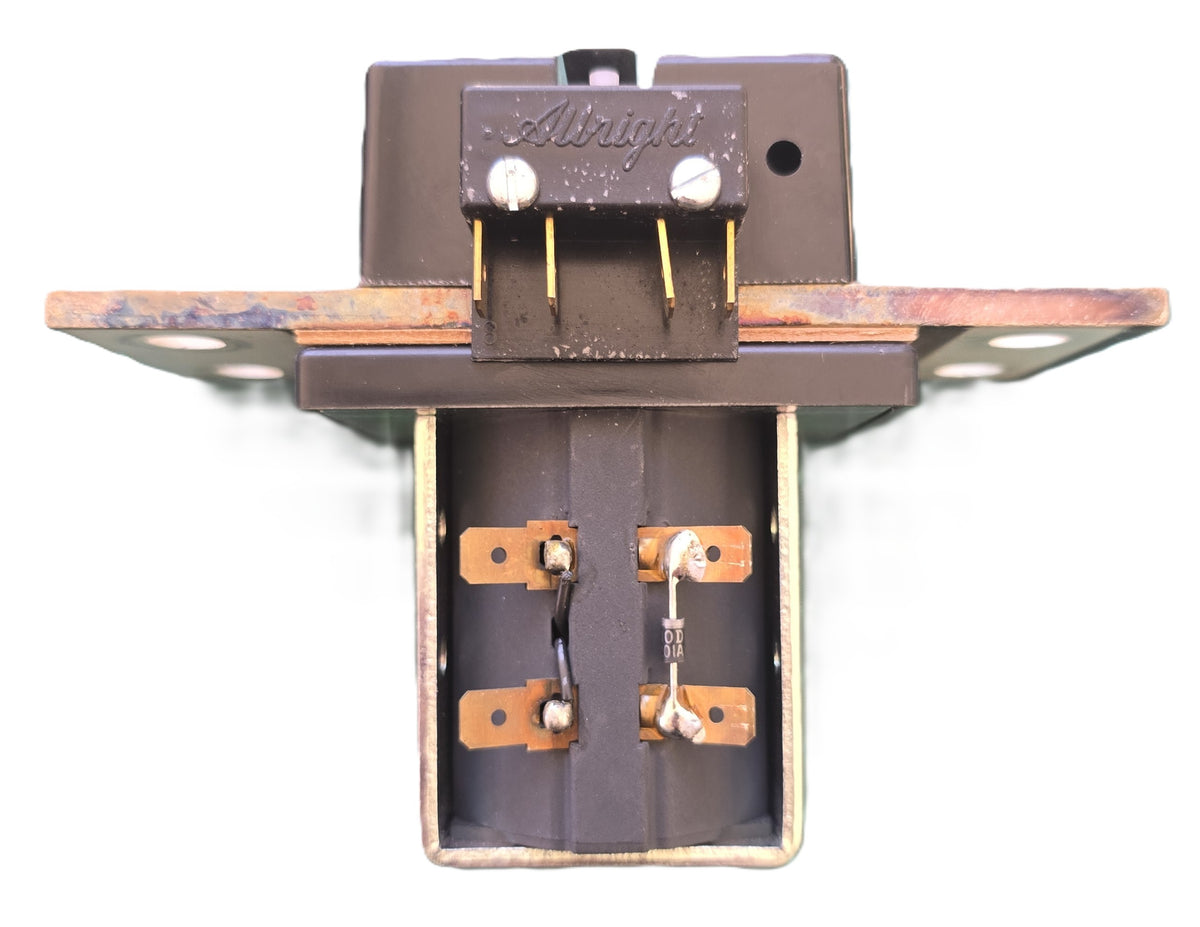

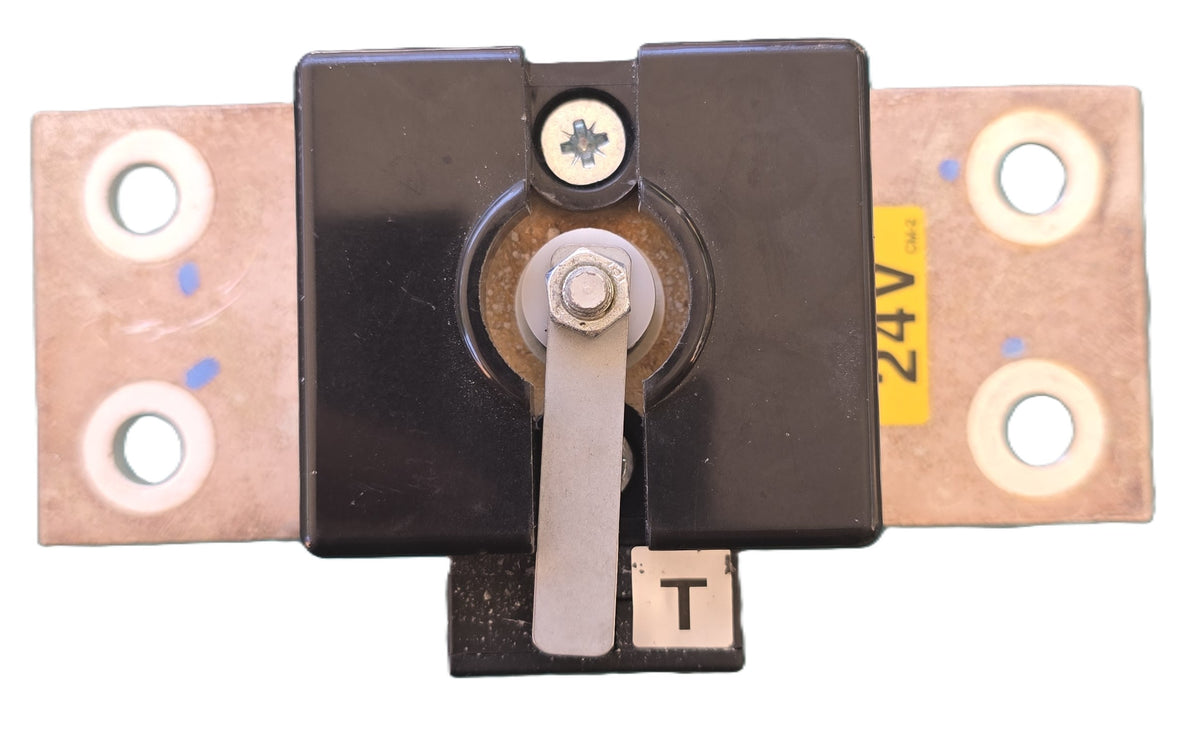

Price is per contactor. Two units are available; the photographs show both.
Specifications are from the Albright SW260 series datasheet.
This is a used item and may show minor cosmetic marks from previous use. Please refer to the photographs for the overall condition.
Shipping from Sydney, Australia.
